It’s a wide-format inkjet built to output large technical documents — architectural, engineering and construction drawings on sheets up to ARCH E or A0. Unlike an office printer, it feeds from rolls, renders fine CAD linework crisply on plain bond, and handles both monochrome drawings and color work like renderings or GIS maps. Modern units are inkjet; the pen-plotter era is long gone, though the name stuck.

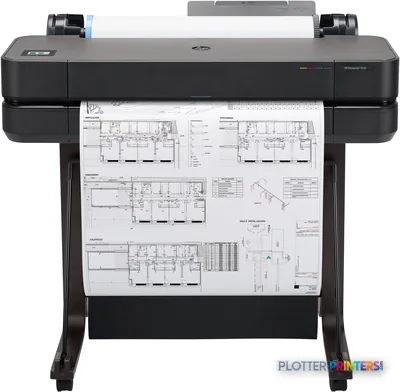

Width capacity. A 24-inch class machine tops out at A1 and D-size drawings and suits small offices that print occasionally. A 36-inch class machine handles full ARCH E and A0 — the standard for AEC plan sets — and is usually floor-standing with single- or dual-roll options. Size to the largest sheet you print regularly. Outgrowing width shortly after purchase is a costly mistake.

For AEC, pigment ink is the default. It’s water- and UV-resistant and archival, so drawings survive a job trailer, a field folder and a permit file. Dye ink saves money and adds pop, but it fades sooner, which matters if output gets handled or stored. If you’re printing drawings that must last or leave the office, choose pigment; dye is a niche choice for short-lived indoor color.

It keeps two media types loaded at once — typically plain bond and a coated or gloss stock — so a job can switch paper without anyone touching the machine. On a mixed plan-set run, that removes a stop-and-swap step and the operator minutes around it. It also enables automatic roll switching for unattended production. If your work mixes media or sizes, dual-roll pays for itself in labor you stop spending.

We grade each machine on nine dimensions, measure color gamut in the lab, and pull plain specs from manufacturer datasheets. Scores drive the ordering automatically, so the leaderboard isn’t hand-arranged. The full weighting is published on our how-we-rate page. That’s the point: you can audit the method before trusting a single ranking, which is more than most buying sites will let you do.

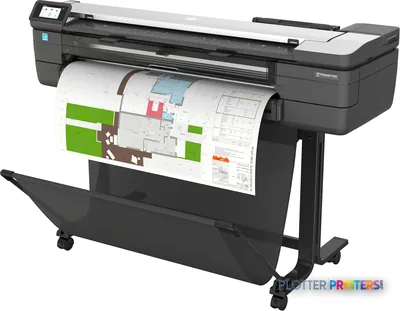

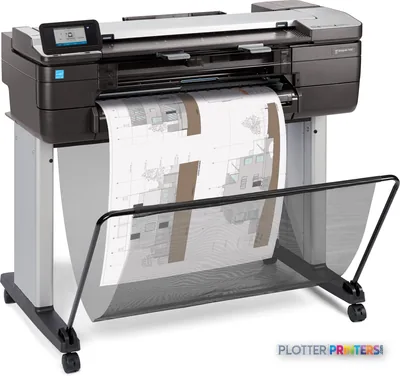

Only if you scan and copy wide-format documents — as-builts, field markups, older drawings needing digitizing. A wide-format MFP class machine adds an integrated scanner for print, scan and copy in one footprint, which suits plan rooms and repro work. If you only print, a scanner adds cost and a component to maintain that you’ll rarely touch. Match the machine to the tasks you actually perform.

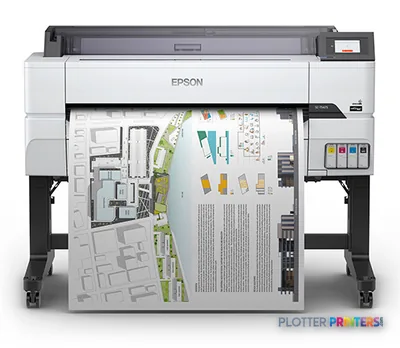

It depends on your emphasis. HP DesignJet is the entrenched CAD choice for many firms, strong on driver behavior and network manageability across a broad range. Epson SureColor leans toward color, with wide measured pigment gamut for presentation and GIS work alongside capable technical models. Compare them on measured numbers using our ranked list rather than brand habit, then let your actual output mix decide.

Because prices move, and a number written into prose goes stale the moment it changes. We render live prices in the ranked grids next to the writing instead, so what you see is always current. The prose handles positioning and fit; the grids handle numbers. It’s the only honest way to keep a site like this accurate over time.

Yes. Financing and leasing are available, and trade-ins are on the table when you’re replacing older equipment. Specific terms are handled per deal — start through the quote funnel or call us and we’ll work the numbers for your situation. For capital-constrained buyers, spreading the cost or offsetting it against an aging machine often changes which class is realistically within reach.

We’re an authorized dealer for HP DesignJet and Epson SureColor, and an authorized Roland DG dealer for a limited set of models — Roland units are quote-led, so ask and we’ll confirm availability. Canon we cover editorially in our rankings and comparisons for completeness, but we don’t sell it. Even for brands we don’t carry, our graded data still helps you compare.
