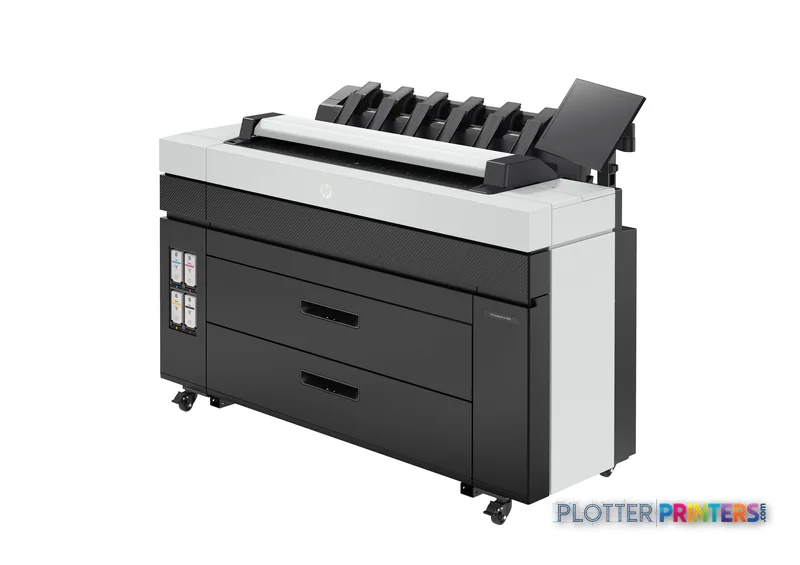

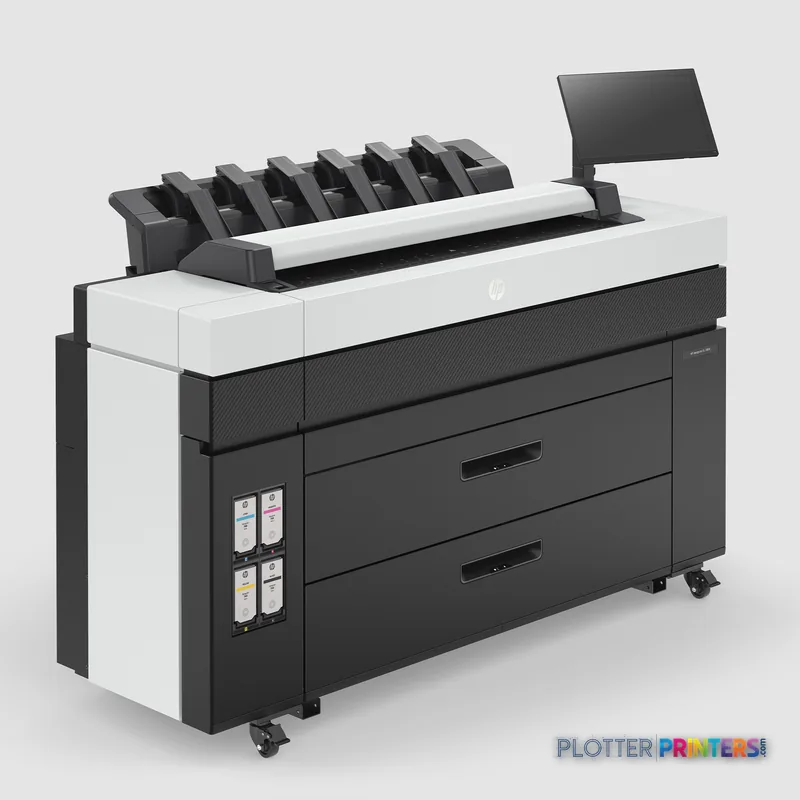

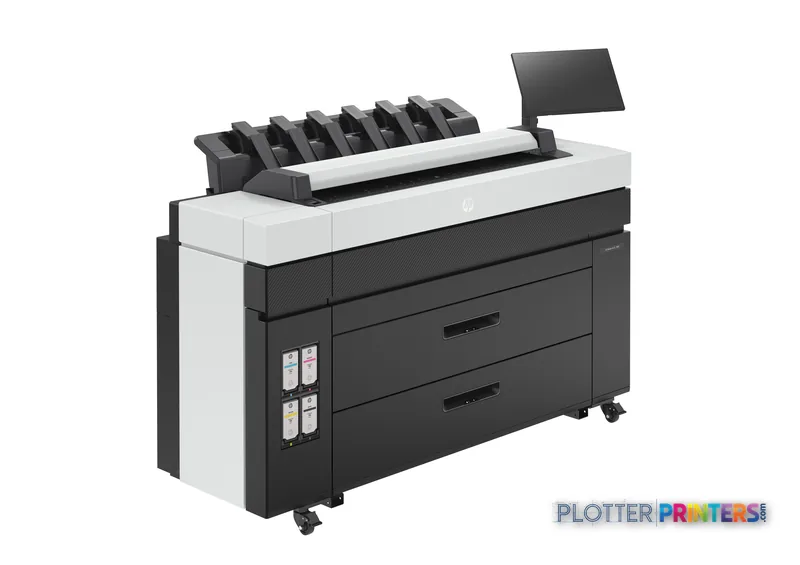

HP DesignJet XL 3800 MFP

This machine is particularly well suited to architecture, engineering and construction teams that need to produce and capture documents close to the project team. Its 36-inch roll width covers the common plan-sheet format, while color copying and a 25–400% copier resize range support reduced check sets, enlarged details and reproduction of marked-up drawings. The included stacker and rear basket also make more sense in an active print area than treating output collection as an afterthought.

• Architectural and engineering teams printing CAD, BIM-derived PDFs and presentation-oriented drawings.
• Construction offices copying and scanning color-coded coordination sheets and field redlines.
• Survey and infrastructure groups handling GIS maps, raster files and CALS G4 documents.
• Departments that need one device to print, scan and copy rather than route each task elsewhere.

Media support includes bond, coated, photo and banner paper, with stated media thickness up to 0.031 inches (0.8 mm). The 200 m maximum roll length can reduce interruptions where long runs are practical, but roll changes, file preparation and output handling still determine productive throughput. Money is minutes.

The supplied software list is unusually relevant to an IT-supported AEC environment: HP Click for Windows and macOS, HP Click Driver for Windows 11, HP Web Jetadmin and HP Security Manager are included alongside HP Command Center and HP app support. Ethernet LAN is provided; Wi-Fi is not. For offices that prefer controlled network printing over ad hoc wireless submission, that is a reasonable trade-off. The device also has a 256 GB HDD and HP dynamic security.

Security and manageability deserve attention before installation, not after the first project folder is exposed to the wrong queue. Confirm authentication practices, HDD handling, administrator access, driver deployment and how job accounting will be handled in your environment. The data specifies scan-to-USB capability but lists no USB port, so buyers should have the dealer demonstrate the exact scan destination workflow they expect to use.

For supplies, this model uses the listed HP 886 ink family and has compatible HP 841 and HP 886 printhead-family items, plus HP 841 maintenance supplies. Confirm the service agreement’s replacement responsibilities and local parts process; the machine is only one node in the system.

The catalog’s named in-family reference is the HP DesignJet T918 36-in, which is listed as discontinued. It can be useful as an installed-base comparison for teams replacing an older HP MFP, but it should not be treated as a like-for-like current purchasing option based on that catalog status. There is no named current in-family step-up or step-down model in the supplied comparison set, so a buyer should compare actual workflow requirements rather than infer a lineup position from the name.

Cross-brand evaluation should focus on driver behavior, scan workflow, local service and ordinary bond-paper output—not a specification table alone. The Canon GP-300 36-in and Canon imagePROGRAF 700 36-in are catalog-listed 36-inch alternatives worth placing in a controlled sample-file trial. Use the side-by-side comparison to frame that review, then test your own PDF, HP-GL/2 and scanned-redline files. For broader context, see the wide-format class ranking.
