HP · Wide-Format Plotter
HP DesignJet T830
36" wide-format MFPs
- ModelF9A30D#B19
- Prints36" wide
- Score53/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Integrated 36-inch color scanner and copier make this a true MFP, not just a plotter.
- Single roll and single printhead keep it simple but cap sustained, mixed-size volume.
- HP rates it at 82 pph in normal quality on A1 — treat that as a ceiling, not a daily average.
Not sure if the F9A30D#B19 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Matte black, Magenta, Yellow.

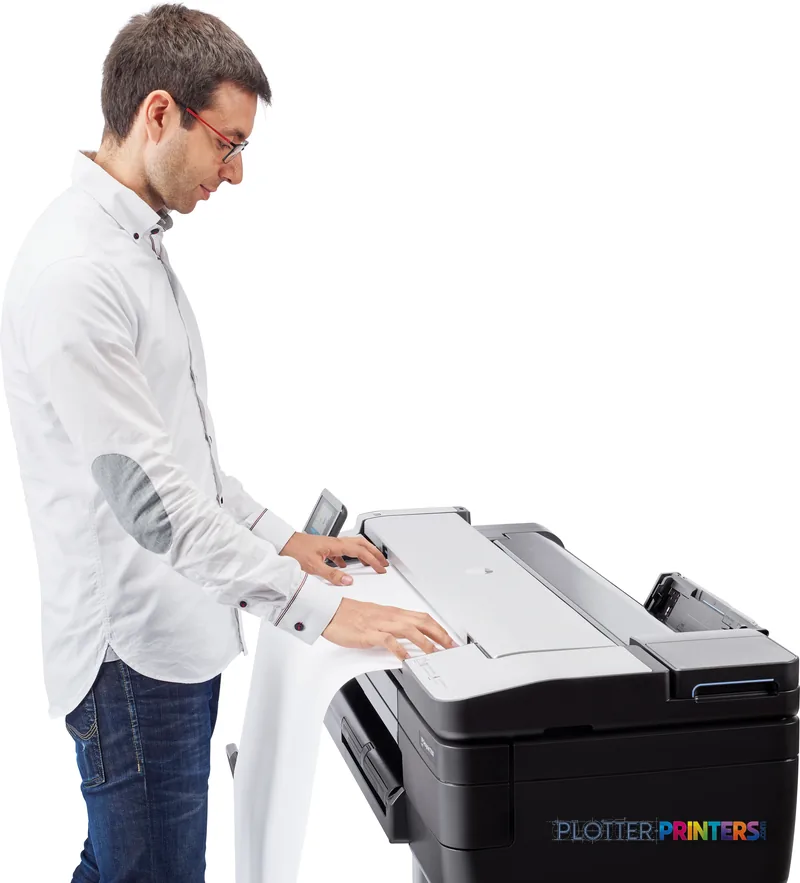

- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
The Jobsite-Ready 36-in MFP — Now a Well-Understood Installed-Base Machine
The HP DesignJet T830 36-in MFP was built for one thing: getting plans, redlines and scans done in places a delicate office plotter wouldn’t survive. It prints, copies and scans up to 36 in wide, uses thermal inkjet at 2400 x 1200 DPI, and pairs its integrated 36-in scanner with a reinforced stand and a covered media path that keeps site dust out. HP rates A1 output at 82 prints per hour; treat that as a device-side figure, not throughput after your files finish routing.
One note before you buy: as of August 2026 this model is discontinued/EOL. It remains common in the field and available on secondary and remaining-dealer channels, but new buyers should weigh parts and support horizon accordingly.
- Small-to-mid AEC teams needing print, copy and scan in one 36-in footprint.

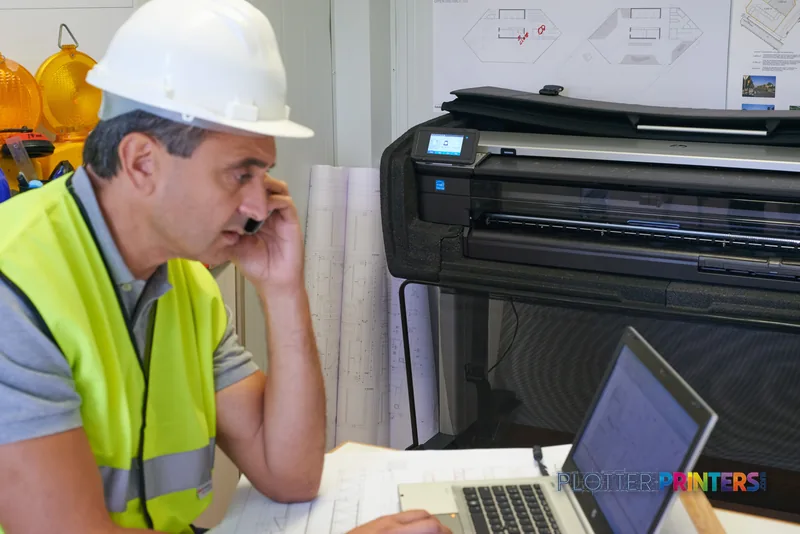

- GC and construction offices that want a rugged, dust-resistant unit near the field.
- Surveyors and MEP crews scanning marked-up sets back to PDF.

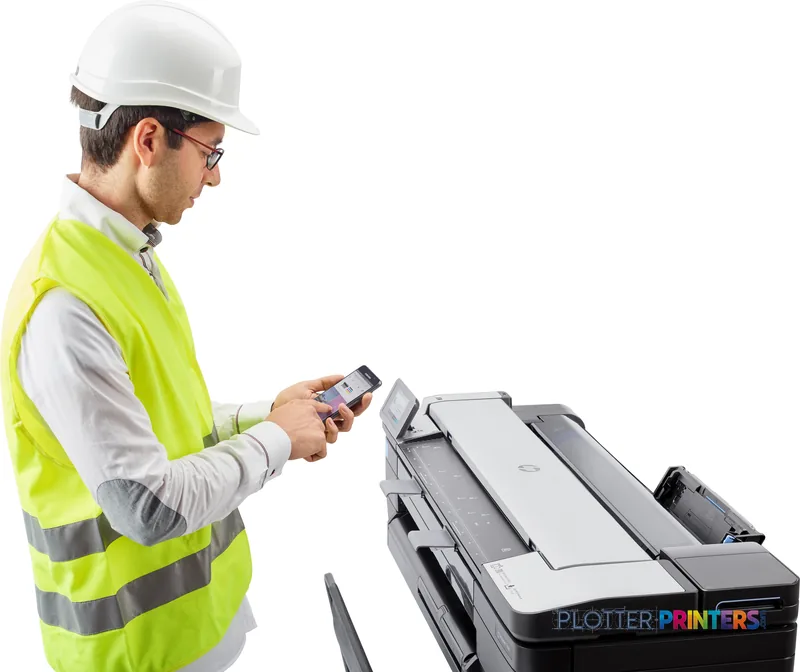

- Firms wanting Wi-Fi, Ethernet and mobile submission without a print server.
It’s not a production plotter. High-volume engineering departments running long, collated sets are better served by the current step-up HP DesignJet T850 36-in or a dual-roll HP DesignJet T1600dr 36-in. Need only 24-in width? The HP DesignJet T830 24-in shrinks the footprint.
- 552 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print width
- Up to 36 in (A0), thermal inkjet
- Resolution
- 2400 x 1200 DPI
- A1 print speed
- 82 prints/hour (HP-rated, normal quality)
- Scan/copy
- Color scanning and copying, up to 36 in wide
- Max scan length
- 109.1 in (2.77 m)
- Connectivity
- Ethernet, Wi-Fi, Wi-Fi Direct, USB, AirPrint, HP ePrint
- Ink / printhead

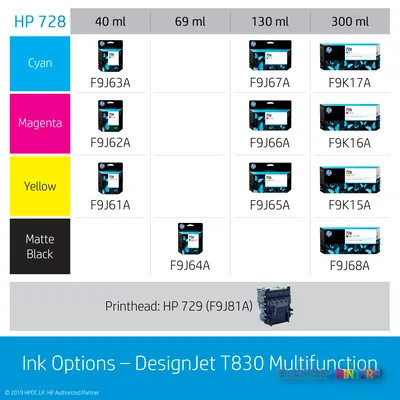

- HP 728 inks (4 cartridges), HP 729 printhead
- Footprint / weight
- 55.2 x 23.8 x 45.5 in; 128.3 lbs
Ideal for: small-to-mid AEC teams and construction offices needing rugged 36-in print/copy/scan in one footprint. Not the tool for: high-volume, collated production runs or buyers who need a long new-hardware support horizon.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- Integrated 36-inch color scanner and copier make this a true MFP, not just a plotter.
- Single roll and single printhead keep it simple but cap sustained, mixed-size volume.
- HP rates it at 82 pph in normal quality on A1 — treat that as a ceiling, not a daily average.
- Uses HP 728 inks and one HP 729 printhead, so consumable stocking is minimal.
- Broad connectivity (Ethernet, Wi-Fi, Wi-Fi Direct, USB) suits improvised job-site networks.
- For daily high-volume set production, the dual-roll T1600dr 36-in is the better fit.
Every field office eventually faces the same small crisis: someone needs a full-size markup scanned, a revised sheet reprinted, and a stamped set out the door — and the nearest wide-format machine is forty minutes away at the main office. The HP DesignJet T830 36-in exists for exactly that gap. It’s a 36-inch print, scan and copy device compact enough to live in a project trailer, a small studio, or a survey crew’s staging room without a dedicated print operator standing over it.
The question isn’t whether it prints well — thermal inkjet at this size is mature. The question is whether an all-in-one this size fits the workflow you actually have, versus the single-function or higher-throughput machines around it in the same family.
36 inPrint width36-in roll class
82 pphRated speednormal quality, A1 — HP's figure
36" (91.4 cm)Scan widthintegrated color scanner
2400 x 1200 DPIResolutionmax print
What it is, and who it's for
The T830 is a single-printhead, four-cartridge thermal inkjet plotter with an integrated color scanner and copier — an MFP in the true sense. It uses HP 728 inks (cyan, matte black, magenta, yellow) and a single HP 729 printhead, so consumable logistics are simple: four bottles and one head to stock. Connectivity is broad for its class — Ethernet, Wi-Fi, Wi-Fi Direct, USB and direct printing — which matters when the network in a trailer is whatever someone plugged in that morning.
Where it earns its keep is the scan-copy-reprint loop. A redlined D-size sheet comes back from the field, gets scanned to PDF or copied at 50–400% resize, and the corrected sheet reprints — all at one station. For firms that were driving markups to a service bureau, that’s real time recovered. Money is minutes.
Where it fits
The T830 is at its best in these situations:
- Job-site trailers and satellite offices needing self-contained print, scan and copy.
- Small architecture or survey studios reclaiming markups from a service bureau.
- Teams that scan as much as they print — the integrated scanner is the whole point.
- Rugged deployments — HP offers the HP DesignJet Rugged Case for transport.
It handles single-roll media up to 36 inches plus cut sheets and manual-feed sheets to 75 inches long. One printhead and one roll keep it simple; they also cap how far you can push it before the operator becomes the bottleneck.
Estimate a set's run time from HP's rated 82 pph — then add file-open, roll-change and collation time, because those are where the minutes actually go.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 552 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it isn't the right tool
If you’re running high-volume plan sets daily, the single-roll, single-printhead design will slow you down: no automatic roll switching between sizes, and you feed the machine one media width at a time. A production department should look at the dual-roll HP DesignJet T1600dr 36-in instead, which is built for unattended, mixed-size set production. If you want the same MFP convenience in a newer 36-inch design, compare it directly against the HP DesignJet T850 36-in. And if your team never scans and works in tighter quarters, the 24-inch HP DesignJet T830 24-in covers ARCH C and D work in a smaller footprint. Cross-shopping the field-MFP category, the Canon iPF770 36-in is the obvious same-class rival to weigh. Check your class ranking before you commit.
Compare before you commit
The read
The T830 36-in is a workflow node, not a production line. It shines when print, scan and copy need to happen at one self-contained station near the work — a trailer, a satellite office, a small studio recovering markups from a bureau. It’s ENERGY STAR certified, quiet enough at 48 dB in quiet mode for an office, and its single-ink, single-head consumable set keeps IT and stocking simple.
Decision rule: choose the T830 36-in if you scan and copy as often as you print and value one compact self-service box; step up to the T1600dr 36-in if you produce mixed-size sets daily and need unattended dual-roll throughput; drop to the T830 24-in if you never exceed D-size and space is tight. Buy the machine for the workflow you have.
Spec analysis
How the specs grade
Overall performance
within wide-format MFPs
100% spec coverage
- This printer
Verified specifications
The specs that decide it
| Print technology | Thermal inkjet |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Cyan, Matte black, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Internal memory | 1024 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 11,8 mm |
| Maximum roll diameter | 3.94" (10 cm) |
| Scanning | Color scanning |
| Wi-Fi | Yes |
| Ethernet | Yes |
| Power consumption | 35 W |
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width36"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | 1 |
| Printing colors | Cyan, Matte black, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Print speed (normal quality, A1) | 82 pph |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Product color | Black |
| Internal memory | 1024 MB |
| Built-in display | Yes |
| Country of origin | China |
| Maximum internal memory | 1000 MB |
| Sound pressure level (quiet mode) | 48 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 11,8 mm |
| Print margin roll | 0.197" (5 mm) |
| Custom media sizes | Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll diameter | 3.94" (10 cm) |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Recycled paper, Matte paper, Heavy paper, Satin paper |
| Print margin cut-sheet | 5 mm |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Direct printing | Yes |
| Mobile printing technologies | HP ePrint, Apple AirPrint |
Technical details
| Box contents | HP DesignJet T830 36-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers |
|---|
Weight & dimensions
| Depth | 23.8" (605 mm) |
|---|---|
| Width | 55.2" (1403 mm) |
| Height | 45.5" (1155 mm) |
| Weight | 128.3 lbs (58.2 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 3.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212110 |
|---|---|
| All-In-One-multitasking | Yes |
| Maximum internal memory | 1 GB |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
Copying
| Copying | Color copying |
|---|---|
| Copier resize | 50 – 400% |
| Maximum copy resolution | 600 x 600 DPI |
| Maximum number of copies | 99 copies |
Scanning
| Scanning | Color scanning |
|---|---|
| Maximum scan width | 36" (91.4 cm) |
| Maximum scan length | 109.1" (2.77 m) |
| Maximum media thickness | 0.0315" (0.8 mm) |
| Maximum scan resolution | 600 x 600 DPI |
| Optical scanning resolution | 600 x 600 DPI |
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 22.4" (570 mm) |
|---|---|
| Package width | 62.1" (1578 mm) |
| Package height | 25.4" (645 mm) |
| Package weight | 177.9 lbs (80.7 kg) |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR certified; EPEAT registered |
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP DesignJet T830 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 27 paper & media items · 3 accessories · 13 coverage plans
HP DesignJet T830 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T830 36-in Multifunction Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP 728 300-ml Yellow Ink Cartridge
HP 728 300-ml Magenta Ink Cartridge
HP 728 300-ml Cyan Ink Cartridge
HP 728 40-ml Yellow Ink Cartridge
HP 728 40-ml Magenta Ink Cartridge

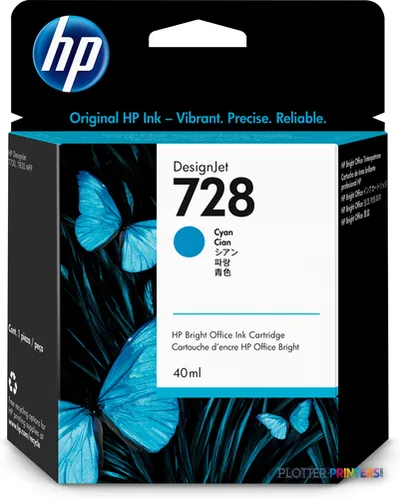

HP 728 40-ml Cyan Ink Cartridge
HP 728 69-ml Matte Black Ink Cartridge
HP 728 300-ml Matte Black Ink Cartridge
HP 728 130-ml Magenta Ink Cartridge
HP 728 130-ml Yellow Ink Cartridge
HP 728 130-ml Cyan Ink Cartridge
HP 728 130-ml Matte Black Ink CartridgePaper & Media 12
Representative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image350g Vivid Matte Poly/Cotton CanvasRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative image6 Mil Water-Resistant Self-Adhesive PolypropyleneRepresentative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Accessories 1
Coverage & Support Plans 7
Hp 2 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS8E)
Hp 3 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS5E)
Hp 5 Year Next Business Day Onsite Hardware Support For T830-24 Mfp – (U9RS6E)Hp 2Y Nbd T830 Mfp Hw Support (U8TY8E)Hp 3Y Nbd T830 Mfp Hw Support (U8PH3E)
Hp 4Y Nbd T830 Mfp Hw Support (U8TY9E)Hp 5Y Nbd T830 Mfp Hw Support (U8PH4E)Questions
Straight answers
Can the T830 scan and copy full-size drawings?
Yes. It has an integrated color scanner with a 36-inch scan width and up to 109.1-inch scan length, plus copying with 50–400% resize and up to 99 copies per job.

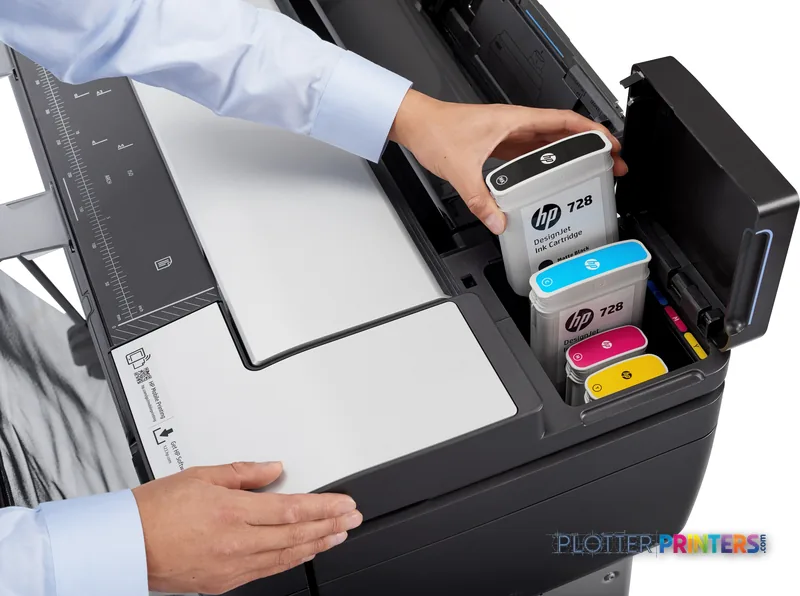

What ink and printhead does it use?
It uses HP 728 inks in cyan, matte black, magenta and yellow, and a single HP 729 printhead — four cartridges and one head to stock.
Does it support more than one roll for mixed-size sets?
No. It’s a single-roll machine with no automatic size switching; you feed one media width at a time. For unattended mixed-size production, look at the dual-roll HP DesignJet T1600dr 36-in.
Is it suitable for a job-site trailer?
Yes — it’s relatively compact, offers Wi-Fi and Wi-Fi Direct for improvised networks, and HP offers the HP DesignJet Rugged Case for transport.
How large a sheet can it print?
Up to A0 (33″ x 47″) on the roll, with manual-feed cut sheets up to 36 inches wide and 75 inches long.
How does it compare to the newer T850 36-in?
Both are current 36-inch MFPs in the same family; the T850 is the newer design. Run them side by side in our compare tool to weigh the differences for your workflow.
