HP · Wide-Format Plotter

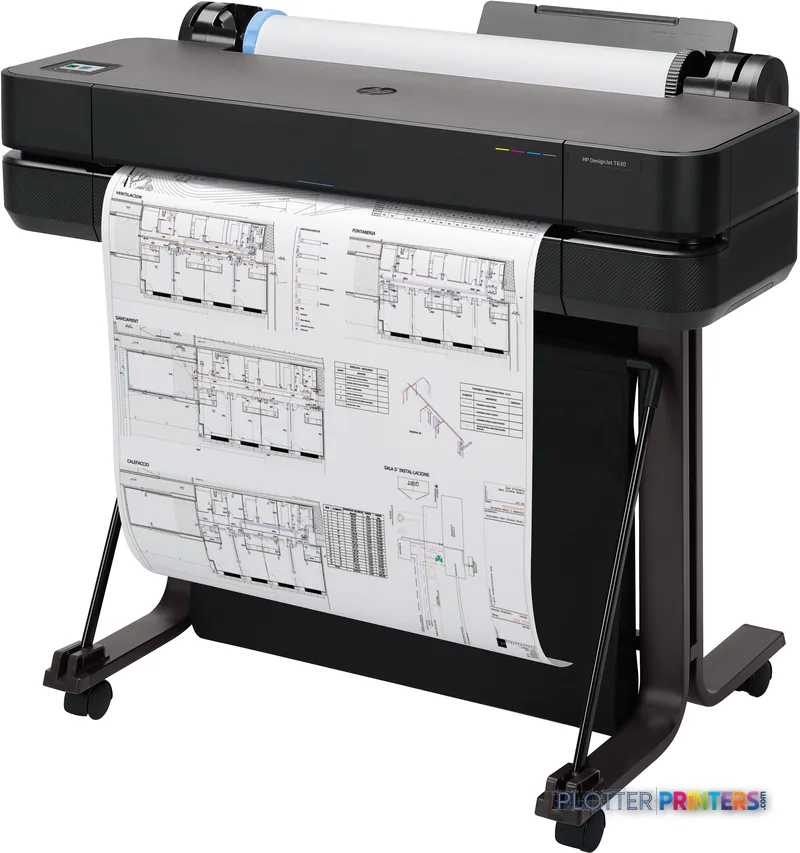

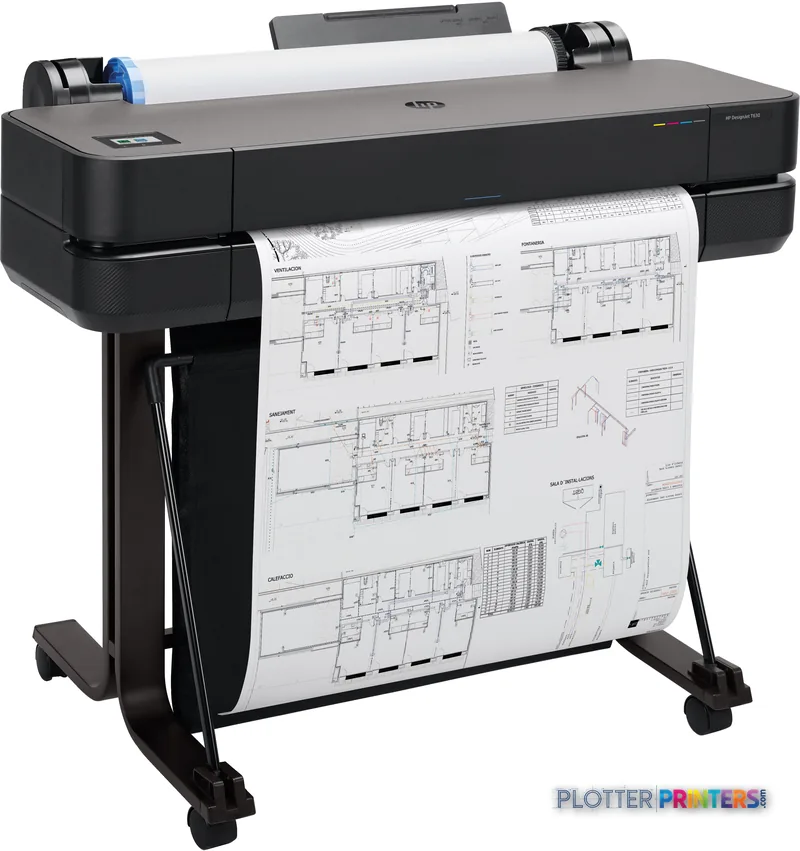

HP DesignJet T630
24" technical / CAD plotter
- ModelT630
- Prints24" wide
- Score53/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Entry-level 24-inch plotter aimed at small studios and field offices, not production volume.
- The automatic sheet feeder switches between the 24-inch roll and A3/A4 sheets without manual reloading.
- Prints four inks at 2400 x 1200 DPI with HP-GL/2 and CALS G4 support for CAD and PDF workflows.
Not sure if the T630 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Productivity Rated at 30 sec/page on A1/D; 76 A1/D prints/hour.
- Ink platform Six Original HP Inks.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
Overview
The small-office plotter that quietly handles your D-size sets
Here’s the job: it’s 4:45 p.m., someone needs a permit set printed, and there’s no print-room operator to babysit a plotter. That’s where the T630 24-in earns its keep. It takes a 24-inch roll, prints up to A1, and switches between roll and cut sheets on its own thanks to the included automatic sheet feeder. HP rates it at 76 A1 prints per hour in normal quality — which for a small studio means the first sheet shows up fast, not that you’ll run it flat-out all day.
Where it fits:
- Small architecture or design studios printing check sets, redlines and the occasional presentation board
- MEP or civil engineers who need color coordination drawings without a production machine
- A field or satellite office that needs one dependable D-size printer
- IT staff who want Ethernet, Wi-Fi and Wi-Fi Direct plus HP dynamic security
Color runs from the HP 712 inks through the HP 713 printhead at up to 2400 x 1200 DPI. The trade-off is tank size: on heavy renders or dense GIS maps, you’ll swap cartridges more often, and cost-per-print climbs. If you print all day, look at the HP DesignJet T650 24-in. If you need 36-inch media, the HP DesignJet T630 36-in is the same idea, wider. Need built-in scanning? This one doesn’t have it — the HP DesignJet T830 24-in does.
- 24″Max print width
- 511 ft²/hRated speed
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
97
Print Quality
66
Class best is 60. How we grade →
At a glance
- Print width
- 24-in roll; up to A1 (23" x 33")
- Print technology
- Thermal inkjet, 4 colors (CMYK)
- Max resolution
- 2400 x 1200 DPI
- Rated speed
- HP rates 76 A1 prints/hour (normal quality)
- Media handling
- 24-in roll plus automatic sheet feeder; manual feed to 24" x 75"
- Consumables
- HP 712 inks, HP 713 printhead
- Connectivity
- Gigabit Ethernet, Wi-Fi, Wi-Fi Direct, USB 2.0
- Footprint & weight
- 39.9" W x 23.8" D x 36.7" H; 63.7 lbs, with stand
Ideal for: small AEC studios and satellite offices that need unattended D-size roll and cut-sheet printing without a print-room operator. Not the tool for: all-day production volumes or firms printing dense renders and maps daily — the small tanks mean frequent swaps and higher cost per print.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- Entry-level 24-inch plotter aimed at small studios and field offices, not production volume.
- The automatic sheet feeder switches between the 24-inch roll and A3/A4 sheets without manual reloading.
- Prints four inks at 2400 x 1200 DPI with HP-GL/2 and CALS G4 support for CAD and PDF workflows.
- Small HP 712 ink cartridges make cost-per-milliliter climb once you pass roughly 50 sheets a month.
- Single-roll design means reloading mid-set; a dual-roll machine suits true unattended production.
- The 2024/2025 Edition is current, with the original 5HB09A version discontinued.
It’s 4:45 on permit day. Somebody needs a clean D-size site plan and three A3 details before the courier leaves. That’s the job the DesignJet T630 24-in was built for: a small office, a tight deadline, and a plotter that fits in the corner without becoming a project of its own.
This is HP’s entry-level 24-inch technical machine, refreshed for 2024. It prints a 24-inch roll and cut sheets, four inks, no scanner, no built-in display. It’s a printer, not a print room. Know that going in and it rarely disappoints.
76 pphPrint speed (A1, normal)HP's rated figure
24" (61 cm)Max roll width
2400 x 1200 DPIResolution
63.7 lbs (28.9 kg)Weightstand included
What it actually does well
Line work on bond is the point here, and the T630 handles it. HP-GL/2 and CALS G4 are in the page-description list, so your AutoCAD and Bluebeam output lands the way you drew it. The HP 713 printhead pushes black, cyan, magenta and yellow at 2400 x 1200 DPI. Fine linework reads clean. Small text stays legible on a folded set.
The automatic sheet feeder is the quiet win. It holds sheets up to 13″ x 19″ and lets the machine switch between the 24-inch roll and A3/A4 without you standing there feeding paper. For a two- or three-person studio, that’s the difference between babysitting a mixed set and walking away.
HP rates A1 output at 76 pph. Take that as a lab number. What matters at deadline is that a single check plot shows up fast and you’re not reloading between every drawing.
Where it costs you — and where to step up
Name the failure mode first: ink economics. The HP 712 cartridges are small. If you’re pushing dense GIS maps or color renders week after week, you’ll swap tanks more often than you’d like, and cost-per-milliliter climbs. Independent reviews flag this for anyone past roughly 50 sheets a month.
It’s a single-roll machine, too. Run out mid-set and you’re loading paper instead of going home. If unattended, high-volume production is your reality, look at a dual-roll machine like the DesignJet T1600dr 36-in.
- Fits: small architecture or engineering studios printing check sets and permit sets
- Fits: a field office or GC trailer needing occasional D-size output
- Fits: mixed roll-and-sheet jobs thanks to the auto sheet feeder
- Less ideal: daily high-density color or true production volume
Need 36-inch width for E-size? The DesignJet T630 36-in is the same machine, wider. Want a faster engine and larger ink options in a 24-inch body? Step to the DesignJet T650 24-in. Need scan and copy in one box for as-builts? That’s the DesignJet T830 24-in. Compare them side by side if you’re on the fence — T630 vs T650.
Feed it your typical set size and see roughly how long a run takes at HP's rated A1 speed. Real jobs run slower once you count processing and reloads.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 511 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Worth a look before you buy
The read
The T630 24-in is honest about what it is: an entry-level plotter for a small shop that needs correct linework on demand, not a production floor. The auto sheet feeder earns its keep on mixed sets, and the footprint won’t dominate an office. Just go in clear-eyed on the small ink tanks and the single roll. If you print more than a couple of dozen sheets a week, or you need color renders daily, price out the T650 before you sign. For everyone else printing check sets against a 5 p.m. clock, this does the job and gets out of the way.
Bottom line: right-sized for the small studio, wrong-sized for the production room.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T3475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print size | 24 in (610 mm)/A1/D |
|---|---|
| Print speed | 30 sec/page on A1/D; 76 A1/D prints/hourmanufacturer-verified |
| Maximum resolution | Up to 2400 x 1200 optimized dpi |
| Ink platform | Six Original HP Inksmanufacturer-verified |
| Ink cartridge capacity | 130 and 300 ml Original HP Ink cartridgesmanufacturer-verified |
| Printhead | one Universal HP printheadmanufacturer-verified |
| Maximum roll length | 300 ft (91.4 m) longmanufacturer-verified |
| Ethernet LAN | 10/100/1000Base-T Gigabit Ethernet (802.3, 802.3u, 802.3ab) |
| Internal memory | 1024 MB |
| Certification | EPEAT Gold with Climate +; Energy Star; UL Ecologo |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width24"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, JPEG, HP-RTL, CALS G4, URF |
| Print speed (normal quality, A1) | 76 pph |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| Product color | Black |
| Internal memory | 1024 MB |
| Built-in display | No |
| Country of origin | China |
| Introduction year | 2024 |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 0.3 mm |
| Custom media sizes | Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll width | 24" (61 cm) |
| Maximum roll diameter | 3.94" (10 cm) |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| Recommended media weight | 60 – 280 g/m² |
| ISO A-series sizes (A0…A9) | A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
Technical details
| Box contents | HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
|---|
Weight & dimensions
| Depth | 23.8" (605 mm) |
|---|---|
| Width | 39.9" (1013 mm) |
| Height | 36.7" (932 mm) |
| Weight | 63.7 lbs (28.9 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 2.1 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Operating altitude | 0 – 118110.2" (0 – 3000 m) |
|---|---|
| Storage temperature (T-T) | -25 – 55 °C |
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 22.6" (575 mm) |
|---|---|
| Package width | 45.5" (1155 mm) |
| Package height | 18.7" (475 mm) |
| Package weight | 83.8 lbs (38 kg) |
| Bundled software | HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 270 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 14 |
| Carbon emissions, end-of-life (kg of CO2e) | 15 |
| Carbon emissions, manufacturing (kg of CO2e) | 200 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 44 |
Brand-specific features
| HP GTIN (EAN/UPC) | 198701026952. 198701026921. 198701026884. 198701026860. 198701026846. 198701026815. 198701026785 |
|---|---|
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABG) 198701026952; (AC4) 198701026921; (ACJ) 198701026884; (AKV) 198701026860; (B19) 198701026846; (B1K) 198701026815; (BCD) 198701026785 |
Everything that fits the HP DesignJet T630
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
8 ink cartridges · 9 paper & media items · 3 accessories · 8 coverage plans
HP DesignJet T630 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet T630 24-in Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 8
Paper & Media 9
Representative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Universal Gloss Photo Paper
HP Universal Coated PaperRepresentative imageHP Universal Bond Paper, 4-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 36LB Heavyweight Coated Inkjet Paper (JS036)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Accessories 2
Questions
Straight answers
Can the T630 24-in scan or copy?
No. It’s a print-only machine with no scanner or copier. If you need to scan as-builts or copy existing drawings, look at the DesignJet T830 24-in instead.
What roll and sheet sizes does it handle?
It takes rolls up to 24 inches wide and cut sheets. The automatic sheet feeder handles sizes up to 13″ x 19″, and manual feed accepts media up to 24″ x 75″.
Which inks and printhead does it use?
It uses HP 712 ink cartridges in black, cyan, magenta and yellow, plus the HP 713 printhead. The 712 tanks are relatively small, so plan for more frequent swaps if you print heavy color.
Is this still a current model?
Yes. The 2025 Edition (5HB09D) is in active production with updated firmware and security. The original version (5HB09A) is discontinued but remains common in the installed base.
How fast is it in practice?
HP rates A1 output at 76 pph in normal quality. Treat that as a lab figure — real throughput drops once you account for file processing, drying and roll or sheet changes.
Should I get the 24-inch or the 36-inch version?
If your largest sheets are D-size (24-inch roll), the 24-inch T630 is enough. If you print E-size drawings, step up to the DesignJet T630 36-in, which is the same machine in a wider body.
