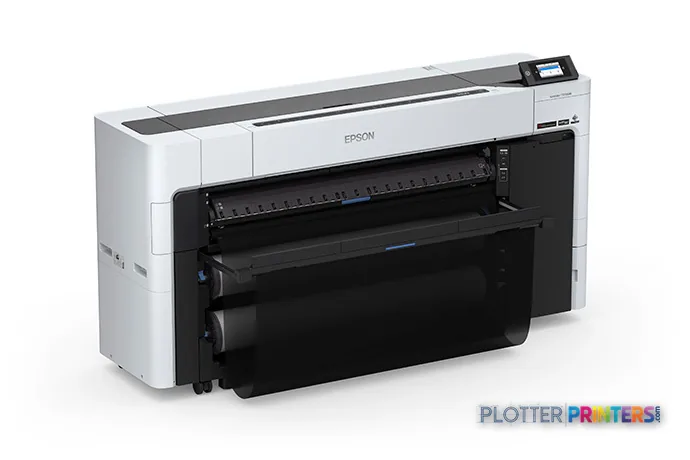

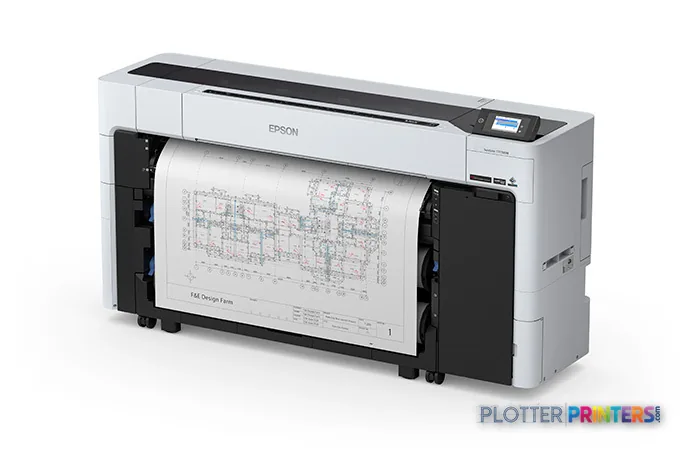

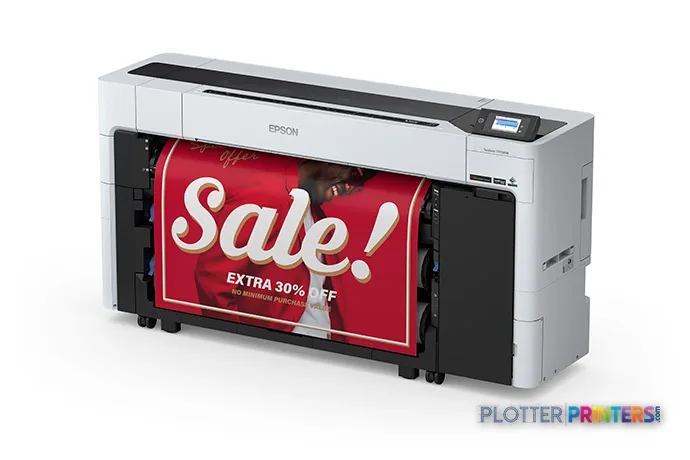

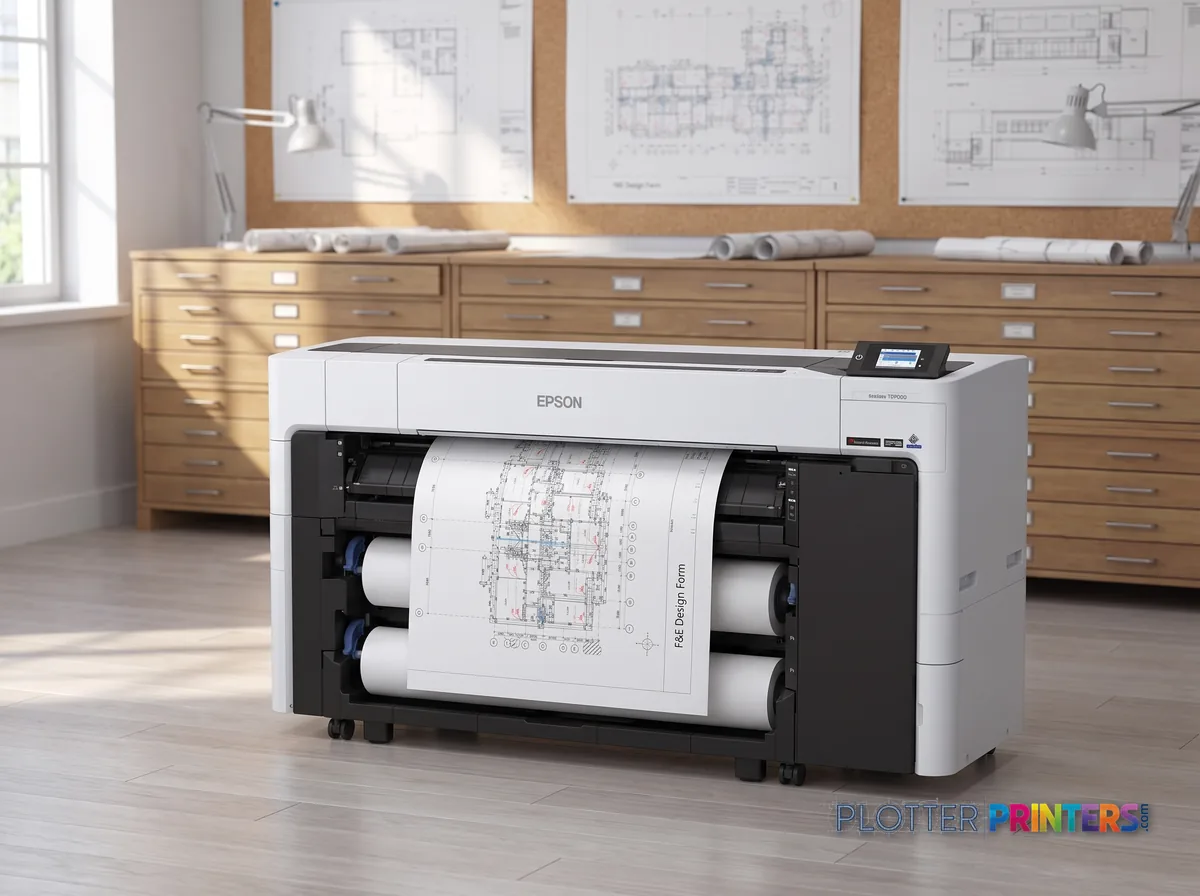

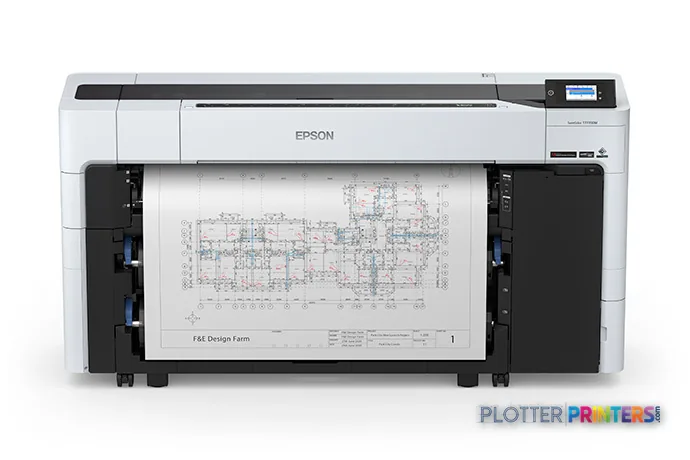

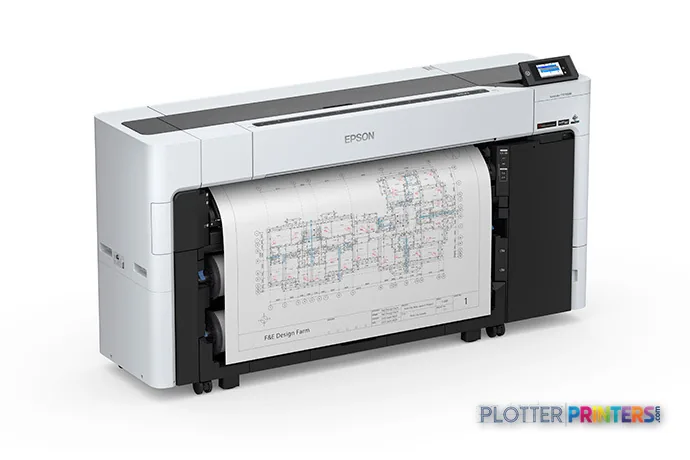

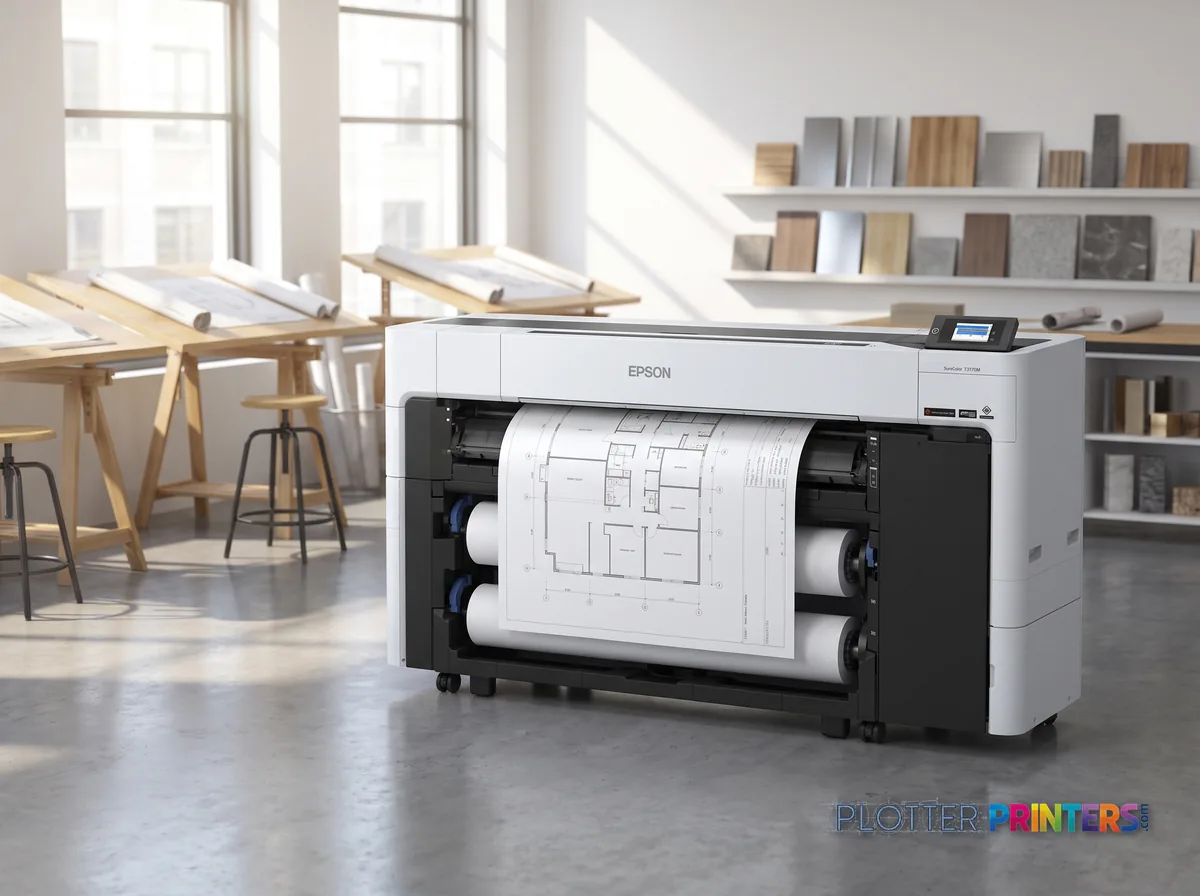

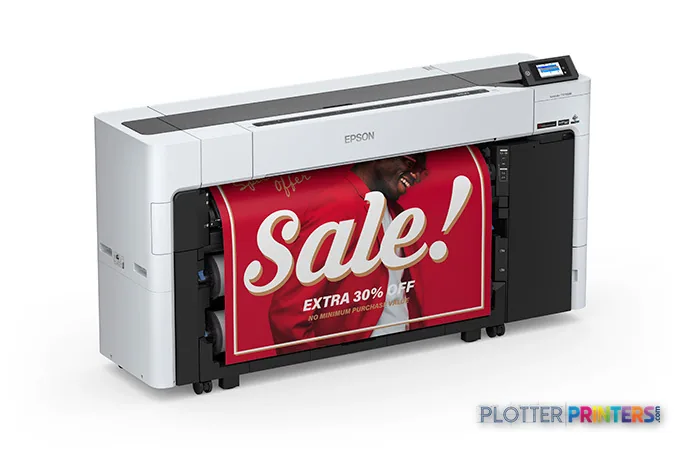

Epson SureColor T7770DM
44" wide-format MFPs
- ModelT7770DM
- Prints44" wide
- Score75/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Five-color (adds Red) 44-inch inkjet MFP that prints, scans and copies up to A0.
- Single-roll design means an operator swaps media on mixed A0/A1 sets.
- Epson rates A1 output at 120 pph in normal-quality mode; real throughput is lower after RIP and roll changes.
Not sure if the T7770DM is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform UltraChrome XD3 pigment ink (6 colors: C, M, Y, Red, Matte Black, Photo Black).
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
Overview
A 44-inch all-in-one plotter for firms that print, copy and scan in one place
The Epson SureColor T7770DM is a current 44-inch wide-format multifunction printer built for AEC document work: bid sets, permit sets, redlines, as-builts and the occasional color coordination drawing. Print, scan and copy live in one footprint, which matters when your print room is a corner of an office rather than a dedicated department. It uses a five-color inkjet system (black, yellow, cyan, red, magenta) at up to 2400 x 1200 DPI, and Epson rates it at 120 A1 prints per hour in normal-quality mode. Treat that as a headline figure, not a promise — first-page-out time, roll changes and mixed-size sets always cost minutes the spec sheet ignores.
PostScript 3, PDF 1.7 and ESC/P support keep it honest with Bluebeam, Revit and CAD-driven PDF workflows, and Gigabit Ethernet plus 9 GB of internal storage handle networked submission. An optional 1 TB SSD is available where secure job storage or reprint queues matter.
- Small-to-mid practices that need one device to plot, copy and scan wide.
- Contractor and CM offices producing mixed monochrome and color sets.
- Teams archiving legacy drawings via the built-in color scanner.
If your volume justifies uninterrupted long runs, the dual-roll Epson T7770DR 44-in avoids mid-set roll swaps. If you don’t need scanning at all, a print-only sibling saves footprint and dollars.
- 44″Max print width
- 1,514 ft²/hRated speed (burst)
- 6Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print technology
- 5-color inkjet (K, Y, C, R, M)
- Max print size
- A0, 33" x 47" (841 x 1189 mm)
- Max resolution
- 2400 x 1200 DPI
- Rated speed
- 120 A1 prints/hour, normal quality (Epson-stated)
- MFP functions
- Color scanning and color copying (CIS), up to 99 copies
- Page languages
- PDF 1.7, PostScript 3, ESC/P
- Connectivity
- Gigabit Ethernet, Wi-Fi, USB; 9 GB internal storage
- Footprint / weight
- 73" W x 33" D x 39" H; 366 lbs
Ideal for: small-to-mid AEC offices needing one networked device to plot, copy and scan wide-format at moderate, mixed color/mono volume. Not the tool for: high-volume shops running long uninterrupted sets, who are better served by the dual-roll T7770DR.
Expert analysis
What you should know
Key takeaways
- Five-color (adds Red) 44-inch inkjet MFP that prints, scans and copies up to A0.
- Single-roll design means an operator swaps media on mixed A0/A1 sets.
- Epson rates A1 output at 120 pph in normal-quality mode; real throughput is lower after RIP and roll changes.
- 9 GB internal storage enables panel reprints; an optional 1TB SSD extends it.
- Handles PDF 1.7, PostScript 3 and ESC/P, so most Bluebeam/Revit/AutoCAD jobs print without a separate RIP.
- For unattended long runs, the dual-roll T7770DR is the better fit; for print-only, the SC-T7700D.
Most AEC print rooms don’t need a plotter and a scanner and a copier sitting in three different corners, each with its own queue and its own person walking back and forth. The Epson SureColor T7770DM folds all three into one 44-inch box: it prints A0 drawings, scans them in color, and copies them without a PC in the loop.
That consolidation is the whole point. The question isn’t whether it prints a clean line — most machines in this class do. The question is whether one device that does everything fits the way your files, people and deadlines actually move.
A0 (33" x 47" (841 x 1189 mm))Max print sizefull-size plans and one-up A1/A0 sets
120 pphA1 print speedEpson-rated, normal-quality mode
2400 x 1200 DPIMax resolutionfine-line and small-text work
9 GBInternal storagereprint queues without re-sending the file
What it is, in plain terms
The T7770DM is a five-color inkjet MFP: Black, Cyan, Magenta, Yellow and Red. The extra red channel earns its keep on coordination drawings, GIS maps and site plans where color separation matters more than photographic accuracy. On plain bond — the paper 90% of your bid sets land on — it handles line work, coated and glossy stock through the same feed.
The scanner is CIS-based and does color scan and copy up to 44 inches wide, with copy resize from 25 to 755% and up to 99 copies per job. A 4.3-inch LCD drives walk-up work. Page languages cover PDF 1.7, PostScript 3 and ESC/P, so Bluebeam, Revit and AutoCAD output land without a third-party RIP for most jobs.
Where it fits — and where it doesn't
The MFP design pays off in one specific place: a shared print room that also scans legacy drawings and copies markups. If you’re archiving old as-builts or turning redlines into distributable PDFs, the integrated CIS scanner removes a whole flatbed-plus-plotter dance. The 9 GB of internal storage lets operators reprint a sheet from the panel instead of hunting the original file — and the optional Epson 1TB SSD extends that considerably.
- Small-to-mid firms wanting print, scan and copy in one footprint.
- Print rooms archiving legacy drawings or distributing scanned redlines.
- Teams running color-coded plans that benefit from the red ink channel.
- Offices that want walk-up copying without tying up a workstation.
Where it’s the wrong tool: single-roll capacity means an operator swaps media when a mixed A0/A1 set switches paper. High-volume shops that live on unattended long runs should look at the dual-roll Epson T7770DR or SureColor T7072DR. If you don’t scan or copy at all, the print-only SC-T7700D does the same imaging without paying for a scanner you won’t touch. Compare the DM against the print-only D model before you commit.
Estimate a real plot run from the Epson-rated 120 pph A1 speed. Add your own RIP and roll-change overhead — the machine prints faster than your workflow feeds it.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 1,514 ft²/h (a per-page burst rating). Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
IT and running costs
Networking is straightforward: Gigabit Ethernet, Wi-Fi and USB, with an LCD for authentication and job handling at the device. For IT, a single managed node beats three. Consumables are conventional: the Epson Maintenance Box captures waste ink, and the 44-inch roll spindle and auto-cutter blade are the routine wear items. Typical power draw is 90 W, dropping to 2 W in sleep — modest for a machine this size. Budget operator minutes, not just ink: every walk-up copy and every roll swap is a person standing at the machine.
Compare before you commit
The read
Choose the T7770DM if you want print, scan and copy in one 44-inch footprint and your volume is steady rather than relentless. Choose the dual-roll T7770DR if unattended mixed-size sets are your daily reality, or the print-only SC-T7700D if you never scan. Buy the machine for the workflow you have, not the one the brochure imagines — and remember the scanner is free, but the person standing at it is not.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5770DM
Verified specifications
The specs that decide it
| Maximum print width | 44 in |
|---|---|
| Maximum resolution | 2400 x 1200 dpi |
| Ink platform | UltraChrome XD3 pigment ink (6 colors: C, M, Y, Red, Matte Black, Photo Black) |
| Droplet size | 3.5 pLmanufacturer-verified |
| Print head | 9,600 nozzles (1,600 x 6 channels)manufacturer-verified |
| Internal memory | 6GB Printer + 3GB Scannermanufacturer-verified |
| Page description languages | Adobe PostScript 3, Adobe PDF 1.7, Adobe Embedded Print Engine, Epson ESC/P raster |
| Media handling | Rolls 10–44 in wide, 2/3-in cores, up to 6.7-in diameter, 27 lb; rigid posterboard up to 1.5 mm |
| Connectivity | Gigabit Ethernet, dual-band Wi-Fi (2.4/5 GHz), USB 3.0, 4.3" touchscreen |
| Dimensions / weight | 73 in W x 33 in D x 39 in H; 366 lb |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Yellow, Cyan, Red, Magenta |
| Print technology | Inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | PDF 1.7, ESC P, PostScript 3 |
Performance
| Display | LCD |
|---|---|
| Product color | Black, White |
| Built-in display | Yes |
| Display diagonal | 4.3" |
| Internal storage capacity | 9 GB |
Paper handling
| Maximum print size | A0 (841 x 1189 mm) |
|---|---|
| Paper tray media types | Recycled paper, Glossy paper, Coated paper, Plain paper |
| ISO A-series sizes (A0…A9) | A0, A1 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Weight & dimensions
| Depth | 33" (838.2 mm) |
|---|---|
| Width | 73" (1854.2 mm) |
| Height | 39" (990.6 mm) |
| Weight | 366 lbs (166 kg) |
Power
| AC input voltage | 110 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 2 W |
| Power consumption (typical) | 90 W |
Operational conditions
| Storage temperature (T-T) | -20 – 40 °C |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Storage relative humidity (H-H) | 5 – 85% |
| Operating relative humidity (H-H) | 20 – 80% |
Copying
| Copying | Color copying |
|---|---|
| Copier resize | 25 – 755% |
| Maximum number of copies | 99 copies |
Scanning
| Scanning | Color scanning |
|---|---|
| Scan technology | CIS |
Everything that fits the Epson SureColor T7770DM
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
18 ink cartridges · 12 paper & media items · 4 accessories · 5 coverage plans
Epson SureColor T7770DM ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T7770DM 44-in Wide-Format MFP — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 18
Epson UltraChrome XD3 Cyan Ink Cartridge, 700 ml (T50L220)
Epson UltraChrome XD3 Red Ink Cartridge, 700 ml (T50LF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 350 ml (T50S420)
Epson UltraChrome XD3 Cyan Ink Cartridge, 110 ml (T51A220)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 700 ml (T50L120)
Epson UltraChrome XD3 Magenta Ink Cartridge, 700 ml (T50L320)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 350 ml (T50S120)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 700 ml (T50L820)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 350 ml (T50S820)
Epson UltraChrome XD3 Magenta Ink Cartridge, 350 ml (T50S320)
Epson UltraChrome XD3 Magenta Ink Cartridge, 110 ml (T51A320)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 110 ml (T51A120)
Epson UltraChrome XD3 Red Ink Cartridge, 110 ml (T51AF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 700 ml (T50L420)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 110 ml (T51A820)
Epson UltraChrome XD3 Cyan Ink Cartridge, 350 ml (T50S220)
Epson UltraChrome XD3 Red Ink Cartridge, 350 ml (T50SF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 110 ml (T51A420)Paper & Media 12
Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)Accessories 4
Coverage & Support Plans 5
Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7700DMS1)Epson 1-Year Next-Business-Day On-Site In-Warranty Extended Service Plan – Surec (IWT7700DMS1)Epson 1-Year Next-Business-Day On-Site Out-Of-Warranty Extended Service Plan – S (OWT7700DMS1)
Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7700DMS2)
Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST7700DMS4)Questions
Straight answers
What's the difference between the T7770DM and the T7770DR?
The DM is a multifunction unit with an integrated color scanner and copier; the T7770DR is a dual-roll printer built for unattended mixed-size runs. Pick the DM if you scan and copy, the DR if roll capacity and long runs matter most.
Do I need a separate RIP to print from Bluebeam or AutoCAD?
For most AEC jobs, no. It supports PDF 1.7, PostScript 3 and ESC/P natively, which covers typical Bluebeam, Revit and AutoCAD output. Specialized color-managed production may still warrant a dedicated RIP.
Why five colors instead of four, and does the red channel matter?
It uses Black, Cyan, Magenta, Yellow and Red. The added red improves color separation on coordination drawings, GIS maps and color-coded site plans — more useful for legibility than for photographic accuracy.
Can it run unattended for large plan sets?
Only within limits. It’s a single-roll machine, so an operator swaps media when a set changes paper size or type. Shops needing hands-off long runs should look at the dual-roll T7770DR or SureColor T7072DR.
How does copying work at the device?
The 4.3-inch LCD drives walk-up copying up to 44 inches wide, with resize from 25 to 755% and up to 99 copies per job — no PC required.
What are the routine consumables?
The main wear items are the Epson Maintenance Box for waste ink, the 44-inch roll feed spindle, and the auto-cutter blade. An optional 1TB SSD adds internal storage beyond the built-in 9 GB.
