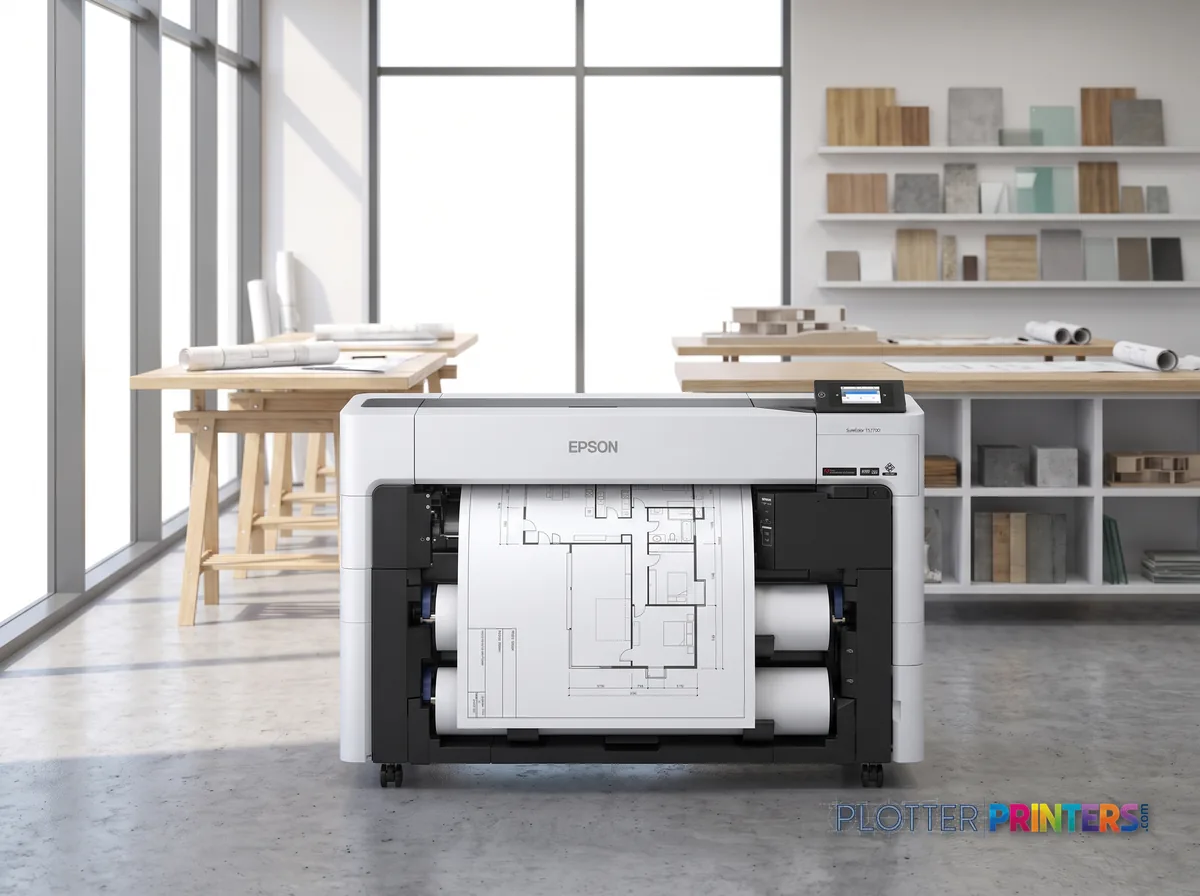

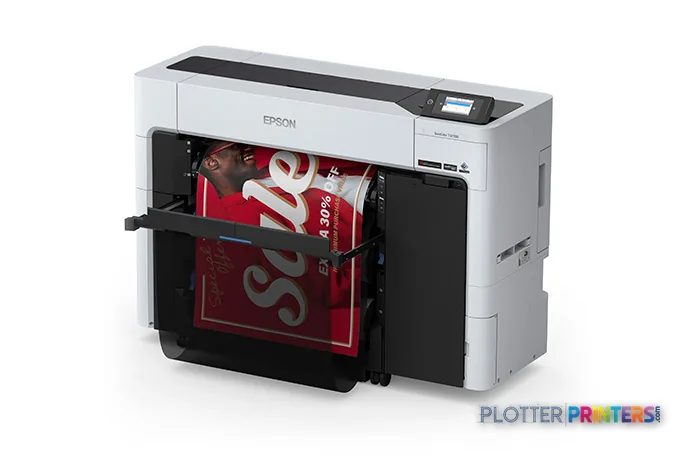

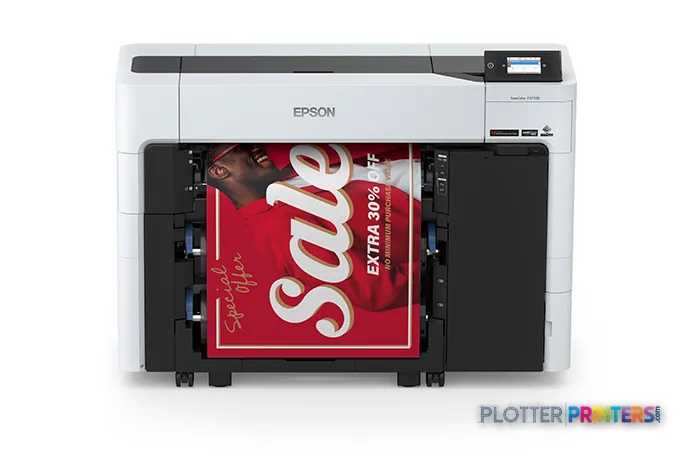

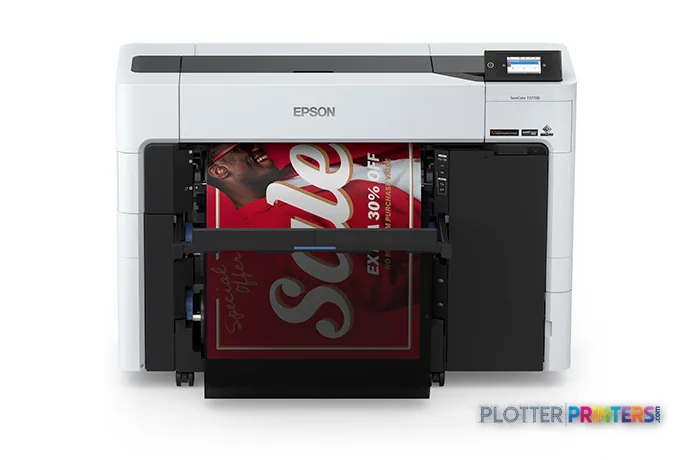

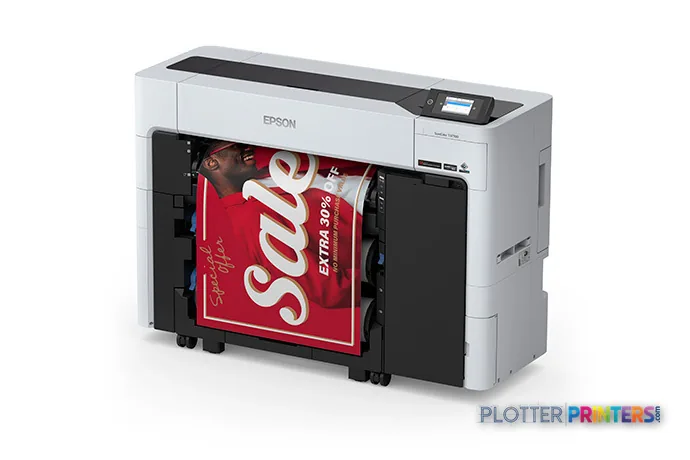

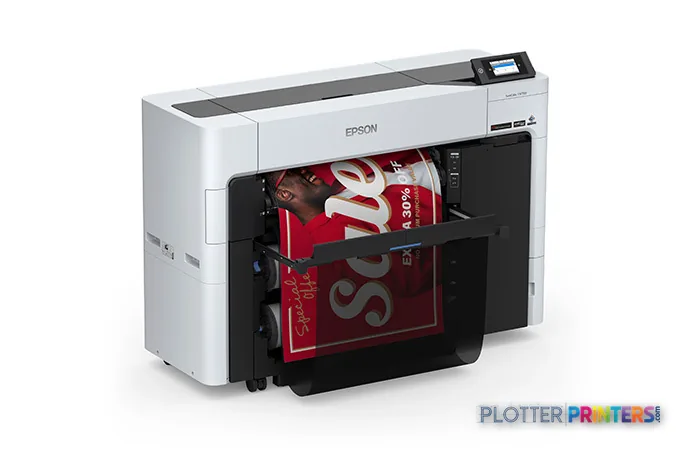

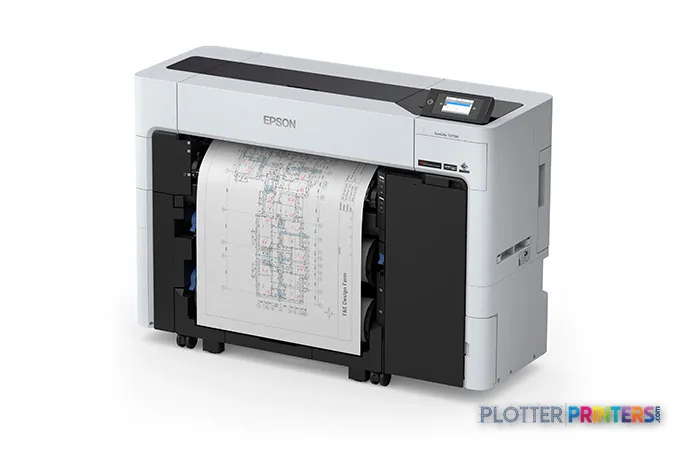

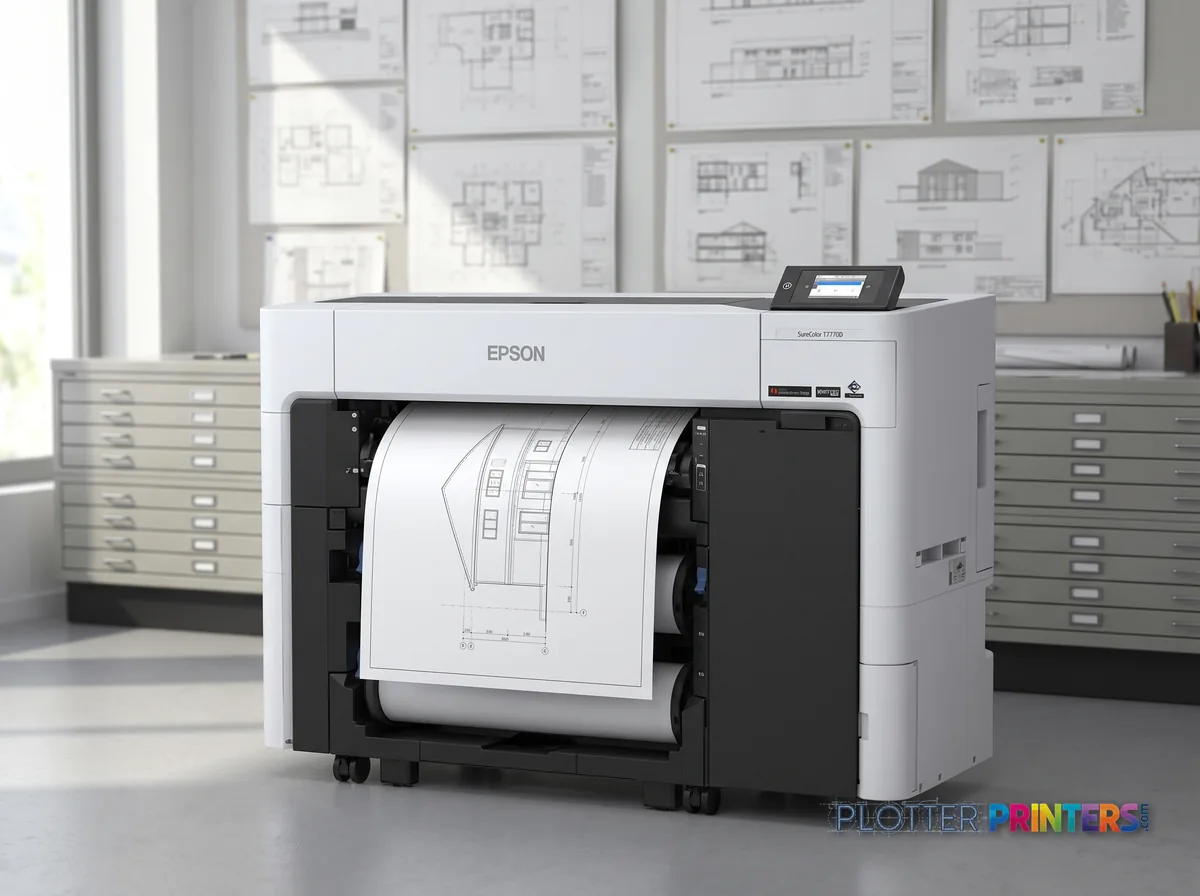

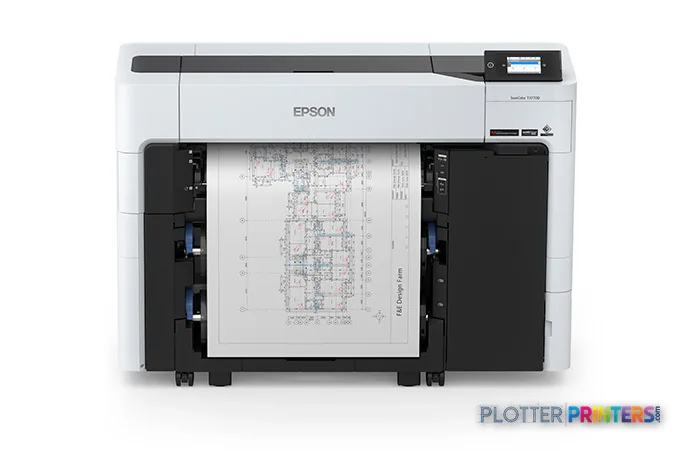

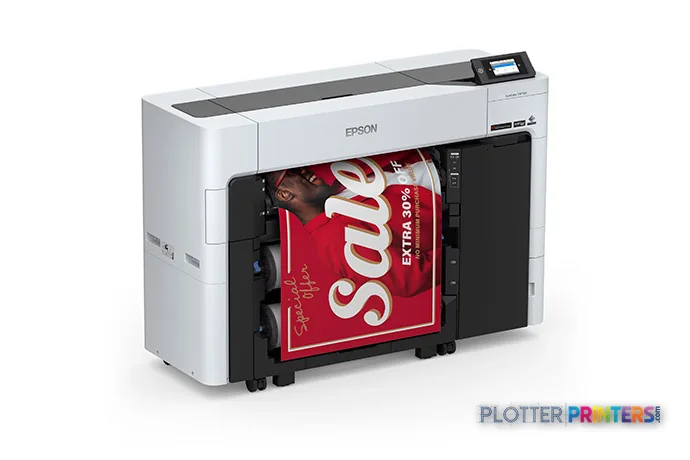

Epson SureColor T3770DR
24" color graphics & photo printer
- ModelT3770DR
- Prints24" wide
- Score81/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtendable to 2 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Five-ink pigment set with both Matte Black and Photo Black handles bond and coated media without swapping blacks by hand.
- Epson rates the engine at 120 A1 pph in normal quality — a draft-mono ceiling, not a color-work figure.
- Dual-roll loading enables unattended mixed plan sets, the machine's strongest practical advantage.
Not sure if the T3770DR is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 24" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform UltraChrome XD3 pigment ink.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 8 specs checked against the manufacturer datasheet.
- Analyst score Scores 81/100 in our class-relative rating.
Overview

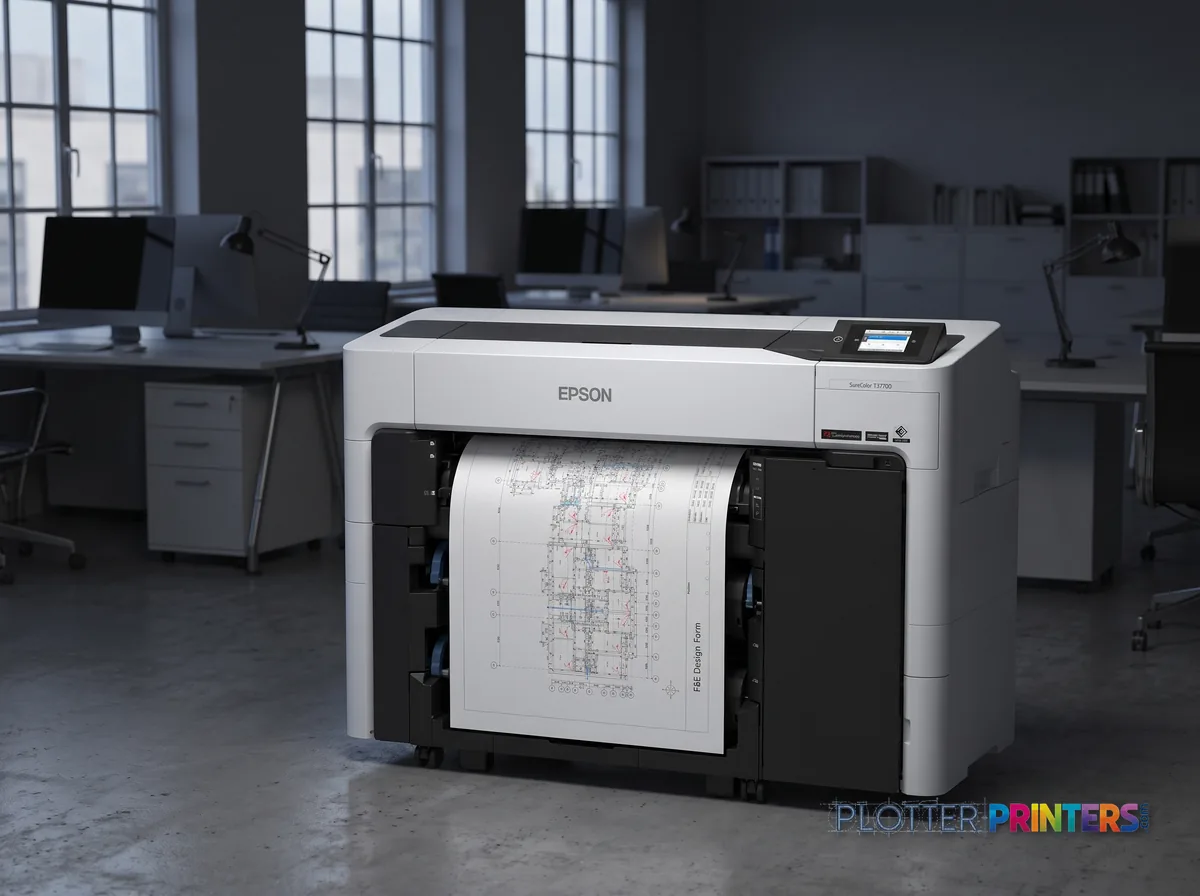

A dual-roll A1 plotter built for steady plan-set output
The Epson SureColor T3770DR is a 24-inch aqueous inkjet plotter aimed at firms that push out plan sets, permit drawings and redlines all day and want them to keep flowing without an operator standing by. It prints up to A1 (23″ x 33″), reproduces color at up to 2400 x 1200 DPI, and drives a five-channel ink set: Cyan, Magenta, Yellow, plus both Matte Black and Photo Black. That dual-black arrangement matters where the same queue mixes crisp line work on bond with a presentation board on coated stock — the blacks hold their edge on each rather than compromising on one.
Where it earns its place:
- Mixed monochrome and color plan sets on ordinary bond
- Offices that value roll flexibility and less-attended running
- Networked print rooms needing PostScript 3, PDF 1.7 and HP-GL/2 all at once
- Gigabit Ethernet and Wi-Fi submission from CAD, Revit and Bluebeam
Epson states a normal-quality A1 rate of about 120 prints per hour; treat that as engine speed, not desk-to-hand throughput. If you need more roll width and volume, the in-family Epson T7770DR 44-in is the natural step-up. Working narrower and single-roll? The Epson SC-T3700E 24-in or Epson T3465 24-in cost less to run for lighter loads.
- 24″Max print width
- 1,514 ft²/hRated speed (burst)
- 6Ink channels
- 2,400 dpiMax resolution
- 58.4%sRGB, measured
Spec Analysis
overall
overall
Where it performs best
Connections
100
Workflow
100
Speed
97
Best overall in its class right now. How we grade →
At a glance
- Print width
- Up to A1, 23" x 33" (594 x 841 mm)
- Print technology
- 5-color aqueous inkjet (C, M, Y, Matte Black, Photo Black)
- Maximum resolution
- 2400 x 1200 DPI
- Rated speed
- Epson states ~120 A1 prints/hour, normal quality
- Page languages
- Adobe PostScript 3, PDF 1.7, HP-GL/2, HP-RTL, ESC/P
- Connectivity
- Gigabit Ethernet, Wi-Fi, USB 3.2 Gen 1
- Storage
- 4 GB internal; optional Epson 1TB SSD (Optional)
- Power
- 110–240 V, ~75 W typical, 0.3 W off
Ideal for: architecture and engineering offices producing steady A1 plan sets that mix line work and color on bond and coated media. Not the tool for: shops needing widths beyond A1, high-volume single-pass throughput, or an integrated large-format scanner.
Expert analysis
What you should know
Key takeaways
- Five-ink pigment set with both Matte Black and Photo Black handles bond and coated media without swapping blacks by hand.
- Epson rates the engine at 120 A1 pph in normal quality — a draft-mono ceiling, not a color-work figure.
- Dual-roll loading enables unattended mixed plan sets, the machine's strongest practical advantage.
- Language support spans HP-GL/2, HP-RTL, PostScript 3 and PDF 1.7 for direct CAD, Revit and Bluebeam submission.
- Maximum resolution is 2400 x 1200 DPI across a maximum A1 print width.
- No integrated scanner — as-built capture needs a separate MFP-class device.
Most conversations about a plan printer start and end with speed. But if you have ever watched a coordination set come off the roll — the MEP overlays in saturated cyan and magenta, the civil grading plan with its color-coded contours — you know the eye judges color before it judges anything else. The Epson SureColor T3770DR is a five-ink, 24-inch dual-roll machine built for exactly that mixed diet: crisp monochrome bid sets one minute, a color rendering the next.
What distinguishes it from a plain four-ink plotter is the pigment set. Cyan, Magenta, Yellow, plus both Matte Black and Photo Black — the two blacks matter more than the marketing suggests, because they let the printer switch between bond and coated stock without sacrificing black density.
24 inMax print widthsingle-roll, dual-roll configuration
120 pphRated A1 speedEpson-rated, normal quality
2400 x 1200 DPIMax resolution
Cyan, Magenta, Matte black, Photo black, YellowInk setfive-channel pigment
Where the color actually lives
Epson rates this engine at 120 A1 pages per hour in normal quality — a figure that describes the draft mono workflow, not the color-critical one. Take that as the ceiling for a permit set, not for a presentation board.
The five-ink array is where color fidelity earns its keep. On a coordination drawing, the difference between two adjacent trades often comes down to whether a mid-saturation blue holds its hue against a nearby violet. With Photo Black available for coated media, the deep shadows in a rendered elevation stay genuinely dark rather than drifting toward a muddy charcoal. We would want to measure the gamut on your specific media before making a universal claim — the number below is on the paper our desk standardizes on, so it means something rather than nothing.
sRGB coverage (by volume)58.4%
Adobe RGB coverage (by volume)47.4%
Dual roll, unattended runs, and the workflow fit
The dual-roll design is the practical heart of this machine. Load bond on one spindle and a coated or bond variant on the other, and a mixed plan set can print without an operator standing by to swap media. For a busy mid-sized practice or a general contractor’s project office running D-size and A1 side by side, that is where the hours are saved.
Connectivity is straightforward and modern: Gigabit Ethernet, Wi-Fi, USB, a touch LCD, and a language stack that covers HP-GL/2, HP-RTL, PostScript 3 and PDF 1.7 — so it drops into AutoCAD, Revit and Bluebeam workflows without a fight. The optional Epson 1TB SSD is worth a look if you reprint the same sheet sets often. Maintenance runs through the Epson Maintenance Box (Tx700/Px500), and the Epson Auto Cutter Blade is a consumable to keep on the shelf.
- Mid-sized multidisciplinary practices printing mixed mono and color coordination sets
- GC and CM project offices needing unattended dual-roll runs
- Firms producing occasional color renderings alongside routine plan output
- Teams standardized on Bluebeam and PostScript-driven submission
Estimate a plan set's run time from the Epson-rated A1 speed. Treat the result as a floor — first-page-out, roll changes and drying are not in the rated figure.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 1,514 ft²/h (a per-page burst rating). Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it isn't the right tool
If your work never leaves 24 inches and rarely touches color, a single-roll model such as the Epson SC-T3700E 24-in covers the same width for less complexity. Need genuine wider stock — 44-inch site plans or full E-size — and the Epson T7770DR 44-in is the honest step up in the same family. If a scanner and copy function are non-negotiable for as-built capture, this printer alone won’t do it; look at an MFP-class machine like the Epson SC-T5200 38-in instead. It’s worth putting the T3770DR next to the SC-T3700D 33-in before you commit, and cross-shopping the Canon GP-2000 24-in if you want a second read on color.
The read
The T3770DR is a considered choice for a firm whose output is genuinely mixed — mono plan sets that need to move fast, and color drawings that need to hold their hue. The dual-roll deck and the two-black pigment set are the features that justify it over a plainer plotter; the 120 pph rating is real but describes the draft end of the range, not the color end. Measure the gamut on your own media, confirm your local Epson service coverage, and this becomes an easy machine to live with. See where it lands on the 24-inch class ranking and check our measurement methodology before you sign anything.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 8 compared
Class best — tops the 8 rated in its category
100% spec coverage
- This printer
- class median
Category leaders best color graphics & photo printers, by dimension
Measured color
Color gamut, measured from the ICC profile
Computed with ArgyllCMS directly from Epson SureColor T3770DR’s own manufacturer ICC profile (Premium Glossy Photo Paper 170) — real, measured color data, not a spec-sheet claim.
686KCIELAB gamut volume — within the sRGB working space
58.4%of sRGB by volume
47.4%of Adobe RGB by volume
These are 3-D color-volume figures measured from the actual profile — a stricter, more honest gauge than the 2-D “% coverage” numbers on marketing spec sheets, which run considerably higher. Use them to compare printers on the same basis.
| Media | Volume (Lab³) | sRGB | Adobe RGB |
|---|---|---|---|
| Plain / coated | 1,328,595 | 97.8% | 95.7% |
| Backlit film | 804,798 | 59.4% | 50.7% |
| Matte photo | 686,508 | 59.7% | 47.7% |
| Satin / semi-gloss photo | 685,543 | 58.4% | 47.4% |
| Premium glossy photo | 685,543 | 58.4% | 47.4% |
| Canvas | 565,208 | 51.8% | 41.5% |
| Vinyl | 409,210 | 40.8% | 30.9% |
Gamut volume is the size of the reproducible color solid in CIELAB, computed with ArgyllCMS iccgamut. Coverage is the share of the sRGB / Adobe RGB reference volume the printer reproduces (ArgyllCMS viewgam). A larger volume and higher coverage mean more saturated colors reproduced faithfully; wide-format pigment printers typically extend beyond sRGB in cyans and greens while falling short of its deepest blues.
Verified specifications
The specs that decide it
| Maximum roll width | 24 inmanufacturer-verified |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Maximum resolution | 2400 x 1200 dpi |
| Ink platform | UltraChrome XD3 pigment inkmanufacturer-verified |
| Printing colors | Cyan, Magenta, Yellow, Red, Matte Black, Photo Black |
| Page description languages | ESC/P raster, HP-GL/2, HP RTL, Adobe PostScript 3, Adobe PDF 1.7, Adobe Embedded Print Engine |
| Media types / thickness | glossy, technical, bond, matte, specialty media, rigid posterboard up to 1.5 mm |
| Connectivity | Gigabit Ethernet, Wi-Fi, USB 3.2 Gen 1 |
| Weight / width | 261 lb / 54 in widemanufacturer-verified |
| Typical power / print noise | Approx. 75 W / 49.6 dBA |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Cyan, Magenta, Matte black, Photo black, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | ESC P, HP-GL/2, HP-RTL, PDF 1.7, PostScript 3 |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Product color | Black, White |
| Built-in display | Yes |
| Internal storage capacity | 4 GB |
Paper handling
| Maximum print size | A1 (594 x 841 mm) |
|---|---|
| Paper tray media types | Roll |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Power
| AC input voltage | 110 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 75 W |
Operational conditions
| Storage temperature (T-T) | -20 – 40 °C |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
System requirements
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
|---|---|
| Windows operating systems supported | Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Everything that fits the Epson SureColor T3770DR
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
18 ink cartridges · 12 paper & media items · 4 accessories · 5 coverage plans
Epson SureColor T3770DR ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T3770DR 24-in Wide-Format Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 18
Epson UltraChrome XD3 Cyan Ink Cartridge, 700 ml (T50L220)
Epson UltraChrome XD3 Red Ink Cartridge, 700 ml (T50LF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 350 ml (T50S420)
Epson UltraChrome XD3 Cyan Ink Cartridge, 110 ml (T51A220)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 700 ml (T50L120)
Epson UltraChrome XD3 Magenta Ink Cartridge, 700 ml (T50L320)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 350 ml (T50S120)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 700 ml (T50L820)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 350 ml (T50S820)
Epson UltraChrome XD3 Magenta Ink Cartridge, 350 ml (T50S320)
Epson UltraChrome XD3 Magenta Ink Cartridge, 110 ml (T51A320)
Epson UltraChrome XD3 Photo Black Ink Cartridge, 110 ml (T51A120)
Epson UltraChrome XD3 Red Ink Cartridge, 110 ml (T51AF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 700 ml (T50L420)
Epson UltraChrome XD3 Matte Black Ink Cartridge, 110 ml (T51A820)
Epson UltraChrome XD3 Cyan Ink Cartridge, 350 ml (T50S220)
Epson UltraChrome XD3 Red Ink Cartridge, 350 ml (T50SF20)
Epson UltraChrome XD3 Yellow Ink Cartridge, 110 ml (T51A420)Paper & Media 12
Representative image20LB Inkjet Vellum (772)Representative image18LB Inkjet Bond Paper (Translucent) (750)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Accessories 4
Coverage & Support Plans 5
Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3700S1)Epson 1-Year Next-Business-Day On-Site In-Warranty Extended Service Plan – Surec (IWT3700S1)Epson 1-Year Next-Business-Day On-Site Out-Of-Warranty Extended Service Plan – S (OWT3700S1)
Epson 2-Year Next-Business-Day On-Site Extended Service Plan – SureColor T3700 (PST3700S2)
Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST3700S4)Questions
Straight answers
What media widths does the T3770DR handle?
It prints up to A1, listed as 23″ x 33″ (594 x 841 mm). If you routinely need wider site plans or E-size, the 44-inch Epson T7770DR is the in-family step up.
How fast is it really?
Epson rates it at 120 A1 pages per hour in normal quality. That reflects fast mono draft output; color and high-quality modes will run meaningfully slower, and the rated figure excludes first-page-out time, roll changes and drying.
Which inks and maintenance parts does it use?
It uses a five-channel pigment set: Cyan, Magenta, Yellow, Matte Black and Photo Black. Maintenance runs through the Epson Maintenance Box (Tx700/Px500) or the Borderless variant, plus the Epson Auto Cutter Blade as a wear part.
Will it fit our AutoCAD and Bluebeam workflow?
Yes. It supports HP-GL/2, HP-RTL, PostScript 3 and PDF 1.7, with Gigabit Ethernet, Wi-Fi and USB, so it accepts jobs from standard CAD, Revit and PDF-based submission tools without special handling.
Can it scan and copy drawings?
No — this is a printer only, with no integrated scanner. For as-built capture and copying you would need a separate MFP-class device such as the Epson SC-T5200 38-in.
Does it support dual rolls for mixed sets?
Yes. The DR configuration carries two rolls so a mixed plan set can run unattended, which is its main advantage over single-roll models like the Epson SC-T3700E 24-in.
