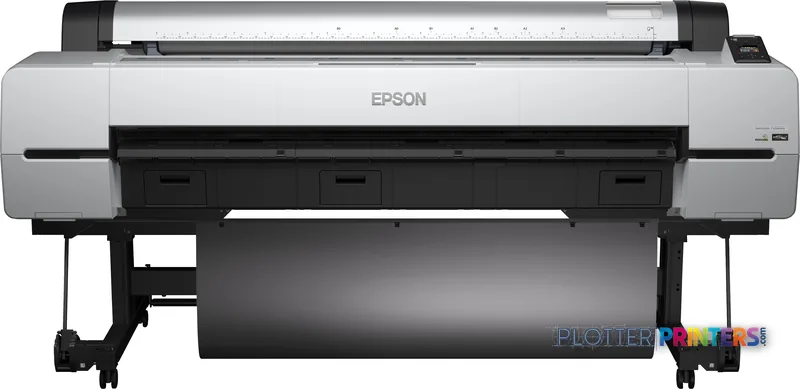

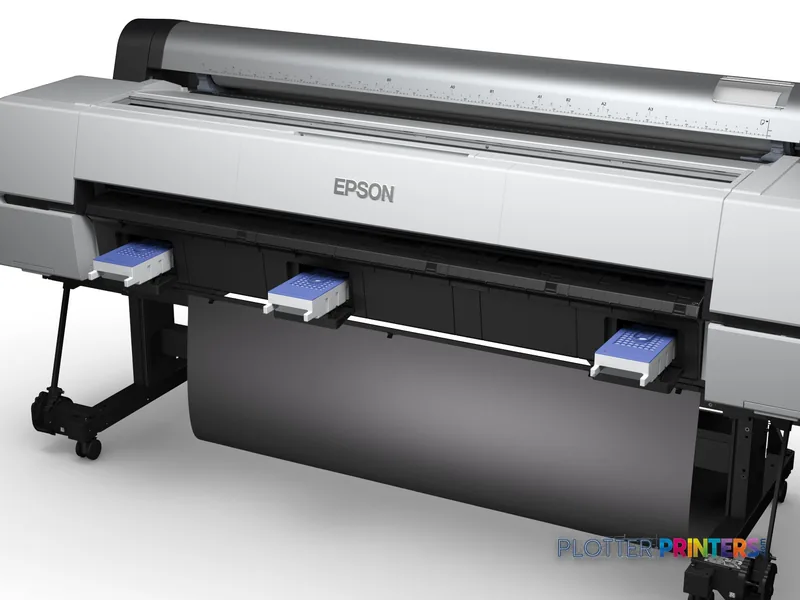

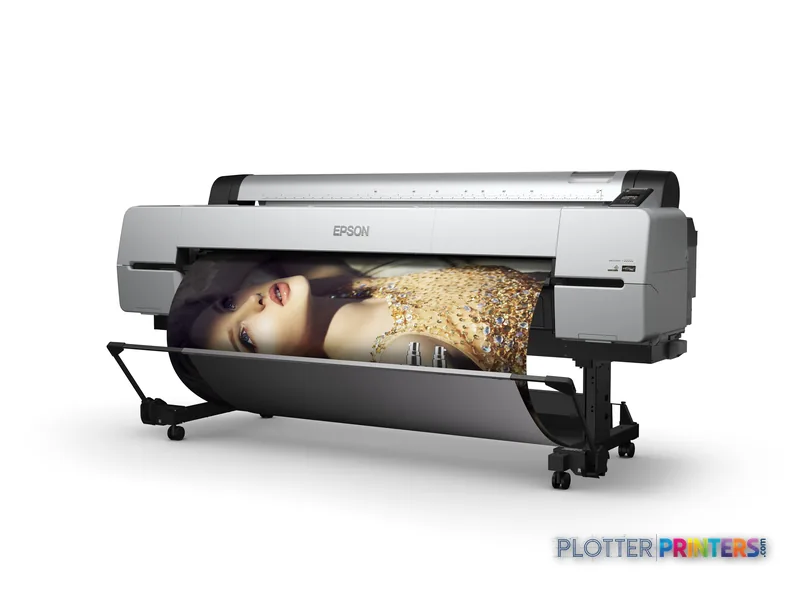

Epson SureColor SC-P20000

This model is particularly well suited to a multidisciplinary practice or contractor that needs large color output without separating every map, board, and drawing set into different devices. It accepts roll paper and supports borderless printing across a broad set of widths. For everyday documents, the listed Epson Bond Paper Bright 90, Epson Bond Paper Satin 90, and Epson Bond Paper White 80 options give a practical starting point; coated, photo, canvas, synthetic, backlit, and film media broaden the presentation side of the work.

The 64-inch roll width matters most for full-scale boards, wide GIS layouts, construction visuals, and landscape sheets that otherwise require tiling. It can also handle A0 output. Ethernet is Gigabit Ethernet, and USB Type-B is provided for direct connection; there is no Wi-Fi. That is often acceptable in a managed print room, but it is a genuine consideration for teams expecting ad hoc wireless submission from job trailers or meeting spaces.

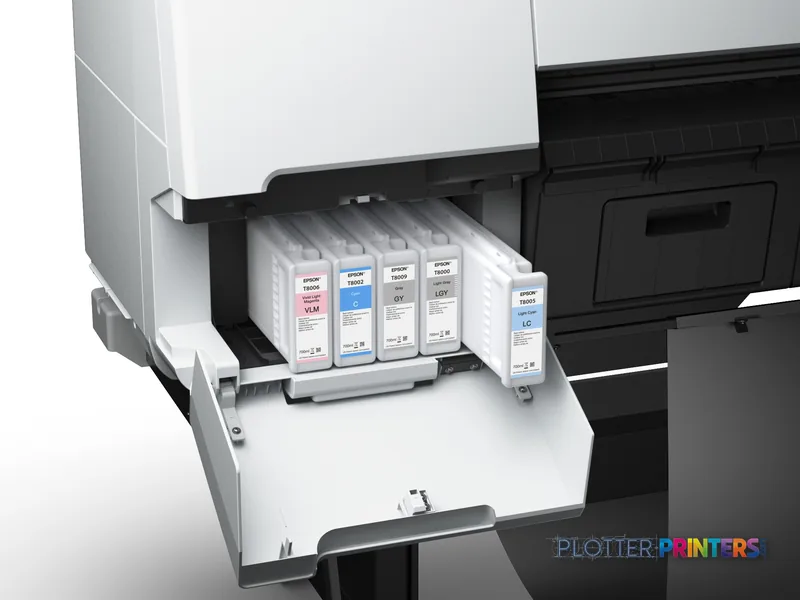

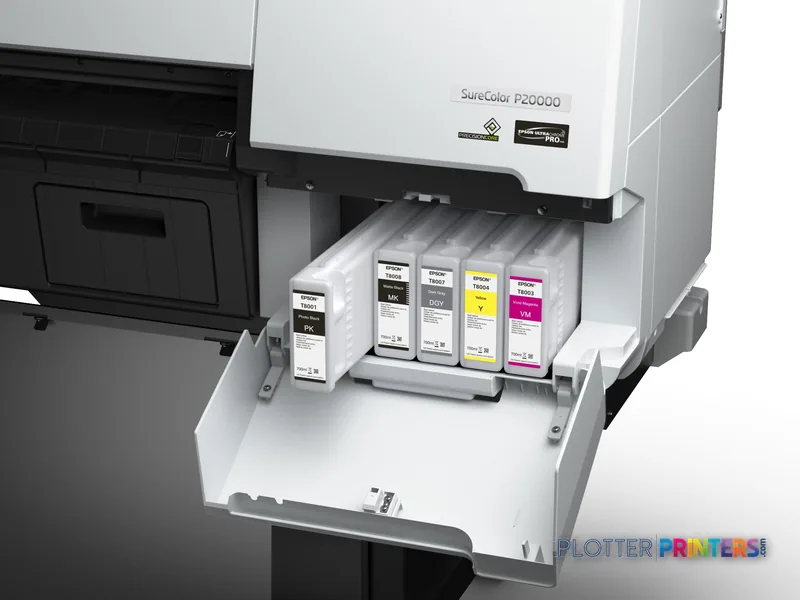

The SC-P20000’s 10 listed inks give it a more image-oriented configuration than a simple four-color CAD device. That matters when a Revit view combines subtle materials, shaded terrain, photographs, and color-coded MEP overlays. The difference shows up where photographs live—in the last five percent of a saturated red—but output fidelity still depends on the PDF, driver settings, paper choice, and profile.

For color-critical presentation work, ask for a proof using the exact media and files your team uses. The data provided here states a maximum resolution of 2400 x 1200 DPI, but resolution alone does not establish tonal smoothness, line behavior, or color match. There is no measured gamut dataset for this model on this page, so do not substitute a brochure-style color percentage for a controlled evaluation. See how we evaluate wide-format output for the distinction.

Choose this 64-inch model when width and presentation-media flexibility are central to the brief. If your work is largely 44-inch sheets and you need dual-roll operation, the Epson P8570DR 44-in is the more directly relevant in-family comparison. Teams that mainly need smaller-format photographic or proof-oriented work may find the Epson SC-P5000 a more proportionate device. Compare the SC-P20000 with the dual-roll alternative before treating width as the only buying criterion.

The trade-off is physical scale: the printer measures 95.1 inches wide, 38.4 inches deep, and 45.1 inches high, and weighs 377 lbs. At 51.1 dB while printing, it belongs in a planned production area. It is not the right tool for firms needing built-in scanning and copying, wireless connectivity, or a compact office footprint; none of those capabilities is established in the supplied product data.
