Dietzgen · Paper & Media

20 lb Engineering Vellum

Model471

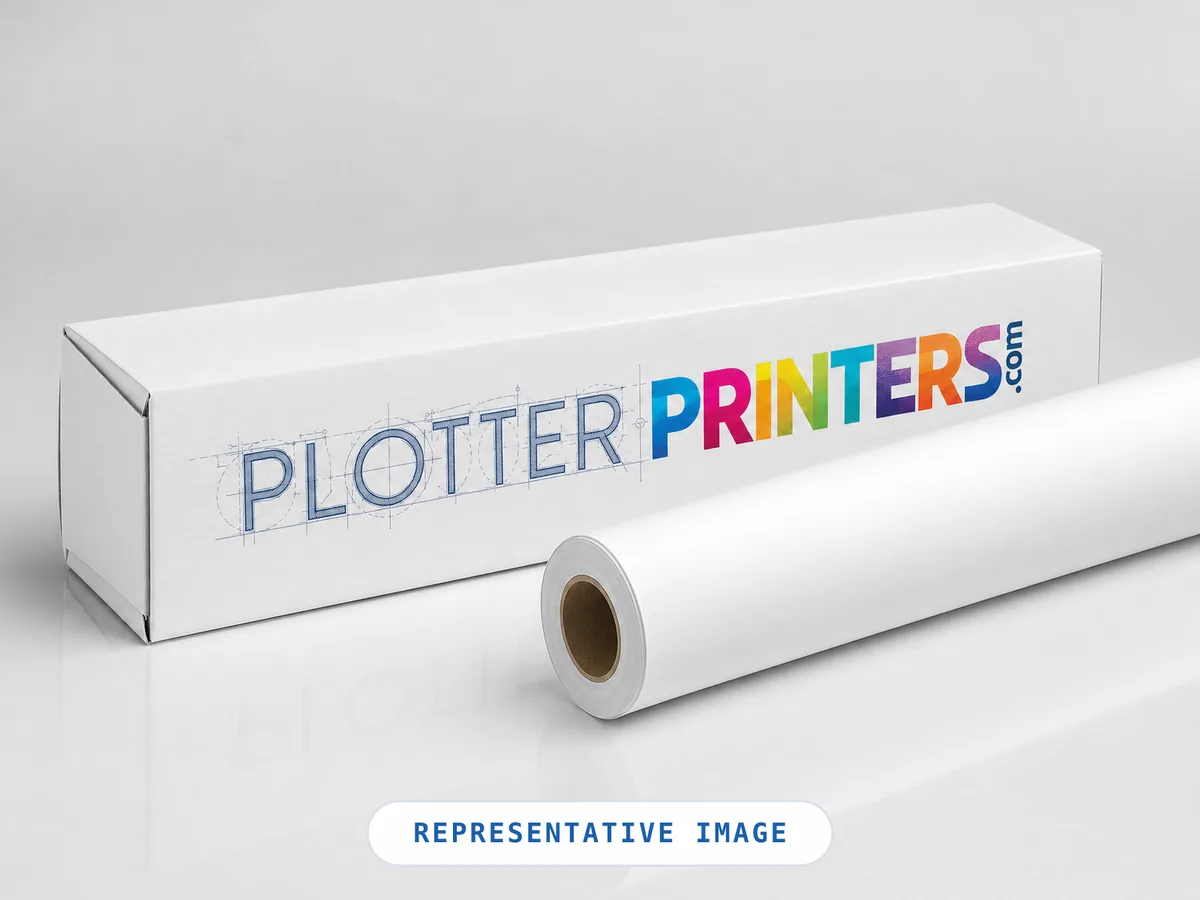

Representative product photograph of a roll of wide-format media beside a PlotterPrinters shipping carton. Generic image, not a photograph of this product.

Representative imageA generic photograph of wide-format roll media and our shipping carton. It is not a photograph of this product, and it does not show the pack quantity, roll length, width or colour you are ordering — those are in the title and the size options below.

Genuine OEM hardwareAuthorized U.S. distribution

Manufacturer warrantyExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Price range: $100.95 through $719.95

In stock

Clear

Request a Quote

Specifications

Dye· BESTPigment· BESTLatex· GOODUV· GOODPageWide· BESTToner LED· BEST3″ core

A 3.3-mil, 20 lb (75 gsm) uncoated vellum on a 100% cotton fibre base, translucent at 56% opacity. Built for archival intermediates: Dietzgen states it will not yellow or fade with time or from ozone exposure and withstands repeated handling. Rated BEST for toner, dye, pigment and PageWide inks.

Media type	Bond & Uncoated › Vellum
Thickness	3.3 mil
Weight	75 gsm (20 lb bond)

Available sizes

24" x 36" sheets, 100/pack
30" x 42" sheets, 100/pack
8.5" x 11" sheets, 250/pack
11" x 500' (3" core)
12" x 500' (3" core)
17" x 500' (3" core)
18" x 500' (3" core)
22" x 500' (3" core)
24" x 500' (3" core)
30" x 500' (3" core)
34" x 500' (3" core)
36" x 500' (3" core)

Overview

Built for the work

Expert analysis

What you should know

Dietzgen 471 is a translucent drafting vellum made from a 100% cotton fibre base — 3.3 mil thick, 20 lb (75 gsm), matte, and deliberately low in opacity at 56% so light passes through the sheet. What it is best at is lasting. This is the stock you commit a drawing to when the intermediate has to be pulled from a flat file and reprinted years later.

What Dietzgen 20LB Engineering Vellum (471) is used for

Archival drawing intermediates
Engineering and drafting reproduction
Translucent originals for repeated reprographic handling
Long-term drawing storage and reissue

The cotton base is what separates this from a bond. Dietzgen rates 471 for exceptional strength and durability through repeated handling, and states it will not yellow or fade with time or due to ozone exposure — the two failure modes that usually end an archived drawing.

Ink compatibility

471 carries Dietzgen’s BEST rating on four chemistries at once: toner, aqueous dye, aqueous pigment and HP PageWide. That breadth is the practical argument for it — the same vellum can go through a toner plotter, an aqueous inkjet plotter or a PageWide device without changing stock or re-profiling. Latex and UV inks are rated GOOD.

Working with it

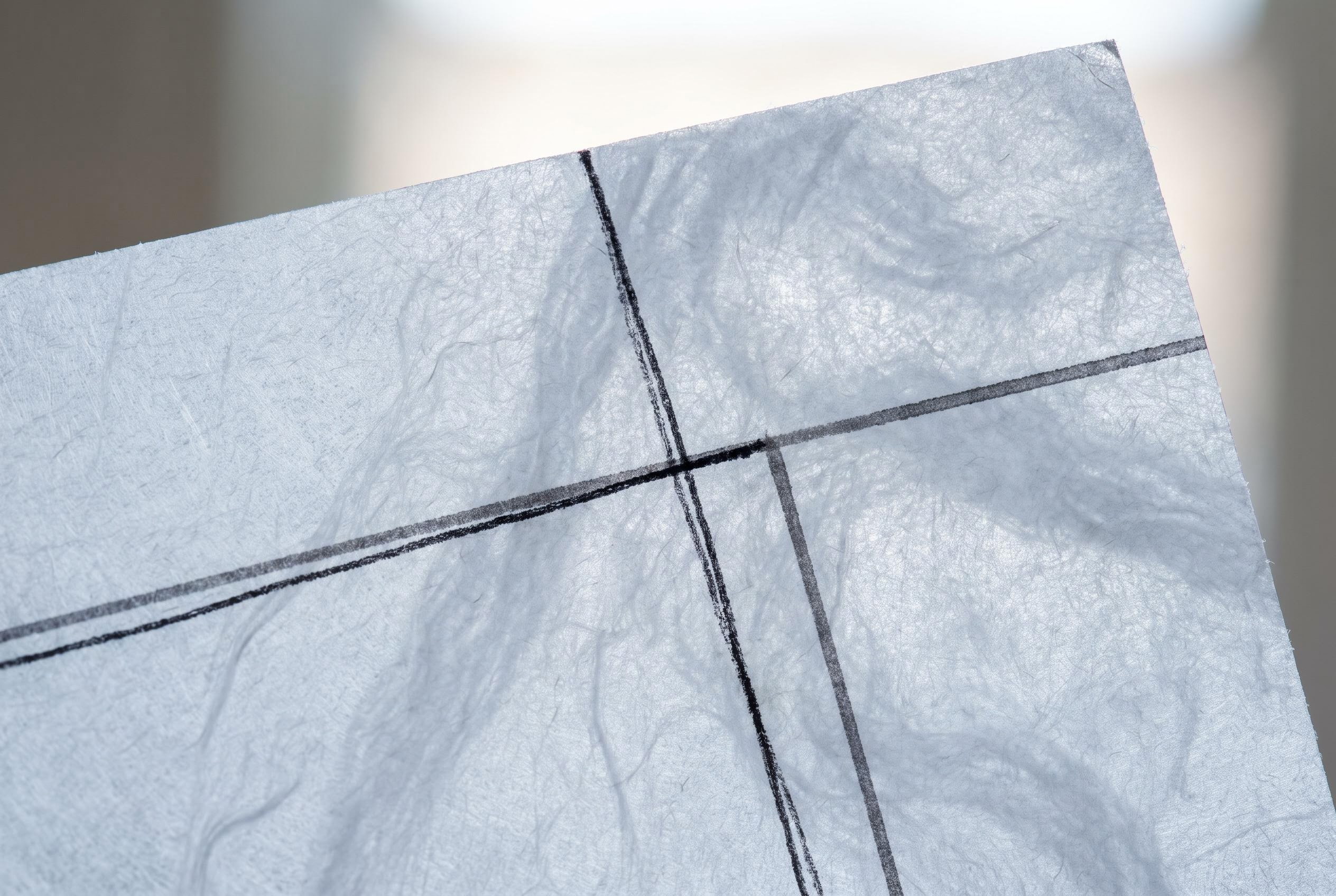

At 56% opacity, 471 is meant to be seen through, which is the whole basis of using it as a reprographic intermediate. Its white is measurably warmer than a production bond: brightness 92 with a whiteness of 106, against 145 whiteness on Dietzgen’s 430 bond. Rolls run 11 to 36 inches wide on 3-inch cores, and cut sheets are available from 8.5 to 30 inches.

Specifications

Full technical detail

Printers this media fits

Checked against every wide-format printer we track: 237 can run it — HP 99 · Epson 79 · Canon 59. Compatibility is resolved from the printer’s published media handling (roll width, core size and the roll diameter the spindle holds), not from a marketing list.

The list starts from the maker’s own ink ratings for this media — rated BEST for Dye, Pigment, PageWide, Toner LED; GOOD for Latex, UV ink. A printer only appears here if its ink chemistry is one of those.
