HP DesignJet Z6
44" color graphics & photo printer
- ModelZ6
- Prints44" wide
- Score71/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 3 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Z6 uses pigment-based HP 746 inks, giving water-resistant output suited to field-handled site maps and maps.
- It prints up to 44 inches wide at 2400 x 1200 DPI with PostScript 3, PDF 1.7 and HP-GL/2 support.
- HP's rated 85.1 m²/hr is a marketing ceiling; expect lower productive throughput after RIP, drying and roll changes.
Not sure if the Z6 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 44" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Cyan, Photo black, Matte black, Magenta, Yellow.
- Connectivity Ethernet for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
- Analyst score Scores 71/100 in our class-relative rating.
Overview
A pigment-ink hybrid for firms whose color has to survive the job site
The HP DesignJet Z6 44-in is a six-cartridge, three-printhead thermal inkjet built around what AEC work actually asks of a plotter: crisp HP-GL/2 line drawings on bond, and color that holds up outdoors. Where it earns its keep is the ink set. The pigment-based inks — cyan, magenta, yellow, plus separate photo black and matte black — render saturated site maps and renderings that resist water and fading, which matters where a set of GIS overlays or a coordination drawing lands in a job trailer rather than a conference room.
On the paper we care about, the difference shows in the deep shadow of a rendering and in the last few percent of a saturated red — the places where dye plotters go muddy or bleed. Native PostScript 3 and PDF 1.7 handling means presentation-heavy files RIP predictably. HP rates it at up to 85.1 m²/hr in normal mode; treat that as a ceiling, not a throughput you’ll see across mixed permit sets.
- Color-heavy renderings and presentation boards
- Water-resistant site maps and GIS output
- Mixed CAD line work and color on a single 44-in roll
- Firms needing native PostScript and PDF fidelity
Note: this original Z6 is now superseded in HP’s line. If you need higher unattended volume or dual rolls, step toward a production model like the HP Z5600 44-in rather than this single-roll design.
- 44″Max print width
- 916 ft²/hRated speed
- 6Ink channels
- 2,400 dpiMax resolution
- 59.9%sRGB, measured
Spec Analysis
overall
overall
At a glance
- Print width
- Up to 44 in (rolls 279–1118 mm)
- Print technology
- Thermal inkjet, 6 pigment cartridges, 3 printheads
- Ink colors
- Cyan, Magenta, Yellow, Photo black, Matte black
- Max resolution
- 2400 x 1200 dpi
- Rated speed (HP claim)
- Up to 85.1 m²/hr, normal quality
- Page description languages
- PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
- Connectivity
- Gigabit Ethernet, USB, Wi-Fi Direct, HP ePrint (no Wi-Fi)
- Consumables
- HP 746 inks; HP 729 and HP 746 printheads
Ideal for: architecture and civil/GIS teams producing color renderings, presentation boards and durable site maps alongside CAD line work on a single 44-in roll. Not the tool for: high-volume, unattended plan-set production or firms needing dual rolls and integrated scanning.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The Z6 uses pigment-based HP 746 inks, giving water-resistant output suited to field-handled site maps and maps.
- It prints up to 44 inches wide at 2400 x 1200 DPI with PostScript 3, PDF 1.7 and HP-GL/2 support.
- HP's rated 85.1 m²/hr is a marketing ceiling; expect lower productive throughput after RIP, drying and roll changes.
- The original Z6 is discontinued as of mid-2026 and superseded by a Plus Edition in the same family.
- HP typically supports parts and ink for roughly five to seven years post-discontinuation, into the early 2030s.
- For high-volume monochrome plan production, a multi-roll sibling like the HP Z5600 or Z6600 fits better.
Look at a saturated red on an architectural rendering and you learn something the spec sheet won’t tell you: whether the last five percent of that color holds together or muddies into brown. The HP DesignJet Z6 44-in PostScript printer was built for firms that care about that last five percent — the ones printing color-heavy presentation boards, GIS maps and photographic renderings alongside their everyday bond-paper plan sets.
It is, in the plainest terms, a pigment-ink machine wearing a technical-plotter body. That combination is why AEC buyers kept reaching for it, and it’s worth understanding before you buy one on the secondary market.
44" x 66"Print widthmaximum custom media size
2400 x 1200 DPIResolution
85.1 m²/hrRated speed, normal qualityHP rated
Cyan, Photo black, Matte black, Magenta, YellowInks
What it actually is
The Z6 uses HP thermal inkjet technology across three printheads and a six-cartridge system, drawing on the HP 746 inks with the HP 729 and HP 746 printheads. The ink set matters more than the marketing usually admits: these are pigment inks, which means a site map that catches rain or a board that gets handled on a job site keeps its edges. That water resistance is the practical reason many firms preferred the Z6 over dye-based technical plotters.
Under the hood it carries 128 GB of memory and an internal hard drive, speaks PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG and CALS G4, and connects over Gigabit Ethernet with Wi-Fi Direct and USB. HP rates it at 85.1 m²/hr in normal quality — treat that as a marketing ceiling, not the throughput you’ll see once RIP processing, drying and roll changes enter the picture.
sRGB coverage (by volume)59.9%
Adobe RGB coverage (by volume)50.4%
Where it fits — and where it doesn't
This is a color machine first. If your work is heavy on presentation boards, color-coded coordination drawings, high-end renderings and durable site maps, the Z6 rewards you where the eye lives — in skin tones that don’t turn waxy and in the deep teatime shadows of a dusk rendering. For a mixed practice that prints bond-paper bid sets Monday and a client board Friday, it’s a sensible single machine.
- Mid-sized multidisciplinary firms producing both technical drawings and color deliverables.
- Surveyors and civil teams printing GIS maps that must survive field handling.
- Architecture studios where rendering fidelity is a client-facing asset.
- Print rooms wanting one 44-in machine that covers monochrome and color competently.
It is less appropriate for pure line-drawing production at volume, where a single-roll design and modest sustained speed become a bottleneck. Firms in that position should look at a multi-roll, production-oriented sibling such as the HP Z5600 44-in or the HP Z6600 44-in. If your color needs are lighter and budget is the driver, the HP Z5400 44-in steps down cleanly. And if you want to weigh the Canon alternative on the same page, compare the Z6 against the Canon GP-4000 44-in.
The lifecycle question you can't skip
Buy with your eyes open: as of mid-2026 the original Z6 is discontinued and superseded by a newer Plus Edition in the same family. HP typically supports parts and consumables for roughly five to seven years after end-of-sale, which points to ink and repair availability into the early 2030s — but that is a rolling window, not a guarantee. Owner sentiment also flags occasional firmware and software friction, so budget IT time for setup even though HP describes the workflow as smooth.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 916 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Related reading
The read
The Z6 is a color-first wide-format machine that happens to handle CAD line work well — not the other way around. For a mixed AEC practice that values durable, faithful color on renderings and site maps, it remains a coherent choice on the secondary market, provided you confirm the support window with your dealer before you commit. If your reality is high-volume monochrome plan sets, the Z6 is more machine than you need in one direction and less than you need in another; a production sibling serves you better. Match it to the work, not the brochure.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 10 compared
Class best 79 — Epson SureColor T7770DR
100% spec coverage
- This printer
- Epson SureColor T7770DR
Category leaders best color graphics & photo printers, by dimension
Measured color
Color gamut, measured from the ICC profile
Measured on Hahnemühle Photo Gloss Baryta 320 — the same paper we put every printer on, so the only thing that varies is the printer and its ink. Computed with ArgyllCMS from the paper maker’s ICC profile: real measured color data, not a spec-sheet claim.
704KCIELAB gamut volume — within the sRGB working space
59.9%of sRGB by volume
50.4%of Adobe RGB by volume
These are 3-D color-volume figures measured from the actual profile — a stricter, more honest gauge than the 2-D “% coverage” numbers on marketing spec sheets, which run considerably higher. Use them to compare printers on the same basis.
| Media | Volume (Lab³) | sRGB | Adobe RGB |
|---|---|---|---|
| Photo Gloss Baryta (common basis) | 703,926 | 59.9% | 50.4% |
| Backlit film | 766,825 | 58.8% | 51% |
| Vinyl | 711,297 | 60.9% | 50% |
| Satin / semi-gloss photo | 707,601 | 60.3% | 49.8% |
| Premium glossy photo | 707,601 | 60.3% | 49.8% |
| Glossy photo | 632,099 | 57.6% | 46.6% |
| Fine-art | 449,685 | 44.2% | 34.2% |
| Matte photo | 449,685 | 44.2% | 34.2% |
| Plain / coated | 449,685 | 44.2% | 34.2% |
| Canvas | 407,370 | 40.8% | 31.1% |
| Other media | 174,386 | 19.4% | 13.3% |
Gamut volume is the size of the reproducible color solid in CIELAB, computed with ArgyllCMS iccgamut. Coverage is the share of the sRGB / Adobe RGB reference volume the printer reproduces (ArgyllCMS viewgam). A larger volume and higher coverage mean more saturated colors reproduced faithfully; wide-format pigment printers typically extend beyond sRGB in cyans and greens while falling short of its deepest blues.
Verified specifications
The specs that decide it
| Maximum roll width | 44 in |
|---|---|
| Maximum resolution | Up to 2400 x 1200 optimized dpi |
| Printing colors | cyan, magenta, yellow, matte black, photo black, chromatic red |
| Print head | 3 universal printheads (valid for all colors) |
| Ink cartridge capacity | 300 mlmanufacturer-verified |
| Print speed (normal quality) | 85.1 m²/hr |
| Page description languages | Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL |
| Storage media | Printer: 500 GB self-encrypting; Scanner: 256 GB |
| Built-in display | 15.6" (396-mm) large touchscreen |
| Max print size | 44 x 66 inmanufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyThermal inkjet
Max resolution2400 x 1200 DPI
Max print width44"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Print head | 3 |
| Printing colors | Cyan, Photo black, Matte black, Magenta, Yellow |
| Print technology | Thermal inkjet |
| Resolution color | 2400 x 1200 DPI |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Print speed (normal quality) | 85.1 m²/hr |
Performance
| HP segment | Business |
|---|---|
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Product color | Black |
| Storage media | HDD |
| Internal memory | 128000 MB |
| Built-in display | Yes |
| Country of origin | China, Thailand |
Paper handling
| Media thickness | 0.8 mm |
|---|---|
| Custom media sizes | 210 x 279 to 1118 x 1676 mm |
| Maximum roll width | 4.65" (11.8 cm) |
| Roll widths supported | 279 – 1118 |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A4 |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Direct printing | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | HP ePrint |
Technical details
| Box contents | HP DesignJet Z6 PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord |
|---|
Weight & dimensions
| Depth | 27.4" (695 mm) |
|---|---|
| Width | 70.9" (1802 mm) |
| Height | 39.3" (998 mm) |
| Weight | 189.6 lbs (86 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 6.5 W |
| Power consumption (typical) | 100 W |
Operational conditions
| Storage temperature (T-T) | -25 – 55 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Harmonized System (HS) code | 84433210 |
|---|
Packaging data
| Package depth | 30.2" (766 mm) |
|---|---|
| Package width | 76.8" (1950 mm) |
| Package height | 28.3" (718 mm) |
| Package weight | 271.2 lbs (123 kg) |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | 30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 820 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 52 |
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Carbon emissions, manufacturing (kg of CO2e) | 755 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 14 |
Brand-specific features
| HP Web Jetadmin | Yes |
|---|---|
| HP GTIN (EAN/UPC) | 194441079890. 192018667563 |
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABA) 194441079890; (B1K) 192018667563 |
Everything that fits the HP DesignJet Z6
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
6 ink cartridges · 1 printhead · 15 paper & media items · 5 accessories · 2 coverage plans
HP DesignJet Z6 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet Z6 44-in PostScript Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 6
Printheads 1
Paper & Media 12
Representative image10 Mil Water-resistant Blockout Display Film
HP Production Adhesive Vinyl, 3-in CoreRepresentative imageHP 4-mil Double Matte Film, 3-in CoreRepresentative imageHP 20-lb Bond with ColorPRO TechnologyRepresentative imageMagic 6mil PP Film w/ Low-Tack Adhesive (STICK2)Representative imageMagic 9mil Universal Matte Coated PP Film (PPM7)Representative imageMagic Firenze 170gsm Coated Matte Paper (Firenze170)Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Accessories 4
Coverage & Support Plans 1
Questions
Straight answers
Is the HP DesignJet Z6 44-in still sold new?
No. As of mid-2026 the original Z6 is discontinued and superseded by an HP DesignJet Z6 Plus Edition. Some stock may remain in secondary markets, but it is no longer the active model.
Can this printer scan or copy?
No. It is a print-only device. If you need scanning, HP lists the HP SD Pro 44-in Scanner as a compatible companion accessory.
What inks and printheads does it use?

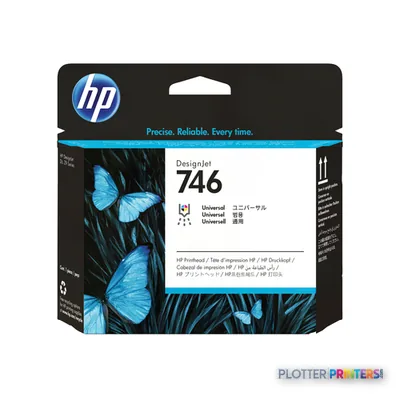

It uses the pigment-based HP 746 ink set across six cartridges, with the HP 729 and HP 746 printheads. The pigment chemistry is what gives its output water resistance for field use.
Does it handle roll media and heavier stock?

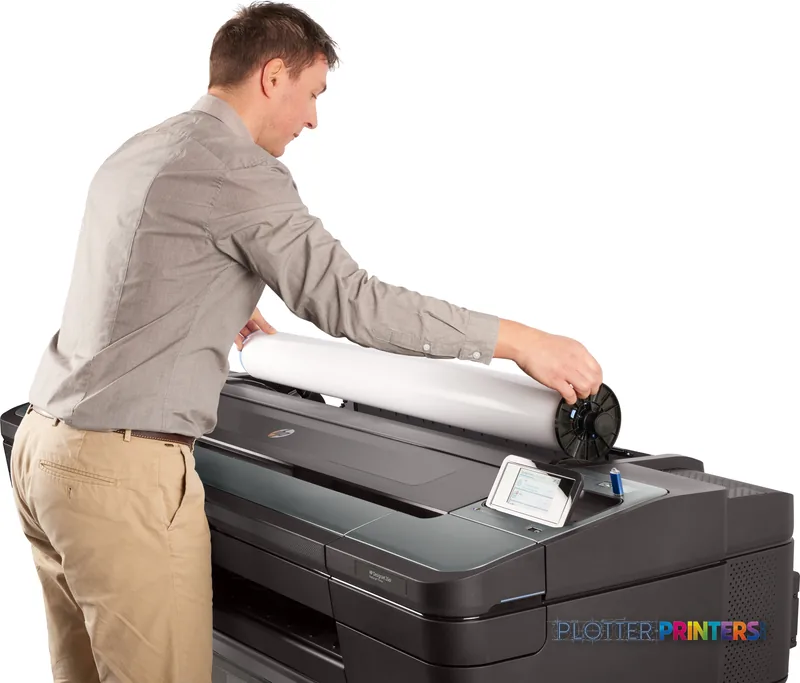

Yes. It ships with a spindle and a 3-in core adapter, supports roll widths from 279 to 1118 mm, and handles media up to 0.031 inch (0.8 mm) thick, including coated, bond, photo and banner papers.
How long will parts and ink stay available?
HP typically provides service and consumable support for about five to seven years after discontinuation, which points to availability into roughly 2031–2033. Confirm the current window with your dealer before purchasing.
Should I buy this over a faster production plotter?
Only if color fidelity and durable output matter more than raw monochrome throughput. For high-volume line-drawing work, an in-family production model such as the HP Z5600 44-in or HP Z6600 44-in is the more appropriate tool.
