Epson · Wide-Format Plotter

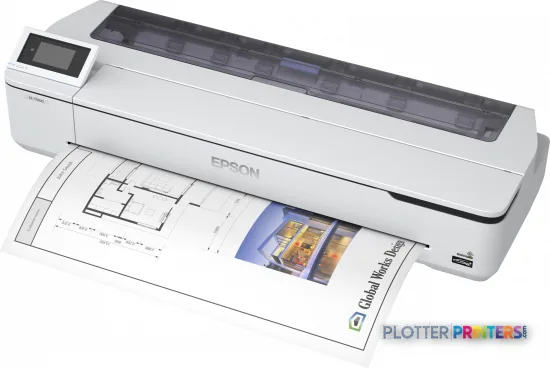

Epson SureColor SC-T5100N
36" technical / CAD plotter
- ModelSC-T5100N
- Prints36" wide
- Score52/100
Authorized Epson dealerGenuine hardware & ink
1-year warranty includedExtendable to 4 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SC-T5100N prints color technical documents up to A0 (33" x 47" (841 x 1189 mm)).
- Roll-paper and cut-sheet support suit routine plan output plus occasional specialty-sheet work.
- HP-GL/2, HP-RTL, and ESC/P-R support are relevant to mixed CAD and PDF submission environments.
Not sure if the SC-T5100N is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Productivity Rated at 31.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 6 specs checked against the manufacturer datasheet.
Overview
Built for the work
Epson SureColor SC-T5100N, 2400 x 1200 DPI, ESC/P-R, HP-GL/2, HP-RTL, Black, Cyan, Magenta, Yellow, PrecisionCore, A0 (841 x 1189 mm), A0, A1, A2, A3, A3+, A4
- 36″Max print width
- 4Ink channels
- 2,400 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
86
Print Quality
83
Class best is 63. How we grade →
Expert analysis
What you should know
Key takeaways
- The Epson SC-T5100N prints color technical documents up to A0 (33" x 47" (841 x 1189 mm)).
- Roll-paper and cut-sheet support suit routine plan output plus occasional specialty-sheet work.
- HP-GL/2, HP-RTL, and ESC/P-R support are relevant to mixed CAD and PDF submission environments.
- This is a print-only device, so scanning and copying require a separate workflow or a listed MFP alternative.
- Wi-Fi and Gigabit Ethernet support office deployment, but IT should confirm driver and network requirements before installation.
At 4:45 p.m., the person at the output tray usually needs one thing: an A0 plan that is readable, correctly sized, and out the door before the meeting starts. The Epson SC-T5100N is a color wide-format printer for that everyday AEC lane—CAD sheets, PDF plan sets, coordination drawings, GIS maps, and presentation output up to A0.
It handles roll paper and cut sheets, uses a PrecisionCore printhead, and supports HP-GL/2 and HP-RTL alongside ESC/P-R. That matters when different teams send files from CAD and PDF workflows rather than treating every plot like a special project. Ethernet, Wi-Fi, direct printing, and a touch LCD give a small office several ways to submit work without building a print room around the machine.
A0 (33" x 47" (841 x 1189 mm))Maximum print sizeLarge enough for full-size drawing output.
2400 x 1200 DPIMaximum resolutionRelevant when small labels, linework, and color overlays share a sheet.
0.002"–0.011" (0.05 – 0.27 mm)Media thicknessCheck specialty media against this range before standardizing stock.
Gigabit EthernetNetwork connectionIncludes one RJ-45 port and Ethernet LAN data rates of 10,100,1000 Mbit/s.
Where it earns its floor space
This is a sensible fit for an architecture studio, engineering satellite office, survey team, or jobsite support area that needs color plans in-house but does not need scanning or copying. A0 support covers the large-sheet work most teams reach for at deadline time. Roll media keeps recurring plan output practical; cut-sheet support helps when a specific sheet size or presentation stock is needed.
The four printing colors—Black, Cyan, Magenta, and Yellow—suit routine color-coded construction documents, markups, maps, and diagrams. The 1000 MB internal memory and supported page-description languages are useful on mixed CAD and PDF queues. They do not turn a cluttered bid-set workflow into a production department. Nothing does. Paper still has opinions.
Bottom line: It fits recurring technical-document output where full-size color matters more than scan-and-copy capability.
The limits are clear—and useful
The SC-T5100N is print-only. It has no scanning or copying function, so it is not the right answer for a counter that regularly receives marked-up paper plans, legacy drawings, or field sketches that must become digital files. It also has one roll-paper path listed, which means firms constantly switching among media types should look carefully at the operator routine before assuming unattended flexibility.
If scanning and copying are part of the daily requirement, the Epson SC-T5200 38-in is the more relevant in-family direction because it is listed as a scanner/MFP. If the need is simply a related 36-inch printer rather than an MFP, compare the SC-T5100N and Epson SC-T5100 36-in side by side. Buy the workflow, not the suffix.
Bottom line: A separate scanner is fine until it becomes the reason someone misses the courier cutoff.
Consumables, placement, and IT reality
Plan consumables around the work you actually issue. The supported list includes Epson UltraChrome XD2 inks, the Epson SureColor Maintenance box :LFP desktop, and technical media such as Epson Bond Paper White 80, 610mm x 50m and Epson Coated Paper 95, 610mm x 45m. The optional Epson Stand 36″ LFP desktop and Epson Optional Cut Sheet Output Stacker Tray deserve a practical conversation, especially where prints otherwise land wherever gravity feels like putting them.
At 49.9 inches wide, 27.4 inches deep, and 35.9 inches high, it needs a planned location rather than the last vacant corner. For IT, it offers Wi-Fi, Gigabit Ethernet, and USB Type-A connectivity. Confirm network policy, driver deployment, and who owns media loading before delivery day.
Bottom line: The machine is straightforward; the handoff between users, paper, and IT is where most office print trouble starts.
Compare the nearby choices
The read
The Epson SC-T5100N is for AEC teams that need dependable access to A0 color printing from roll paper or cut sheets, without paying for an MFP workflow they will not use. It becomes less appropriate when scanning, copying, frequent media changes, or a heavily staffed production queue drives the day. For the small office that wants its own plotting capability before the next issue set lands, it is a focused tool. Keep its job focused too.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 36 in |
|---|---|
| Maximum resolution | 2400 x 1200manufacturer-verified |
| Print speed | 31manufacturer-verified |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL |
| Internal memory | 1000 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.05 – 0.27 mm |
| Scanning | No |
| Wi-Fi | Wireless LAN IEEE (802.11 b/g/n)manufacturer-verified |
| Ethernet | 1000Base-T/100Base-TX/10Base-Tmanufacturer-verified |
| Sound level (printing) | 49manufacturer-verified |
| Power consumption | 28manufacturer-verified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Print head | PrecisionCore |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Product color | White |
| Internal memory | 1000 MB |
| Built-in display | Yes |
| Country of origin | Indonesia |
| Sound power level (standby) | 32 dB |
| Sound pressure level (printing) | 49 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| Media thickness | 0.05 – 0.27 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0…A9) | A0, A1, A2, A3, A3+, A4 |
| ISO B-series sizes (B0…B9) | B1, B2, B3, B4, B5 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | No |
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Weight & dimensions
| Depth | 27.4" (696 mm) |
|---|---|
| Width | 49.9" (1268 mm) |
| Height | 35.9" (913 mm) |
| Weight | 101.4 lbs (46 kg) |
Power
| Power consumption (off) | 0.2 W |
|---|---|
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 28 W |
Other features
| Touchscreen | Yes |
|---|
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|---|
| Harmonized System (HS) code | 84433210 |
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 60.2" (1530 mm) |
| Package width | 28.7" (730 mm) |
| Package height | 25.8" (655 mm) |
| Package weight | 100.3 lbs (45.5 kg) |
| Drivers included | Yes |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
System requirements
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
Everything that fits the Epson SureColor SC-T5100N
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
13 ink cartridges · 48 paper & media items · 5 accessories · 9 coverage plans
Epson SureColor SC-T5100N ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-T5100N — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 13
Epson Photo Quality Ink Jet Paper, DIN A3, 102g/m², 100 Sheets
Epson Photo Quality Ink Jet Paper, DIN A3+, 102g/m², 100 Sheets
Epson Photo Quality Ink Jet Paper, DIN A2, 102g/m², 30 Sheets
Epson Singlepack UltraChrome XD2 Cyan T40C240(26ml)
Epson Singlepack UltraChrome XD2 Yellow T40D440(50ml)
Epson Singlepack UltraChrome XD2 Magenta T40C340(26ml)
Epson Singlepack UltraChrome XD2 Yellow T40C440(26ml)
Epson Singlepack UltraChrome XD2 Magenta T40D340(50ml)
Epson Singlepack UltraChrome XD2 Black T40C140(50ml)
Epson Singlepack UltraChrome XD2 Black T40D140(80ml)
Epson Singlepack UltraChrome XD2 Cyan T40D240(50ml)
Epson Singlepack UltraChrome XD2 Magenta T40C340(26ml)
Epson Singlepack UltraChrome XD2 Magenta T40D340(50ml)Paper & Media 48
Representative image8 Mil Microporous Gloss Self-Adhesive PolypropyleneRepresentative image9 Mil Water-Resistant BacklitRepresentative image8 Mil Satin Photo PaperRepresentative image8 Mil Gloss Photo PaperRepresentative image5 Mil Water-Resistant Self-Adh Vinyl (3" AC)Representative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic Firenze 170gsm Coated Matte Paper (Firenze170)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image8mil Satin Microporous Photo Paper (791)Representative image8mil Gloss Microporous Photo Paper (790)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image32LB Engineering Bond Paper (436)
Epson Premium Glossy Photo Paper, DIN A3, 255g/m², 20 Sheets
Epson Premium Glossy Photo Paper, DIN A3+, 255g/m², 20 Sheets
Epson Premium Semigloss Photo Paper, DIN A3+, 250g/m², 20 Sheets
Epson Premium Semigloss Photo Paper, DIN A3, 250g/m², 20 Sheets
Epson Archival Matte Paper, DIN A3+, 189g/m², 50 Sheets
Epson A4 Archival Matte Photo Paper 189gsm, 50 sheets
Epson Archival Matte Paper, DIN A3, 189g/m², 50 Sheets
Epson Doubleweight Matte Paper Roll, 24" x 25 m, 180g/m²
Epson Premium Glossy Photo Paper Roll, 24" x 30,5 m, 170g/m²
Epson Premium Semigloss Photo Paper Roll, 24" x 30,5 m, 170g/m²
Epson A4 Photo Quality Inkjet Paper 102gsm, 100 sheets
Epson Enhanced Adhesive Synthetic Paper Roll, 24" x 30,5 m, 135g/m²
Epson Singleweight Matte Paper Roll, 17" x 40 m, 120g/m²
Epson Premium Luster Photo Paper, DIN A4, 250g/m², 250 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 20 Sheets
Epson Enhanced Matte Paper, DIN A4, 192g/m², 250 Sheets
Epson Enhanced Matte Paper, DIN A3+, 192g/m², 100 Sheets
Epson Premium Luster Photo Paper, DIN A3+, 250g/m², 100 Sheets
Epson Premium Glossy Photo Paper, DIN A2, 255g/m², 25 Sheets
Epson Premium Semigloss Photo Paper, DIN A2, 250g/m², 25 Sheets
Epson Enhanced Matte Paper, DIN A2, 192g/m², 50 Sheets
Epson Premium Luster Photo Paper, DIN A2, 250g/m², 25 Sheets
Epson Glossy Photo Paper BOGOF, DIN A4, 225g/m², 40 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 100 Sheets
Epson Glossy Photo Paper, DIN A4, 225g/m², 50 Sheets
Epson Singleweight Matte Paper Roll, 24" x 40 m, 120g/m²
Epson Premium Glossy Photo Paper Roll, 16" x 30,5 m, 170g/m²
Epson Premium Semigloss Photo Paper, 16,5" x 30,5 m, 170g/m²
Epson Bond Paper White 80, 610mm x 50m
Epson Bond Paper Bright 90, 594mm x 50m
Epson Bond Paper Bright 90, 610mm x 50m White Matte
Epson Bond Paper Satin 90, 610mm x 50m
Epson Coated Paper 95, 610mm x 45m
Epson Presentation Paper HiRes 120, 610mm x 30m
Epson Presentation Paper HiRes 120, 914mm x 30m 1181.1" (30 m) 36" (91.4 cm)
Epson Bond Paper White 80, 594mm x 50mAccessories 5
Coverage & Support Plans 9
Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S1)Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS1)
Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S2)Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS2)
Epson 03 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T5100
Epson 04 years CoverPlus+ Onsite service including Print Heads for SureColour SC-T5100
Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S4)Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS4)
Epson 1E years extension to CoverPlus+ Onsite service including Print Heads for SureColour SC-T5100/MQuestions
Straight answers
Can the Epson SC-T5100N print full-size AEC drawings?
Yes. Its listed maximum print size is A0 (33″ x 47″ (841 x 1189 mm)), which covers full-size plan output for many AEC document workflows.
Can it scan redlines or copy paper plans?
No. The product data lists no scanning and no copying. Teams digitizing paper markups or legacy drawings need a separate scanner or an MFP workflow.
What file and CAD language support is listed?
The listed page-description languages are ESC/P-R, HP-GL/2, and HP-RTL. Those matter in technical environments where CAD-originated files and PDFs share the print queue.
What media can it handle?
It supports roll paper and cut sheets, with listed media thickness from 0.002″–0.011″ (0.05 – 0.27 mm). Confirm any specialty stock falls within that range.
Which supplies should we plan to keep on hand?
Supported supplies include Epson UltraChrome XD2 inks and the Epson SureColor Maintenance box :LFP desktop. Epson Bond Paper White 80, 610mm x 50m is among the listed compatible media options.
