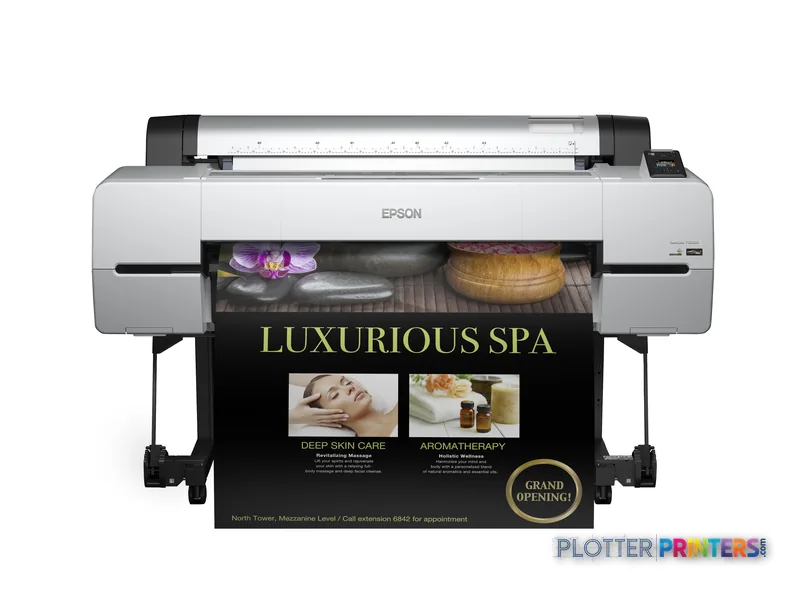

Epson SureColor SC-P10000

The SC-P10000 suits an architecture, engineering, survey, or construction team that needs wide roll output beyond the usual 44-inch class. It can accommodate media from 0.003 to 0.059 inches thick, making media selection an operational consideration rather than an afterthought. For a graphics-heavy planning exhibit or a presentation board, a clean borderless edge can be useful; for issued drawings, many teams will still retain margins and title-block conventions.

Network deployment is Ethernet-based, with one RJ-45 port supporting 10, 100, and 1000 Mbit/s operation. There is no Wi-Fi or USB port listed, so it is better approached as a fixed, networked print-room device than as an ad hoc job-drop printer. ESC/P-R is the listed page-description language. Firms using complex PDF, CAD, or construction-document workflows should validate their submission path, driver behavior, and file handling with their own representative sheets before standardizing it.

This is not a compact office plotter. At 74 inches wide, 38.4 inches deep, 45.1 inches high, and 277.8 pounds, it needs a deliberate location, practical access for media handling, and a team prepared to manage wide rolls. Its listed printing sound pressure level is 50.5 dB, another reason to consider placement rather than treating it as a desktop peripheral.

The optional Epson Auto Take up Reel Unit may be relevant when longer unattended runs or roll handling are part of the workflow. Epson UltraChrome PRO inks are the specified ink family. Epson also lists a broad range of compatible media, including synthetic paper, photo papers, proofing papers, canvas, backlit film, and roll media; the right choice should follow the drawing, display, or field-use requirement rather than a generic “AEC paper” assumption.

For teams whose priority is dual-roll operation at a narrower format, compare the Epson P8570DR 44-in or Epson SC-P8500D 44-in. Those alternatives change the width and roll-handling conversation; they are not simply substitutes for a 64-inch device.

The maximum listed print size is A0, with A0 through A4 and several B-series sizes supported. Confirm the actual sheet standards, roll widths, and application templates your group uses, particularly if civil sheets, exhibit graphics, or client boards extend beyond conventional architectural sizes. Also test small annotation text, screened fills, and color-coded layers on the media you intend to keep in stock.

The SC-P10000’s listed typical power consumption is 95 W, falling to 2.8 W in PowerSave and 0.5 W in standby or off. Those figures describe device power states, not the complete energy footprint of a print workflow. IT should also confirm network segmentation, access controls, accounting needs, and the support path for the printer, its consumables, and any optional PostScript expansion.
