HP · Wide-Format Plotter

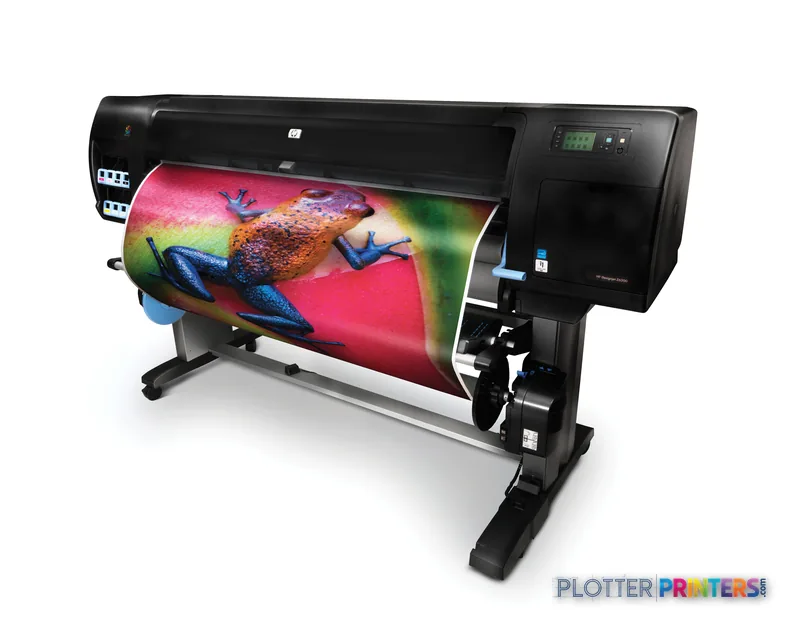

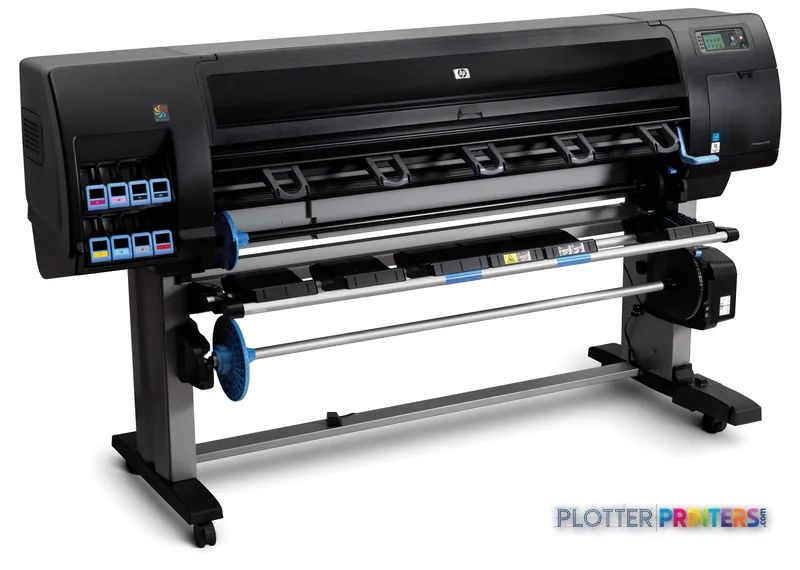

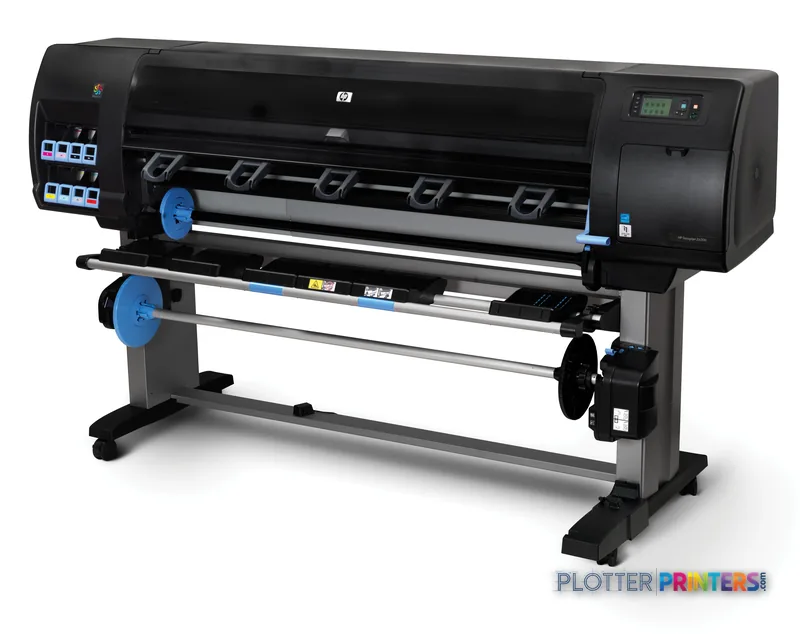

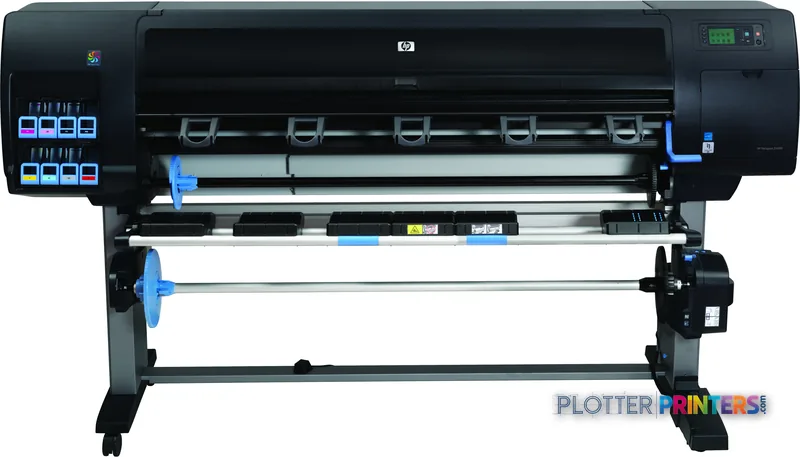

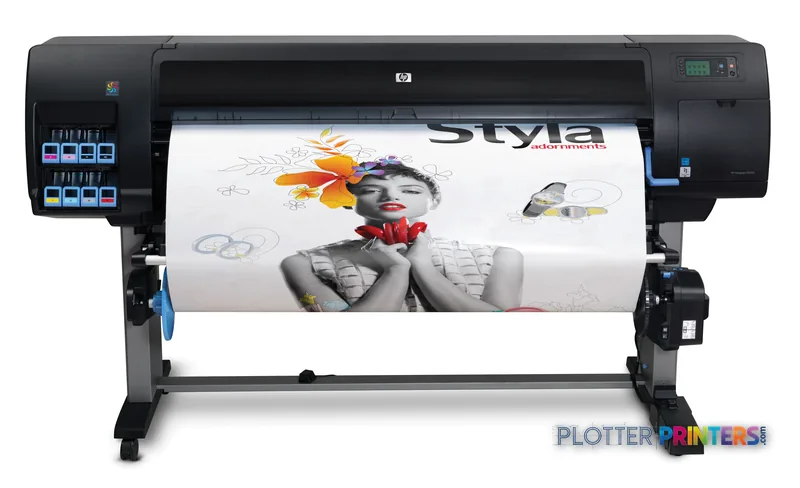

HP DesignJet Z6200
60" color graphics & photo printer
- ModelZ6200
- Prints60" wide
- Score58/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The 60-inch format is suited to large AEC graphics, GIS maps, coordination drawings, renderings, and proofing-oriented output.
- Its stated 2400 x 1200 DPI resolution, +/- 0.1% line accuracy, and 0.000787 in minimum line width support detailed technical and visual work.
- One roll input is the key workflow limitation for teams that frequently switch between bond, coated, and presentation media.
Not sure if the Z6200 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 60" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 58/100 in our class-relative rating.
Overview
Built for the work
HP Designjet Z6200 60-in Photo Printer, 2400 x 1200 DPI, HP-GL/2, HP-RTL, Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow, 775 ml, 0.56 mm, 6889.8" (175 m)
- 6″Max print width
- 8Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The 60-inch format is suited to large AEC graphics, GIS maps, coordination drawings, renderings, and proofing-oriented output.
- Its stated 2400 x 1200 DPI resolution, +/- 0.1% line accuracy, and 0.000787 in minimum line width support detailed technical and visual work.
- One roll input is the key workflow limitation for teams that frequently switch between bond, coated, and presentation media.
- Gigabit Ethernet, USB Type-A, a 160 GB internal drive, and HP-GL/2 and HP-RTL support make shared CAD-oriented deployment practical.
- The printer needs a considered location because it measures 95.7 x 27.2 x 53.9 in, weighs 418.9 lb, and is rated at 53 dB while printing.
On a 60-inch presentation board, a coordination map has nowhere to hide: the cyan edge of a utility overlay, the hairline of a structural grid, and the small type in a revision cloud all need to remain composed. The HP DesignJet Z6200 60-in Photo Printer is a color wide-format system for AEC teams that need large photographic, graphic, and technical output from roll media—not merely plan sets.
Its 2400 x 1200 DPI maximum resolution, minimum line width of 0.000787 in (0.0200 mm), and stated line accuracy of +/- 0.1% make it a credible fit for presentation boards, GIS maps, color-coded coordination drawings, site imagery, and proofing applications. HP-GL/2 and HP-RTL support also give it a familiar place in CAD-oriented environments.
2400 x 1200 DPIMaximum resolution
+/- 0.1%Line accuracy
0.000787" (0.0200 mm)Minimum line width
32768 MBInternal memory
Where it earns its floor space
This is particularly well suited to an architecture, engineering, or construction graphics room where visual output matters alongside linework. It accepts roll paper, photo paper, coated paper, glossy paper, proofing paper, and roll-up film, with support for media up to 0.022 in (0.56 mm) thick. That range matters when a team moves between coated drawing sets, glossy renderings, and more durable display-oriented media.

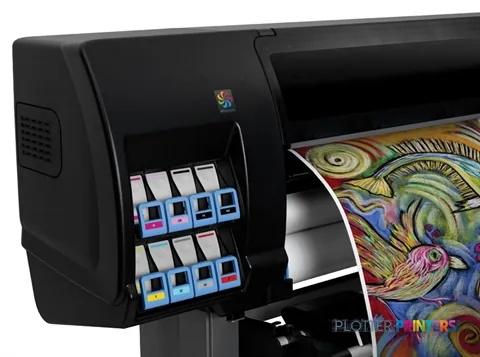

The printer uses eight cartridges and lists Light Cyan, Light magenta, Magenta, Matte black, Photo black, and Yellow among its printing colors. The two black inks are especially relevant to mixed AEC output: a plan sheet and a dark architectural rendering make different demands of black. Still, color fidelity is media- and file-dependent; no measured ICC gamut data is available here, so it would be unwise to turn the 2400 x 1200 DPI specification into a universal color-quality claim.
Gigabit Ethernet, USB Type-A, a 160 GB internal drive, and Windows, Mac, and Citrix compatibility support shared print-room deployment. For technical files, the combination of HP-GL/2 and HP-RTL is more operationally meaningful than a resolution number alone.
Single-roll operation is the central trade-off
The Z6200 has one roll input. That is workable for a focused run of boards, maps, or proof sheets, but it becomes less attractive when the same team constantly alternates between bond drawings and coated presentation media. One loaded roll means a media change is an operator event, not an unattended workflow.
Its physical presence deserves an honest site check: the unit measures 95.7 x 27.2 x 53.9 in and weighs 418.9 lb. During printing, its stated sound pressure level is 53 dB, so a dedicated print area is generally more comfortable than placing it beside quiet design desks. For firms with a 42-inch output requirement, the HP DesignJet Z6200 42-in offers the same stated maximum resolution in a narrower format. Teams that must stay at 60 inches but want to evaluate a newer in-family alternative can also review the HP DesignJet Z6610 60-in.
Consumables, service, and workflow questions to settle first
Before standardizing this printer, confirm availability and lead times for the compatible HP CG842A ink and the specific media your teams actually use. The catalog also identifies the HP DesignJet User Maintenance Kit and the optional HP DesignJet 60-in Media Bin. Those details matter most when presentation deadlines turn a seemingly small supply interruption into a project risk.
For scan-and-copy workflows, assess the optional HP Designjet Z6200 60-in Photo Printer ecosystem alongside the listed HP HD Pro 42-in Scanner and HP SD Pro 44-in Scanner rather than assuming scanning is integrated. IT should also validate driver support against its current operating-system estate: the listed compatibility is specific to older Windows, Mac OS X, and Citrix versions. For a broader class view, visit the 60-inch wide-format ranking.
Compare related options
HP DesignJet Z6200 42-inA narrower in-family option with the same listed maximum resolution.HP DesignJet Z6610 60-inAn in-family 60-inch alternative for comparison.Canon PRO-6600 60-inA same-width cross-brand model to include in a technical evaluation.60-inch printer rankingReview the wider class in one place.
The read
The HP DesignJet Z6200 60-in Photo Printer makes the most sense for AEC organizations that regularly render large-format visual work and can organize output around a single loaded roll. Its stated line accuracy, fine minimum line width, broad media categories, and CAD-language support give it a practical role in graphics-heavy engineering and design workflows. The trade-off is operational flexibility: firms with frequent media switching, current-platform IT requirements, or continuous mixed-job production should compare the Z6200 against the HP DesignJet Z6610 60-in before committing.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 3 compared
Class best 71 — Epson SureColor P20570
58% spec coverage
- This printer
- Epson SureColor P20570
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 60 in |
|---|---|
| Maximum resolution | 2400 x 1200 DPI |
| Printing colors | Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, HP-RTL |
| Internal memory | 32768 MB |
| Media thickness | 0.56 mm |
| Ethernet | Yes |
| Sound level (printing) | 53 dB |
| Power consumption | 270 W |
Specifications
Full technical detail
Max resolution2400 x 1200 DPI
Max print width60"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use casePhoto / Fine Art
Printing
| Color | Yes |
|---|---|
| Printing colors | Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Maximum resolution | 2400 x 1200 DPI |
| Print head nozzles | 2112 |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, HP-RTL |
| Print speed (best quality) | 3.2 |
| Print speed (normal quality) | 2.1 |
| Print cartridge volume (metric) | 775 ml |
Performance
| Storage media | HDD |
|---|---|
| Internal memory | 32768 MB |
| Built-in processor | Intel® Celeron® |
| Processor frequency | 1000 MHz |
| Internal storage capacity | 160 GB |
| Sound power level (standby) | 38 dB |
| Sound pressure level (printing) | 53 dB |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.56 mm |
| Maximum roll length | 6889.8" (175 m) |
Ports & interfaces
| USB port | Yes |
|---|---|
| Ethernet LAN | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
Weight & dimensions
| Weight | 418.9 lbs (190 kg) |
|---|---|
| Dimensions (WxDxH) | 95.7 x 27.2 x 53.9" (2430 x 690 x 1370 mm) |
Power
| Power requirements | 100 – 127 V |
|---|---|
| Power consumption (standby) | 100 W |
| Power consumption (typical) | 270 W |
Operational conditions
| Storage temperature (T-T) | -20 – 55 °C |
|---|---|
| Operating temperature (T-T) | 41 – 104 °F |
| Storage relative humidity (H-H) | 20 – 80% |
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Photo paper | Yes |
|---|---|
| Coated paper | Yes |
| Glossy paper | Yes |
| Roll-up film | Yes |
| Line accuracy | +/- 0.1% |
| Proofing paper | Yes |
| Minimum line width | 0.000787" (0.0200 mm) |
| Roll maximum input | 1 |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Packaging data
| Package weight | 551.2 lbs (250 kg) |
|---|---|
| Drivers included | Yes |
| Package dimensions (WxDxH) | 105.9 x 29.5 x 47.2" (2690 x 750 x 1200 mm) |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
System requirements
| Mac compatibility | Yes |
|---|---|
| Compatible operating systems | Windows 7/Vista/XP/Server 2008/Server 2003; Mac OS X v10.4/v10.5/v10.6; Citrix XenApp; Citrix XenServer. |
Everything that fits the HP DesignJet Z6200
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
20 ink cartridges · 4 printheads · 106 paper & media items · 8 accessories
HP DesignJet Z6200 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP DesignJet Z6200 60-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 20
HP Matte 914 mm x 22.9 m (36 in x 75 ft)
HP Everyday Pigment Ink Instant-dry Satin 1524 mm x 61 m (60 in x 200 ft)

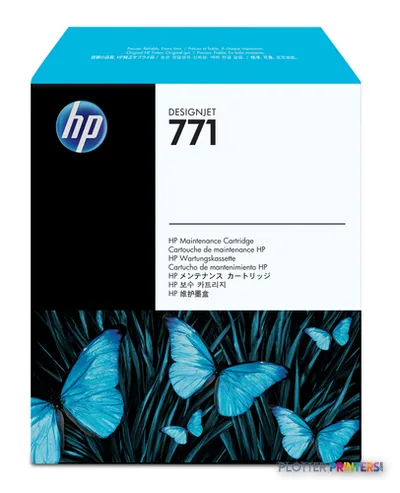

HP 771 Maintenance Cartridge
HP 771C 775-ml Light Gray Ink Cartridge
HP 771C 3-pack 775-ml Photo Black Ink Cartridges
HP 771C 3-pack 775-ml Magenta Ink Cartridges
HP 771C 775-ml Magenta Ink Cartridge
HP 771C 775-ml Light Magenta Ink Cartridge
HP 771C 3-pack 775-ml Matte Black Ink Cartridges
HP 771C 775-ml Chromatic Red Ink Cartridge

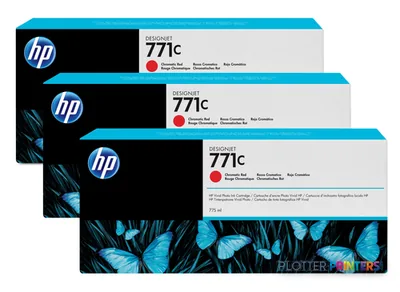

HP 771C 3-pack 775-ml Chromatic Red Ink Cartridges
HP 771C 775-ml Yellow Ink Cartridge
HP 771C 775-ml Photo Black Ink Cartridge
HP 771C 775-ml Matte Black Ink Cartridge
HP 771C 775-ml Light Cyan Ink Cartridge
HP 771C 3-pack 775-ml Yellow Ink Cartridges
HP 771C 3-pack 775-ml Light Gray Ink Cartridges
HP 771C 3-pack 775-ml Light Magenta Ink Cartridges
HP 771C 3-pack 775-ml Light Cyan Ink Cartridges

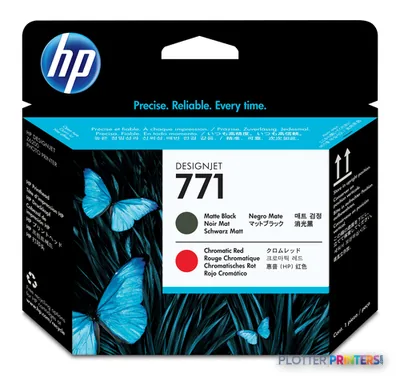

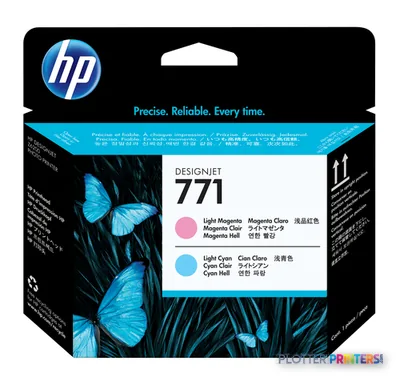

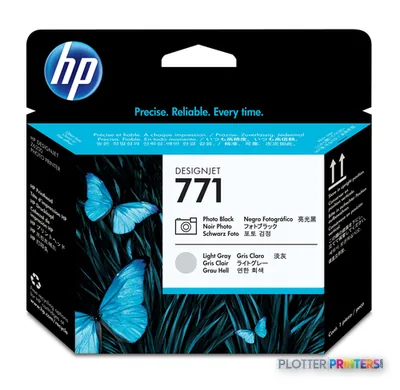

HP Premium Matte WhitePrintheads 4
