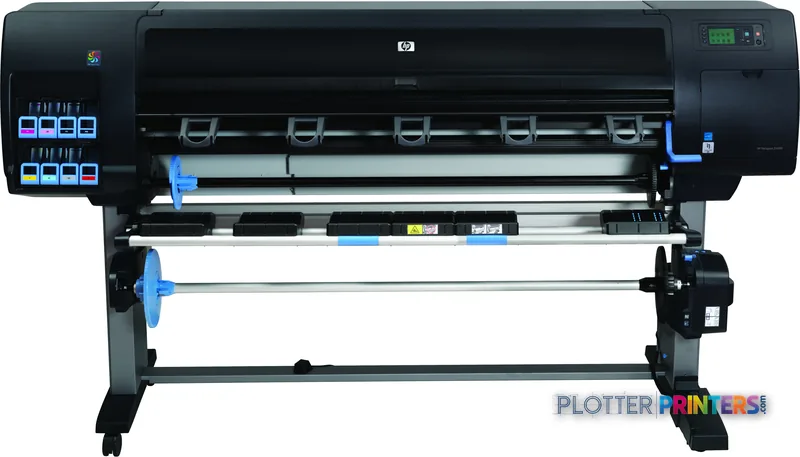

HP DesignJet Z6200

This machine is particularly well suited to an architecture practice, engineering marketing group, or construction office that needs one roll-fed color device for visual documents as well as technical sheets. The supplied media support includes banner and bond paper, proofing paper, and roll-up film; the stated maximum roll length is 6889.8″ (175 m). Its single roll input is straightforward for a controlled media workflow, but it also means an operator must change rolls when a job sequence moves between bond plans and presentation media.

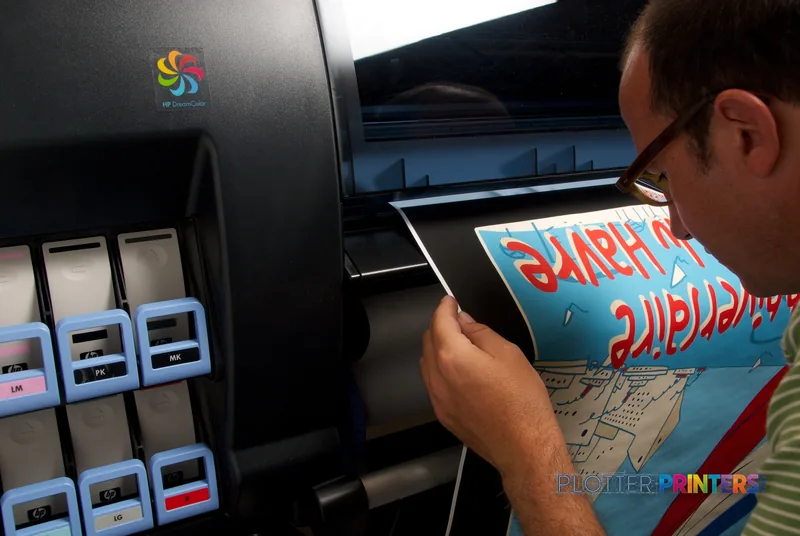

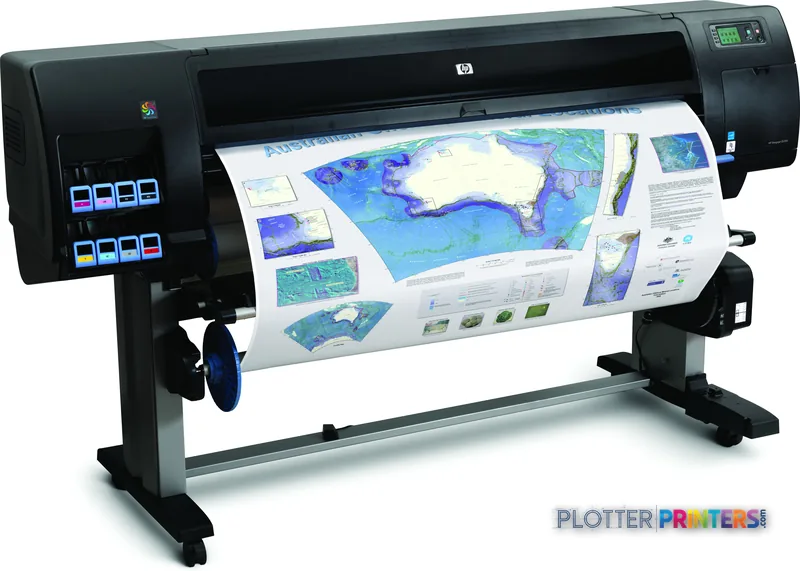

The six listed printing colors—Light Cyan, Light magenta, Magenta, Matte black, Photo black, and Yellow—give the machine a color-oriented configuration rather than a monochrome plan-production posture. That matters for GIS maps, color-coded MEP coordination, wayfinding graphics, and render-led boards. There is no measured ICC gamut or color-accuracy result in the supplied data, however, so color-critical teams should evaluate output on their chosen media and files rather than infer fidelity from resolution or ink count alone. See how it sits beside the HP DesignJet Z6200 60-in.

For a shared AEC environment, the machine provides Gigabit Ethernet, one RJ-45 port, USB Type-A connectivity, and a 160 GB HDD. Those are practical building blocks for networked PDF and CAD output queues, while the Intel® Celeron® processor and 32 MB of internal memory are part of the supplied platform specification. IT should still validate driver behavior, authentication needs, job accounting, and document-security policy in its own environment; those capabilities are not described in the supplied data.

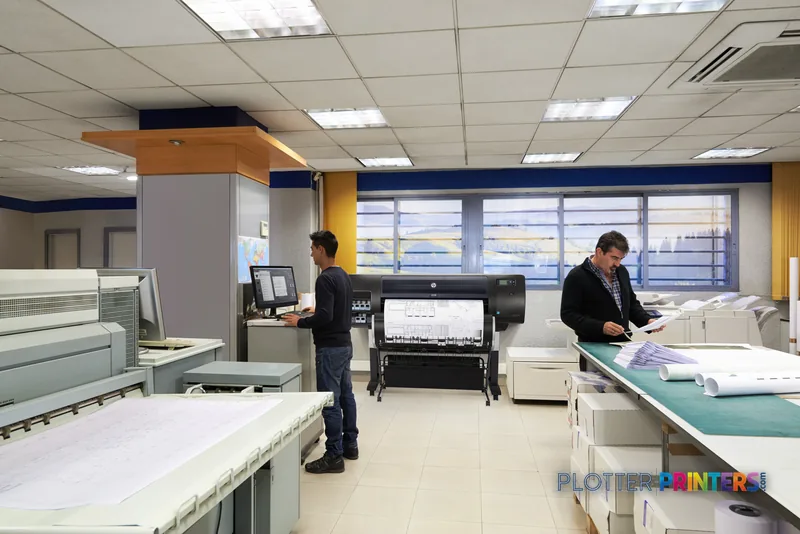

Physical planning deserves the same attention as the color workflow. The unit measures 77.6 x 27.2 x 53.9″ and weighs 271.2 lbs. It is therefore better treated as dedicated print-room equipment than as an incidental desktop peripheral. Operating conditions are specified at 5 – 40 °C and 20 – 80% relative humidity. ENERGY STAR certification is listed, with typical power consumption of 270 W and standby consumption of 100 W.

Within the listed HP family, the HP DesignJet Z6100 42-in is the more compact direction to investigate when a smaller-format footprint is the priority. The HP DesignJet Z6200 60-in is the relevant wider-format alternative when the work regularly demands more output width. Neither comparison should be reduced to resolution alone: media size, roll handling, available floor space, and the proportion of technical versus presentation work will determine which route is sensible.

Compatible supplies include the HP 771 ink family and HP 771 printheads, plus the HP DesignJet User Maintenance Kit. Confirm supply availability and service support locally before committing this device to deadline-critical issuance. A single-roll, color-focused machine can be a very useful departmental resource; it becomes less appropriate where unattended mixed-media runs, advanced finishing, or dedicated scan-copy workflows are central requirements. Use the comparison tool to place the two Z6200 configurations side by side.
