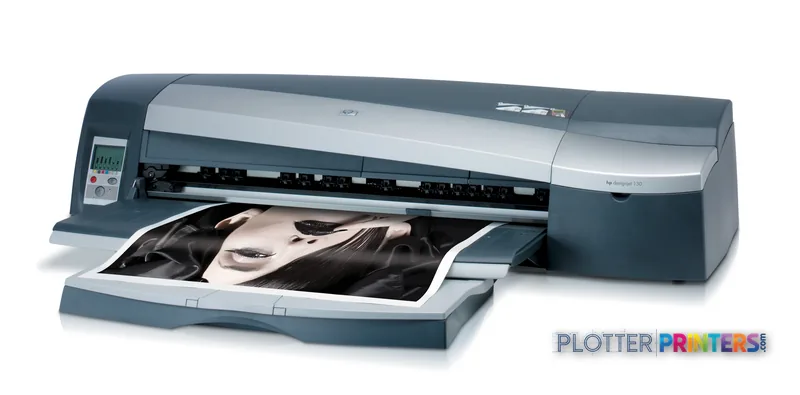

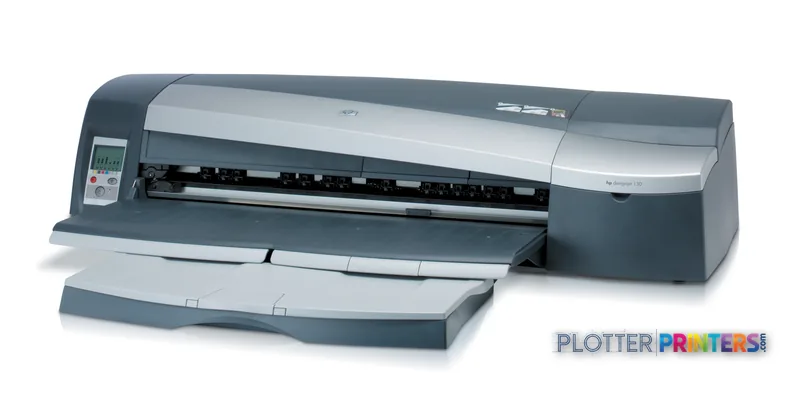

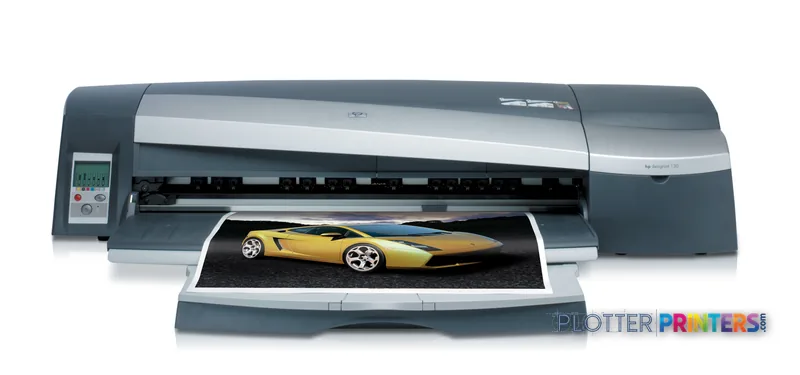

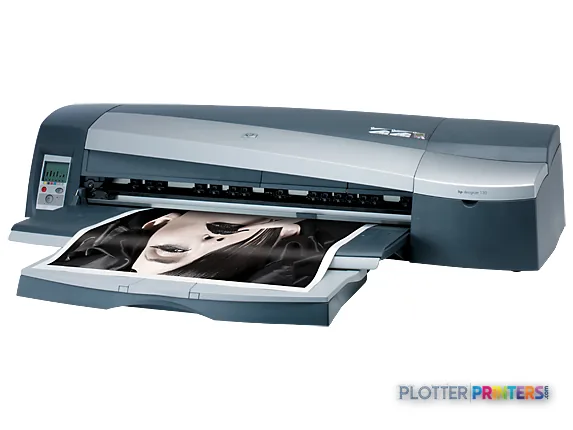

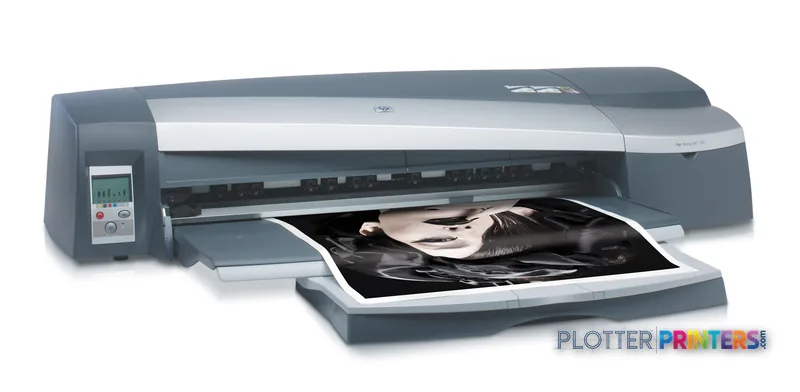

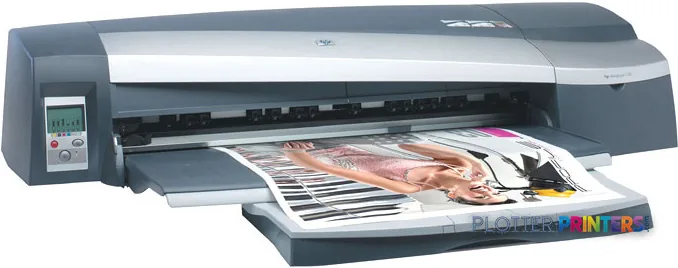

HP DesignJet 130gp

The HP 130gp makes most sense where wide-format output is useful but not continuous: an architecture studio issuing a small permit set, an engineer reviewing a color-overlay PDF, a survey team preparing an A1 exhibit, or a construction office needing occasional plan sheets without a dedicated reprographics room. Its 100-sheet maximum input capacity and 50-sheet maximum output capacity point toward supervised, modest batches rather than unattended plan-set production.

Cut sheets are supported, which can be useful when a team alternates between standard documents and larger presentation-oriented output. The maximum supported media thickness is 0.31″ (8 mm), but media suitability still depends on the particular stock and job; thickness alone does not establish whether a board, coated sheet, or specialty substrate will feed reliably.

The listed normal-quality print-speed figure is 1.7. Treat that as a rated figure rather than a forecast for an entire bid package: PDF processing, file complexity, media changes, and operator handling all affect when the last sheet is actually ready.

At its best, this machine is suited to documents where color adds hierarchy: phasing plans, utility overlays, coordination drawings, GIS-style exhibits, and client-facing boards. The six listed inks include light cyan and light magenta, a configuration that can help render smoother tonal transitions than a simpler color set. The difference shows up where photographs live—in the last five percent of a saturated red—but this page has no measured ICC gamut data, so there is no basis to claim a gamut advantage or predict a particular color match.

For AEC linework, the useful question is less about the headline resolution than whether your own PDFs preserve small annotation text, screened fills, and fine colored lines on the paper you issue. Run representative files before standardizing a workflow. The printer uses PCL 3, has 64 MB of internal memory, and includes one USB 2.0 port plus one parallel port; network deployment requirements should therefore be reviewed carefully, particularly where IT requires managed authentication, contemporary security controls, or centralized job accounting.

The 900-pages-per-month maximum duty-cycle figure is a ceiling, not a recommended everyday workload. It becomes more compelling for low-volume departmental use than for a central print room handling repeated issue sets, mixed sheet sizes, and deadline-driven reprints. Its 21.1″ depth, 41.3″ width, 8.66″ height, and 50.7 lb weight make physical placement comparatively straightforward, while a 50 dB printing sound-pressure level still merits consideration in a quiet design studio.

Supplies listed for this model include HP 84 and HP 85 inks and printheads, alongside several listed HP maintenance items. Confirm the exact installed supply configuration and local availability before committing to an installed-base support plan. For firms needing a 36-inch format and scanning/copying capability, the HP DesignJet T918 36-in is the catalog-listed in-family step-up; it is identified as discontinued in this catalog. It is a different operational proposition, particularly where scan-copy workflows matter.
