HP · Printhead

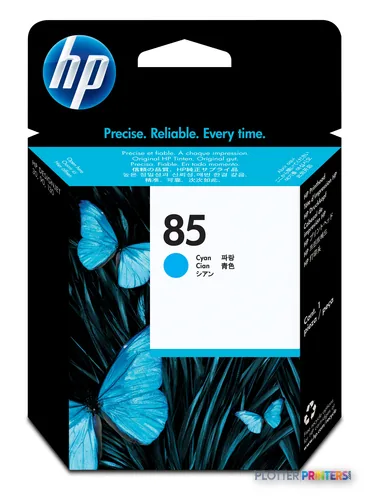

85 Cyan DesignJet Printhead
- ModelC9420A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Works with these printers
Compatibility resolved from manufacturer supply listings — 8 printers.
HP DesignJet 90r
HP DesignJet 130r
HP DesignJet 30gp
HP DesignJet 90gp
HP DesignJet 130nr
HP DesignJet 130gp
HP DesignJet 130Overview
Built for the work
HP 85 Cyan DesignJet Printhead, HP DesignJet 30, 90, and 130 Printer series, Thermal inkjet, Cyan, C9420A, Singapore, 4.33" (110 mm)
Specifications
Full technical detail
Print technologyThermal inkjet
Performance
| OEM code | C9420A |
|---|---|
| Compatibility | HP DesignJet 30, 90, and 130 Printer series |
| Printing colors | Cyan |
| Print technology | Thermal inkjet |
| Country of origin | Singapore |
Technical details
| Box contents | Printhead |
|---|---|
| Number of cartons per pallet layer | 9 pc(s) |
Weight & dimensions
| Depth | 1.02" (25.9 mm) |
|---|---|
| Width | 4.33" (110 mm) |
| Height | 5.83" (148.1 mm) |
| Weight | 0.988 oz (28 g) |
Operational conditions
| Storage temperature (T-T) | -40 – 60 °C |
|---|---|
| Operating temperature (T-T) | 5 – 40 °C |
| Storage relative humidity (H-H) | 10 – 80% |
| Operating relative humidity (H-H) | 10 – 80% |
Other features
| UNSPSC-code | 44103110 |
|---|
Logistics data
| Pallet weight | 393.5 lbs (178.5 kg) |
|---|---|
| Pallet size (EU) | 40 x 48 x 41.6" (1016 x 1219.2 x 1055.9 mm) |
| EUR-pallet weight | 393.5 lbs (178.5 kg) |
| Quantity per pack | 1 pc(s) |
| Quantity per pallet | 2700 pc(s) |
| Quantity per EUR-pallet | 2700 pc(s) |
| Master (outer) case weight | 6.46 lbs (2.93 kg) |
| Stacking number for pallet | 1 pc(s) |
| Number of layers per pallet | 6 pc(s) |
| Number of cartons per pallet | 54 pc(s) |
| Pallet dimensions (W x D x H) | 40 x 48 x 41.6" (1016 x 1219.2 x 1055.9 mm) |
| Quantity per master (outer) case | 50 pc(s) |
Packaging data
| Package depth | 1.02" (25.9 mm) |
|---|---|
| Package width | 4.33" (110 mm) |
| Package height | 5.83" (148.1 mm) |
| Package weight | 1.76 oz (50 g) |
