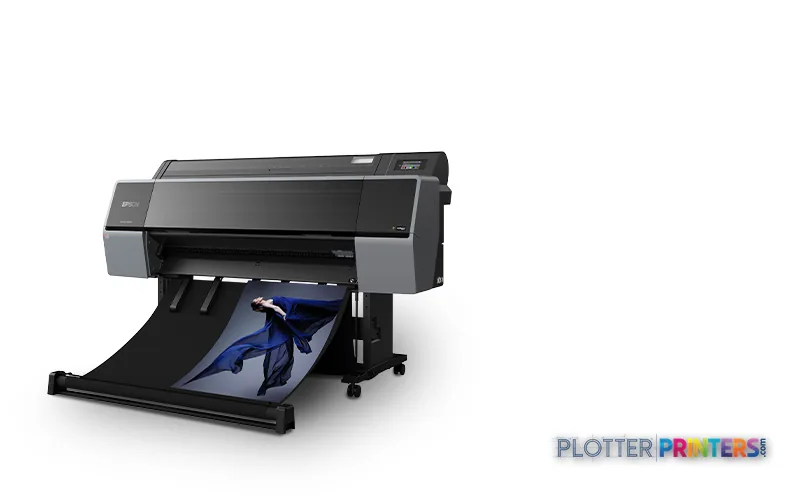

Epson SureColor SC-P9500

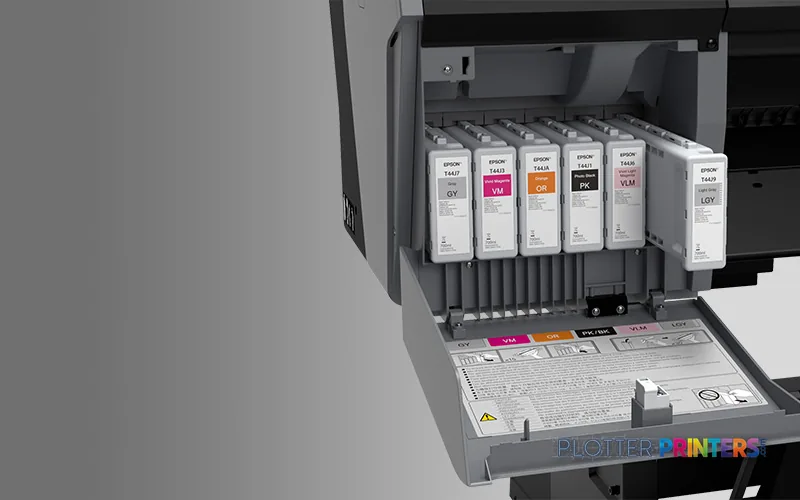

The SC-P9500 runs Epson’s UltraChrome PRO ink through twelve channels, and the roster is telling: alongside the usual process colors it carries Violet, Orange and Green, plus a Gray and Light grey pair. Those extra chromatic inks widen the reach into the corners of the gamut — the blues and violets that ordinary CMYK plotters approximate rather than reproduce. In practice that means a rendering’s twilight sky, or a landscape architect’s planting plan, renders with color relationships the eye reads as correct rather than merely present.

The gray inks earn their place on neutrals. On a black-and-white site photograph or a grayscale section, the two gray channels smooth the tonal ramp and hold shadow detail where a three-color composite black tends to shift and grain. I’ll add the honest caveat this desk always adds: we have not run the SC-P9500 through our own measured-gamut protocol, so I won’t hand you an ICC volume number. Epson positions it as a photographic and proofing device, and the ink architecture supports that positioning — but treat any 2-D coverage percentage on a spec sheet as marketing until someone measures the volume on the paper you actually use. Read how we measure before you trust a number.

This machine belongs to the presentation and proofing end of AEC work, not the production plotting end. It reproduces competition boards, marketing renderings, GIS and aerial exhibits, and photographic site documentation on a deep media range — from Epson’s proofing and photo papers up to canvas and backlit film, handling stock from 0.003″ to 0.059″ thick. With optional Adobe PostScript 3 and the hard disk unit, it slots into a color-managed prepress-style workflow rather than a straight HP-GL/2 plotting pipeline; note the native page description language here is ESC/P-R.

• Presentation and competition boards where color fidelity decides the impression
• Renderings, GIS maps and color-coded coordination exhibits
• Contract proofing and photographic archival output on specialty media
• Firms that already own a plotter and need a second, color-critical device

Where it is not the right tool: high-volume monochrome bid and permit sets. It is a single-roll design, so if unattended dual-roll running matters, look in-family at the Epson P8570DR 44-in or the multifunction Epson SC-P8500DM 44-in. If you want a photographic sibling with a slightly different ink strategy, compare it against the Epson P9000 44-in. And a print room weighing a technical-line-first rival should look hard at the Canon GP-4000 44-in before committing.
