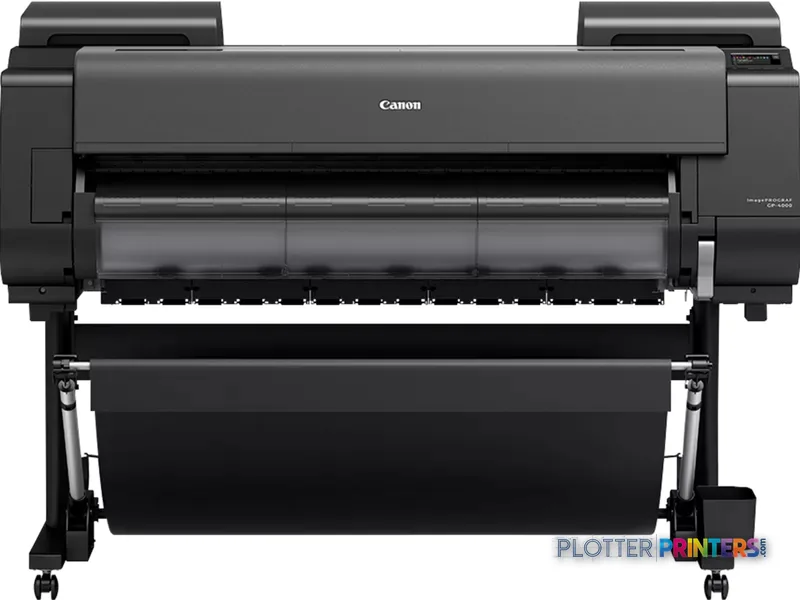

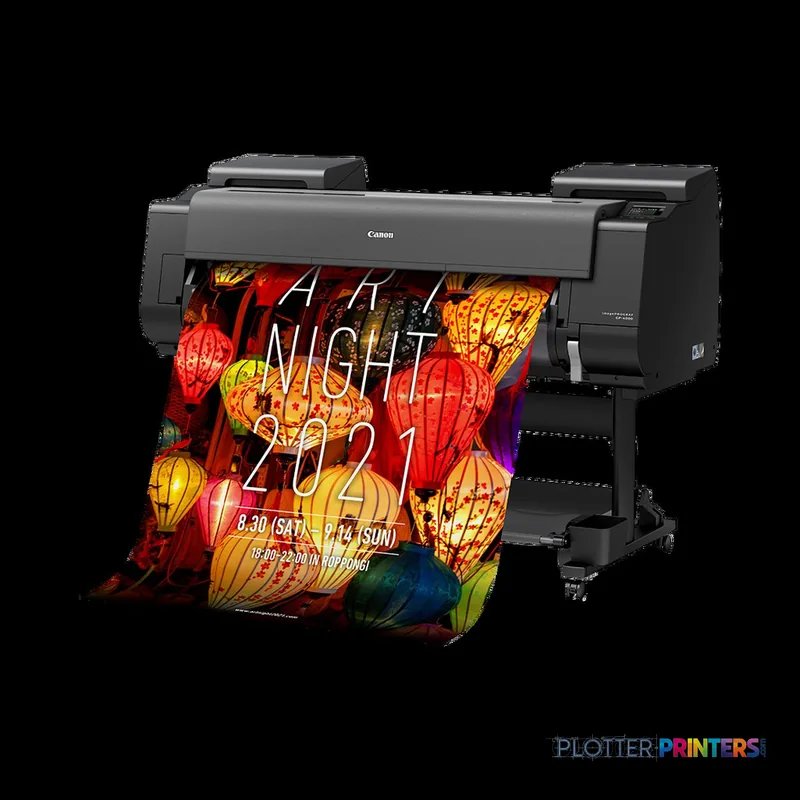

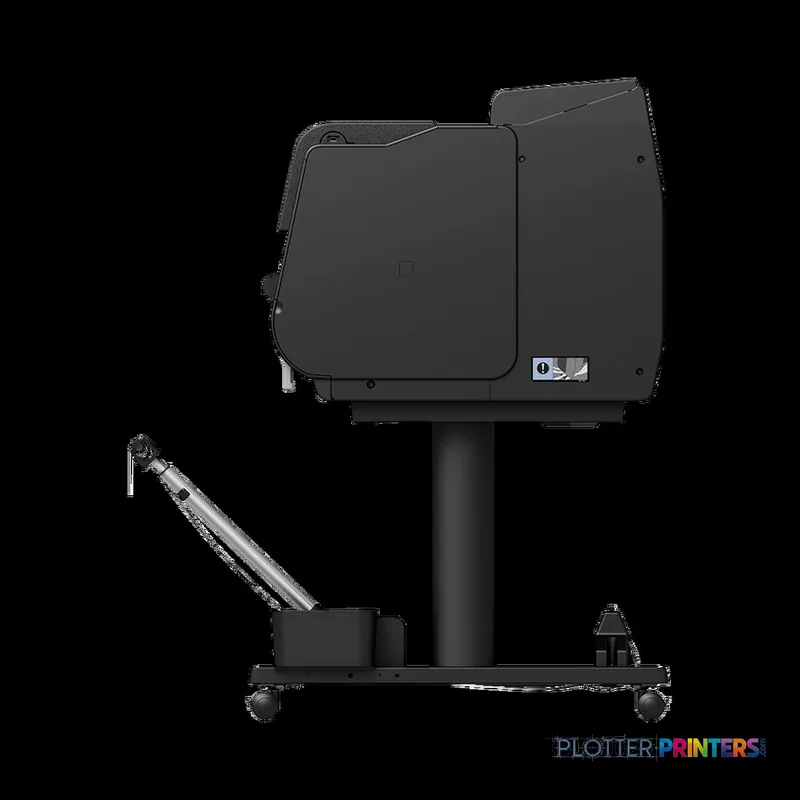

Canon imagePROGRAF GP-4000

The GP-4000 is most credible where color is part of the document’s meaning, not merely an embellishment: civil exhibits with utility coding, GIS mapping, phasing plans, wayfinding graphics, renderings, and presentation boards. It accepts cut sheets as well as roll media, supports plain, heavy, and glossy paper, and accommodates media up to 0.031 inches thick. Borderless printing is available on specified A- and B-series sizes.

For document submission, the listed page-description languages are JPEG and PDF. That makes PDF-centered review and issue workflows a natural place to start, but firms sending complex CAD-derived PDFs should test their actual title blocks, screened fills, and fine text before standardizing a driver or submission path. Ethernet, Wi-Fi, USB Type-A, and USB Type-B connectivity provide several practical connection routes; Gigabit Ethernet is supported.

It is not a multifunction device. There is no scanning or copying capability, so marked-up legacy drawings, field copies, and archive capture require a separate scanner or MFP. Teams needing that all-in-one reprographic workflow should not treat this as a substitute for a wide-format scanning system.

Resolution alone does not establish color fidelity; it describes addressability, not how a particular paper, profile, and file will render. The GP-4000’s specified 2400 x 1200 DPI and expanded named color set make it worth considering for visual AEC output, but no measured ICC gamut data is supplied here. For photographs and renderings, ask to see your own files on the stock you intend to buy—the difference often lives in the last five percent of a saturated red.

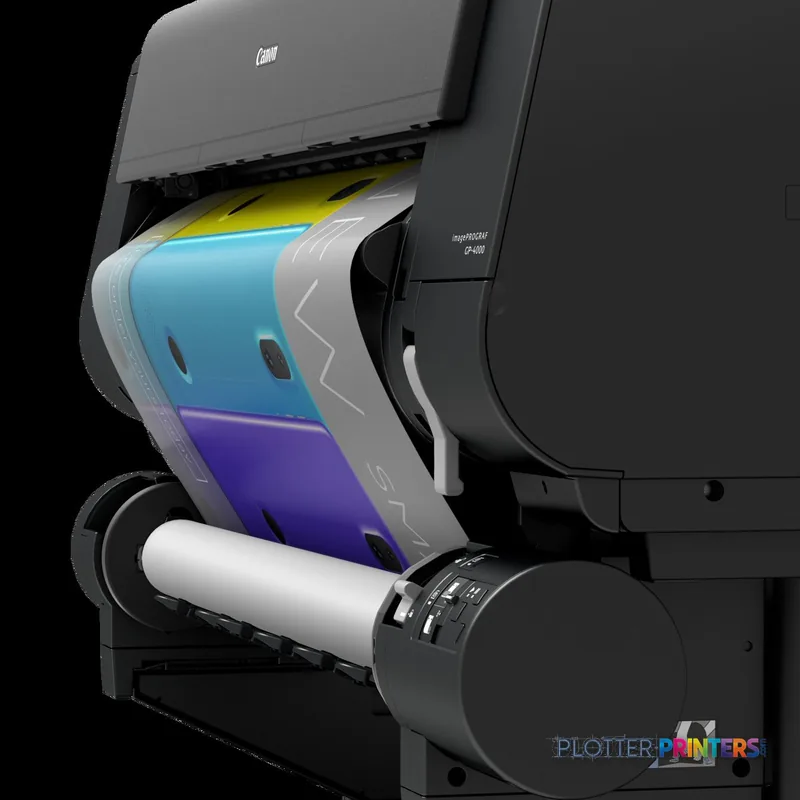

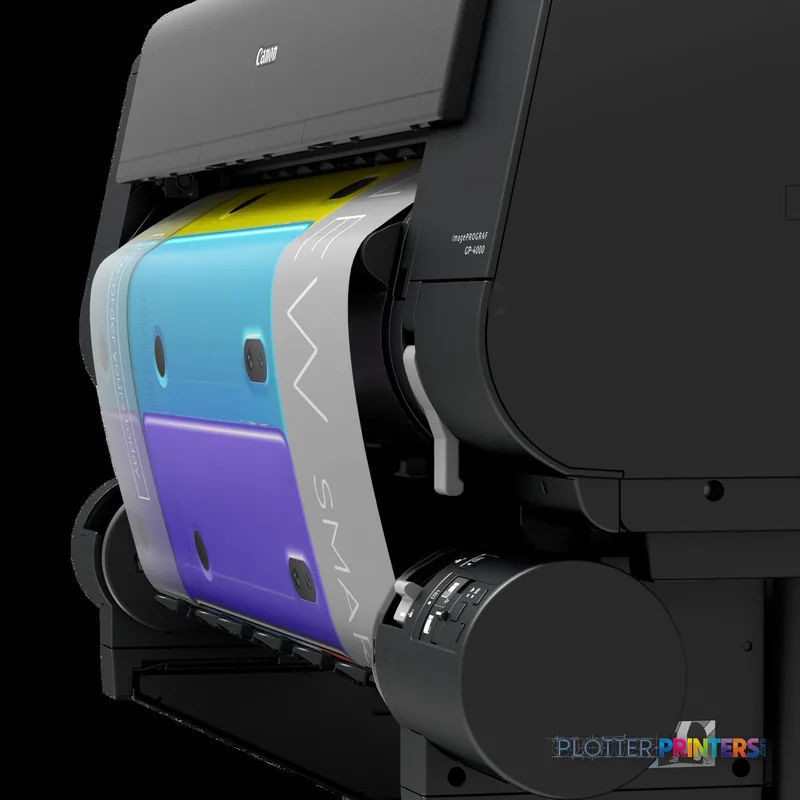

The printer has a 3,072 MB internal memory and 500 GB of storage, while its single input tray and total input capacity of one sheet underscore that roll workflow, rather than high-capacity sheet feeding, is central to its design. Maximum roll length is 708.7 inches and maximum roll diameter is 6.69 inches. At 49 dB while printing, it is better considered a managed production-area device than an invisible desktop neighbor.

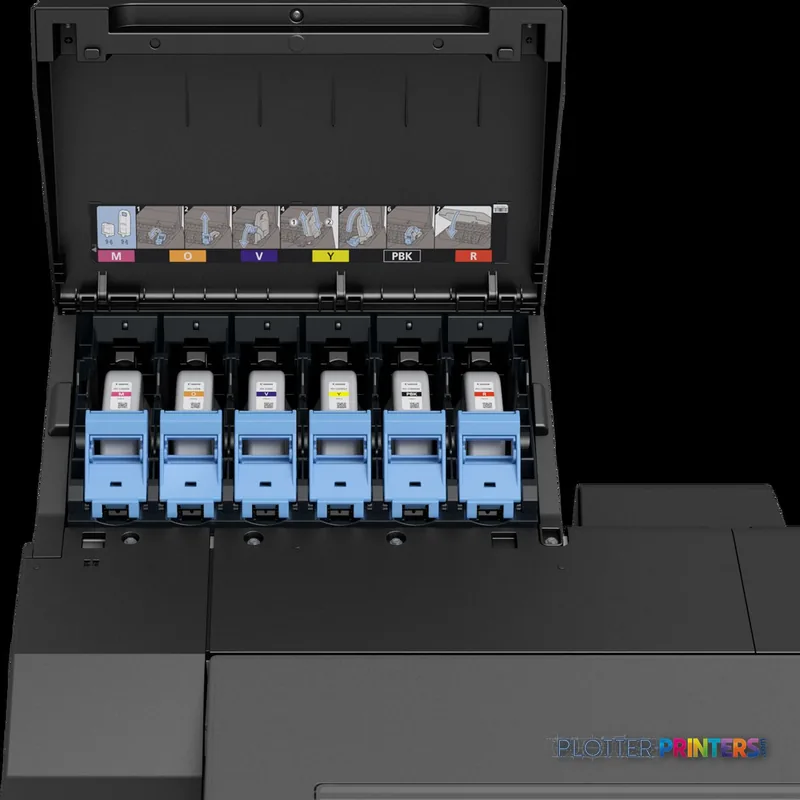

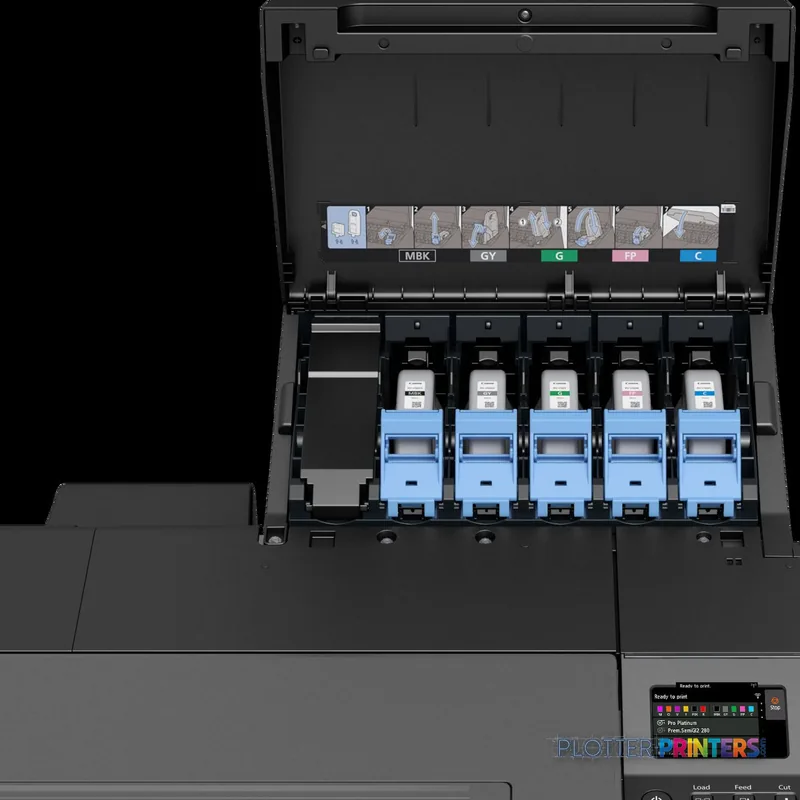

Supported consumable families are Canon PFI-2100, Canon PFI-2300, and Canon PFI-2700 inks, plus the Canon PF-10 printhead and Canon CT-07 accessory. Confirm local availability and service terms before committing to a discontinued platform.

Within the listed Canon family, the current Canon GP-4600S 44-in is the closest same-width step-up path to investigate when a new, supported 44-inch platform is required. The side-by-side comparison is the sensible next check for teams replacing a GP-4000 rather than simply adding capacity.

If 44-inch output is more width than the office needs, the current Canon GP-300 36-in is the more compact in-family alternative to assess. Conversely, moving to a narrower device changes how full-size sheets, presentation boards, and map layouts are handled; that trade-off matters more than a specification line. For a broader view of comparable devices, consult the wide-format class ranking.
