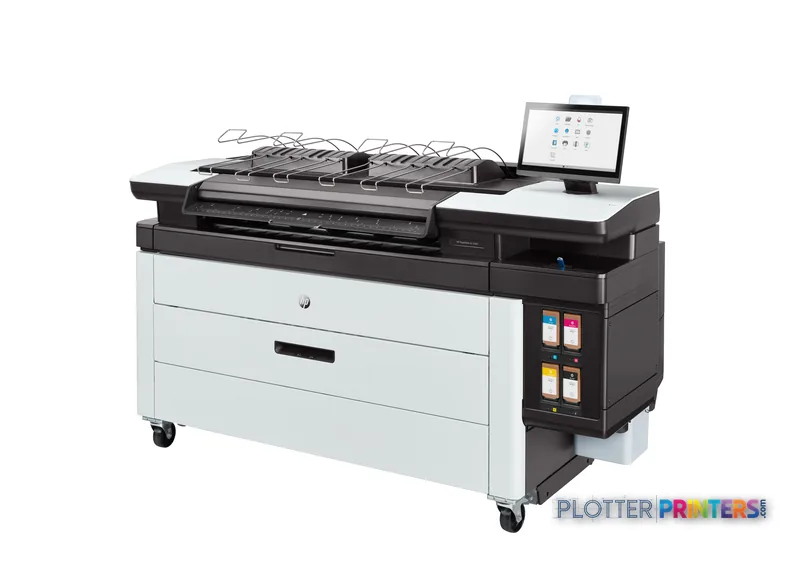

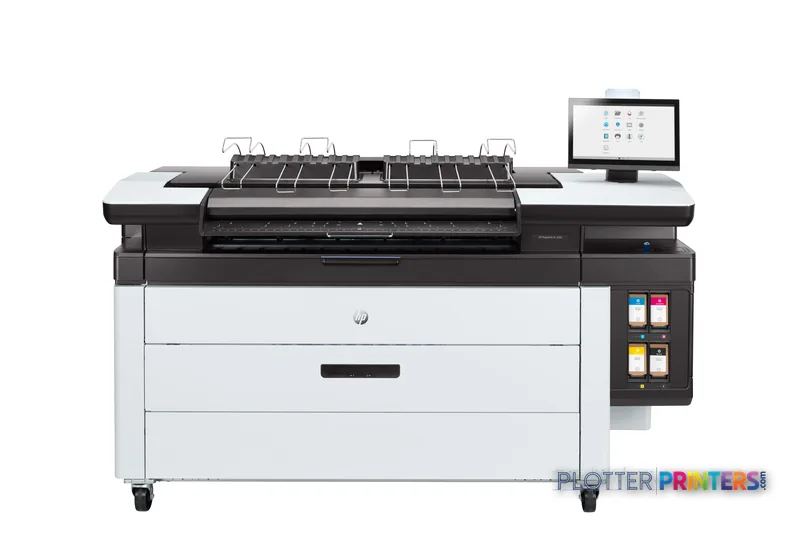

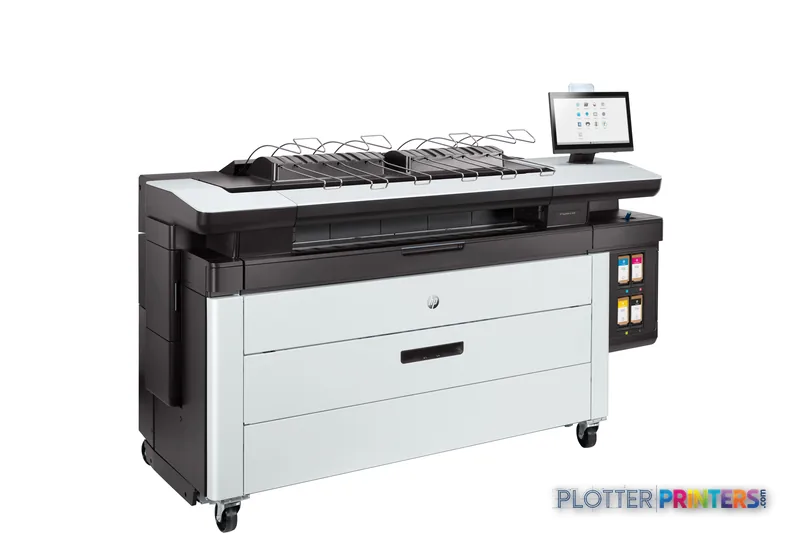

HP PageWide XL 4200

This machine fits AEC teams that need color coordination drawings, CAD output, GIS maps, and deadline-driven technical documents on bond, recycled, or matte paper. CMYK printing and 1200 x 1200 DPI resolution give it the basic ingredients for colored disciplines, revision clouds, utility overlays, and presentation-oriented plan sheets without moving every job to a graphics printer.

The practical advantage is consistency across a shared workflow. Ethernet LAN and USB are available, while HP-GL/2 support matters for technical drawing environments that still produce plot-ready files. TIFF and JPEG are also supported. Teams centered on PDF submission should validate their own application, driver, and job-submission path before committing; the listed page-description languages do not establish PDF handling.

Color scanning is listed, using CIS technology, but copying is not. That distinction matters. If walk-up scan-copy work is central to your repro room, confirm the intended scanner configuration, including the available HP SD Pro 44-in Scanner, and test the actual redline workflow.

Bottom line: This is for a shared AEC production point, not a casual office plotter.

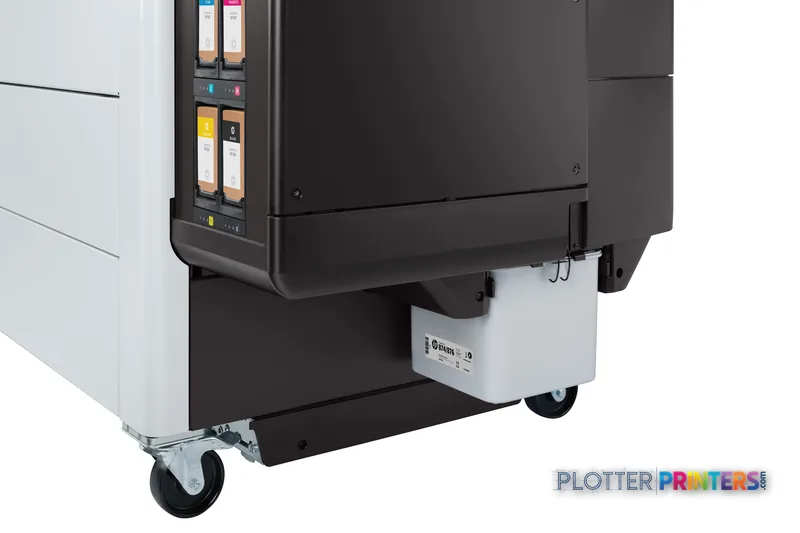

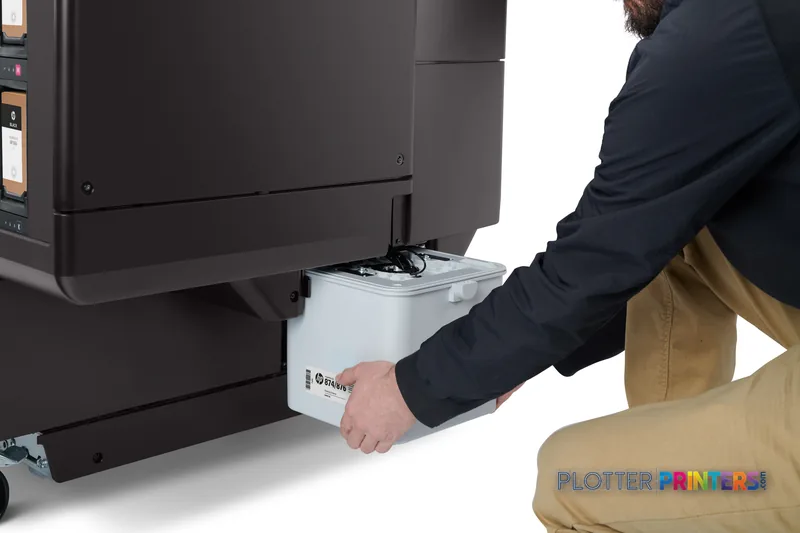

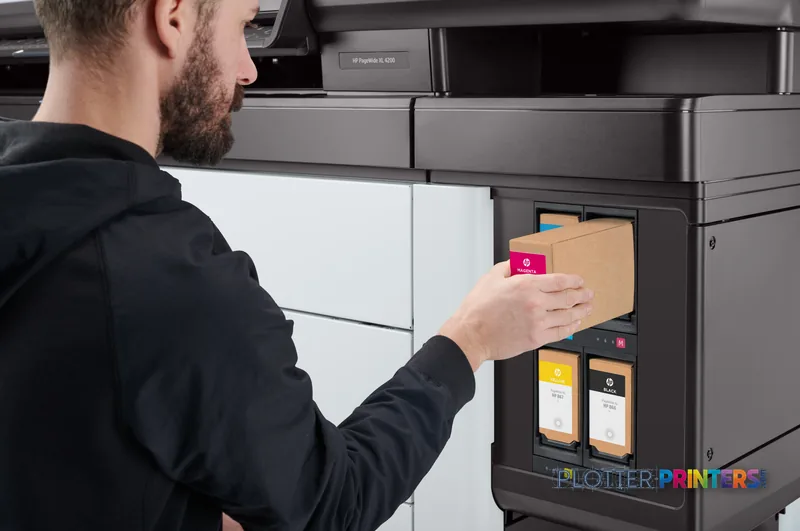

The listed four-cartridge CMYK system uses HP 841, HP 864, and HP 865 ink families. The compatible HP 841 printhead and HP 874 maintenance supply should be part of the service conversation, not an afterthought once the first deadline lands. Ask who holds local stock, what operators are expected to replace, and what happens if a printhead or maintenance item is needed during a live bid issue.

Accessory choices can shape the day more than a headline specification. The available HP PageWide XL Drawer and HP PageWide XL High-capacity Stacker are worth reviewing where unattended output and orderly set handling matter. For folded distribution, the listed HP F40 Folder paper cutter and HP F60 Folder with Tab Applicator paper cutter address a different part of the workflow: getting sheets ready for the field rather than simply getting them printed.

Networked environments should also review HP Dynamic security, authentication expectations, and the SmartStream workflow options with IT. A printer can be mechanically fine and still become everyone’s least favorite appliance if submission permissions or accounting are unclear.

Bottom line: The machine choice is only half the decision; local service and the finishing path decide whether it behaves at deadline.

Within the listed HP family alternatives, HP F40 and HP F60 should be assessed as workflow companions or alternatives according to the finishing and handling requirement. The catalog also lists HP F70, but its discontinued status should make support, supplies, and local service verification part of any installed-base decision.

For a narrower technical inkjet comparison, the catalog includes the Canon iPF825 42-in comparison, Epson SC-T5200 38-in, and Epson SC-T5400M 38-in. Those are not interchangeable by name alone. Compare the actual files, paper types, output handling, scanning need, room constraints, and service response in your market.

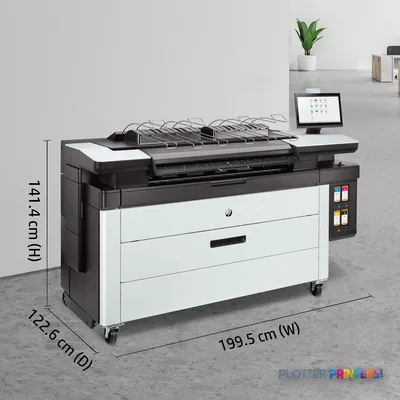

This is less appropriate where occasional plotting is the whole requirement, where copying is non-negotiable, or where the room cannot safely accommodate a 974.4 lb floor device. It also deserves a hard look from teams whose work depends chiefly on unsupported submission formats unless their tested workflow closes that gap.

Bottom line: Buy around the job queue and handoff process, not around a spec-sheet race.
