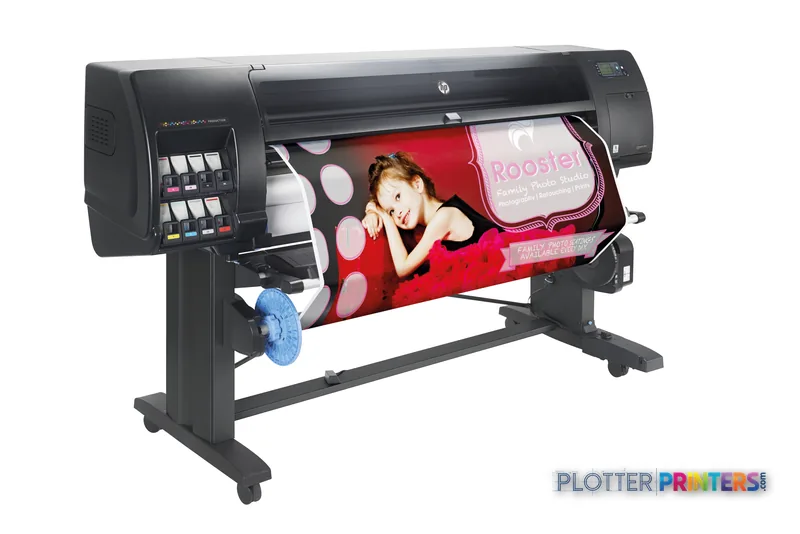

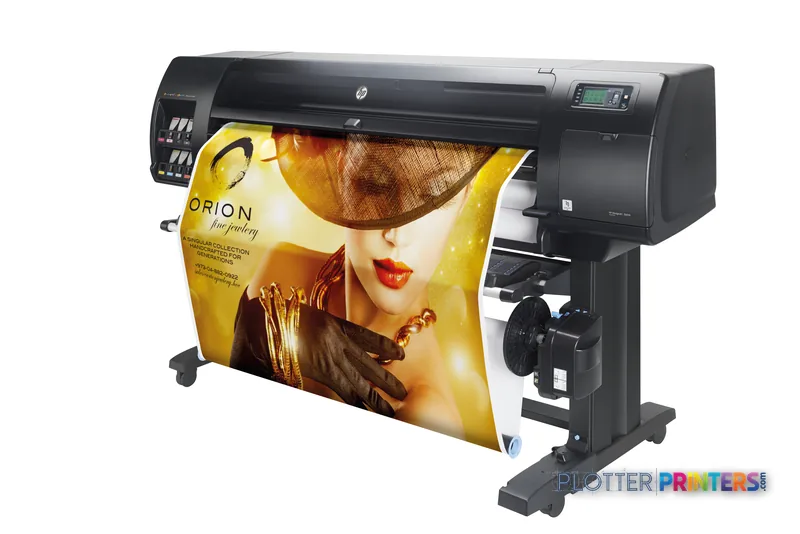

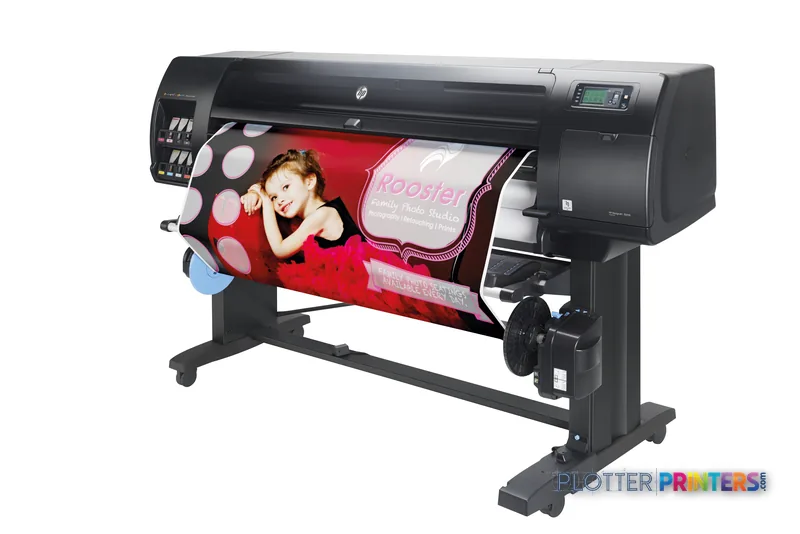

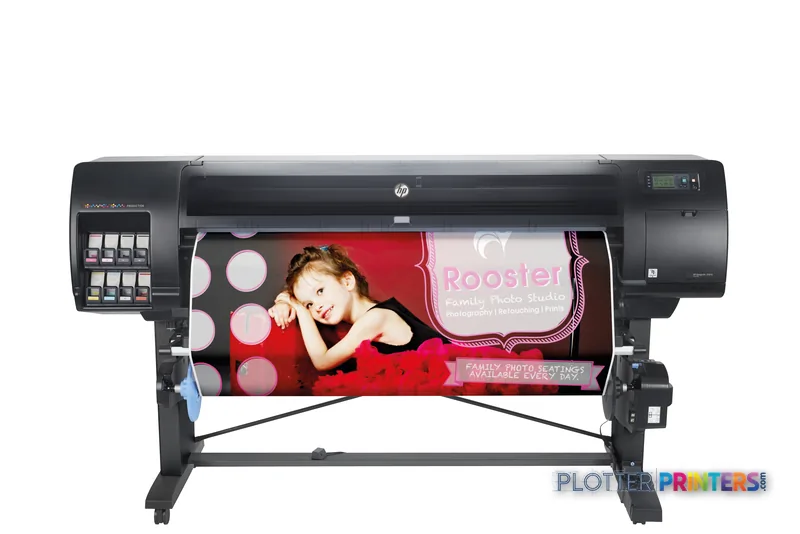

HP DesignJet Z6810

The Z6810 suits firms that regularly need full-width plans, presentation boards, color-coded MEP coordination sheets, GIS mapping, exhibit graphics, and construction documents on bond, coated, photo, or banner media. Its supplied take-up reel is relevant where longer unattended output runs are part of the day; the included spindle and 3-inch spindle adapter kit also matter to teams standardizing their media supply.

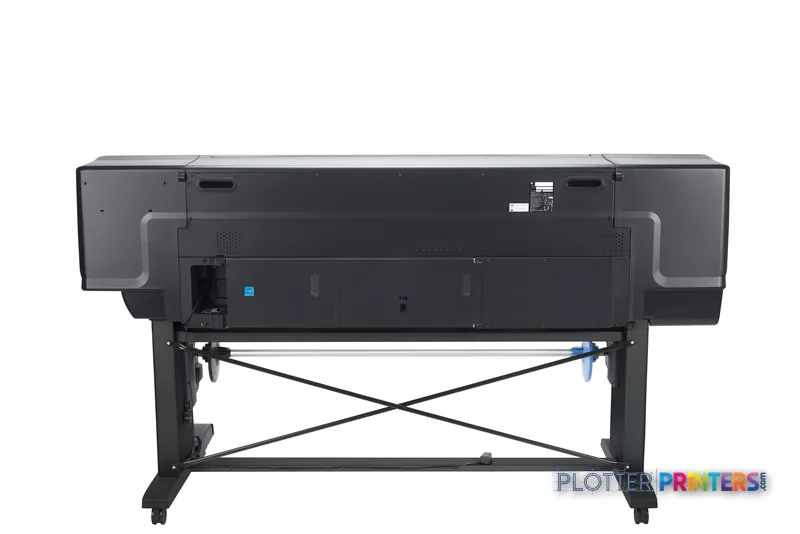

For IT, Gigabit Ethernet LAN, HP Jetdirect support, a 500 GB HDD, and the supplied utility software provide a more conventional networked production-printer footing than an ad hoc workstation connection. There is no Wi-Fi or USB port listed, so deployment should be planned around wired network access. The 95.7-inch width, 53.9-inch height, 27.2-inch depth, and 418.9-pound weight deserve a real space and delivery review before installation.

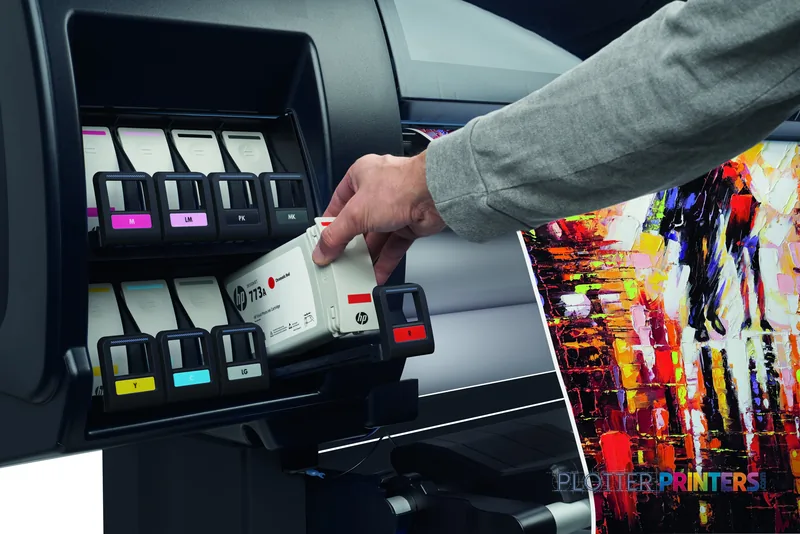

This is an eight-cartridge machine, with photo black, matte black, light magenta, yellow, and gray among the listed printing colors. That configuration makes the conversation broader than monochrome plan plotting, especially when drawings must retain visual separation between layers and annotations. Still, resolution is not a color-fidelity measurement. No measured ICC gamut data is provided here, so it would be premature to make a quantified claim about how it renders branded colors, aerials, or presentation photography on a particular substrate.

Media capability should be checked against the work actually leaving your office. The specification lists media up to 0.024 inch thick and a maximum roll diameter of 6.69 inches. For consumables planning, the resolved compatible supplies include HP 771C 775-ml Magenta DesignJet Ink Cartridge, HP 771C 775-ml Yellow DesignJet Ink Cartridge, HP 774, and the HP 771 maintenance supply. Confirm the precise approved supply set and media profile with the seller before committing a production workflow.

If 60-inch output is genuinely necessary, the HP DesignJet Z6610 60-in is the closest listed in-family alternative by width and thermal-inkjet technology. The HP Z6800 60-in is another listed 60-inch thermal-inkjet option at the same stated maximum resolution. The available catalog facts do not establish a simple performance hierarchy between these models, so buyers should compare their required media, workflow software, service terms, and installed-base compatibility rather than assuming a model number alone defines a step-up.

For offices whose work rarely exceeds 42 inches, the HP DesignJet Z6810 42-in reduces the width requirement and is listed with Latex printing. It is a sensible format comparison, not an automatic replacement choice: its technology differs. For a cross-brand 60-inch comparison, use the side-by-side comparison with the Canon PRO-4100S 60-in and keep the evaluation anchored to the media and file types your team actually uses.
