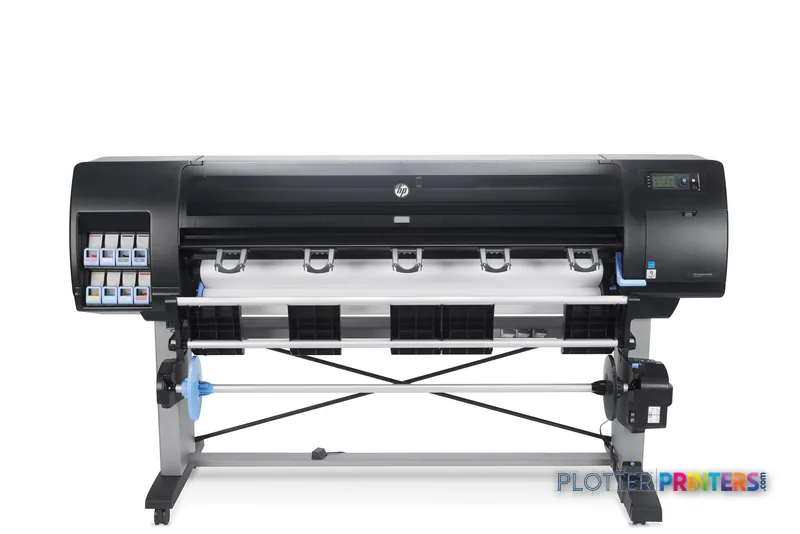

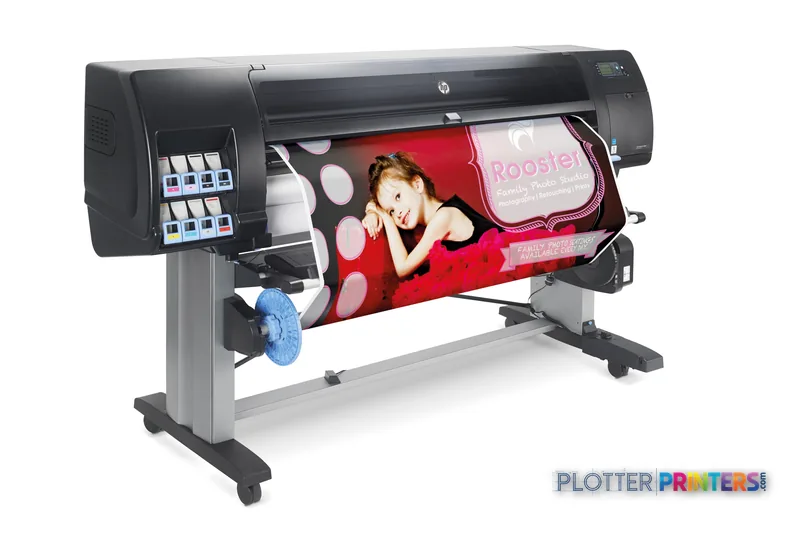

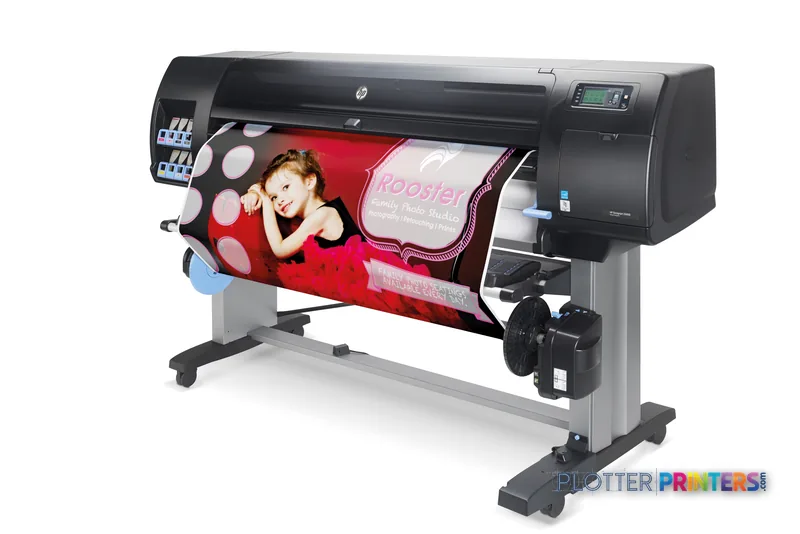

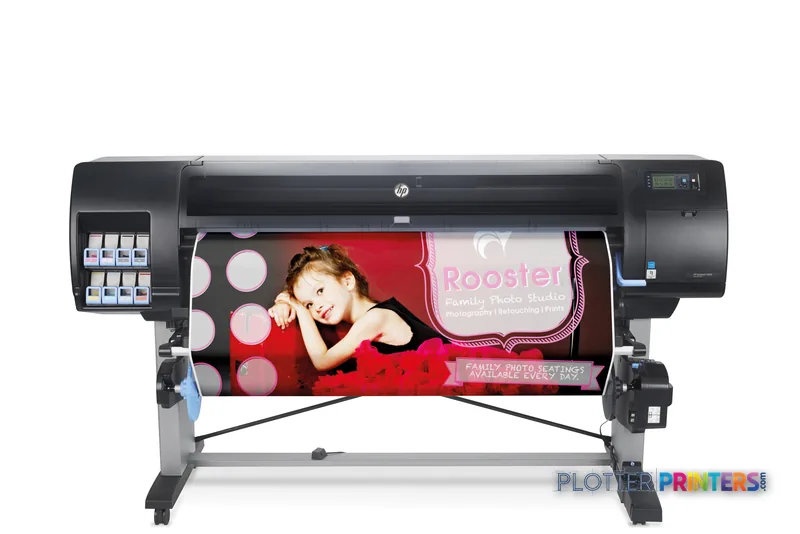

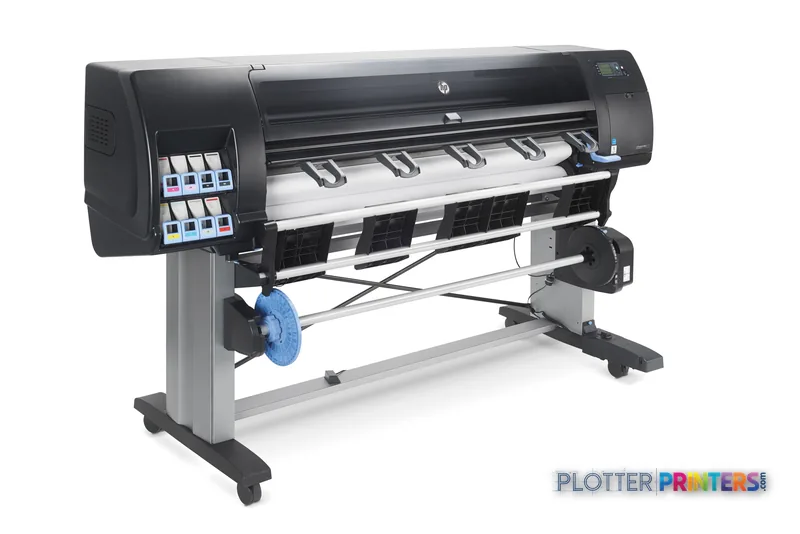

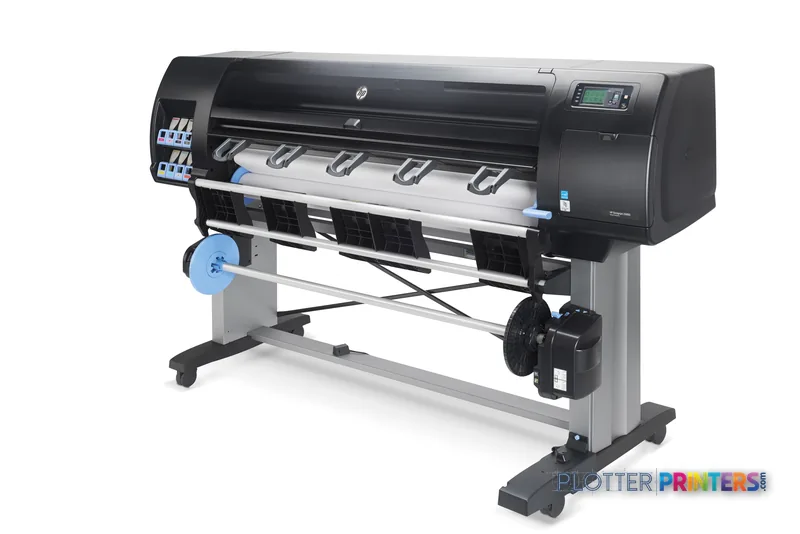

HP DesignJet Z6800

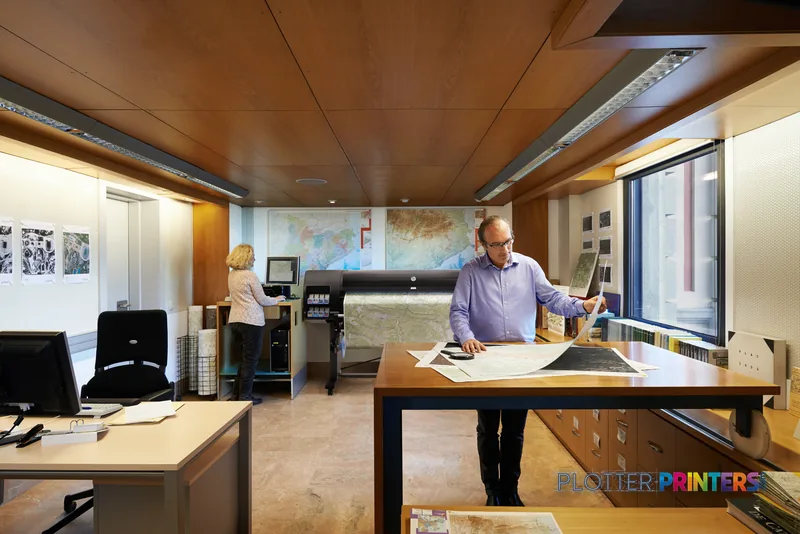

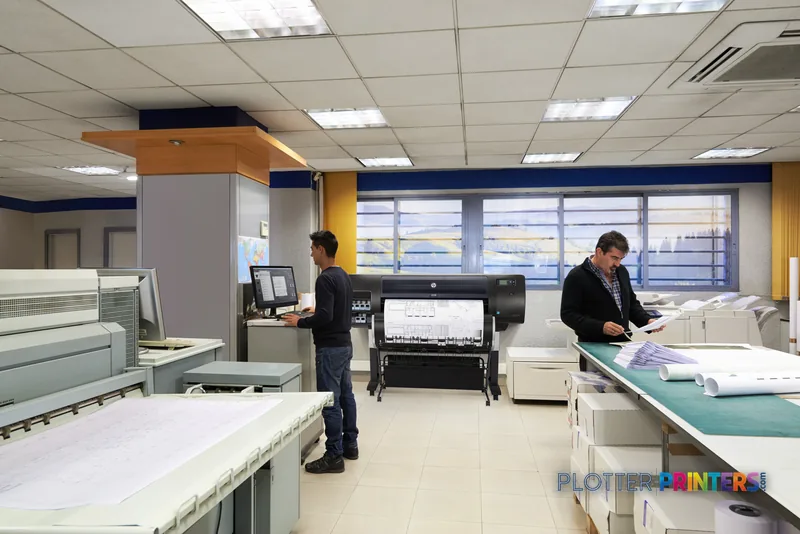

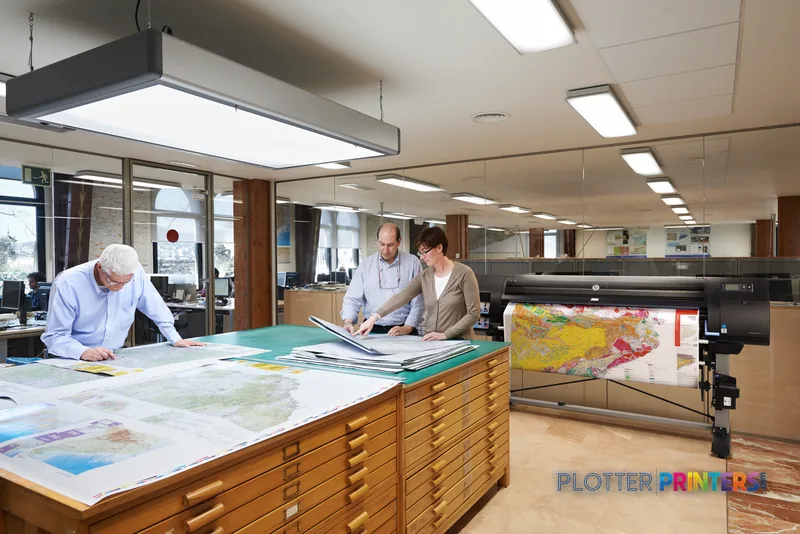

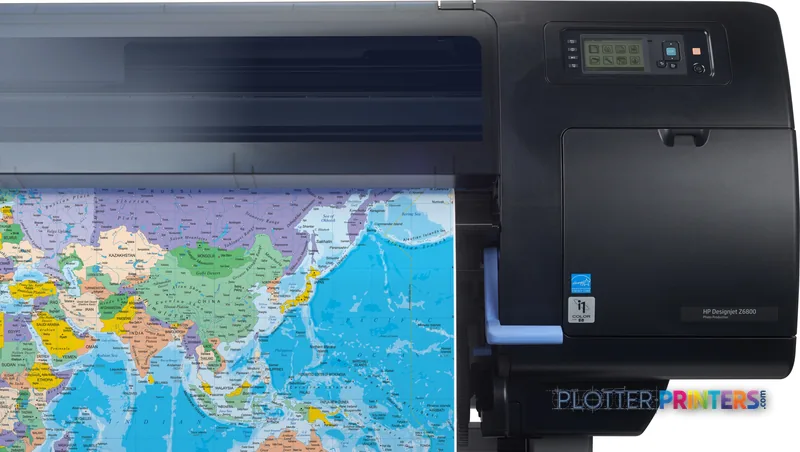

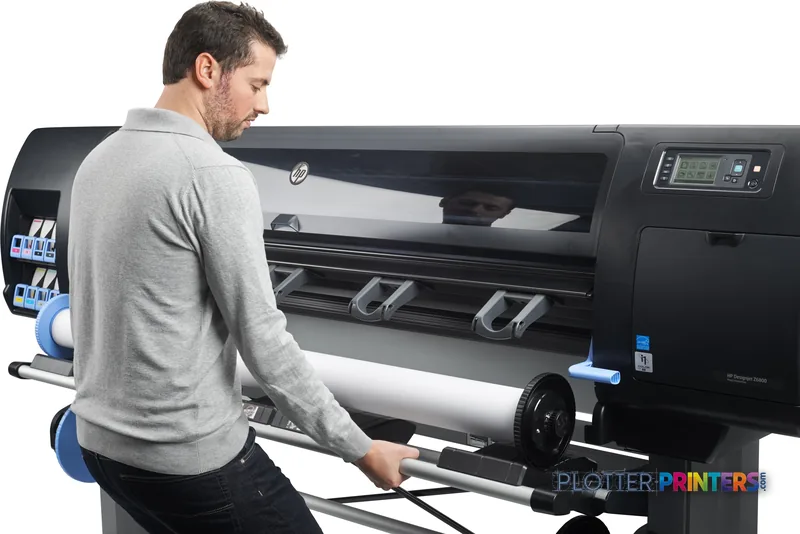

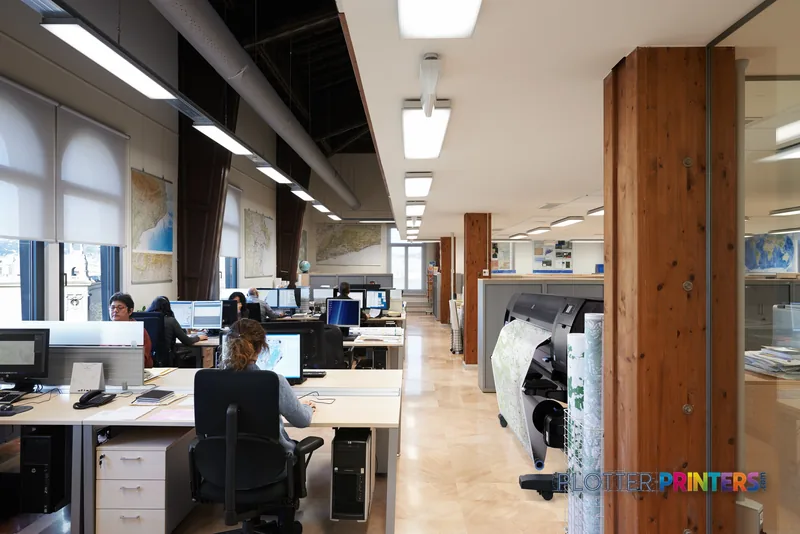

The Z6800 fits a centralized design, engineering, or construction-document room that needs to render wide color output up to 60 inches. Its 11-to-60-inch roll-media range supports everything from smaller technical sheets to full-width maps and boards, while the stated 0.022-inch media-thickness limit should be checked against any specialty stock under consideration. A built-in display and 320 GB hard drive suit a shared-device environment, rather than a lightly used desktop plotter.

For plan production, the 2400 x 1200 DPI maximum resolution is useful context, not a guarantee of line quality in every PDF. Fine CAD linework, screening, embedded raster imagery, driver settings, media, and the source PDF all affect what emerges. Ask for a live test using layered BIM exports, Bluebeam-marked PDFs, and the color-coded coordination drawings your team actually issues.

The 60-inch HP DesignJet Z6610 60-in is the closest in-family alternative listed here when comparing another 60-inch thermal-inkjet route. Teams with a 44-inch ceiling should look instead at the HP Z6600 44-in. Width is not a minor specification in this decision: it determines whether a board can remain intact or must be tiled.

Ethernet LAN is the supplied network connection. There is no Wi-Fi or USB port listed, which may be entirely appropriate for an IT-managed print room but makes direct walk-up submission less flexible. The printer does not provide copying or scanning. Firms digitizing marked-up plans, archive drawings, or existing hard-copy sets should treat scanning as a separate workflow; compatible accessories include the HP HD Pro 42-in Scanner and HP SD Pro 44-in Scanner.

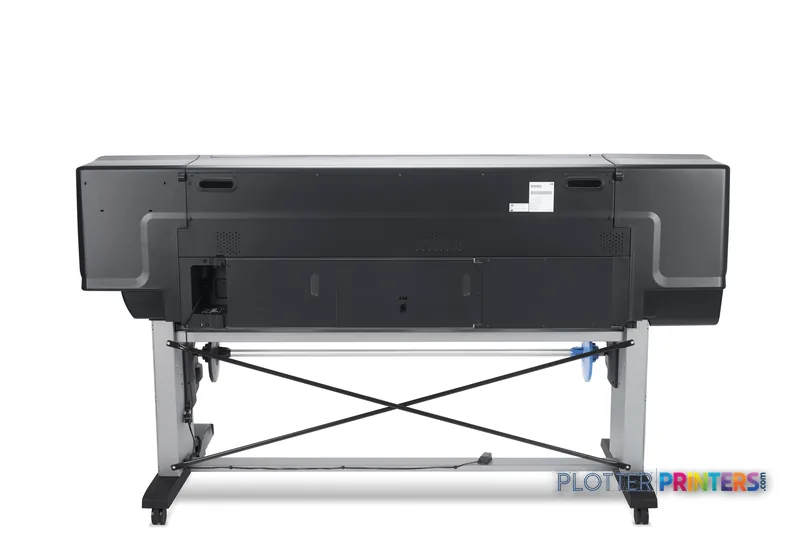

At 418.9 lb and 53.9 inches high, this is equipment to place deliberately, with a clear service path and an appropriate environmental location. Its specified operating range is 5–40 °C and 20–80% relative humidity. HP lists typical power consumption at 270 W and ENERGY STAR certification. Those figures help facility planning, although actual energy use varies with job mix, idle behavior, and local operating practice.

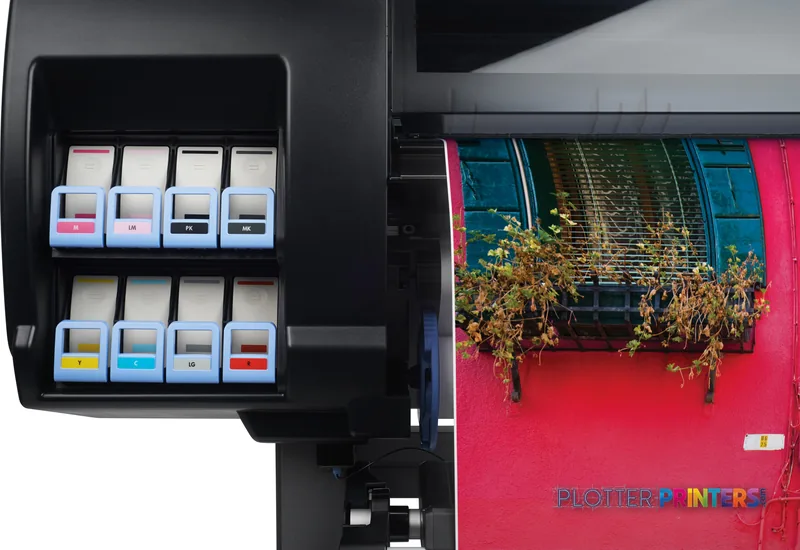

Consumables are based on the HP 771 ink family and HP 771 printheads. Confirm the exact cartridge configuration, maintenance responsibilities, service response, and local parts availability before committing. Those practical details often determine whether a productive-looking printer remains productive during a deadline week.

This is not an all-in-one reprographic system: there is no built-in scan or copy function, and no claim here of automated set collation or finishing. It may be less appropriate for a contractor’s field office that primarily needs fast monochrome plan copies, or for a small studio without space for a 95.7-inch-wide device.

It becomes more compelling when 60-inch color is a recurring need and Ethernet-connected production is acceptable. For a smaller-footprint color workflow, the HP Z5600 44-in is a relevant in-family comparison. For buyers evaluating another 60-inch color platform, compare the Z6800 with the Canon PRO-6100 60-in using the same file, paper, and acceptance criteria—not a generic test image. The difference shows up where photographs live: in the last five percent of a saturated red, and in whether annotation remains calmly readable beside it.
