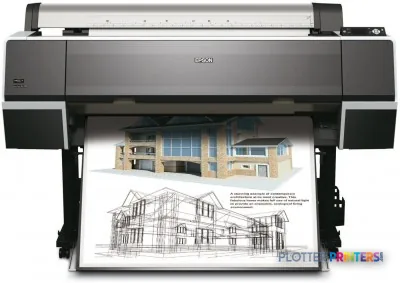

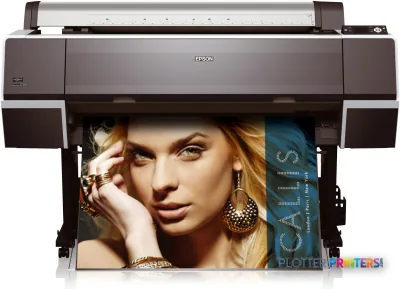

Epson Stylus Pro 9700

This printer is most credible where a team produces a recurring mix of wide-format documents and color presentation work. Civil and survey groups can use the width for map sheets and color-coded field exhibits; architecture and MEP teams can reserve it for coordination plans, elevations, boards, and client-review output. Epson lists roll-paper support alongside sheet handling, so the device can serve both recurring plot work and occasional specialty sheets.

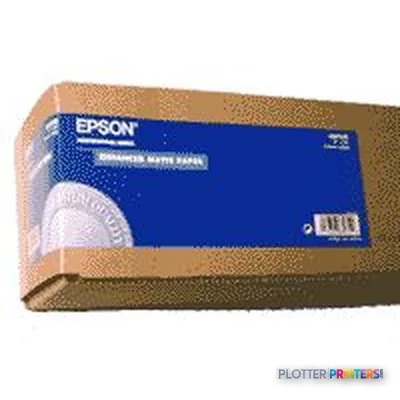

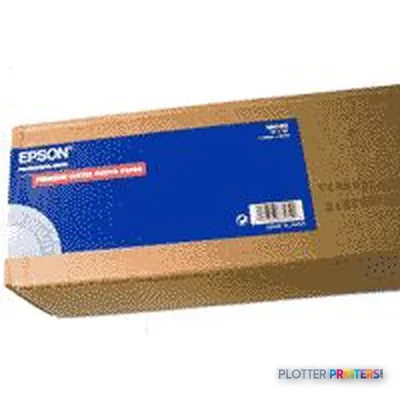

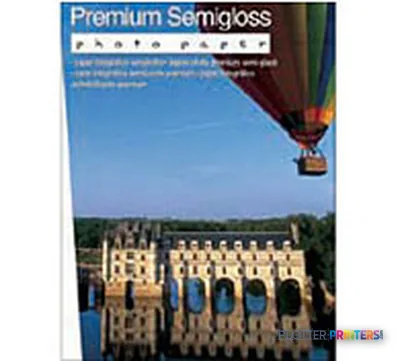

Media compatibility is notably broad on paper: the supported range spans 0.003 to 0.059 inches. For everyday document output, compatible options include Epson Bond Paper White 80, Epson Bond Paper Bright 90, and Epson Coated Paper 95. For presentation-oriented work, the catalog also lists Cold Press, Hot Press, canvas, photographic papers, and synthetic media. That flexibility matters when a firm wants one output point for plan sets and review-room graphics, but it also calls for disciplined media presets and file naming. A plotter that saves thirty seconds a plot buys you nothing if the file spends four minutes finding it.

There is no listed in-family step-up or step-down model in this catalog. For a cross-brand 44-inch alternative, compare the Canon GP-4000 44-in or use the side-by-side comparison tool. The catalog lists both at 44 inches, while their stated maximum resolution is 2400 x 1200 DPI; resolution alone, however, is not a verdict on CAD linework, media behavior, or workflow fit.

The Stylus Pro 9700 provides 10/100 Base-TX Ethernet, one USB 2.0 port, a USB Type-A connector, 256 MB of internal memory, an LCD display, and Epson ESC/P2 page-description support. Those are the facts IT can start with; they are not a substitute for checking current driver availability, operating-system support, queue behavior, authentication requirements, and network-security policy before deployment.

That last point deserves more attention than it normally gets. A printer on the LAN is part of the project-delivery system, and IT should establish who owns driver packaging, firmware review, user access, and job troubleshooting. The scanner is free. The person standing at it is not; the same logic applies to a print queue that only one person knows how to repair.

Consumable planning should include Epson UltraChrome HDR inks and the relevant Epson maintenance items listed for this machine. The printer uses five cartridges; the supplied color data identifies Photo black, Matte black, Cyan, and Yellow among its printing colors. Confirm the precise ink and media configuration against the installed unit before ordering supplies.

Do not treat the maximum B0 size or maximum resolution as proof that this is the right production platform for every large-format workload. The supplied data does not establish scan/copy capability, automatic roll switching, output stacking, finishing, user authentication, cloud connectors, or productive print speed. Firms that depend on those functions should verify them against the specific installed configuration and supporting workflow rather than filling the gaps with brochure optimism.

Likewise, a color-capable printer is not automatically the most efficient choice for a department dominated by repetitive monochrome construction sets. It becomes more compelling when color plans, maps, design presentations, and specialty media are routine enough to justify a dedicated 44-inch device. For a broader view of its category, see the 44-inch printer class ranking and compare it with the Canon GP-4600S 44-in.
