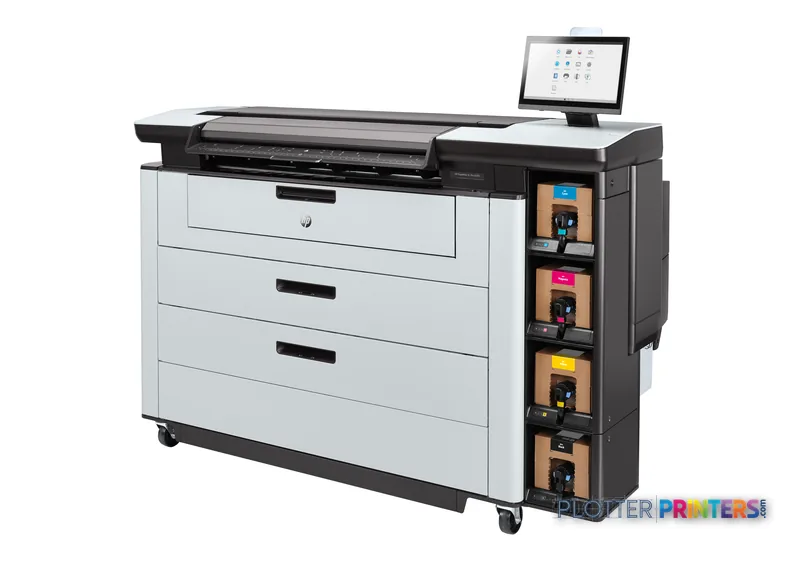

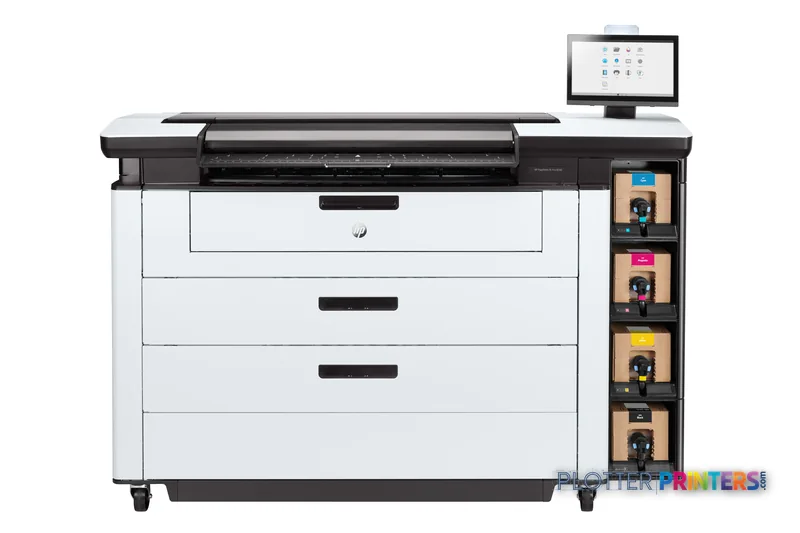

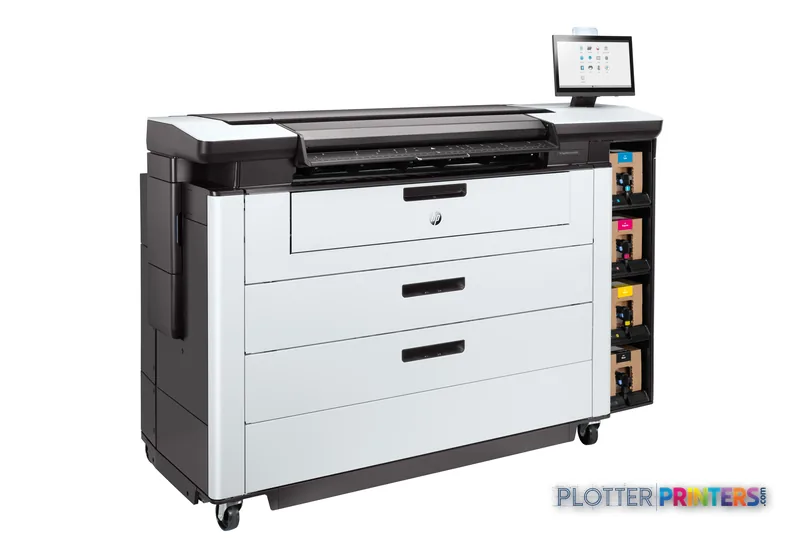

HP PageWide XL Pro 8200 MFP

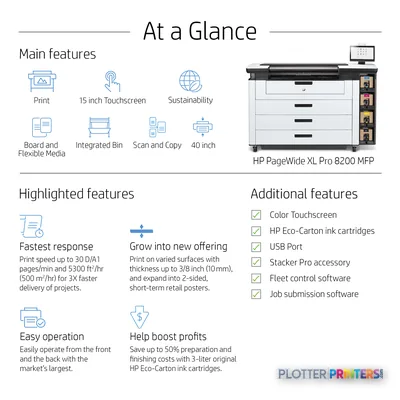

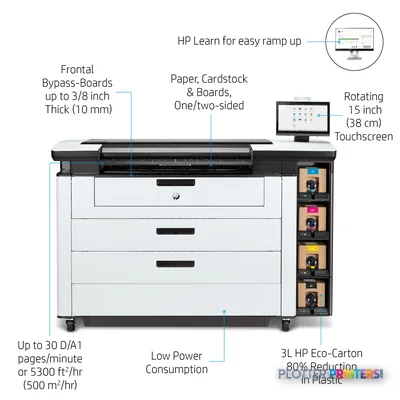

This machine makes sense for architecture, engineering, contractor, and infrastructure teams that still live with regular paper sets, redlines, coordination plans, GIS maps, and field-document scanning. The 15.6-inch color touch display matters when an operator is standing at the machine sorting out a copy or scan job, not sitting at a workstation. Color copying and CIS color scanning are built in, with a maximum scan length of 1,968.5 inches for long originals.

For document control, the more useful story is consolidation. One device can output four-color technical documents, copy a marked plan, and capture an old drawing for distribution or archive. Internal storage is specified at 628 GB, with HDD plus SSD storage and 16,384 MB of memory. Those facts do not guarantee a trouble-free workflow; file preparation, network policy, and operator habits still get their vote. But this is plainly aimed at a shared production environment rather than occasional plotting.

Bottom line: It fits AEC teams that need wide-format color output and scanning in the same controlled production location.

The supported paper-tray media types listed are bond, recycled, and matte paper. Maximum roll length is 7,874 inches, and maximum roll diameter is 6.97 inches. That is useful context for an AEC room that burns through ordinary bond on bid day. The machine does not list cut-sheet support, so firms that regularly need boards or short individual sheets should examine that constraint before assuming every wide-format job belongs here.

HP-GL/2, TIFF, and JPEG are listed page-description languages. That covers several familiar technical-print paths, but it does not replace a proper test using your actual PDFs, CAD exports, and job-submission workflow. A difficult PDF at the wrong moment has humbled better people than me. For production handling, compatible options include the HP PageWide XL Pro Stacker and HP PageWide XL Drawer; HP SmartStream Preflight Manager and HP SmartStream Workflow Management Module are also listed accessories.

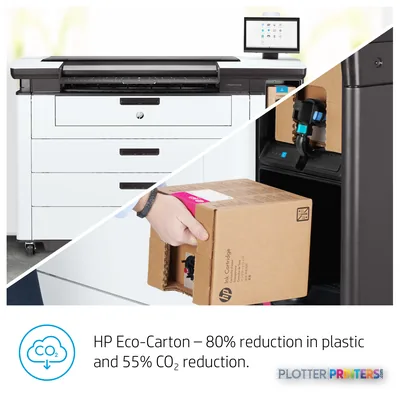

Consumables include HP 3EE04A, HP 3EE05A, HP 3EE06A, HP 3EE07A, HP 841, HP 869, the HP 876 printhead, and HP 874 maintenance supply. Confirm the exact supply arrangement and service responsibilities before signing anything.

Bottom line: Test the files and finishing path that cause your real bottlenecks, not a tidy sample drawing.

For buyers comparing nearby catalog choices, HP F40 and HP F60 are current in-family alternatives. HP F70 is listed as discontinued, which may matter when replacing an installed system or reviewing an existing service agreement. The supplied catalog status does not establish a simple step-up or step-down order among those models, so compare the actual media, finishing, workflow, and service configuration rather than trusting the number on the badge.

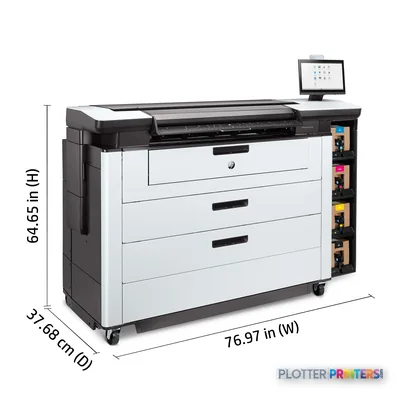

This machine may be less appropriate for a small architecture studio with modest output, limited floor space, or a need for Wi-Fi. It also needs practical attention to infrastructure: 200–240 V input power, Ethernet LAN, and a room that can accept a 64.4-inch-tall, 30.9-inch-deep device. HP dynamic security is specified, so IT should include supply-policy requirements in its review.

Bottom line: Buy it for a shared AEC production workflow, not because one department occasionally prints a large plan.
