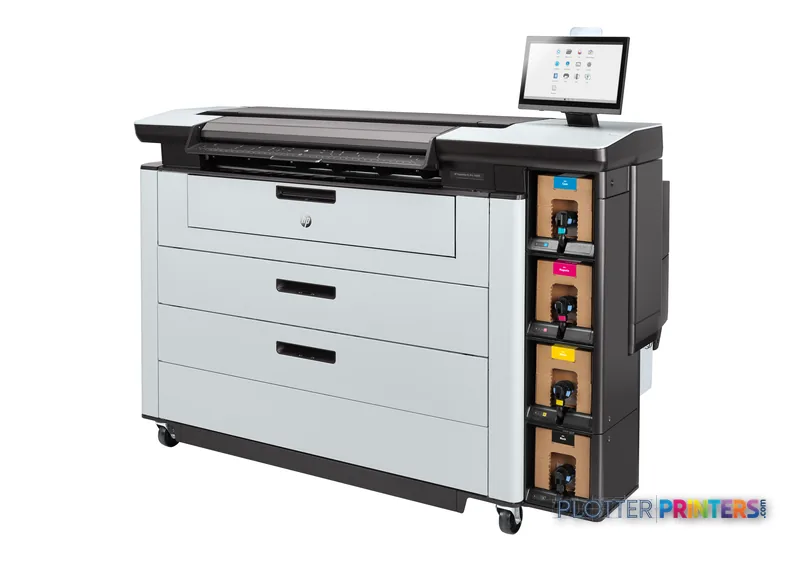

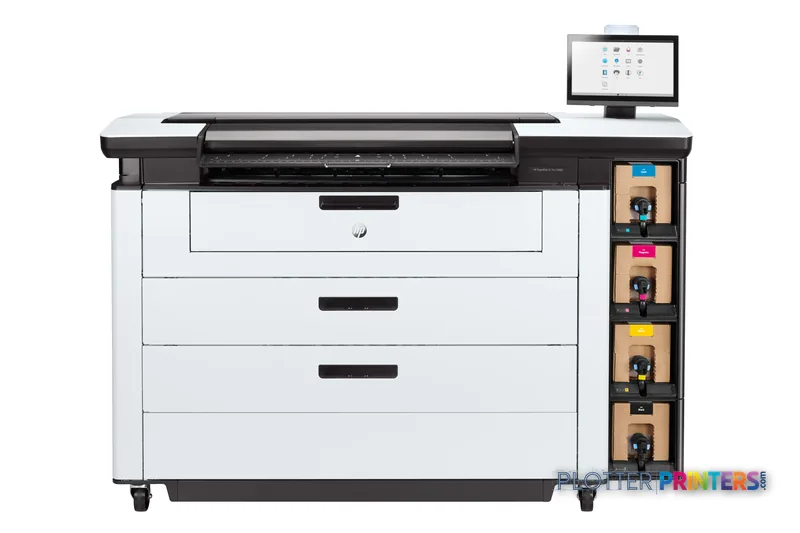

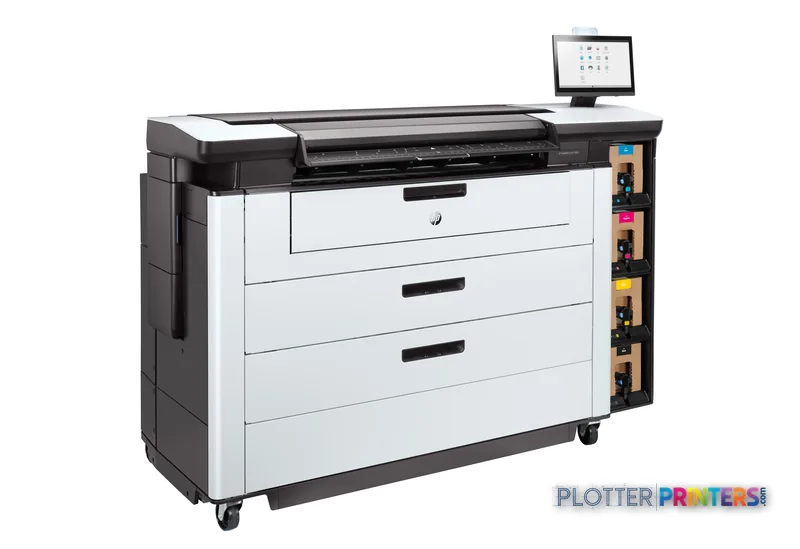

HP PageWide XL Pro 10000

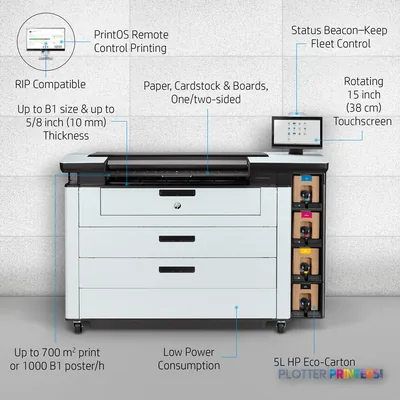

This is for departments producing color technical documents often enough that a desktop plotter becomes a traffic jam. The 40-inch media capability suits many AEC plan, mapping, and coordination workflows without moving into a larger-format device class. Eight printheads and four printing colors—black, yellow, cyan, and magenta—point to a production-oriented inkjet architecture rather than a small-office plotter arrangement.

The workflow fit is strongest where HP-GL/2 files remain part of the daily diet, alongside TIFF and JPEG output. That covers a fair amount of CAD, GIS, and jobsite graphics work. It does not, by itself, prove how a particular PDF, BIM export, cloud portal, or accounting system will behave. Run your own files. Bring the ugly ones too. Every print room has them.

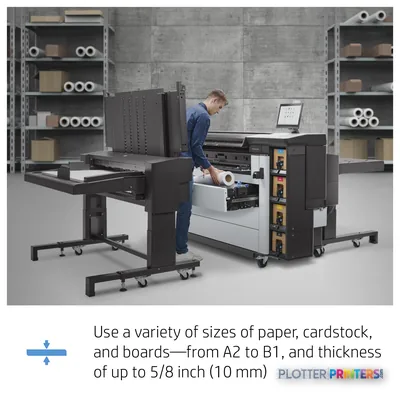

For media, the listed tray types are bond, recycled, and matte paper. That is a sensible AEC paper mix. The machine also accepts custom media sizes from 297 to 40 inches wide. Confirm roll configuration, loading procedure, and output handling with the seller for the actual sets you issue.

Bottom line: It fits recurring color technical output where line quality and deadline reliability matter more than a decorative print finish.

At 1,161.8 lbs, this is not a machine to tuck beside a project manager’s desk and hope for the best. Measure access routes, floor space, and the service envelope. It requires 200–240 V AC power at 50/60 Hz. Its stated operating range is 5–40 °C and 20–80% relative humidity, which gives facilities and IT a straightforward checklist before installation day.

The product data lists color scanning using CIS technology, while copying is listed as unavailable. HP also offers the HP SD Pro 44-in Scanner as a compatible accessory. That may suit scan-to-file or archive workflows, but firms that need routine walk-up scan-copy-print handling should have the proposed configuration demonstrated with marked-up drawings and mixed originals.

Consumables are not an afterthought in a deadline-driven department. This machine uses HP 841 and HP 870 inks, plus the HP 876 printhead and HP 874 maintenance supply. Ask who stocks them locally, what the service response process looks like, and what happens when a critical component fails on bid day.

Bottom line: The hardware is capable, but the proposed scanner, finishing, service, and supply arrangement decides whether it behaves like a system.

Within the listed HP family, the current HP F40 and current HP F60 deserve comparison when you are narrowing an HP technical-print shortlist. The HP F70 is listed as discontinued, so it is more relevant to installed-base replacement planning than to a fresh standardization decision. The available product data does not establish a simple step-up or step-down hierarchy among those models. Do not let a model number make that decision for you.

The Canon iPF825 42-in and Epson SC-T5200 38-in are also catalog-listed alternatives, but their listed widths, resolutions, and scanner arrangements differ. A clean comparison starts with the media sizes you actually issue, the amount of color in your drawings, and whether scanning is a real production need or merely a box to tick. Use the comparison tool for the HP PageWide XL Pro 10000 Printer and Canon iPF825 42-in to keep the discussion tied to the catalog data rather than showroom folklore.

Bottom line: Compare the job flow, not just the headline specification.
