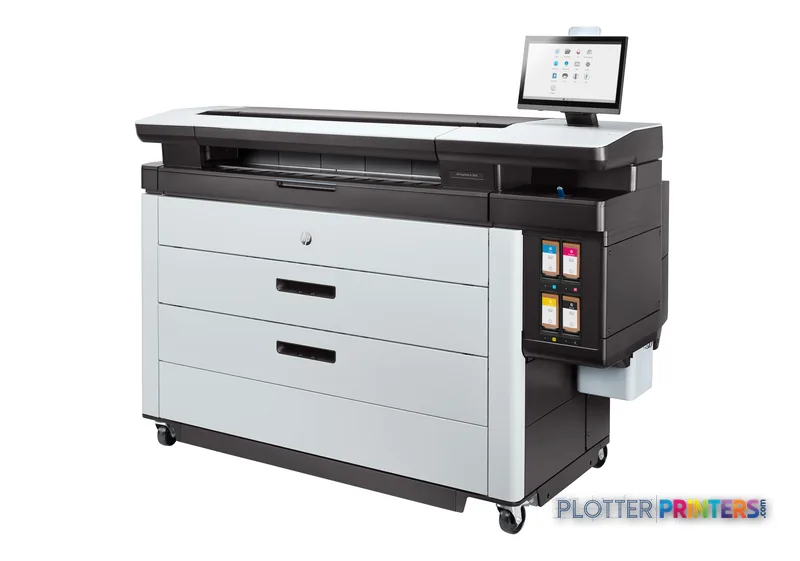

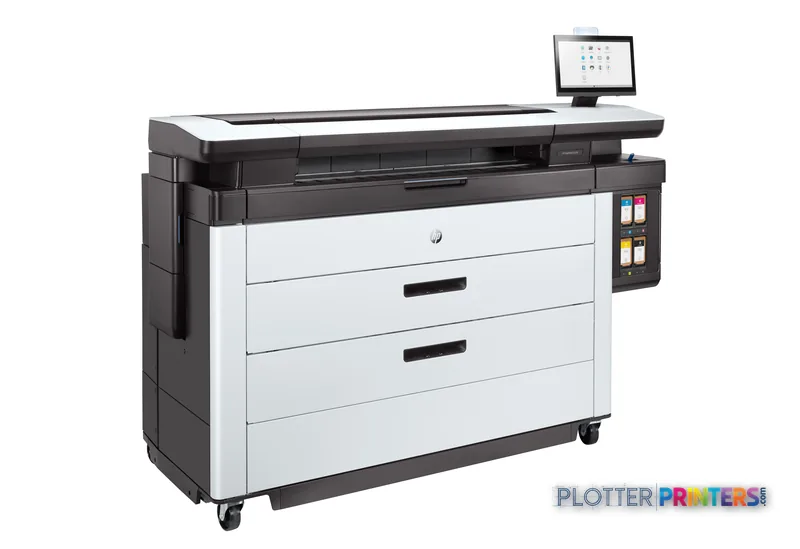

HP PageWide XL 8200
42" PageWide production printer
- ModelPageWide XL 8200
- Prints42" wide
- Score51/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP PageWide XL 8200 is a color wide-format inkjet printer for digital AEC documents up to A0.
- It supports HP-GL/2, TIFF, and JPEG, with Ethernet LAN, Wi-Fi, and USB connectivity.
- There is no built-in scanning, copying, or cut-sheet support in the supplied specification.
Not sure if the PageWide XL 8200 is right for you?
Compare key specs and an AI analyst read-out against similar models.

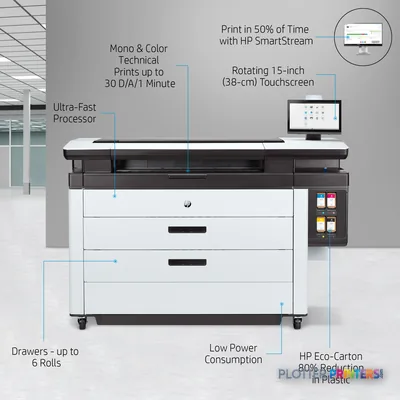

- Wide-format reach Prints up to 42" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Analyst score Scores 51/100 in our class-relative rating.
Overview
A production plotter for the print room that never really stops
Picture the reprographics desk the night before a big bid close. Full sets stacking up, three trades, color coordination sheets in the mix. That’s the room the PageWide XL 8200 was built for. It uses HP’s PageWide technology — a stationary print bar instead of a moving carriage — printing full-color and monochrome at up to 1200 x 1200 DPI on rolls up to 200 m long. Feed it bond, recycled or matte, HP-GL/2, TIFF or JPEG, over Gigabit Ethernet, Wi-Fi or USB.
The real story is color for the price of mono. Because the machine runs color at production speed, site plans, renders and coordination sheets no longer wait for a second device. Ink runs off the HP 867 and HP 878 families with the HP 841 printhead; finishing runs through the High-capacity Stacker, Top Stacker, or the F60/F70 folders. SmartStream Preflight Manager handles the queue.
- Large AEC firms and central reprographics running heavy daily set volume
- Mixed mono-and-color bid, permit and coordination sets
- Shops that need folded, sorted output without a hand-collate
- IT teams needing LAN, authentication and job accounting
Where it’s not the tool: a busy stationary print bar needs consistent use, so a low-volume studio is better served by the step-down HP F40 or HP F60. No scanner or copy function on board either — add the HP SD Pro 44-in Scanner if you need it.
- 4″Max print width
- 4Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Where it performs best
Connections
100
Print Cost
94
Media Handling
53
Class best is 77. How we grade →
At a glance
- Print technology
- HP PageWide inkjet, stationary print bar (color + mono)
- Max resolution
- 1200 x 1200 DPI
- Max print size
- A0 / 33" x 47"
- Max roll length
- 7,874" (200 m)
- Media types
- Bond, recycled, matte (19–53 g/m²)
- Media thickness
- Up to 0.016" (0.4 mm)
- Connectivity
- Gigabit Ethernet, Wi-Fi, USB; 15.6" color touch display
- Footprint / weight
- 77" W x 30.9" D x 64.4" H; 987.7 lbs
Ideal for: high-volume AEC and reprographics shops running mixed mono-and-color sets daily. Not the tool for: low-volume studios (see HP F40 / HP F60) or anyone needing an all-in-one with scan/copy.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The HP PageWide XL 8200 is a color wide-format inkjet printer for digital AEC documents up to A0.
- It supports HP-GL/2, TIFF, and JPEG, with Ethernet LAN, Wi-Fi, and USB connectivity.
- There is no built-in scanning, copying, or cut-sheet support in the supplied specification.
- Its listed media types favor bond, recycled, and matte papers used for technical-document production.
- Optional stackers, drawers, and folding equipment should be specified around the actual output workflow.
- The installation needs space, 200–240 V power, and a realistic plan for network administration and job handling.
At 4:45 p.m., the person waiting for a permit set does not care how clever the print engine is. They need readable plans, color-coded markups, and a machine that accepts the file without turning a simple PDF into a small IT project. The HP PageWide XL 8200 is a color inkjet printer for AEC teams producing wide-format technical documents up to A0.

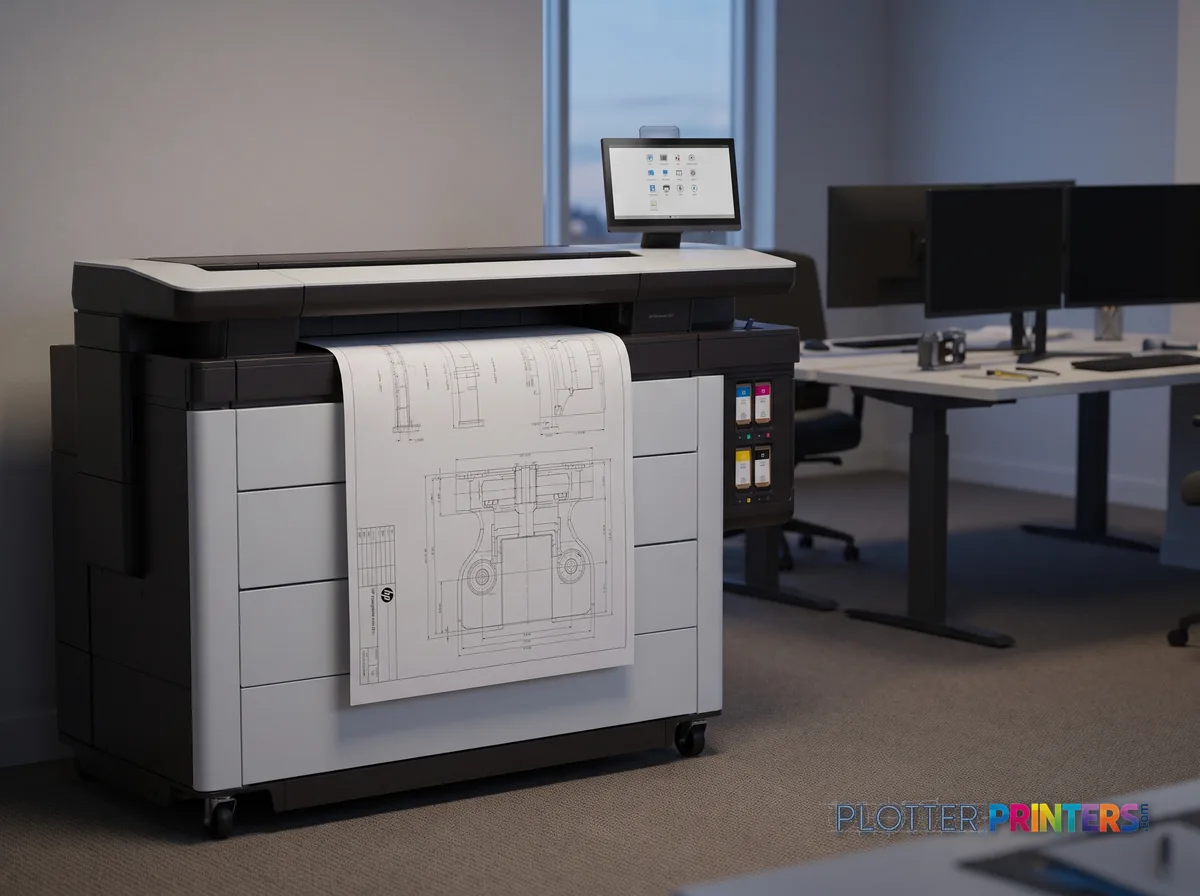

Its job is straightforward: put CAD plots, BIM exports, GIS maps, coordination drawings, and presentation-ready technical sheets onto roll media. It uses four printing colors—black, cyan, magenta, and yellow—with HP PageWide Technology and up to 1200 x 1200 DPI resolution. That makes it a practical fit where ordinary bond, recycled, and matte papers carry most of the workload.
A0 (33" x 47" (841 x 1189 mm))Maximum print sizeSuitable for common full-size technical-sheet output.
1200 x 1200 DPIMaximum resolutionRelevant to fine CAD lines, annotations, and color overlays.
7874" (200 m)Maximum roll lengthLong rolls reduce interruptions, provided the media setup matches the work.
15.6"Touch displayA color touch interface for walk-up operation.
Where it fits in an AEC print room
This is a printer, not a multifunction plotter. That distinction matters. The supplied specification lists no built-in scanning, copying, or cut-sheet support, so it suits teams whose documents arrive as finished digital files and leave as printed sets. Think issued drawing packages, engineering plan revisions, construction coordination sheets, and GIS output where color is doing real work rather than decorating the title block.
HP-GL/2, TIFF, and JPEG are supported page-description formats. Ethernet LAN, Wi-Fi, and USB provide several submission paths, while 16 GB of internal memory and 628 GB of storage give the device room to manage queued work. For a busy office, that is useful. It is not a substitute for disciplined PDF creation. Bad files remain bad files. Printers have yet to develop the courage to tell us that before deadline.
Bottom line: This fits a digital-first AEC workflow that needs wide-format color output but does not need an integrated scan-and-copy station.
Media, finishing, and the operator’s reality
The specified media range is bond paper, recycled paper, and matte paper, with media thickness up to 0.016″ (0.4 mm). The machine accepts rolls up to 6.97″ (17.7 cm) in diameter. That points toward routine technical-document production rather than a broad-board presentation workflow. If mounted boards, heavy specialty stocks, or cut sheets are central to the job, this is not the right tool.
Optional workflow components matter here. The catalog includes the HP PageWide XL High-capacity Stacker, HP PageWide XL Top Stacker, HP PageWide XL Drawer, and folding choices including HP F60 and HP F70. Confirm exactly which finishing equipment is included, supported, and serviced locally. A fast printer feeding an awkward hand-sort pile is merely moving the bottleneck downstream.
For consumables planning, the resolved list includes HP 841 printheads and HP 874 maintenance supplies, plus several compatible PageWide XL ink families. Verify the specific ink configuration and supply agreement with the seller before deployment.
Bottom line: Roll-based plan production is the natural fit; specialty-media and scan-heavy work require a different conversation.
What IT and facilities should check first
Put this machine where its footprint and operating requirements make sense. It measures 77″ wide by 30.9″ deep by 64.4″ high and weighs 987.7 lbs. It requires 200–240 V AC input. Printing sound pressure is specified at 60 dB, so placement beside a quiet design bullpen deserves thought. The listed operating range is 5–40 °C and 20–80% relative humidity.
Network teams should note Gigabit Ethernet, Wi-Fi, USB, internal storage, and HP dynamic security. Ask who administers access, how jobs are retained or cleared, and whether the intended driver and print-management workflow has been tested with the firm’s PDFs and HP-GL/2 files. A device can be technically connected and still be operationally stranded.
For comparison shopping, use the comparison view with the Canon iPF825 42-in or review the technical-printer class ranking. Do not choose from resolution alone. Linework, file handling, finishing, local service, and the actual mix of sheets decide the day.
Bottom line: Facilities, network policy, and finishing workflow should be signed off before the printer reaches the loading dock.
Related evaluation tools
The read
The HP PageWide XL 8200 makes sense for AEC departments that need wide-format color plans from digital files, use roll media, and have a defined path for scanning, copying, and finishing elsewhere. Its no-scan, no-copy specification is not a flaw. It is a boundary. Respect it early and the machine can sit comfortably in a focused production workflow. Ignore it, and somebody will be carrying redlined plans to another room at 4:45 p.m.
Bottom line: Buy it for roll-fed technical printing, not as an all-in-one reprographics department.
Spec analysis
How the specs grade
Overall performance
within PageWide production printers · 7 compared
Class best 77
84% spec coverage
- This printer
- class best
Verified specifications
The specs that decide it
| Maximum print width | 40 in |
|---|---|
| Print technology | Inkjet |
| Maximum resolution | 1200 x 1200 DPI |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG |
| Internal memory | 16384 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.4 mm |
| Maximum roll diameter | 6.97" (17.7 cm) |
| Scanning | No |
| Wi-Fi | Yes |
| Ethernet | Yes |
| Sound level (printing) | 60 dB |
| Power consumption | 370 W |
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 1200 DPI
Max print width42"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseGIS / Mapping
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Print technology | Inkjet |
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG |
Performance
| Display | LED |
|---|---|
| Control type | Touch |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
| Color display | Yes |
| Product color | Black, White |
| Internal memory | 16384 MB |
| Built-in display | Yes |
| Display diagonal | 15.6" |
| Country of origin | Malaysia |
| Built-in processor | Yes |
| Internal storage capacity | 628 GB |
| Sound pressure level (printing) | 60 dB |
Paper handling
| Cut sheets | No |
|---|---|
| Media thickness | 0.4 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll length | 7874" (200 m) |
| Maximum roll diameter | 6.97" (17.7 cm) |
| Paper tray media types | Bond paper, Recycled paper, Matte paper |
| Recommended media weight | 19 – 53 g/m² |
| ISO A-series sizes (A0…A9) | A0, A1 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
Technical details
| Compliance certificates | CE, RoHS |
|---|

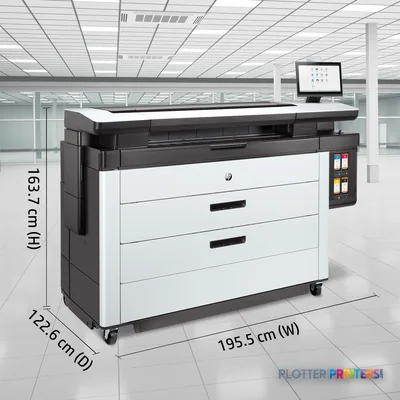

Weight & dimensions
| Depth | 30.9" (785 mm) |
|---|---|
| Width | 77" (1955 mm) |
| Height | 64.4" (1637 mm) |
| Weight | 987.7 lbs (448 kg) |
Power
| Power supply | 1200 W |
|---|---|
| AC input voltage | 200 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 16 W |
| Power consumption (typical) | 370 W |
Operational conditions
| Operating temperature (T-T) | 5 – 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 40.9" (1040 mm) |
|---|---|
| Package width | 88.9" (2257 mm) |
| Package height | 62.1" (1578 mm) |
| Package weight | 1272.1 lbs (577 kg) |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Total carbon footprint (kg of CO2e) | 26590 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 251 |
| Carbon emissions, end-of-life (kg of CO2e) | 5 |
| Carbon emissions, manufacturing (kg of CO2e) | 3081 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 23257 |
Brand-specific features
| HP GTIN (EAN/UPC) | 198701864684. 195122294434 |
|---|---|
| HP dynamic security | Yes |
| HP PageWide Technology | Yes |
| HP GTIN (EAN/UPC) with options | (AB1) 198701864684; (B1K) 195122294434 |
Everything that fits the HP PageWide XL 8200
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
15 ink cartridges · 16 paper & media items · 3 accessories
HP PageWide XL 8200 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP PageWide XL 8200 Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 15
HP 867 1-liter Magenta PageWide XL Ink Cartridge
HP 867 1-liter Yellow PageWide XL Ink Cartridge
HP 867 1-liter Cyan PageWide XL Ink Cartridge
HP 867M 1-liter Magenta PageWide XL Ink Cartridge
HP 867M 1-liter Yellow PageWide XL Ink Cartridge
HP 867M 1-liter Cyan PageWide XL Ink Cartridge
HP 874/876 PageWide XL Cleaning Container
HP 841/874/876 PageWide XL Maintenance Cartridge
HP 878 1-liter Cyan PageWide XL Ink Cartridge

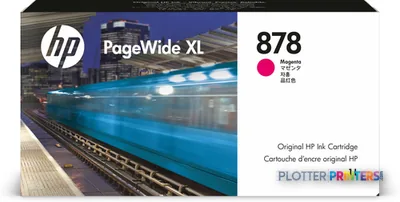

HP 878 1-liter Magenta PageWide XL Ink Cartridge
HP 878 1-liter Yellow PageWide XL Ink Cartridge
HP 878M 1-liter Magenta PageWide XL Ink Cartridge
HP 878M 1-liter Cyan PageWide XL Ink Cartridge
HP 878M 1-liter Yellow PageWide XL Ink Cartridge
HP 867B 1-liter Yellow PageWide XL Ink CartridgePaper & Media 16
Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)
HP PageWide XL Folder Upgrade Kit for Long Plots paper cutter
HP F70 Folder with Tab Applicator paper cutter
HP F60 Folder with Tab Applicator paper cutter
HP F70 Folder paper cutter
Questions
Straight answers
Can the HP PageWide XL 8200 scan or copy marked-up drawings?
No. The supplied specification lists both scanning and copying as unavailable. Firms handling regular redline capture or legacy-plan conversion should plan for a separate scanning workflow.
What is the largest sheet size it can print?
The maximum listed print size is A0, shown as 33″ x 47″ (841 x 1189 mm).
What files and connectivity options does it support?
The listed page-description languages are HP-GL/2, TIFF, and JPEG. Connectivity includes Gigabit Ethernet LAN, Wi-Fi, and USB.
What media is it intended to run?
The listed paper types are bond paper, recycled paper, and matte paper. Maximum media thickness is 0.016″ (0.4 mm), and cut sheets are not listed as supported.
What consumables should buyers confirm?
The resolved consumables include HP 841 printheads and HP 874 maintenance supplies, along with compatible PageWide XL ink families. Confirm the exact supply configuration and service arrangement before installation.
What should a buyer verify about finishing?
Confirm whether a stacker, drawer, or folding device is included and how it will be supported. The catalog lists the HP PageWide XL High-capacity Stacker, HP PageWide XL Top Stacker, HP F60, and HP F70 among compatible options.
