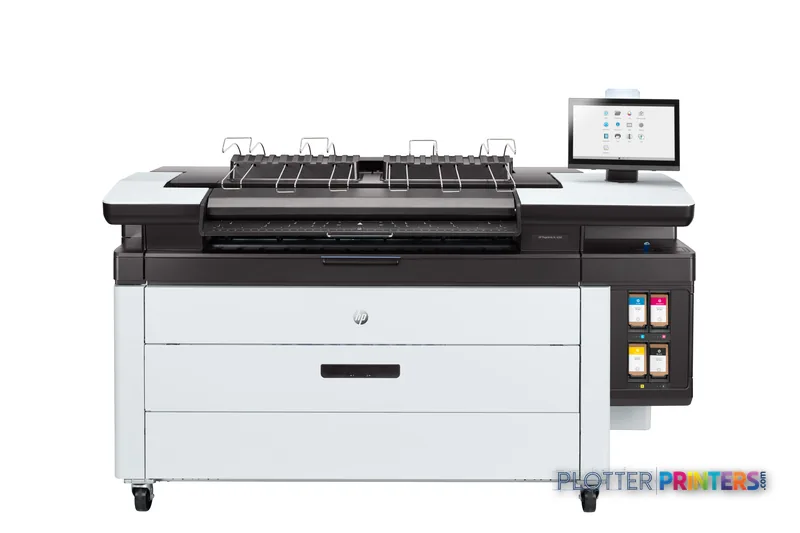

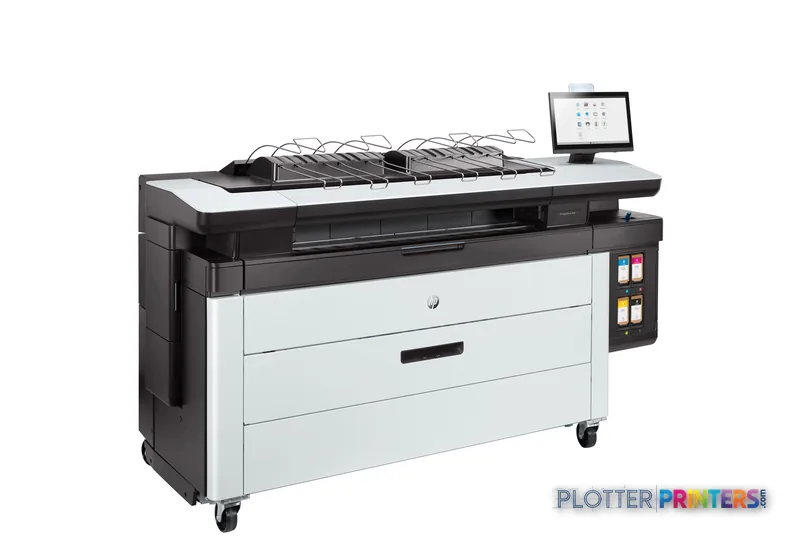

HP PageWide XL 4200 MFP

This machine fits AEC teams that still move a steady stream of plotted sets through one location: architects issuing permit revisions, engineers checking marked-up civil sheets, construction teams producing coordination drawings, and survey groups handling color maps. The four-color ink system—black, cyan, magenta, and yellow—makes color usable for more than presentation work. It can separate disciplines, flag revisions, and preserve the visual logic of a GIS or coordination drawing on supported bond, recycled, and matte papers.

The 1200 x 1200 DPI print specification and 0.1% accuracy specification deserve practical context. Fine text and linework are where technical printers earn their keep, especially when somebody is reading a detail at the far end of a conference table. Still, the machine needs a real operating environment: 5–40 °C and 20–80% relative humidity. Paper that lives in a damp job trailer has opinions about those conditions. Bottom line: it makes the most sense where technical output is a working document, not an occasional convenience print.

Color scanning is part of the proposition, using CIS technology with an optical scanning resolution of 1200 x 1200 DPI. That is relevant for bringing redlined plans, legacy drawings, and marked field documents back into a digital project record. The supplied data lists scanning but not copying, so buyers should not assume a walk-up copy workflow without confirming the intended configuration and process with the seller.

For file intake, the listed page-description languages are HP-GL/2, TIFF, and JPEG. HP-GL/2 support matters in technical-print environments because it remains part of many CAD plotting workflows. Ethernet LAN and a USB port give IT and print-room staff defined connection paths, while 8192 MB of internal memory supports its role as a shared device. The published data does not list a built-in display, user authentication, job accounting, or direct PDF support. Those are not minor omissions for a managed AEC environment; confirm the submission path, access controls, and reporting requirements before signing anything. Bottom line: the machine has the ingredients for centralized technical production, but workflow details need to be nailed down before bid week does it for you.

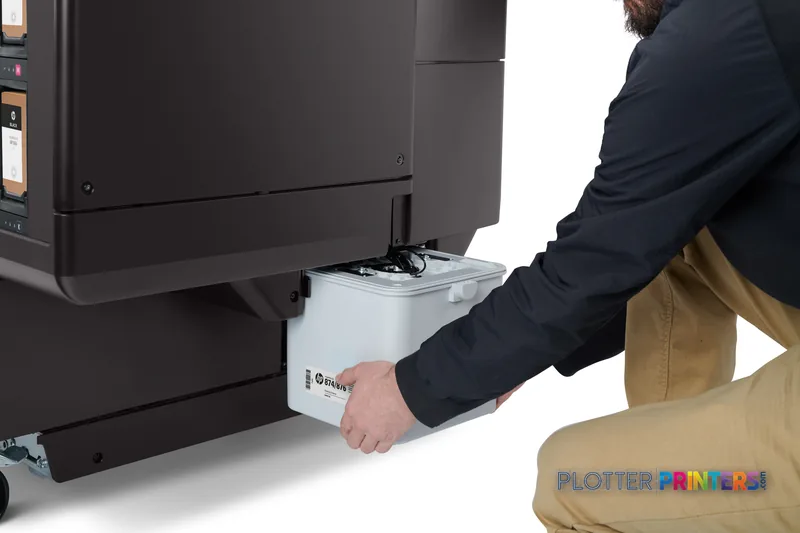

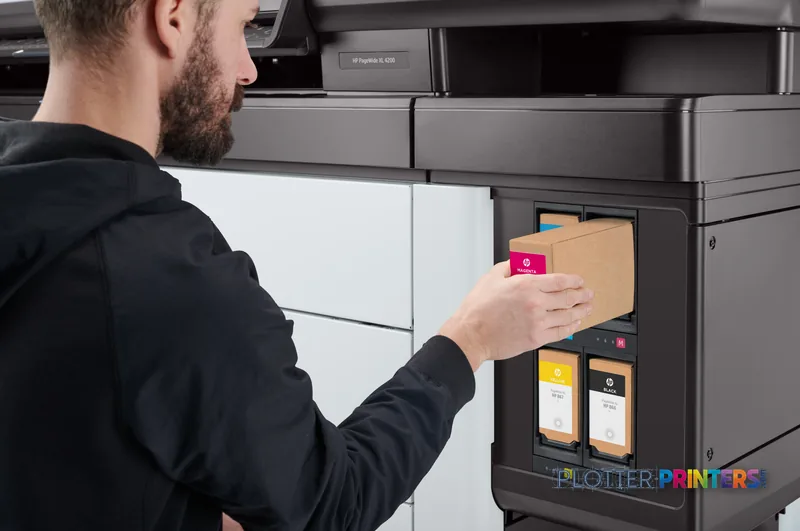

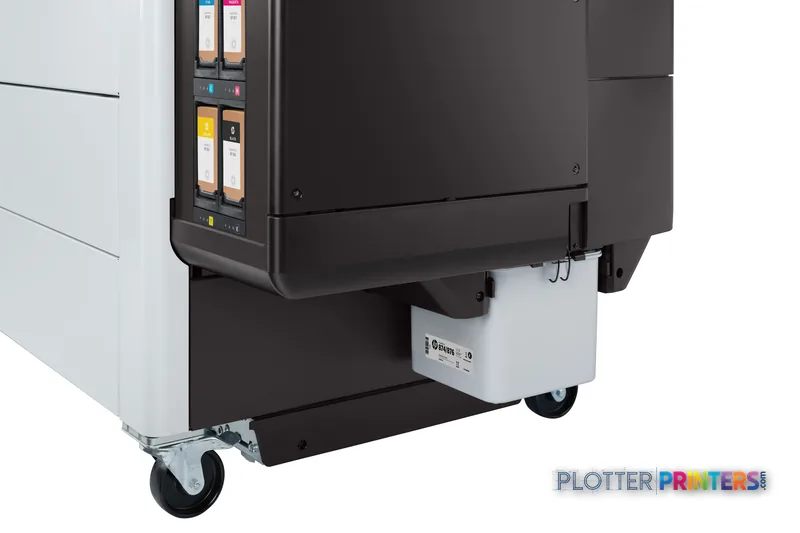

Plan consumables around the supported HP 841, HP 864, and HP 865 ink families, the HP 841 printhead, and the HP 874 maintenance supply. For teams trying to reduce handling at the end of a set, catalogued options include the HP PageWide XL Drawer and HP PageWide XL High-capacity Stacker. There are also HP SmartStream workflow, preflight, and pixel-analysis options listed for this model. Those tools may matter more to a central reprographics group than to a small design office that sends only occasional plots.

Within the listed family alternatives, compare the current HP F40 and HP F60 against the actual finishing and handling problem you are trying to solve. The HP F70 is listed as discontinued, so it belongs in installed-base discussions rather than a new-equipment assumption. If you are weighing an alternative class approach, use the side-by-side comparison with the Epson SC-T5400M 38-in rather than comparing resolution figures in isolation. Bottom line: the right add-ons are the ones that remove touches from your busiest document path.
