HP Latex R1000 Plus

This machine fits firms that produce more than drawings. Think construction-site identification panels, safety and directional graphics, project-room visuals, GIS and infrastructure maps, color coordination boards, vinyl markings, and presentation pieces that need to move beyond ordinary bond paper. The supported custom-media range starts at 12 x 17 inches and reaches 64 x 48 inches; with two sets of optional extension tables, the stated length reaches 64 x 120 inches.

That flexibility matters when a GC needs a run of site signs beside a batch of project graphics, or when an architecture team needs rigid presentation boards without handing every job to an outside provider. Rated speed gets you a print. Media handling gets the project-room package finished: loading, table setup, output removal, and the next substrate all count.

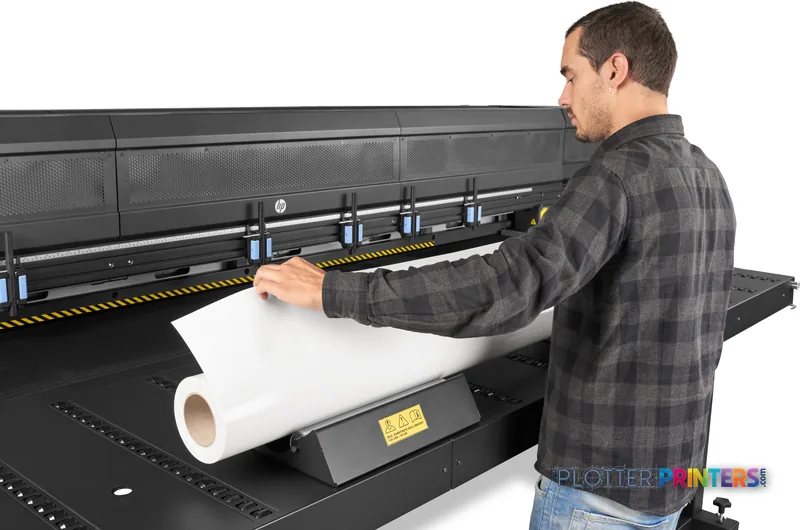

For roll work, the printer supports rolls up to 64.2 inches wide and 9.84 inches in diameter. The included HP Latex R2000 Roll Printing Accessory Kit includes two 98-inch spindles, table-top roll holders, and a pneumatic gun adapter. That gives an equipped shop a practical path between roll graphics and rigid-media jobs, but it does not remove the need for disciplined material staging.

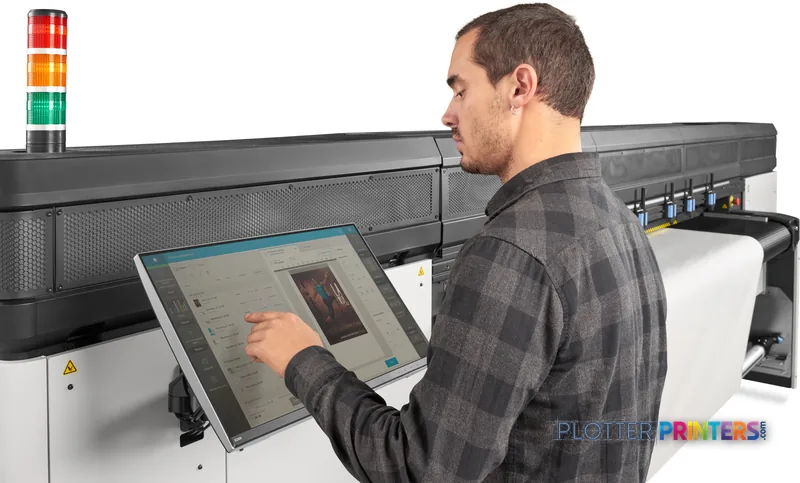

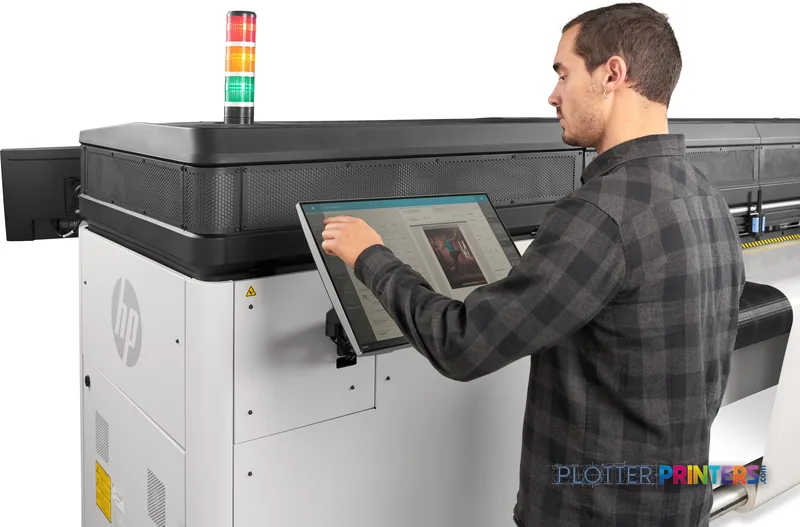

The HP Latex R1000 Plus Printer connects through Gigabit Ethernet; it has one RJ-45 port and no Wi-Fi or USB port. That is usually a sensible fit for a controlled print-room network, but IT should confirm cable routing, network access, authentication expectations, and job-submission ownership before installation. The supplied HP Internal Print Server and two displays put production control at the machine rather than treating it as a casual office peripheral.

There is no scanning or copying function. Firms replacing a multifunction reprographic device should keep their wide-format scan, archive, markup-copy, and legacy-document workflow separate. For output, HP 872 and HP 886 inks and HP 886 printheads are the resolved consumable families. Optional workflow and media-management items include HP Large Format Onyx Thrive RIP Software, HP PrintOS Solution, HP Latex Media Saver Kit, and HP Latex R Series Edge Holders Kit.

Three questions to ask: what feeds it, what dries and finishes the work, and who fixes it when a deadline is live? Also validate the installation envelope. The printer is 165.7 inches wide, 80.3 inches deep, and 68.9 inches high, with typical power consumption listed as 10000 W.

There is no in-family step-up or step-down model listed in this catalog, so buyers should avoid assuming a simple same-series upgrade path. The decision is more about application mix than about headline width: do you need thick-media capability and white-ink output, or is the work predominantly roll-fed graphics?

For a cross-brand 64-inch comparison, the Epson SC-R5000 64-in and Epson SC-R5000L 64-in are listed with 1200 x 2400 DPI resolution, while the Epson F9470 64-in is listed as a 64-inch inkjet model. Compare the actual media mix, finishing path, network workflow, and local service plan—not resolution alone. Use the side-by-side comparison and the class ranking to organize that review.
