Epson · Wide-Format Plotter

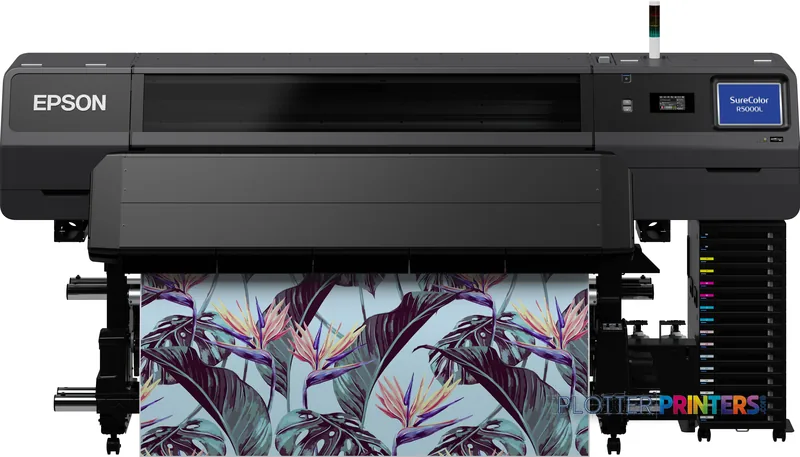

Epson SureColor SC-R5000L
64" color graphics & photo printer
- ModelSC-R5000L
- Prints64" wide
- Score55/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtendable to 2 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson SC-R5000L 64-in is a current, roll-fed 64-inch color inkjet printer with a six-color configuration.
- Its 1,200 x 2,400 DPI maximum resolution should be validated with the fine text and linework in your own PDFs and CAD exports.
- Ethernet LAN is available at 10, 100, and 1,000 Mbit/s, while Wi‑Fi is not listed.
Not sure if the SC-R5000L is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 2400 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Light Cyan, Yellow, Magenta, Light magenta.
- Connectivity Ethernet for shared team printing.
- Analyst score Scores 55/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor SC-R5000L, Inkjet, 1200 x 2400 DPI, Black, Cyan, Light Cyan, Yellow, Magenta, Light magenta, 1500 ml, Roll, 1 mm
- 64″Max print width
- 6Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Print Quality
75
Connections
67
Media Handling
66
Class best is 71. How we grade →
Expert analysis
What you should know
Key takeaways
- The Epson SC-R5000L 64-in is a current, roll-fed 64-inch color inkjet printer with a six-color configuration.
- Its 1,200 x 2,400 DPI maximum resolution should be validated with the fine text and linework in your own PDFs and CAD exports.
- Ethernet LAN is available at 10, 100, and 1,000 Mbit/s, while Wi‑Fi is not listed.
- The supplied information does not establish scanning, finishing, automatic roll switching, or measured ICC gamut performance.
- The Epson SC-R5000 64-in is the closest current in-family comparison listed, with the same stated width and maximum resolution.
- The Epson SC-R5010 64-in and Epson SC-R5010L 64-in are listed as discontinued.
A coordination drawing can look straightforward until the color carries responsibility: a cyan utility route against a dense base map, a magenta revision cloud, a photograph embedded in a proposal board. The Epson SC-R5000L 64-in is a roll-fed, six-color, 64-inch inkjet printer for teams that need wide output with color available for those visual distinctions—not merely a monochrome plan device.
Its 1,200 x 2,400 DPI maximum resolution and six listed inks—Black, Cyan, Light Cyan, Yellow, Magenta, and Light Magenta—make it a credible candidate for color-forward AEC documents, maps, display graphics, and presentation work. The specification deserves context: resolution describes addressability, not a guarantee of fine-line clarity on every file and roll. Bring the PDFs, CAD exports, and ordinary working media that define your day-to-day output.
64" (162.6 cm)Maximum roll widthRoll media only
1200 x 2400 DPIMaximum resolutionInkjet printing
6Ink configurationBlack, Cyan, Light Cyan, Yellow, Magenta, Light magenta
116.1" (2949 mm)Printer footprintWidth; allow working space around the device
Where it fits in an AEC document environment
The SC-R5000L suits a centralized print area where 64-inch-wide roll output is useful for large-format sheets, visual coordination material, GIS-derived maps, and presentation graphics. Ethernet LAN supports 10, 100, and 1,000 Mbit/s connections, while USB Type-B provides a direct interface option. There is no Wi-Fi listed, which may be entirely appropriate for an IT-managed print room but matters for teams expecting ad hoc wireless submission.
Epson Edge Print is bundled, and the printer has 2 GB of internal storage and 2,048 MB of internal memory. Those are useful operational facts, not proof of compatibility with every CAD, BIM, PDF, or project-management workflow. Test the actual submission route—especially complex PDFs with transparency, color-coded layers, and mixed page sizes—before treating a driver or RIP path as settled. For a side-by-side starting point, use the comparison with the Epson SC-R5000 64-in.
Color and media decisions need a practical proof
Six colors, including Light Cyan and Light Magenta, give the device a broader color configuration than a basic four-color system. That matters most where gradients, aerial imagery, shaded analysis, and presentation graphics must remain distinct rather than collapse into abrupt transitions. We have no measured ICC gamut-volume data in the supplied record, however, so there is no defensible basis to claim a measured color advantage. Ask for output on the media you plan to standardize, under the lighting where reviewers will see it.
The listed maximum media thickness is 0.039 inches (1 mm), and the printer accepts roll media. This points to a roll-centered workflow, but it does not establish which specific bonds, films, banners, or specialty media will meet your requirements. If dimensional consistency, line weight, or color appearance is critical, validate those on your chosen substrate. The supported consumable family is Epson UltraChrome RS; the maintenance plan should also account for the Epson Waste Ink Bottle 4L, Epson CP02OSCRCH28, and Epson C13S210103.
Family position and operational limits
The current Epson SC-R5000 64-in has the same listed 64-inch width and 1,200 x 2,400 DPI resolution. The catalog information supplied here does not establish a performance hierarchy between it and the SC-R5000L, so buyers should compare ink configuration, workflow options, local support terms, and the exact media qualification rather than assume that one is automatically the step-up model.
For firms replacing older equipment, the Epson SC-R5010 64-in and Epson SC-R5010L 64-in are marked discontinued in the catalog. Their presence may matter when matching archived job settings or maintaining an installed fleet, but they should not be treated as current alternatives. Cross-shopping against the HP DesignJet Z6 64-in or HP DesignJet Z9+ 64-in is reasonable where the decision is centered on 64-inch color output; assess each with the same files, media, and service assumptions.
Compare before standardizing
Epson SC-R5000 64-inCurrent in-family model with the same listed width and maximum resolution.HP DesignJet Z6 64-inA current cross-brand 64-inch option for a controlled workflow comparison.HP DesignJet Z9+ 64-inAnother current cross-brand 64-inch model to evaluate with identical test files.Wide-format class rankingReview the machine in the context of its class.
The read
The Epson SC-R5000L 64-in is most persuasive for AEC teams with a managed, roll-fed color workflow and a genuine need for 64-inch output. Its six-color configuration, Ethernet connectivity, bundled Epson Edge Print software, and substantial 1,500 ml cartridge volume give it the outline of a serious centralized device. The trade-off is that the supplied record does not substantiate scanner capability, finishing, automatic roll switching, real-world throughput, or measured color gamut. It is therefore not the right tool to select on assumptions. Run representative plan sheets, maps, visual boards, and revision-heavy PDFs; confirm media behavior, job submission, and local service support. That disciplined test will say more than a resolution figure ever can.
Spec analysis
How the specs grade
Overall performance
within color graphics & photo printers · 3 compared
Class best 71 — Epson SureColor P20570
52% spec coverage
- This printer
- Epson SureColor P20570
Category leaders best color graphics & photo printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 64 in |
|---|---|
| Print technology | Inkjet |
| Maximum resolution | 1200 x 2400 DPI |
| Printing colors | Black, Cyan, Light Cyan, Yellow, Magenta, Light magenta |
| Number of print cartridges | 6 |
| Internal memory | 2048 MB |
| Media thickness | 1 mm |
| Wi-Fi | No |
| Ethernet | Yes |
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 2400 DPI
Max print width64"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Light Cyan, Yellow, Magenta, Light magenta |
| Print technology | Inkjet |
| Maximum resolution | 1200 x 2400 DPI |
| Number of print cartridges | 6 |
| Print cartridge volume (metric) | 1500 ml |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Product color | Black |
| Internal memory | 2048 MB |
| Built-in display | Yes |
| Display diagonal | 4.3" |
| Country of origin | China |
| Internal storage capacity | 2 GB |
Paper handling
| Media thickness | 1 mm |
|---|---|
| Maximum roll width | 64" (162.6 cm) |
| Paper tray media types | Roll |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| USB connector | USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | Epson Cloud Solution PORT |
Weight & dimensions
| Depth | 41.1" (1045 mm) |
|---|---|
| Width | 116.1" (2949 mm) |
| Height | 69.8" (1774 mm) |
| Weight | 989.9 lbs (449 kg) |
Power
| AC input voltage | 200-240 V |
|---|
Other features
| Ink drop | 4.9 |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 129.9" (3300 mm) |
| Package width | 44.5" (1130 mm) |
| Package height | 89.8" (2280 mm) |
| Package weight | 1666.7 lbs (756 kg) |
| Bundled software | Epson Edge Print |
System requirements
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x oder höher, Windows 10, Windows 7, Windows 8 |
|---|---|
| Mac operating systems supported | Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Everything that fits the Epson SureColor SC-R5000L
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
8 ink cartridges · 5 accessories · 1 coverage plan
Epson SureColor SC-R5000L ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-R5000L 64-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 8
Epson UltraChrome RS Cyan T45U200 (1.5ltx2)
Epson UltraChrome RS Light Magenta T45U600 (1.5ltx2)
Epson UltraChrome RS Light Cyan T45U500 (1.5ltx2)
Epson UltraChrome RS Maintenance Liquid T45U800 (1.5ltx2)
Epson UltraChrome RS Yellow T45U400 (1.5ltx2)
Epson UltraChrome RS Black T45U100 (1.5ltx2)
Epson UltraChrome RS Magenta T45U300 (1.5ltx2)
Epson UltraChrome RS Optimizer T45U700 (1.5ltx2)Accessories 5
Coverage & Support Plans 1
Questions
Straight answers
What AEC work is the Epson SC-R5000L 64-in suited to?
It is a sensible candidate for centralized roll-fed color output where 64-inch-wide drawings, maps, presentation graphics, and visual coordination documents are part of the workload. Confirm output quality with the files and media your team uses most often.
Can it connect to an IT-managed network?
Yes. It has Ethernet LAN with listed 10, 100, and 1,000 Mbit/s data rates, plus a USB Type-B connector. Wi‑Fi is not listed.
Does it have a scanner for copying marked-up drawings?
No scanner specification is provided in the supplied product data. Buyers who need scan, copy, or archive workflows should verify that requirement before purchase rather than infer it from the printer’s wide-format role.
How should we interpret its color capability?
The printer uses Black, Cyan, Light Cyan, Yellow, Magenta, and Light Magenta. No measured ICC gamut data is supplied, so color fidelity should be assessed using proof output on your chosen media and under your review lighting.
What consumables should a print-room team plan around?
The resolved ink family is Epson UltraChrome RS. The listed supporting items include Epson Waste Ink Bottle 4L, Epson CP02OSCRCH28, and Epson C13S210103.
Is the Epson SC-R5000L 64-in a replacement for the SC-R5010 models?
The Epson SC-R5010 64-in and Epson SC-R5010L 64-in are listed as discontinued, while the SC-R5000L is listed as current. Confirm workflow settings, media qualification, and support requirements when migrating from an older installed device.
Ready to put the Epson SureColor SC-R5000L to work?
Configuration, media and a quote tailored to your workflow — from AEC plotter specialists.
