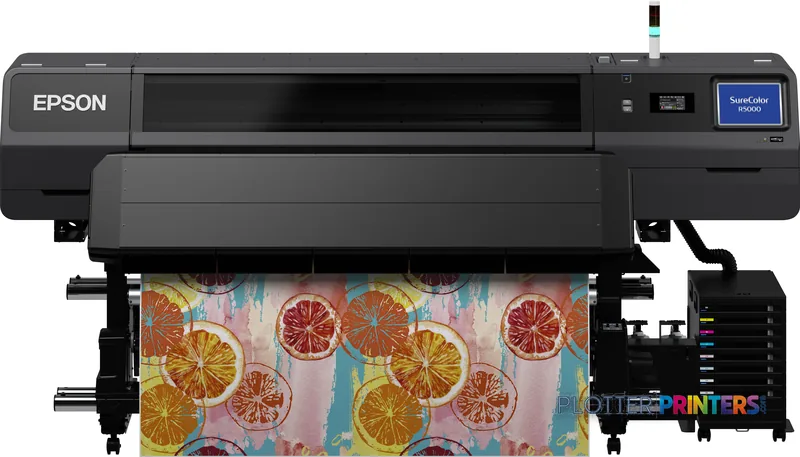

Epson SureColor SC-R5000

The Epson SC-R5000 64-in is most credible where color carries operational meaning: survey and GIS exhibits, utility coordination sheets, safety and logistics boards, design-review graphics, and construction presentations. A 64-inch maximum roll width accommodates common wide sheets and larger visual work without forcing teams into tiled output. Its stated 0.039-inch media-thickness limit also gives buyers a clear boundary to test against when their work includes heavier specialty media.

For IT and print-room staff, the practical connectivity is wired: Ethernet supports 10, 100, and 1000 Mbit/s, and USB Type-B is provided. There is no Wi-Fi. Epson Edge Print is bundled, while Epson Cloud Solution PORT is listed among its mobile printing technologies. The 4.3-inch touch LCD and 2 GB of internal storage may simplify local operation, but they do not replace disciplined PDF preparation, naming conventions, or access controls in a project environment.

For a direct category view, use the comparison between the Epson SC-R5000 64-in and HP DesignJet Z6 64-in. The relevant question is not which specification looks higher in isolation, but which device handles your actual file mix, paper, operator handoffs, and service arrangement with fewer surprises.

The six listed inks provide Black, Cyan, Light Cyan, Yellow, Magenta, and Light Magenta, using Epson UltraChrome RS consumables. That palette is relevant to drawings and graphics with tonal transitions, but it is not enough to infer a measured color gamut, repeatability, or match to a corporate brand color. No measured ICC gamut data is supplied for this machine here, so the responsible approach is to request a proof using the intended media and representative project files.

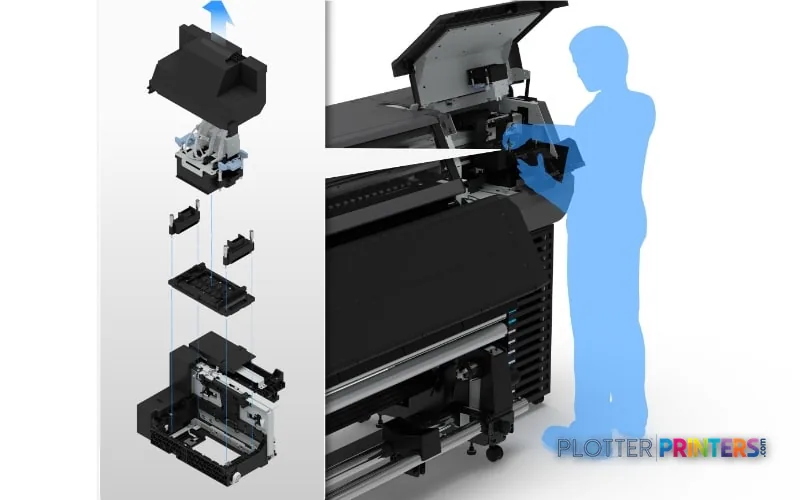

Buyers should also plan the serviceable items into their operating routine: Epson UltraChrome RS ink, Epson Waste Ink Bottle 4L, Epson CP02OSCRCH28 printhead, and Epson C13S210103 maintenance item are the named compatible supplies. In a busy print room, the question is not merely whether supplies exist; it is who monitors them, who owns the approved-media list, and what happens when a deadline lands during a maintenance event.

For context on how the class is evaluated, review the rating methodology and the wide-format class ranking.

Within the listed family, the current Epson SC-R5000L 64-in is the closest in-family alternative to investigate when a buyer wants to compare a related 64-inch configuration. The Epson SC-R5010 64-in and Epson SC-R5010L 64-in are listed as discontinued, so they are relevant mainly when assessing an existing fleet, support strategy, or replacement path rather than as like-for-like current purchases. See the Epson SC-R5000L 64-in alongside this model before assuming that similar naming means identical operational fit.

This is not the obvious tool for an office that primarily needs rapid monochrome permit sets, nor for a team with no dedicated space: the unit is 116.1 inches wide, 41.1 inches deep, 69.8 inches high, and weighs 937 lbs. It also requires 200–240 V AC input. Those physical and electrical facts deserve confirmation before delivery, especially in a construction trailer, satellite office, or repurposed print room.
