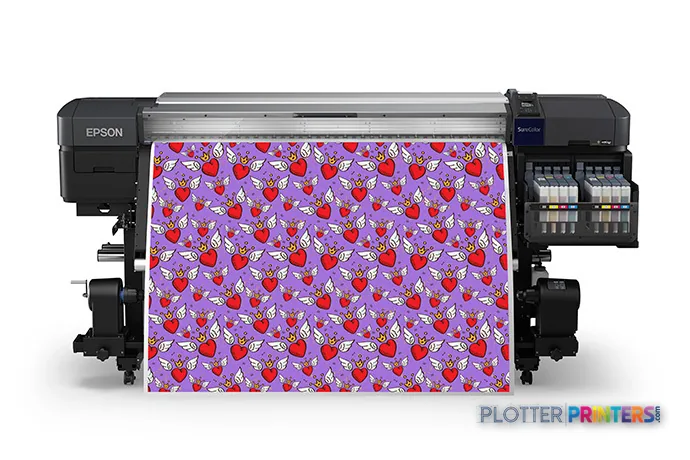

Epson SureColor F9470

The sensible F9470 buyer is not simply an AEC firm that prints large sheets. It is an organization with a defined specialty-output need. Think an in-house graphics group producing material for client spaces, a contractor supporting branded site environments, or a design practice that regularly coordinates with a transfer-print workflow.

The machine prints in black, cyan, magenta, and yellow, uses roll media, and accepts rolls up to a 9.8-inch diameter with a 3-inch rear-roll core. Those details matter because roll handling shapes the workday. Media changes, loading space, and output collection are operator tasks, not background noise when the deadline is already chewing on your ankle.

For ink and maintenance planning, the resolved supplies include Epson C13T49F700, Epson C13T49F800, the Epson Dye Sublimation Black T49N100 (140mL), Epson Dye Sublimation Cyan T49N200 (140mL), Epson Dye Sublimation Magenta T49N300 (140mL), Epson Dye Sublimation Yellow T49N400 (140mL), and Epson C13S400145.

Bottom line: buy it for a repeatable specialty-media workflow, not because it can physically print a large drawing.

Nothing in the supplied specification establishes the Epson F9470 as a dedicated technical-document printer, scanner, copier, or mixed-size plan-set device. That distinction matters. CAD linework, PDFs with dense annotation, bluebeam-marked sheets, and permit packages usually reward a workflow designed around plain-paper drawings, quick first sheets, reliable collation, and straightforward reprints.

The F9470 supports USB and Ethernet LAN, uses ESC P, and does not include Wi-Fi. That can suit a fixed production location managed through a wired network. It is less convenient for an informal studio corner where people expect to send files from whatever laptop is open at 4:45 p.m.

For a direct comparison within the catalog, review the Epson F9470 and Epson SC-F9400 64-in side by side. The Epson SC-F9400 64-in is the natural in-family reference for buyers who still need 64-inch capability but want to examine a different model in the same range. The 44-inch Epson SC-F6400 44-in is worth reviewing only when a narrower dye-sublimation format fits the work.

Bottom line: do not let a wide carriage substitute for a proper document-production requirement.

This is not a desk-side unit. The listed dimensions are 103.1 inches wide, 36.8 inches deep, and 52.4 inches high, with a weight of 639.3 lbs. Facilities and IT should confirm delivery access, floor location, wired-network availability, and adequate working clearance before committing the print room.

Its stated input range is 100 – 240 V at 50 – 60 Hz. Listed power consumption is 570 W typical, 340 W standby, 17 W sleep, and 1 W off. Those figures help with facility planning, but they do not answer the bigger operational question: who owns daily media handling, supply checks, file preparation, and deadline recovery when the trained operator is out?

Ask the supplying dealer to run the actual files and media your team intends to use. A clean demonstration file proves very little. Bring dense vector artwork, gradients if they matter, your expected roll widths, and the job that normally causes the office to mutter at the printer.

Bottom line: the machine needs a production home, not an empty patch of floor.
