HP · Wide-Format Plotter
HP Latex 630 W
64" latex signage printer
- ModelLatex 630 W
- Prints64" wide
- Score62/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- A 64-inch Latex printer bundled with the HP Latex 64 Plus Cutter for print-and-cut graphics, not plan-set plotting.
- Latex ink cures with heat, so prints come off dry and are ready to handle or laminate.
- HP rates it at 35 m²/h in normal 2-pass quality at 1200 x 1200 DPI.
Not sure if the Latex 630 W is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform HP Latex Inks.
- Connectivity Ethernet for shared team printing.
- Verified specs 7 specs checked against the manufacturer datasheet.
- Analyst score Scores 62/100 in our class-relative rating.
Overview
A 64-inch Latex print-and-cut rig for color-heavy AEC output, not everyday bond plots

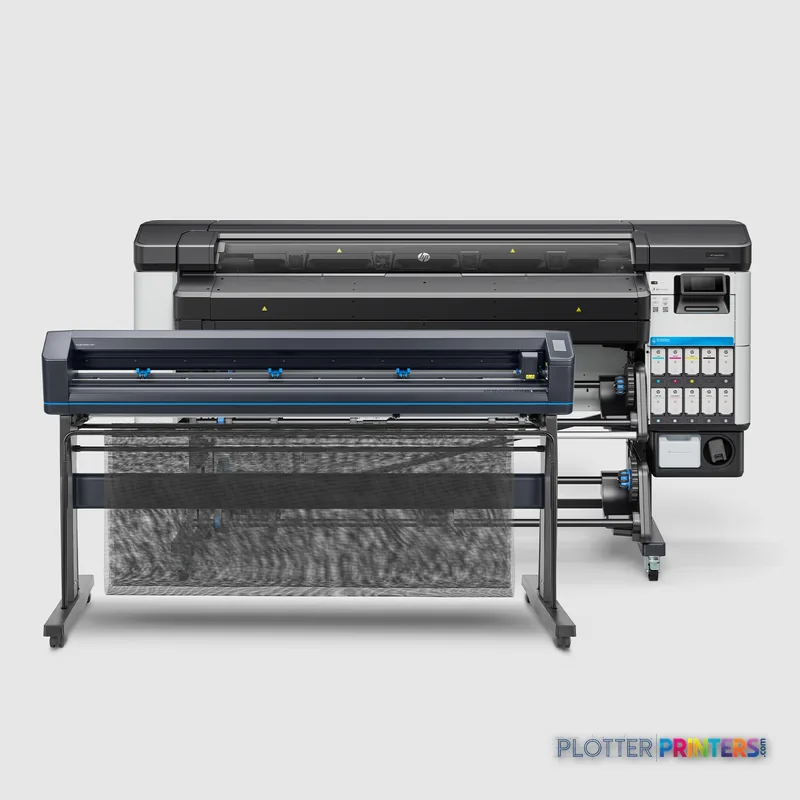

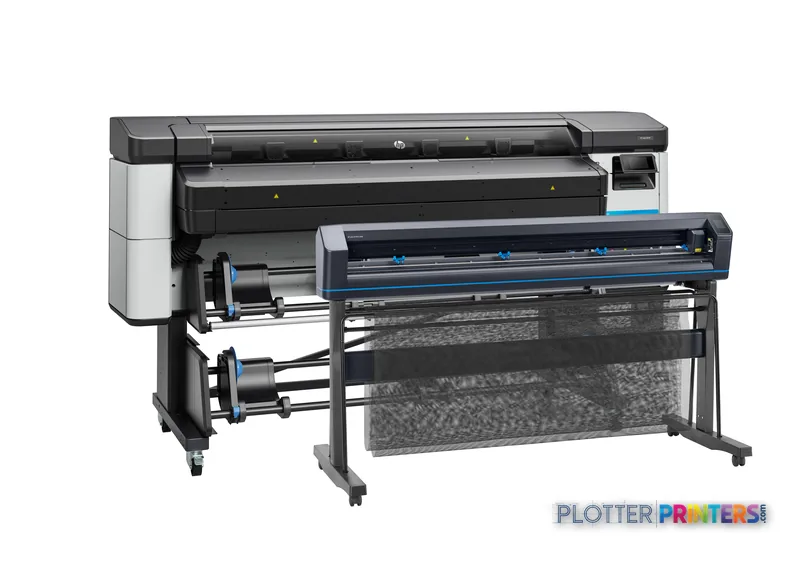

Let’s be clear about what this is. The HP Latex 630 W Print and Cut Plus Solution pairs a 64-inch Latex printer with the HP Latex 64 Plus Cutter. It runs Latex ink — including white — at up to 1200 x 1200 DPI, and HP rates it at 35 m²/h in normal 2-pass mode. Rated speed gets you a proof. Media handling and the integrated cutter get you finished, contour-cut pieces by end of shift.
This machine earns its place when AEC work spills past the plotter and into display and signage. Where it fits:
- Presentation boards, project banners and site graphics that need durable, water-resistant color
- Contour-cut decals, hoarding graphics and wayfinding for job sites
- Firms already producing marketing and event material in-house
- Print-and-cut jobs where the take-up reel and integrated cutter cut takedown labor
It is not your daily driver for bid sets, permit sets or monochrome as-builts — a plain aqueous DesignJet plotter does that faster and cheaper per sheet. Note there’s no built-in display, no scan or copy, and no Wi-Fi. If you need faster wide-format signage throughput, cross-shop the Epson SC-R5000 64-in or SC-R5000L 64-in resin machines. For plan-set volume, look at a dedicated plotter line entirely.
- 64″Max print width
- 377 ft²/hRated speed
- 9Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print technology
- HP Latex, up to 1200 x 1200 DPI
- Max roll width
- 64 in (162.5 cm)
- Rated print speed
- HP rates 35 m²/h (normal, 2-pass)
- White ink
- Yes — black, light magenta, yellow, white
- Included cutter
- HP Latex 64 Plus Cutter with stand and media basket
- Media handling
- Roll and cut sheets; take-up reel included; up to 0.02 in (0.5 mm) thick
- Connectivity
- Gigabit Ethernet and USB; no Wi-Fi; no built-in display
- Consumables
- HP 832 and HP 833 inks; HP 836 printheads
Ideal for: firms producing color presentation boards, durable banners, site graphics and contour-cut decals in-house. Not the tool for: high-volume monochrome bid sets, permit sets or as-builts — use a dedicated aqueous plotter, and note there’s no scan or copy function here.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- A 64-inch Latex printer bundled with the HP Latex 64 Plus Cutter for print-and-cut graphics, not plan-set plotting.
- Latex ink cures with heat, so prints come off dry and are ready to handle or laminate.
- HP rates it at 35 m²/h in normal 2-pass quality at 1200 x 1200 DPI.
- White ink alongside the color channels supports clear and colored media for window and vehicle graphics.
- The rear roll runs near 92.6 lbs — plan a two-person load, not a solo mid-run swap.
- HP dynamic security is active; log it with purchasing before stocking HP 832 and HP 833 inks.
Let’s be clear about what this is before anyone in the print room gets excited: the HP Latex 630 W Print and Cut Plus Solution is a 64-inch Latex printer bundled with the HP Latex 64 Plus Cutter. It’s a two-machine kit built for print-and-cut work — banners, wraps, signage, color-coded graphics — not a plan-set plotter for churning bid sets on bond.
For an AEC shop, that distinction decides everything. If your throughput is architectural D-size drawings, this is the wrong floor. If your bottleneck is presentation boards, jobsite banners, wayfinding, safety signage and site graphics — and you want the printer and cutter to hand off without a second operator — then this machine earns its footprint.
64" (162.5 cm)Max roll widthfull-width signage and boards
35 m²/hPrint speed (normal quality)HP rates this at 2-pass
1200 x 1200 DPIResolutioncrisp text on graphics media
92.6 lbs (42 kg)Rear roll weightplan your roll handling
What it's actually for
Latex ink cures with heat and comes off the machine dry. That’s the operational win here — no off-gassing wait, no separate drying rack between print and lamination. For a signage-adjacent AEC workflow, prints are handleable at takeoff, which is what turns a rated speed into finished pieces by end of shift.

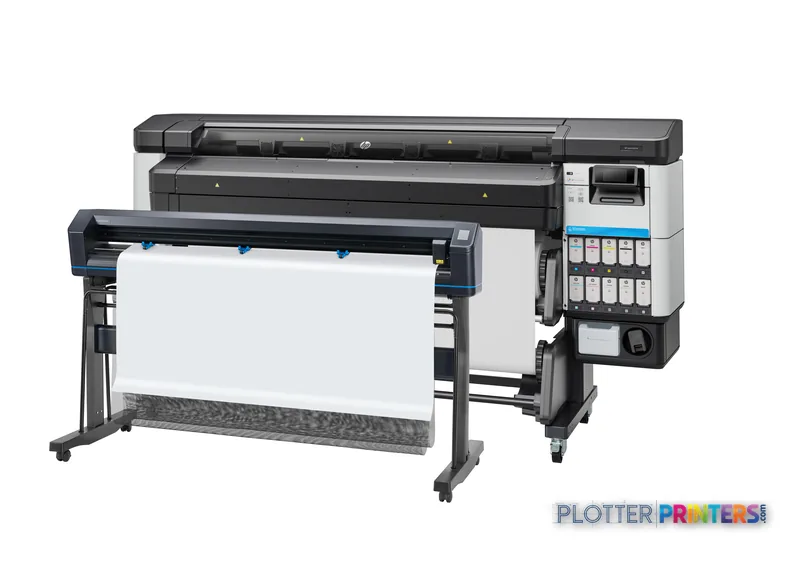

The bundled HP Latex 64 Plus Cutter is the other half of the story. Print a run of jobsite safety graphics or a set of trade-show boards, and the print-and-cut pairing moves them from roll to contour-cut pieces without you re-registering by hand. The printer runs White ink alongside CMYK-family channels, which matters if you’re printing on clear or colored media for window and vehicle graphics.
Media handling is the real review
Rated speed gets you a banner. Media handling gets you forty banners by Friday. This kit ships with a take-up reel, edge holders and a 2-in spindle adaptor on the printer, and the cutter arrives with a media basket, standard blades and 3-in flanges. Rolls run up to 64 inches wide and 9.84 inches in diameter, and that rear roll tops out near 92.6 lbs — so plan a two-person load or a lift, not a solo swap mid-run.
It feeds cut sheets and handles media up to 0.02 inches thick, banner included. Keep the consumable line simple: it runs HP 832 and HP 833 inks with the HP 836 printhead, and the HP Latex 600/700/800 Series User Maintenance Kit covers routine upkeep. Note HP dynamic security is active — a factor your IT and purchasing folks should log before stocking cartridges.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 377 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it fits, and where it doesn't
Small shop angle: this is a lot of machine to justify if signage is occasional. It earns its keep when print-and-cut graphics are a recurring line item, not a once-a-quarter favor. Ask three things before you sign: what feeds it (your media mix and roll weights), what dries it (Latex cure handles that, but confirm your power — it draws about 2100 W typical), and who fixes it (local HP Latex service coverage, because a stalled cutter halts the whole line).
The obvious cross-shop alternatives are dye-sub and resin inkjet rigs like the Epson SC-R5000 64-in resin printer or, for textile-transfer work, the Epson F9470 64-in. Those are different chemistries for different jobs — put them side by side if you’re weighing resin against Latex. There’s no wider or dual-roll sibling in our catalog to step up to here.
Keep researching
The read
Judge this one by the job in front of it. As a plan-set plotter, skip it — it isn’t built for daily D-size bond runs. As a print-and-cut graphics station for an AEC firm that produces its own presentation boards, wayfinding, jobsite banners and window graphics, the bundled cutter and dry-at-takeoff Latex handling let one operator run print-to-cut without a second pair of hands. Confirm your service coverage and your roll-handling plan first. Get those right and it holds its place on the floor.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 830
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Maximum roll width | 64" (162.5 cm) |
|---|---|
| Print speed (HP rated) | 11 / 14 / 18 m²/hmanufacturer-verified |
| Maximum resolution | 1200 x 1200 DPI |
| Printing colors | colour and white |
| Ink platform | HP Latex Inksmanufacturer-verified |
| Ink cartridge capacity | 1Lmanufacturer-verified |
| Print head | Universal HP 836 Latex Printheadsmanufacturer-verified |
| Connectivity | Ethernet LAN 10/100/1000 Mbit/s + USB (no Wi-Fi) |
| Color calibration | HP Embedded Spectrophotometermanufacturer-verified |
| Sustainability | EPEAT Gold, UL ECOLOGO Certified |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyLatex printing
Max resolution1200 x 1200 DPI
Max print width64"
ColorColor
ConnectivityEthernet (Gigabit LAN), USB
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Light magenta, Yellow, White |
| Print technology | Latex printing |
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 9 |
Performance
| Certification | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC) |
|---|---|
| Product color | Black |
| Built-in display | No |
| Country of origin | China, Malaysia |
| Sound pressure level (printing) | 55 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 0.5 mm |
| Maximum roll width | 64" (162.5 cm) |
| Maximum roll diameter | 9.84" (25 cm) |
| Paper tray media types | Banner |
| Roll weight (rear roll) | 92.6 lbs (42 kg) |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Technical details
| Box contents | Printer: HP Latex 630 W Printer, printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Print Cut Software, documentation software, power cords, air purgers, 2-in spindle adaptor; Cutter: HP Latex 64 Plus Cutter, cutter stand, media basket, HP Cutter Control software, quick reference guide, setup poster, documentation software, power cords, standard holder (1), standard blades (2), cut-off knife (1), 3-in media flanges (set of 2) |
|---|
Weight & dimensions
| Depth | 33.2" (844 mm) |
|---|---|
| Width | 102.5" (2603 mm) |
| Height | 55.3" (1405 mm) |
| Weight | 5.2 lbs (2.36 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.25 W |
| Power consumption (sleep) | 2.5 W |
| Power consumption (typical) | 2100 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 39122221 |
|---|---|
| Electromagnetic compatibility | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 44.5" (1130 mm) |
|---|---|
| Package width | 110.2" (2800 mm) |
| Package height | 50" (1271 mm) |
| Package weight | 778.2 lbs (353 kg) |
| Bundled software | HP PrintOS (PrintBeat, Configuration Center, HP Learn). Explore PrintOS premium software solutions within Professional Print Service Plans. |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Carbon footprint
| Total carbon footprint (kg of CO2e) | 4990 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 148 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Carbon emissions, manufacturing (kg of CO2e) | 2394 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2353 |
Brand-specific features
| HP GTIN (EAN/UPC) | 196786790935. 196786790942. 196786790959. 196786790966 |
|---|---|
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABG) 196786790935; (B19) 196786790942; (B1K) 196786790959; (BCD) 196786790966 |
Everything that fits the HP Latex 630 W
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
26 ink cartridges · 12 printheads · 12 paper & media items · 5 accessories · 10 coverage plans
HP Latex 630 W ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 630 W Print and Cut Plus Solution — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 14
HP Latex Standard Blade Kit
HP Latex Specialty Blade Kit
HP 832 1-liter White Latex Ink Cartridge
HP 832 1-liter Magenta Latex Ink Cartridge
HP 832 1-liter Black Latex Ink Cartridge
HP 832 1-liter Cyan Latex Ink Cartridge
HP 832 1-liter Light Cyan Latex Ink Cartridge
HP 832 1-liter Yellow Latex Ink Cartridge
HP 832 1-liter Optimizer Latex Ink Cartridge
HP 832 1-liter Light Magenta Latex Ink Cartridge
HP 832 1-liter Overcoat Latex Ink Cartridge
HP 832 Ink Mix Container
HP 833/838 Latex Ink Collection Unit (2-unit pack)
HP 833 Latex Maintenance CartridgePrintheads 7
HP 836 White Latex Printhead print head Thermal inkjet
HP 836 Optimizer Latex Printhead print head Thermal inkjet
HP 836 Overcoat Latex Printhead print head Thermal inkjet
HP 836 Magenta/Yellow Latex Printhead print head Thermal inkjet
HP 836 Black/Cyan Latex Printhead print head Thermal inkjet
HP 836 Light Cyan/Light Magenta Latex Printhead print head Thermal inkjet
HP 836 Universal Latex Printhead print head Thermal inkjetPaper & Media 12
Representative image16 mil Water-Resistant Opaque Scrim VinylRepresentative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image180gsm Solvent Satin PE PaperRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image200gsm Special Matte Photo PaperRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil White Opaque BackerAccessories 5
Coverage & Support Plans 5
HP 832 1-liter Light Cyan Latex Ink Cartridge U67G7PE HP 1 year Post Warranty Plus Service Plan Hardware Support w/DMR (U67G7PE)
HP 832 1-liter Light Magenta Latex Ink Cartridge U67G8PE HP 2 year Post Warranty Plus Service Plan Hardware Support w/DMR (U67G8PE)HP 832 1-liter Cyan Latex Ink Cartridge U67G3E HP 2 year Plus Service Plan Hardware Support w/DMR (U67G3E)
HP 832 1-liter Magenta Latex Ink Cartridge U67G4E HP 3 year Plus Service Plan Hardware Support w/DMR (U67G4E)
HP 5 year Plus Service Plan Hardware Support w/DMR for Latex 630 W Print Cut (In Warranty)Questions
Straight answers
Can I use this to print architectural plan sets on bond?
It’s built for print-and-cut graphics work — banners, boards, signage — not high-volume D-size bond drawings. For daily plan sets, a dedicated aqueous plotter is the right tool.
Does the cutter come in the box or is it separate?
It’s included. The bundle ships the HP Latex 630 W Printer plus the HP Latex 64 Plus Cutter, each with its own stand, plus a take-up reel, edge holders, blades and a media basket.
What inks and printhead does it use?
It runs HP 832 and HP 833 inks with the HP 836 printhead, and the HP Latex 600/700/800 Series User Maintenance Kit handles routine upkeep. Note HP dynamic security is enabled on this model.
How wide and thick a media can it handle?
Rolls run up to 64 inches wide and 9.84 inches in diameter, and it handles media up to 0.02 inches thick, including banner stock. It also feeds cut sheets.
How does it compare to Epson's resin printers?
The Latex chemistry cures dry at takeoff and pairs with an included contour cutter. Resin rigs like the Epson SC-R5000 64-in are a different approach; compare them directly on media fit and unattended run length for your job mix.
What power does it need?
It runs on 100-240 V at 50/60 Hz and draws about 2100 W typical while printing. Confirm your bay’s circuit before install.
