HP · Printhead

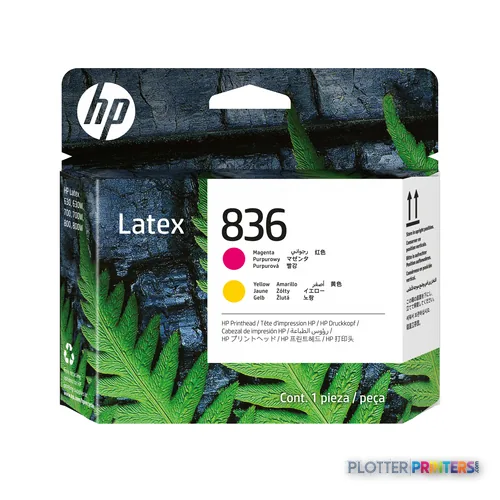

836 Magenta/Yellow Latex Printhead print head Thermal inkjet
- Model4UV96A
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Works with these printers
Compatibility resolved from manufacturer supply listings — 8 printers.
HP Latex 630 WIn our store
HP Latex 830 WIn our store
HP Latex 630In our store
HP Latex 630In our store
HP Latex 800 WIn our store
HP Latex 700
HP Latex 700 W
HP Latex 800Overview
Built for the work
HP 836 Magenta/Yellow Latex Printhead, HP Latex 700, 700 W, 800, 800 W Printers, Thermal inkjet, Magenta, Yellow, 4UV96A, China, Singapore, 5.78" (146.8 mm)
Specifications
Full technical detail
Print technologyThermal inkjet
Performance
| OEM code | 4UV96A |
|---|---|
| Compatibility | HP Latex 700, 700 W, 800, 800 W Printers |
| Printing colors | Magenta, Yellow |
| Print technology | Thermal inkjet |
| Country of origin | China, Singapore |
Technical details
| Box contents | Printhead |
|---|---|
| Number of cartons per pallet layer | 10 pc(s) |
| Total carbon footprint (kg of CO2e) | 3.9 |
Weight & dimensions
| Depth | 5.17" (131.4 mm) |
|---|---|
| Width | 5.78" (146.8 mm) |
| Height | 1.09" (27.7 mm) |
| Weight | 2.89 oz (82 g) |
Other features
| UNSPSC-code | 44103110 |
|---|---|
| Quantity per box | 1 pc(s) |
Logistics data
| Pallet weight | 588.2 lbs (266.8 kg) |
|---|---|
| Quantity per pack | 1 pc(s) |
| Quantity per pallet | 1920 pc(s) |
| Pallet weight (imperial) | 588.28 lbs |
| Master (outer) case weight | 11.6 oz (330 g) |
| Number of layers per pallet | 8 pc(s) |
| Number of cartons per pallet | 80 pc(s) |
| Pallet dimensions (W x D x H) | 48 x 40 x 51.9" (1219.2 x 1016 x 1318 mm) |
| Quantity per master (outer) case | 24 pc(s) |
| Pallet dimensions (W x D x H) (imperial) | 40 x 48 x 51.88" |
Packaging data
| Package type | Box |
|---|---|
| Package depth | 5.17" (131.4 mm) |
| Package width | 5.78" (146.8 mm) |
| Package height | 1.09" (27.7 mm) |
| Package weight | 2.89 oz (82 g) |
