HP · Wide-Format Plotter

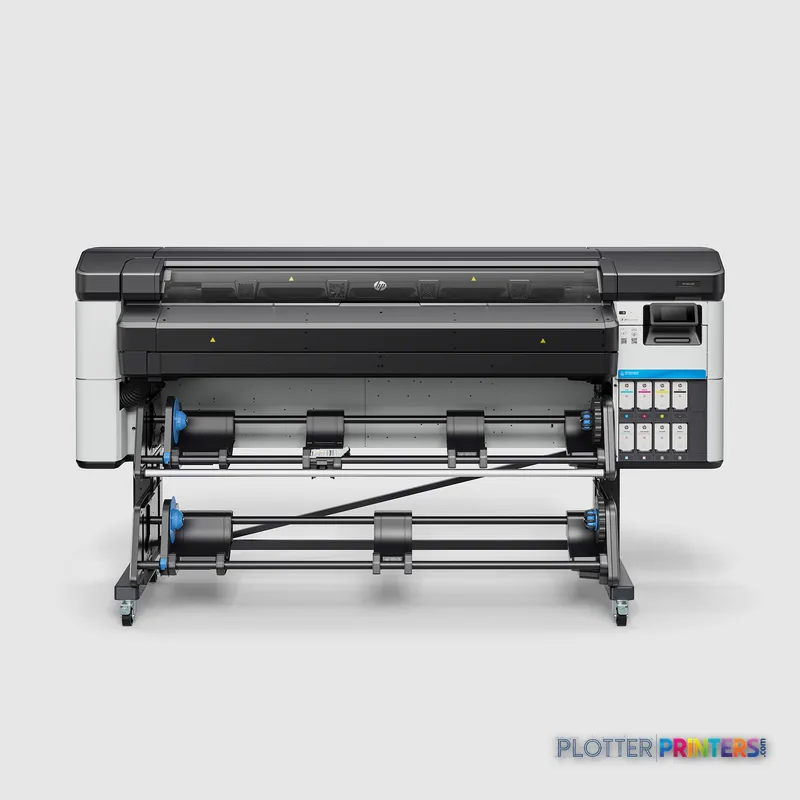

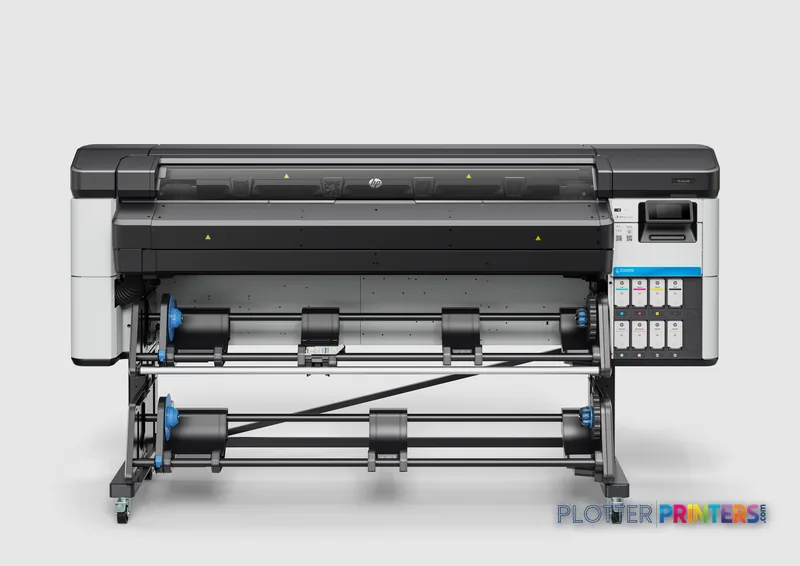

HP Latex 630
64" latex signage printer
- ModelLatex 630
- Prints64" wide
- Score61/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Latex 630 is a 64-inch graphics and signage printer, not a plan or bond plotter.
- Latex ink cures with heat, so prints come off dry, low-odor and ready to handle — suited to office environments.
- HP rates it at 35 m²/h in normal quality at 1200 x 1200 DPI, but real throughput depends on loading, curing and takedown.
Not sure if the Latex 630 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Light magenta, Yellow.
- Connectivity Ethernet for shared team printing.
- Verified specs 3 specs checked against the manufacturer datasheet.
- Analyst score Scores 61/100 in our class-relative rating.
Overview
A 64-inch Latex printer for AEC color that has to leave the print room
Most AEC output is monochrome bond off a plotter. The HP Latex 630 is a different tool for a different job: durable, water-resistant color on a range of media up to 64 inches wide. Think site signage, safety and wayfinding graphics, presentation boards, and coordination maps that go outdoors or get handled hard. Latex ink cures on the printer and comes off dry and odor-managed, so prints can be trimmed, mounted or laminated right away instead of sitting to gas off.
It runs eight cartridges (HP 832 and HP 833 inks with HP 836 printheads) at up to 1200 x 1200 DPI. HP rates it at 35 m²/h in 2-pass normal mode — that’s a marketing throughput figure, not finished jobs; budget for loading, take-up and cutting. It ships with a stand, take-up reel, edge holders and HP SAi Flexi RIP Basic. Gigabit Ethernet only, no Wi-Fi.
- Outdoor site and safety signage on banner and vinyl
- Presentation boards and rendered elevations
- Color-coded GIS and coordination maps that get handled
- Small-shop color work alongside an existing bond plotter
It is not a plan plotter. For fast, cheap monochrome bid and permit sets, a dedicated aqueous or LED plotter is the right tool. Buyers weighing resin-ink rivals should look at the Epson SC-R5000 64-in in our catalog.
- 64″Max print width
- 377 ft²/hRated speed
- 8Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print technology
- HP Latex, 8 cartridges
- Max roll width
- 64 in (162.5 cm)
- Max resolution
- 1200 x 1200 DPI
- Rated speed
- HP rates 35 m²/h (2-pass normal)
- Max roll diameter
- 9.84 in (25 cm)
- Media thickness
- Up to 0.02 in (0.5 mm)
- Connectivity
- Gigabit Ethernet (no Wi-Fi)
- Sustainability
- ENERGY STAR certified
Ideal for: durable indoor/outdoor color signage, boards and maps up to 64 in. Not the tool for: high-volume monochrome bid, permit and as-built plan sets.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The Latex 630 is a 64-inch graphics and signage printer, not a plan or bond plotter.
- Latex ink cures with heat, so prints come off dry, low-odor and ready to handle — suited to office environments.
- HP rates it at 35 m²/h in normal quality at 1200 x 1200 DPI, but real throughput depends on loading, curing and takedown.
- Roll diameter tops out at 9.84", so plan roll swaps into your shift math.
- It ships ready to run with a stand, take-up reel, edge holders and SAi Flexi RIP Basic.
- HP Dynamic Security restricts inks to HP 832 and HP 833, which affects running-cost planning.
Here’s the honest framing: the HP Latex 630 is a 64-inch Latex printer built for graphics and signage work — banners, posters, presentation boards. It is not a plan plotter. If your day is bid sets and permit sets on bond, this machine is the wrong tool. But if your AEC shop also produces color site boards, wayfinding, event graphics and durable jobsite signage, the 630 earns its floor space.

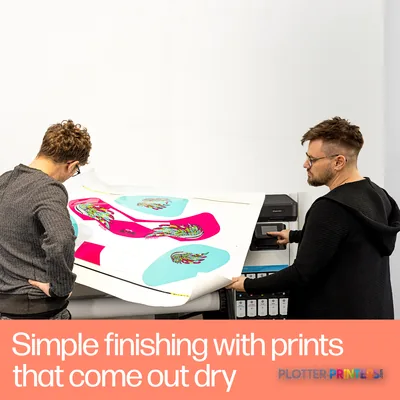

Latex means water-based ink cured with heat. Prints come off dry, low-odor, ready to handle. For a firm that wants presentation output and outdoor-capable signage under one roof — without the solvent smell in an office — that’s the pitch worth hearing.
64" (162.5 cm)Max roll widthsingle roll
35 m²/hPrint speed (normal quality)HP rates this as 2-pass max speed
1200 x 1200 DPIResolution
8Ink slotsHP 832 and HP 833 inks

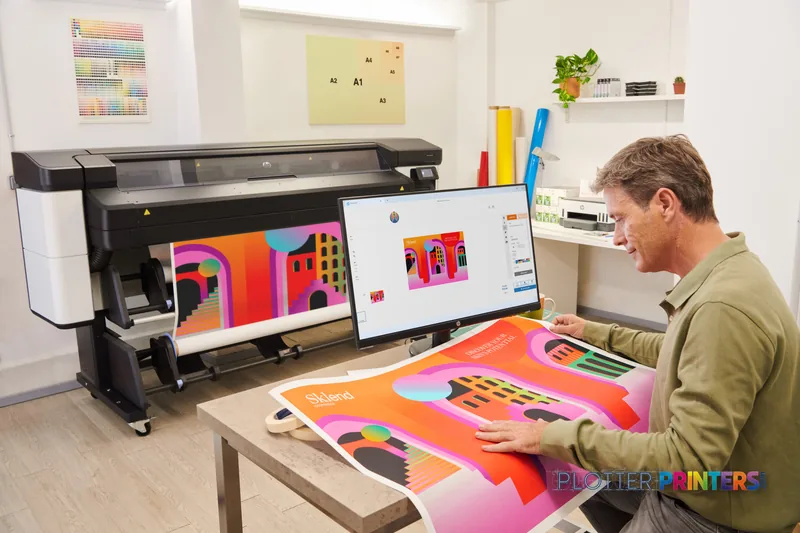

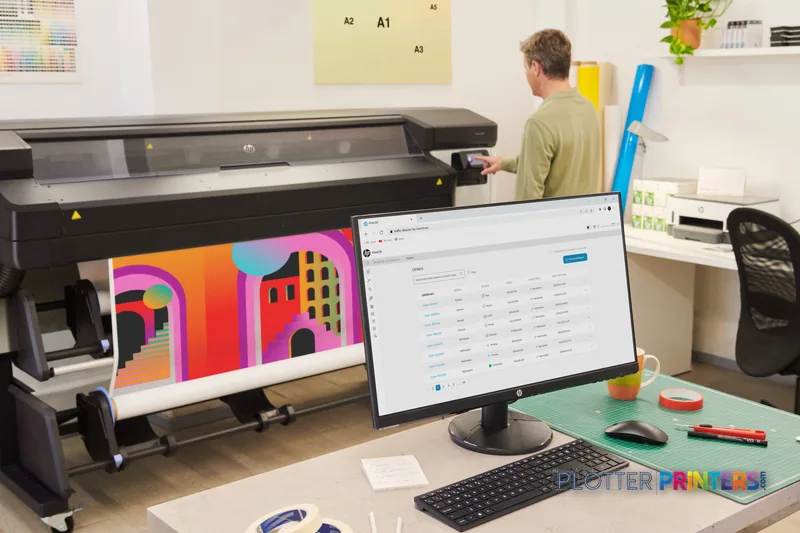

What it actually prints well
Latex ink on the right substrate gives you clean color and a durable finish that survives handling and, on suitable media, outdoor exposure. For AEC that translates to presentation boards that don’t smear, project signage for the site trailer, and large-format renderings for client meetings. HP rates it at 35 m²/h in normal quality — but rated speed gets you one board. Media handling gets you a stack by Friday.
The box helps here. You get a take-up reel, edge holders, a printer stand and the HP SAi Flexi RIP Basic software, so a shop can produce roll-fed graphics out of the gate. Ink runs across eight slots using HP 832 and HP 833 inks, with HP 836 printheads. Note it accepts cut sheets and banner media up to 0.02″ (0.5 mm) thick.

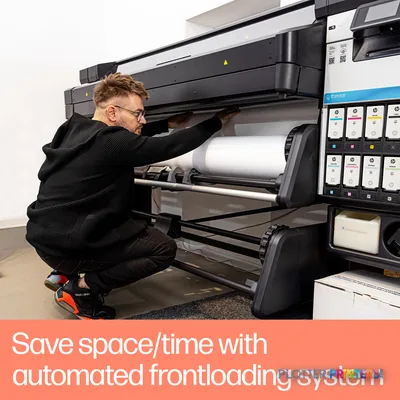

Media handling: the part that decides your week
Ask three things before you buy any 64-inch roll machine: what feeds it, what dries it, who fixes it. On feed, the 630 tops out at a 9.84″ (25 cm) roll diameter — plan your roll changes around that, because a bigger roll means fewer swaps and fewer operator interruptions. On dry, Latex cures with heat, so output comes off ready to laminate or hang — no off-gassing wait. Optional pieces like the HP Latex Substrate Loading Accessory and the Substrate Saver ease loading and trim waste on short runs.
Small-shop angle: at 507.1 lbs (230 kg) and 102.5″ (2603 mm) wide, this is a committed footprint, not a corner unit. If signage is occasional, that’s a lot of machine standing idle between jobs.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 377 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
How it sits against the alternatives
There’s no in-family step-up or step-down in our catalog to weigh it against, so the real question is technology. The obvious cross-brand rivals are resin and dye-sublimation Epson machines. On the resin side, the Epson SC-R5000 64-in and the twin-tank Epson SC-R5000L 64-in chase the same durable-signage use with a different ink chemistry and, on paper, higher rated resolution. For textile-transfer and soft signage there’s the Epson SC-F9400 64-in and Epson F9470 64-in — a different job entirely. If durable graphics and low-odor office operation are the goal, put the 630 beside the R5000 and judge on media range and service, not spec-sheet DPI alone.
Note HP Dynamic Security is active on this platform — it restricts non-HP chips, so budget for HP 832 and HP 833 inks in your running costs.
The read
The HP Latex 630 is a signage and graphics machine that happens to fit AEC shops with a genuine color-output mission — boards, banners, wayfinding, durable jobsite signage — printed low-odor and dry-to-handle. It is not a document plotter and won’t replace one. Ask what feeds it, what dries it, who fixes it locally; if your volume of color graphics justifies a committed 64-inch machine and you value Latex’s finish, it belongs on the shortlist. If signage is an occasional favor, it’s more printer than you need. See how it ranks in its class before you commit the floor space.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 830
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Maximum print width | 64" (162.5 cm) |
|---|---|
| Maximum resolution | 1200 x 1200 dpi |
| Print technology | Latex printing |
| Print heads | HP Thermal Inkjet printheadsmanufacturer-verified |
| Nozzle configuration | 4-times nozzle redundancymanufacturer-verified |
| Number of print cartridges | 8 |
| Connectivity | Ethernet LAN, 1000 Mbit/s |
| Scanning / Copying | No / No |
| Typical power consumption | 2100 W |
| Weight | 507.1 lbs (230 kg) |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyLatex printing
Max resolution1200 x 1200 DPI
Max print width64"
ColorColor
ConnectivityEthernet (Gigabit LAN)
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Light magenta, Yellow |
| Print technology | Latex printing |
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 8 |
Performance
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
|---|---|
| Product color | Black |
| Country of origin | Singapore, Malaysia |
| Sound pressure level (printing) | 55 dB |
Paper handling
| Cut sheets | Yes |
|---|---|
| Media thickness | 0.5 mm |
| Maximum roll width | 64" (162.5 cm) |
| Maximum roll diameter | 9.84" (25 cm) |
| Paper tray media types | Banner |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
Technical details
| Box contents | HP Latex 630 Printer, printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Basic Software, documentation software, power cords, air purgers, 2-in spindle adaptor |
|---|
Weight & dimensions
| Depth | 33.2" (844 mm) |
|---|---|
| Width | 102.5" (2603 mm) |
| Height | 55.3" (1405 mm) |
| Weight | 507.1 lbs (230 kg) |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| Power consumption (off) | 0.25 W |
| Power consumption (sleep) | 2.5 W |
| Power consumption (typical) | 2100 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 44.5" (1130 mm) |
|---|---|
| Package width | 110.2" (2800 mm) |
| Package height | 50" (1271 mm) |
| Package weight | 765 lbs (347 kg) |
| Bundled software | HP PrintOS (PrintBeat, Configuration Center, HP Learn). Explore PrintOS premium software solutions within Professional Print Service Plans. |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Carbon footprint
| Total carbon footprint (kg of CO2e) | 3390 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 148 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Carbon emissions, manufacturing (kg of CO2e) | 2394 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 750 |
Brand-specific features
| HP GTIN (EAN/UPC) | 196786791000. 196786791017. 196786791024. 196786791031 |
|---|---|
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABG) 196786791000; (B19) 196786791017; (B1K) 196786791024; (BCD) 196786791031 |
Everything that fits the HP Latex 630
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
14 ink cartridges · 7 printheads · 12 paper & media items · 5 accessories · 10 coverage plans
HP Latex 630 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 630 Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP 832 1-liter White Latex Ink Cartridge
HP 832 Ink Mix Container
HP 832 1-liter Light Magenta Latex Ink Cartridge
HP 832 1-liter Overcoat Latex Ink Cartridge
HP 832 1-liter Magenta Latex Ink Cartridge
HP 832 1-liter Light Cyan Latex Ink Cartridge
HP 832 1-liter Optimizer Latex Ink Cartridge
HP 832 1-liter Black Latex Ink Cartridge
HP 832 1-liter Yellow Latex Ink Cartridge
HP 832 1-liter Cyan Latex Ink Cartridge

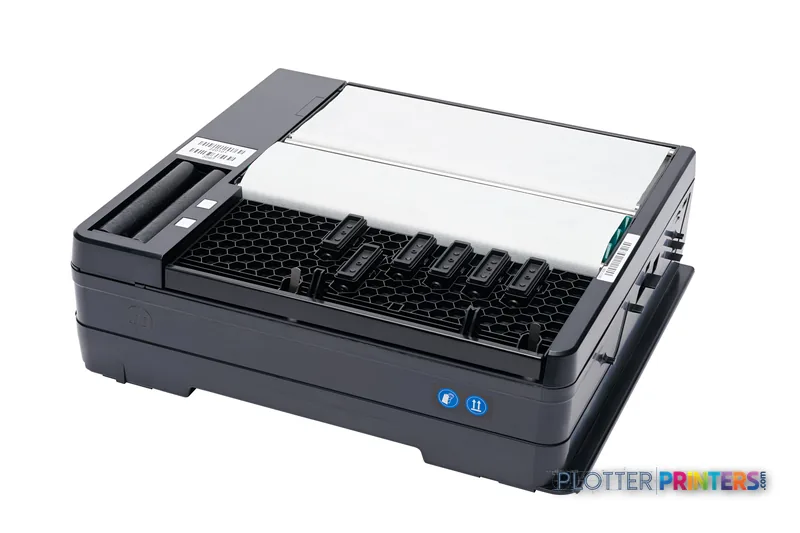

HP 833 Latex Maintenance Cartridge
HP 833/838 Latex Ink Collection Unit (2-unit pack)Printheads 7
HP 836 White Latex Printhead print head Thermal inkjet
HP 836 Black/Cyan Latex Printhead print head Thermal inkjet
HP 836 Light Cyan/Light Magenta Latex Printhead print head Thermal inkjet
HP 836 Optimizer Latex Printhead print head Thermal inkjet
HP 836 Overcoat Latex Printhead print head Thermal inkjet
HP 836 Magenta/Yellow Latex Printhead print head Thermal inkjet
HP 836 Universal Latex Printhead print head Thermal inkjetPaper & Media 12
Representative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil White Opaque BackerRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image16 mil Water-Resistant Opaque Scrim VinylRepresentative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image180gsm Solvent Satin PE PaperRepresentative image200gsm Special Matte Photo PaperAccessories 4
Coverage & Support Plans 5
HP 1 year Post Warranty Plus Service Plan Hardware Support w/DMR (U60QMPE)
HP 2 year Plus Service Plan Hardware Support w/DMR for Latex 630 (In Warranty)HP 2 year Post Warranty Plus Service Plan Hardware Support w/DMR for Latex 630
HP 3 year Plus Service Plan Hardware Support w/DMR for Latex 630 (In Warranty)
HP 5 year Plus Service Plan Hardware Support w/DMR for Latex 630 (In Warranty)Questions
Straight answers
Can the Latex 630 print architectural plan sets on bond?
It’s built for graphics and signage on roll media up to 64 inches, not for high-volume monochrome document plotting. For bid sets and permit sets you want a dedicated plan plotter; use the 630 for color boards and signage.
Does it scan or copy?
No. The 630 is a print-only device with no scanning or copying function.
What inks and printheads does it use?
It runs HP 832 and HP 833 Latex inks across eight slots with HP 836 printheads. HP Dynamic Security is active, which restricts non-HP ink chips.
How does it compare to the Epson resin machines?
The Epson SC-R5000 64-in and SC-R5000L 64-in target similar durable-signage work with resin ink and higher rated resolution. Compare on media range, running cost and local service rather than DPI alone — Latex’s dry, low-odor output is a real advantage in office settings.
What's included so I can start printing signage?
The box includes the printer, printheads, a maintenance cartridge, printer stand, take-up reel, edge holders, a user maintenance kit, SAi Flexi RIP Basic software and spindle adaptors — a roll-fed signage setup out of the gate.

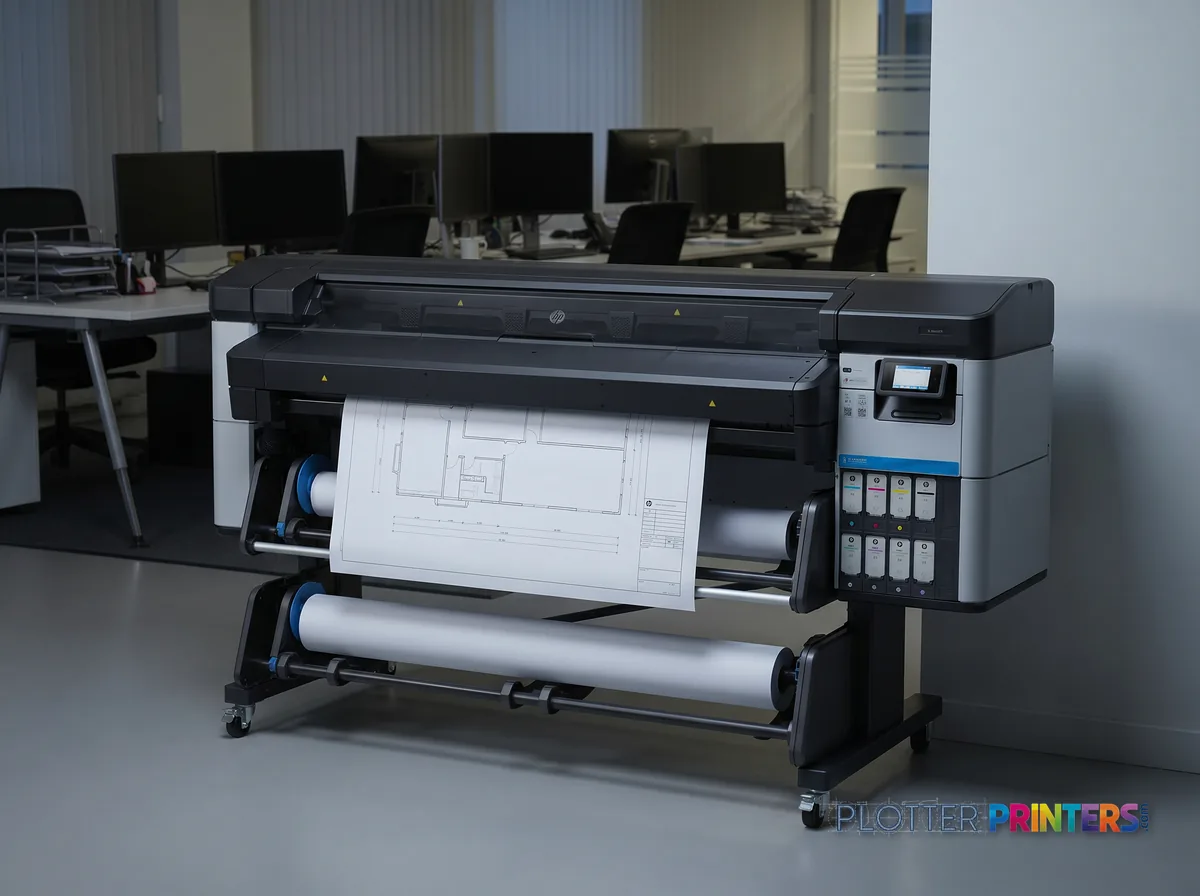

How big is it and will it fit an office print room?
It’s 102.5 inches wide, 33.2 inches deep, 55.3 inches tall and weighs 507.1 lbs. It’s a committed footprint on a stand, not a desktop or corner unit — plan clearance for loading and take-up.
