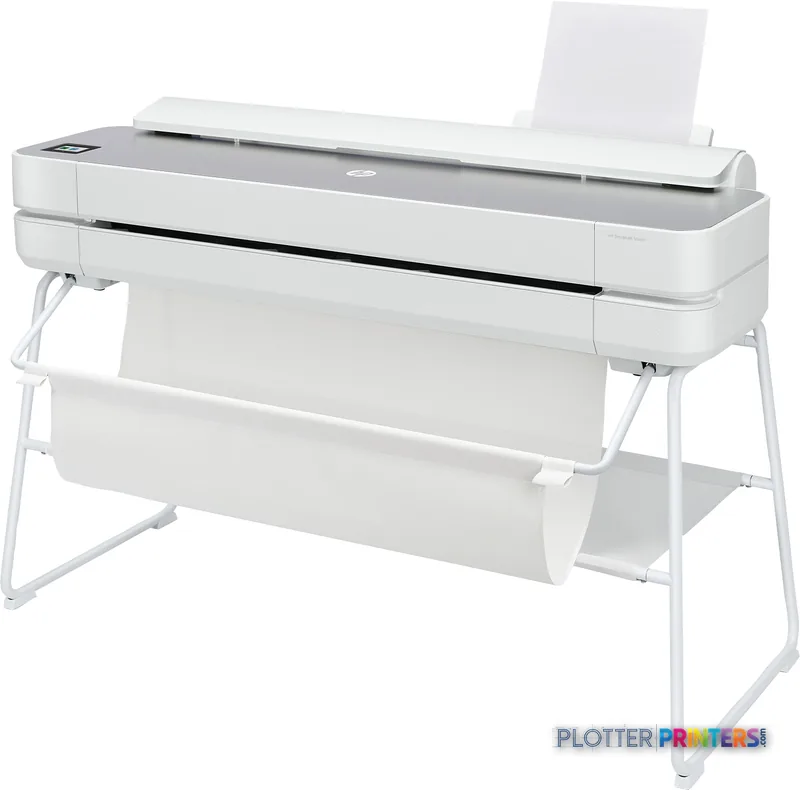

HP DesignJet Studio Steel

This machine fits small architecture practices, engineering teams, survey offices, and construction trailers that need occasional to regular in-house wide-format output. A roll handles plan sheets and maps; the automatic sheet feeder handles smaller documents from 210 x 279 mm through 13 x 19 inches. Manual feed extends to 36 x 75 inches, which gives a project team room for longer exhibit-style prints when the standard sheet is not enough.

The useful workflow detail is file-language support. HP-GL/2 and HP-RTL matter in CAD-heavy environments; CALS G4 remains relevant in some technical and government document workflows. The bundled HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, and DesignJet Utility give Windows-centered offices several submission and setup paths. IT also gets Gigabit Ethernet rather than having to make Wi-Fi carry every deadline.

Bottom line: This is a practical 36-inch output device for teams that want drawings nearby, not a separate reprographics department.

The Studio Steel has one printhead, four cartridges, and a maximum roll diameter of 3.94 inches. That points toward a compact office workflow rather than long, unattended production runs. A single roll can be perfectly adequate for a studio that prints mostly one sheet type. It is less forgiving when several people need different media widths or paper types in the same afternoon. Roll changes are not glamorous. Neither is explaining why the last permit set is still waiting.

There is no built-in display, scanner, or copier. If your workflow includes redline capture, archive scanning, walk-up copying, or frequent scan-to-file work, this is not the right all-in-one answer. The catalog-listed HP DesignJet T918 36-in is a discontinued scanner/MFP option in the same family context, but it should be assessed as installed-base equipment rather than assumed to be a like-for-like new-device choice.

For an outside comparison, the Canon GP-300 36-in is another catalog-listed 36-inch alternative. Use the side-by-side comparison tool to keep the decision focused on media handling, workflow needs, and local support rather than logo preference.

Bottom line: Buy this printer for output; do not buy it expecting scan, copy, or high-intervention production work to disappear.

The printer uses HP 712 inks and the HP 713 printhead. HP dynamic security is listed, so procurement and IT should confirm their consumables policy before standardizing a fleet. The unit has 1 GB of internal storage and 1024 MB of internal memory, supports USB 2.0, and operates from 100 to 240 V AC at 50/60 Hz.

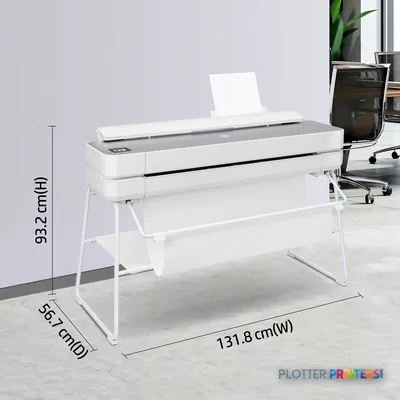

Its listed dimensions are 51.9 inches wide, 21.9 inches deep, and 36.7 inches high, with a weight of 91.9 pounds. That is manageable in many offices, but leave clearance for loading media and collecting prints. HP lists typical power consumption at 35 W, sleep consumption at 2.1 W, and ENERGY STAR and FSC certifications. Those are useful operational details, not a substitute for checking paper waste, cartridge handling, and service response in your own environment.

Bottom line: The machine is compact enough for office placement, provided the team plans for paper access and a real place to put finished sheets.
