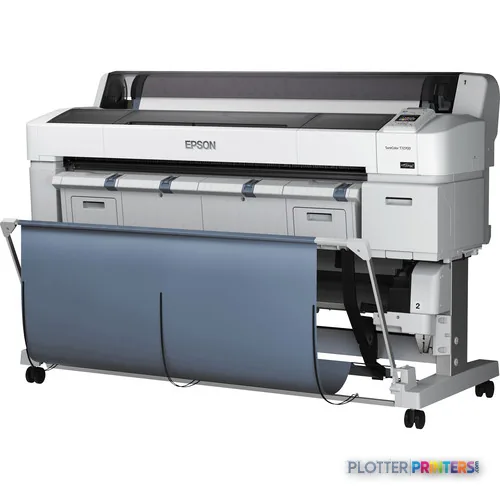

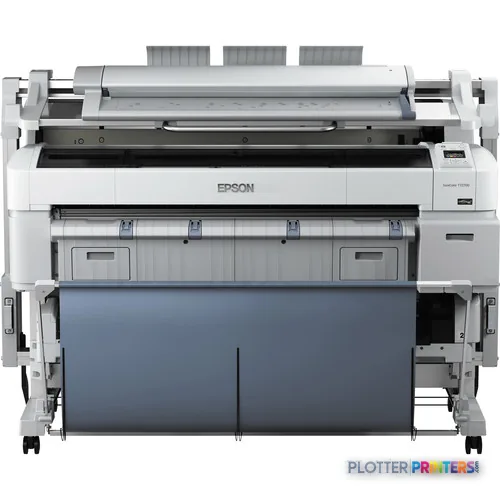

Epson SureColor T7072DR
technical / CAD plotter
- ModelT7072DR
- Score67/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The T7072DR is positioned for color technical documents, including CAD-originated output and PDF plan sets.
- HP-GL/2 and HP-RTL support matters in AEC environments that retain established CAD print workflows.
- The supplied data confirms cut-sheet and roll-media support but does not confirm rated speed, maximum print width, or stacker behavior.
Not sure if the T7072DR is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Built for the work
Epson SureColor T7072DR, 2880 x 1440 DPI, HP-GL/2, HP-RTL, Banner, Cut sheet, Plain paper, Recycled paper, Roll, 558.80 x 863.60mm, USB Type-A, LCD
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- The T7072DR is positioned for color technical documents, including CAD-originated output and PDF plan sets.
- HP-GL/2 and HP-RTL support matters in AEC environments that retain established CAD print workflows.
- The supplied data confirms cut-sheet and roll-media support but does not confirm rated speed, maximum print width, or stacker behavior.
- Optional PostScript, hard-disk, and scanning additions should be evaluated through a live workflow demonstration.
- The 64-inch-wide, 294.1-pound device needs a proper site and access check before installation.
At 4:45 p.m., the person at the output tray does not care about a feature list. They need a legible plan, the right sheet size, and a printer that accepts the file without turning a simple PDF into an IT ticket. The Epson SureColor T7072DR is a color wide-format device aimed at that technical-document reality, with HP-GL/2 and HP-RTL support for established CAD workflows, plus cut-sheet and roll-media handling.
Its 2880 x 1440 DPI maximum resolution and five-cartridge ink system point toward detailed drawings, marked-up coordination sheets, maps, and presentation-oriented technical output. But the supplied catalog data does not state maximum print width, rated speed, roll configuration, scanner capability, or output-stack capacity. Those omissions matter. A printer can look perfectly sensible until the first mixed-size permit set lands on its lap.
2880 x 1440 DPIMaximum resolutionUseful context for fine CAD linework and small annotation.
5Ink cartridgesThe printer uses Epson UltraChrome XD ink.
64 WTypical power consumptionRelevant when planning office electrical load and energy management.
294.1 lbsMachine weightConfirm floor access and final placement before delivery day.
Where it fits in an AEC print room
This machine makes the most sense where technical teams need color as a working tool rather than an occasional luxury. Think civil sheets with utility colors, MEP coordination drawings, survey maps, GIS output, redlined PDFs, and architectural plans that need more than black lines on bond. HP-GL/2 and HP-RTL support is useful in offices that still send CAD-originated jobs alongside PDF packages.
It also has the basic media flexibility an AEC office expects: cut sheets, roll paper, plain paper, recycled paper, and banner media are listed. That gives a document manager options, but it does not prove that a given roll change, mixed-size run, or unattended batch will be painless. Ask for a live demonstration using your own D-size plan set, not the dealer’s cheerful test file. Those files have never missed a bid deadline.
Bottom line: The T7072DR is suited to color technical output, provided its actual media workflow matches the way your teams submit jobs.
Workflow, options, and the questions that matter
The built-in LCD and USB Type-A connection support local interaction, while the listed USB 2.0 port provides a straightforward wired connection option. For firms with more demanding PDF handling, the optional Epson Adobe Postscript 3 Expansion Unit deserves a direct conversation with the dealer. PostScript support can matter when drawings arrive from several authoring tools and no one has time to diagnose a driver argument at the plotter.
The optional Epson Hard Disk Unit T & P series may also be relevant for teams that hold or manage jobs at the device. Firms that need scan-and-copy workflows should review the optional Epson SureColor SCT36SCAN printer kit closely. Do not assume that an accessory-equipped configuration behaves like a purpose-built multifunction system; have the dealer demonstrate scan quality, file destinations, naming, and operator steps.
Supplies include Epson UltraChrome XD ink. Confirm the local service plan, replacement process, and what routine operator work remains with your staff. A technically capable device with slow support is still a stopped device.
Bottom line: Options can make the T7072DR more useful, but they should be specified around an actual workflow, not added because a brochure had room.
How it sits beside related Epson choices
The available catalog information supports a careful comparison rather than a neat ladder. The Epson T5770DR 36-in is the smaller listed dual-roll alternative for offices whose output requirements fit that format. The Epson SureColor T7270DR 44-in is the wider listed dual-roll alternative for teams that need 44-inch media capability. Neither choice is automatically better; width, roll workflow, floor space, and job mix decide it.
For newer 44-inch Epson alternatives, compare the Epson SC-T7700D 44-in and Epson T7770DR 44-in against the T7072DR on the details that drive downtime: file submission, roll handling, service coverage, and the finishing path after printing. The catalog does not provide enough T7072DR throughput or capacity data to declare a performance winner. That is a reason to test, not a reason to guess.
Bottom line: Choose the family model that fits your paper sizes and operator workflow, then make the dealer prove the handoffs.
Compare related options
The read
The Epson SureColor T7072DR is a credible fit for AEC teams printing color CAD, PDF, map, and coordination output on cut sheets or rolls. Its listed HP-GL/2 and HP-RTL support, 2880 x 1440 DPI maximum resolution, five-cartridge Epson UltraChrome XD system, and optional PostScript, hard-disk, and scanning additions give it a practical technical-printing foundation. The trade-off is uncertainty in the supplied data around speed, width, roll behavior, scanning configuration, and finishing. Put your real files through it before committing. Bottom line: If it handles your deadline-day plan sets cleanly, it belongs in the conversation; if it does not, no resolution figure will rescue it.
Spec analysis
How the specs grade
Overall performance
within technical / CAD plotters
70% spec coverage
- This printer
Verified specifications
The specs that decide it
| Maximum resolution | 2880 x 1440 DPI |
|---|---|
| Number of print cartridges | 5 |
| Page description languages | HP-GL/2, HP-RTL |
| Power consumption | 64 W |
Specifications
Full technical detail
Max resolution2880 x 1440 DPI
ConnectivityUSB
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Maximum resolution | 2880 x 1440 DPI |
| Number of print cartridges | 5 |
| Page description languages | HP-GL/2, HP-RTL |
Performance
| Display | LCD |
|---|---|
| Certification | UL (MET), FCC (Clase A), CSA, TCSA, CE, EMC |
| Built-in display | Yes |
Paper handling
| Cut sheets | Yes |
|---|---|
| Roll paper | Yes |
| ANSI paper sizes | 558.80 x 863.60mm |
| Paper tray media types | Banner, Cut sheet, Plain paper, Recycled paper, Roll |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 30" (762 mm) |
|---|---|
| Width | 64" (1625.6 mm) |
| Height | 45" (1143 mm) |
| Weight | 294.1 lbs (133.4 kg) |
Power
| Power consumption (off) | 0.5 W |
|---|---|
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 64 W |
Everything that fits the Epson SureColor T7072DR
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
15 ink cartridges · 13 paper & media items · 6 accessories
Epson SureColor T7072DR ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T7072DR — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 15
Epson Singlepack UltraChrome XD Photo Black T692100 (110ml)
Epson Singlepack UltraChrome XD CyanT692200(110ml)
Epson Singlepack UltraChrome XD MagentaT692300(110ml)
Epson Singlepack UltraChrome XD YellowT692400(110ml)
Epson Singlepack UltraChrome XD Matte BlackT692500(110ml)
Epson Singlepack UltraChrome XD Photo BlackT693100(350ml)
Epson Singlepack UltraChrome XD CyanT693200(350ml)
Epson Singlepack UltraChrome XD MagentaT693300(350ml)
Epson Singlepack UltraChrome XD YellowT693400(350ml)
Epson Singlepack UltraChrome XD Matte BlackT693500(350ml)
Epson Singlepack UltraChrome XD Photo BlackT694100(700ml)
Epson Singlepack UltraChrome XD CyanT694200(700ml)
Epson Singlepack UltraChrome XD MagentaT694300(700ml)
Epson Singlepack UltraChrome XD YellowT694400(700ml)
Epson Singlepack UltraChrome XD Matte BlackT694500(700ml)Paper & Media 13
Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image36LB Inkjet Coated Matte Paper (746)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image20LB Inkjet Bond Paper (Tinted) (732)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)
Epson Bond Paper White 80, 610mm x 50m
Questions
Straight answers
Can the Epson SureColor T7072DR print CAD files?
It supports HP-GL/2 and HP-RTL, which are common technical-print languages. Confirm driver behavior and PDF handling with the applications your office actually uses.
Is this a scanner and copier?
The supplied data lists an optional Epson SureColor SCT36SCAN printer kit. Ask the dealer to demonstrate the configured scan-and-copy workflow rather than assuming it is included.
What ink does it use?
The resolved compatible ink family is Epson UltraChrome XD. The printer is listed with five print cartridges.
Can it handle both rolls and individual sheets?
Yes. The listed media types include roll paper and cut sheets, along with plain paper, recycled paper, and banner media.
Should I choose this or a wider Epson option?
If 47-inch media is a requirement, review the Epson SureColor T7270DR 47-in. If a smaller listed dual-roll format fits the work, review the Epson T5770DR 36-in; validate both choices with your typical files and paper sizes.
