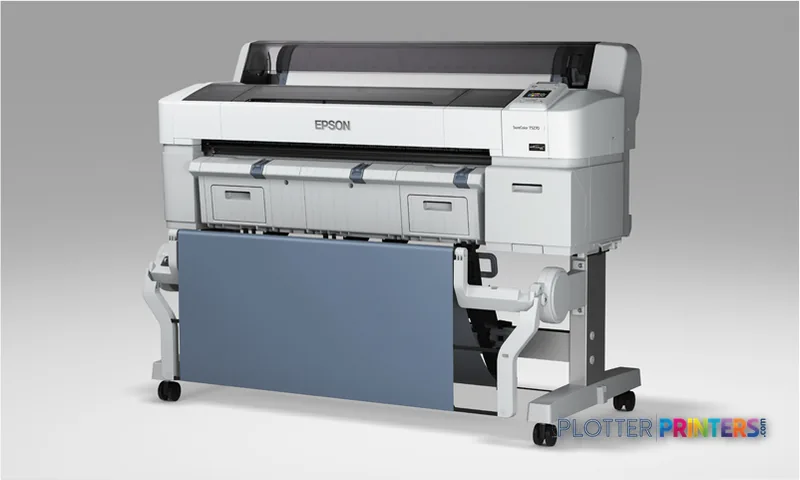

Epson SureColor T5270

The T5270 makes sense for architecture, engineering, surveying, and construction teams that need color technical output without moving every drawing to a central reprographics room. The 2880 x 1440 DPI maximum resolution matters most when drawings carry dense dimensions, small notes, utility colors, phasing overlays, or GIS-style linework. It also handles cut sheets as well as roll paper, which is useful when a plan review suddenly becomes a presentation sheet or a one-off exhibit.

The 30-inch depth, 56-inch width, 45-inch height, and 185.8-pound weight deserve a site check before delivery. This is not something to wedge beside a break-room refrigerator and call it infrastructure. Printing noise is specified at 50 dB, so placement still matters in a quiet design studio.

Bottom line: This is built for teams that print technical color often enough to keep the device useful, but do not need a larger dual-roll workflow every hour of the day.

Epson rates normal-quality printing at 740 ft2/hr and best-quality printing at 115 ft2/hr. Those figures help bracket the machine’s capability, but they are not a promise that a complete permit set will land in the tray at that pace. A real queue includes raster-heavy PDFs, sheet-size changes, operator interruptions, and the familiar last-minute request to “just print one more full set.”

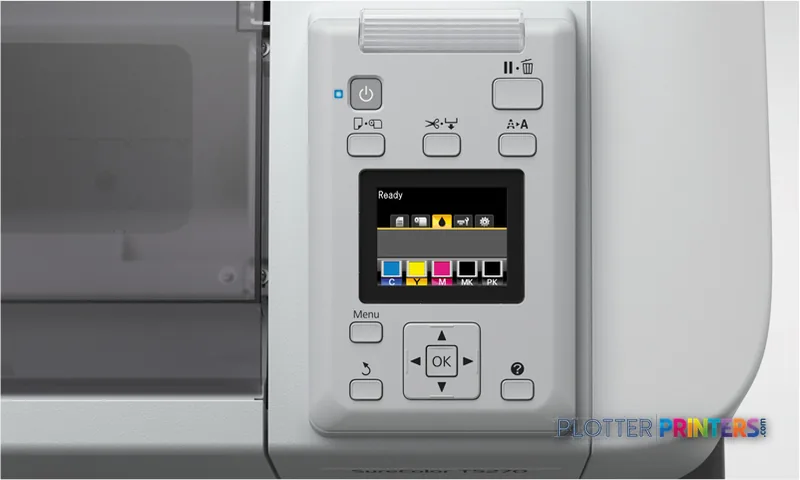

For a team using one common media type and sending steady technical output, the rated normal-quality mode is the more relevant reference point. Best-quality mode is better treated as a deliberate choice for drawings where presentation and close inspection matter more than clock time. The built-in LCD and USB Type-A connection provide local interaction, while Ethernet is optional for networked deployment.

Bottom line: Judge this printer by the turnaround of your actual drawing sets, not by a clean speed figure printed in isolation.

If your work repeatedly alternates between media types or requires longer unattended runs, the Epson SureColor T5270DR 36-in adds a dual-roll configuration. That second paper source matters when plain bond and another roll type both need to stay loaded. For a narrower technical-printing requirement, the Epson T5160 36-in is a lower-resolution in-family alternative. Compare the two directly in the T5270 and T5160 comparison tool.

The T5270 can also be configured with the Epson Adobe Postscript 3 Expansion Unit, Epson Hard Disk Unit T & P series, and Epson SureColor SCT36SCAN printer kit. Those options should be evaluated against the workflow problem they solve, rather than added because an accessory list looked lonely.

It may be less appropriate for a central print room that depends on dual-roll availability, extensive finishing, or high unattended output. It is also not the right answer if wide-format scanning and copying are mandatory from day one unless the scanner kit is part of the plan.

Bottom line: Buy the base printer for disciplined technical output; move up when roll switching and unattended production are the failure modes you need to eliminate.
