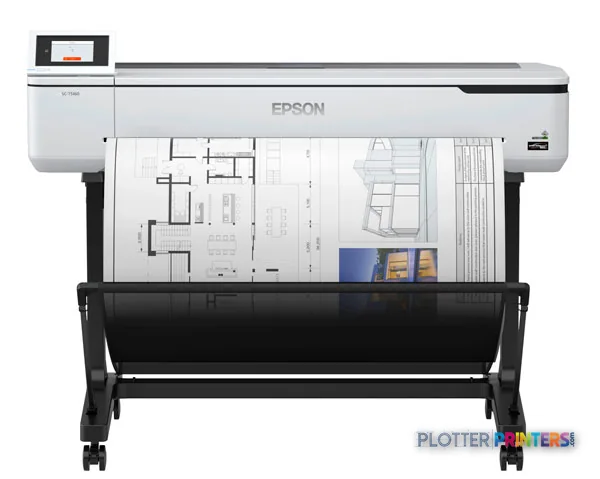

Epson SureColor T5160
36" technical / CAD plotter
- ModelT5160
- Prints36" wide
- Score53/100
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The Epson T5160 is a color inkjet technical printer with HP-GL/2 and ESC/P-P support for common AEC drawing workflows.
- Its listed maximum print size is A1 (23" x 33" (594 x 841 mm)), so North American sheet requirements must be checked carefully.
- Ethernet LAN, Wi-Fi, Wi-Fi Direct, USB, and Apple AirPrint support flexible job submission in office and project environments.
Not sure if the T5160 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 36" wide on rolls and sheets.
- Fine detail 2400 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Yellow, Cyan, Magenta.
- Connectivity Wi-Fi + Ethernet for shared team printing.
- Verified specs 9 specs checked against the manufacturer datasheet.
- Analyst score Scores 53/100 in our class-relative rating.
Overview
Built for the work
Epson SureColor T5160, Inkjet, 2400 x 1200 DPI, HP-GL/2, ESC/P-P, Black, Yellow, Cyan, Magenta, A1 (594 x 841 mm), Roll
- 36″Max print width
- 4Ink channels
- 2,400 dpiMax resolution
Spec Analysis
overall
overall
Where it performs best
Connections
100
Size / Fit
95
Print Quality
76
Class best is 63. How we grade →
Expert analysis
What you should know
Key takeaways
- The Epson T5160 is a color inkjet technical printer with HP-GL/2 and ESC/P-P support for common AEC drawing workflows.
- Its listed maximum print size is A1 (23" x 33" (594 x 841 mm)), so North American sheet requirements must be checked carefully.
- Ethernet LAN, Wi-Fi, Wi-Fi Direct, USB, and Apple AirPrint support flexible job submission in office and project environments.
- A single roll and listed 11 lbs rear-roll limit make it better suited to routine workgroup output than constant media switching.
- The Epson SC-T5100 36-in is the relevant listed comparison for wider output, while the Epson SC-T5100M 36-in adds an MFP role.
- For more centralized, dual-roll demand, the Epson T7770DR 44-in is the more appropriate listed family direction.
At 4:45 p.m., the person at the output tray does not care about a printer’s brochure. They need readable plan sheets, a clean color-coded utility map, or a last-minute permit exhibit before somebody leaves for the site. The Epson T5160 is a color inkjet wide-format printer for that kind of office work: technical drawings, PDFs, CAD output, markups, and presentation-oriented AEC documents.
It combines HP-GL/2 and ESC/P-P support with Ethernet, Wi-Fi, Wi-Fi Direct, USB, and Apple AirPrint. That gives a mixed AEC team several sensible ways to submit work without turning every plot into an IT ticket. Its maximum listed print size is A1, so buyers should confirm their actual sheet requirements before assuming it covers every 24-by-36 workflow.
A1 (23" x 33" (594 x 841 mm))Maximum listed print sizeConfirm sheet-size requirements for North American plan production.
2400 x 1200 DPIMaximum resolutionRelevant to fine CAD lines, small annotations, and color overlays.
Ethernet LANConnectivityAlso includes Wi-Fi, Wi-Fi Direct, and USB connectivity.
49.9" (1268 mm)Printer footprintWidth matters in a crowded project room or small print area.
Where it fits in an AEC office
This is a sensible fit for architects, engineers, surveyors, and construction teams that need color technical output close to the people reviewing it. The four printing colors—Black, Yellow, Cyan, and Magenta—suit everyday drawing sets, GIS maps, phasing plans, coordination overlays, and client-review graphics. The 4.3-inch color touch display also keeps basic printer interaction at the machine, where it belongs. Nobody wants to decode a plotter error from across the room.
For networked workgroups, Gigabit Ethernet is useful when several users are sending PDFs and CAD files. Wi-Fi Direct can also help a site or temporary project office where a conventional network connection is inconvenient. The trade-off is that convenient submission does not replace print discipline: use the appropriate paper size and check the preview before a full set goes out.
Bottom line: The T5160 is built for distributed technical printing, not for treating wide-format output as an afterthought.
Media handling and the deadline test
The T5160 accepts roll media and cut sheets, with a listed rear-roll weight of 11 lbs and maximum roll diameter of 4.33 inches. That is workable for routine office plotting, but it deserves context. A single-roll workflow means a paper-type or size change can become a human task right when the bid package is trying to escape the building.
Its 101.4 lbs weight and 27.4-inch depth make it more plausible in a design studio, field office, or departmental print corner than a large production device. Epson UltraChrome Pro consumables are the supported ink family listed for this model. Confirm the service arrangement, warranty option, and local support response before relying on any printer for deadline-critical output.
Bottom line: One-roll convenience works well until teams regularly alternate media or need long unattended runs.
How it sits in the Epson range
The Epson SC-T5100 36-in is the closest listed in-family comparison on resolution, with the same 2400 x 1200 DPI specification and a stated 36-inch width. If your standard work is wider North American drawing output, that comparison matters more than a resolution figure alone. For scan-copy workflows, the Epson SC-T5100M 36-in is the more relevant listed family alternative because it is identified as an MFP.
Firms with recurring roll changes or more sustained centralized demand should look beyond this class. The Epson T7770DR 44-in is a wider dual-roll option in the same catalog family. That second roll changes the operating model: less intervention between media types, but a different footprint and deployment case. Use the comparison tool for the T5160 and SC-T5100 to keep the decision tied to actual output sizes and workflow needs.
Bottom line: Choose the T5160 for its office-scale role, not because a larger machine looks reassuring on a facilities list.
Useful next checks
The read
The Epson T5160 fits AEC teams that need a connected color technical printer for routine drawings, PDFs, maps, and review documents near the workgroup. Its HP-GL/2 support, touch control, and wired or wireless connectivity are practical strengths. Its listed A1 maximum print size and single-roll operating model are the checks that matter most. If your office lives on wider sheets, scan-copy work, or frequent media switching, move up the family rather than asking this machine to become a print room. Bottom line: Good office-side plotter; wrong tool for a high-interruption production queue.
Spec analysis
How the specs grade
Overall performance
- This printer
- Epson SureColor T5475
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Print technology | Inkjet (UltraChrome XD2 aqueous pigment)manufacturer-verified |
|---|---|
| Maximum resolution | 2,400 x 1,200 dpi |
| Print speed (Epson-quoted) | 31 secs (A1)manufacturer-verified |
| Maximum print size | A1 (594 x 841 mm) |
| Roll width range | 24 in to 36 in (2-in core)manufacturer-verified |
| Maximum roll diameter | 4.7 in (119 mm) |
| Internal memory | 1 GB |
| Connectivity | Gigabit Ethernet, USB 3.0, Wi-Fi Direct, AirPrint |
| Page description languages | HP-GL/2, HP-RTL |
| Dimensions / weight | 49.9 x 19.9 x 35.9 in; 101.4 lbs (46 kg) |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyInkjet
Max resolution2400 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN), USB, Wi-Fi
Use caseCAD / Technical
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Yellow, Cyan, Magenta |
| Print technology | Inkjet |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | HP-GL/2, ESC/P-P |
Performance
| Display | LCD |
|---|---|
| Control type | Touch |
| Color display | Yes |
| Product color | Black, Gray |
| Internal memory | 1024 MB |
| Built-in display | Yes |
| Display diagonal | 4.3" |
Paper handling
| Cut sheets | Yes |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll diameter | 4.33" (11 cm) |
| Paper tray media types | Roll |
| Roll weight (rear roll) | 11 lbs (5 kg) |
| ISO A-series sizes (A0…A9) | A1, A3, A4 |
| ISO B-series sizes (B0…B9) | B5 |
Ports & interfaces
| Wi-Fi | Yes |
|---|---|
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi Direct | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mobile printing technologies | Apple AirPrint |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Weight & dimensions
| Depth | 27.4" (696 mm) |
|---|---|
| Width | 49.9" (1268 mm) |
| Height | 35.9" (913 mm) |
| Weight | 101.4 lbs (46 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50 – 60 Hz |
| Power consumption (sleep) | 1.6 W |
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 28 W |
Operational conditions
| Operating temperature (T-T) | 10 – 35 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
System requirements
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
|---|---|
| Windows operating systems supported | Windows 10, Windows 8, Windows 7, Windows Vista, Windows 8.1 |
Everything that fits the Epson SureColor T5160
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
12 ink cartridges · 6 paper & media items · 6 coverage plans
Epson SureColor T5160 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor T5160 36-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
Epson Singlepack UltraChrome Pro 6 Matte Black T48M8 (700ml)
Epson Singlepack UltraChrome Pro 6 Magenta T48U3 (350ml)
Epson Singlepack UltraChrome Pro 6 Yellow T48U4 (350ml)
Epson Singlepack UltraChrome Pro 6 Matte Black T48U8 (350ml)
Epson Singlepack UltraChrome Pro 6 Gray T48UE (350ml)
Epson Singlepack UltraChrome Pro 6 Yellow T48M4 (700ml)
Epson Singlepack UltraChrome Pro 6 Photo Black T48U1 (350ml)
Epson Singlepack UltraChrome Pro 6 Gray T48ME (700ml)
Epson Singlepack UltraChrome Pro 6 Magenta T48M3 (700ml)
Epson Singlepack UltraChrome Pro 6 Cyan T48M2 (700ml)
Epson Singlepack UltraChrome Pro 6 Cyan T48U2 (350ml)
Epson Singlepack UltraChrome Pro 6 Photo Black T48M1 (700ml)Paper & Media 6
Representative imageHP Universal Bond Paper, 4-pack
HP Universal Bond Paper, 2-packRepresentative imageHP Bright White Inkjet Paper, 4-packRepresentative imageMagic 4mil DM Inkjet Film (JR440IJME)Representative imageMagic 4mil Inkjet Clear Film w/ Side Stripe (DMCF4HPS)Representative image20LB Inkjet Vellum (772)Coverage & Support Plans 6
Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S1)Epson 1-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS1)
Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S2)Epson 2-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS2)
Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100S4)Epson 4-Year Next-Business-Day On-Site Purchase With Hardware Extended Service P (PST5100MS4)Questions
Straight answers
Is the Epson T5160 suitable for CAD and PDF plan printing?
It supports HP-GL/2 and ESC/P-P, both relevant to technical drawing workflows. It also provides Ethernet, Wi-Fi, Wi-Fi Direct, and USB connections for job submission.
Can it print standard North American architectural plan sizes?
The listed maximum print size is A1 (23″ x 33″ (594 x 841 mm)). Confirm your required sheet sizes before purchase, especially if 24-by-36 output is routine.
Does the T5160 scan or copy drawings?
The supplied product data identifies the T5160 as a printer and does not list scanning capability. The Epson SC-T5100M 36-in is the listed in-family MFP alternative.
What media arrangement does it use?
It supports roll media and cut sheets. The listed maximum rear-roll weight is 11 lbs and maximum roll diameter is 4.33 inches, so frequent media changes remain an operator task.
What ink family should buyers plan for?
The compatible ink family listed for this model is Epson UltraChrome Pro. Warranty options are also listed under the epson PST5100 family.
