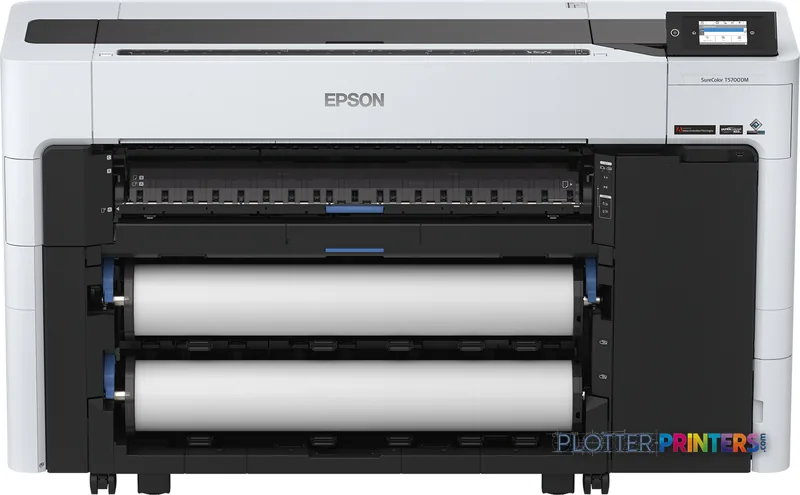

Epson SureColor SC-T5700D

This is most naturally suited to an architecture, engineering or construction office that needs a dedicated color plotter for drawing issue sets, permit documents, marked-up PDFs, GIS plans and color coordination sheets. Ethernet LAN, Wi-Fi, Wi-Fi Direct, USB and Apple AirPrint provide several submission paths; PDF 1.7, PostScript 3 and ESC/Page are listed page-description languages. That breadth can be useful where project teams submit from a mixture of desktops, mobile devices and shared network locations.

The 960 GB internal storage and 4096 MB of memory are meaningful operational specifications for a shared device, but they are not substitutes for a managed queue, naming discipline or document-release policy. Firms needing allocation by project or department can examine the available Epson Print Admin options as part of the wider workflow rather than treating the printer alone as an accounting system.

For ordinary plan output, Epson Bond Paper White 80 and Epson Bond Paper Bright 90 are among the supported media families listed for this model. For review graphics or client-facing boards, the compatible list also includes coated, presentation, glossy photo and synthetic media. Media choice affects the result the eye sees, particularly where pale fills sit beside black annotation.

The SC-T5700D uses Cyan, Magenta, Matte black, Photo black, Red and Yellow inks, with Epson UltraChrome XD3 listed as the compatible ink family. That ink set gives AEC users a practical reason to consider color beyond presentation work: discipline colors, overlays and revision information can remain part of the issued drawing rather than becoming an afterthought. We have no measured ICC gamut data in the supplied record, so there is no basis here to make a measured claim about gamut volume, accuracy or a comparison with another device.

Borderless printing is listed, as are roll media and cut sheets. The rear-roll weight is specified at 22.5 lbs, the maximum roll diameter at 6.69 inches and the maximum roll length at 3582.7 inches. Those limits should be checked against the rolls your print room actually stocks, especially if long unattended runs are central to the purchase decision. The Epson Auto Cutter Blade and both the Epson Maintenance Box (Tx700/Px500) and Epson Borderless Maintenance Box (Tx700/Px500) are listed support items worth including in a practical operating plan.

The key comparison is not simply “larger or smaller.” A firm whose work is predominantly 36-inch output may find the Epson T5470 36-in a more proportionate format, while a print room that specifically needs dual-roll capability should look at the Epson T5770DR 36-in. For teams that routinely require a wider format and dual-roll configuration, the Epson T7770DR 44-in is the more relevant in-family step-up.

If copying and scanning are core requirements rather than occasional exceptions, this model is not the right tool: copying and scanning are both listed as unavailable. The Epson SC-T5200 38-in is cataloged as a scanner/MFP, making it the family comparison to investigate for a scan-copy workflow. Compare the SC-T5700D directly with the wider dual-roll option in the comparison tool.
