Epson · Wide-Format Plotter

Epson Stylus Pro 9900

44" color graphics & photo printer

ModelC11CA11001A0
Prints44" wide
Score64/100

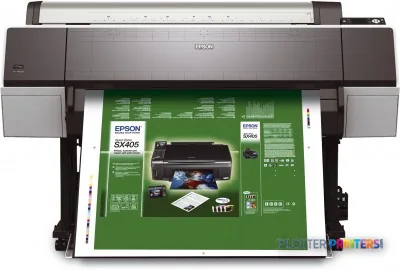

Epson Stylus Pro 9900 large-format printer with green product packaging loaded in output tray

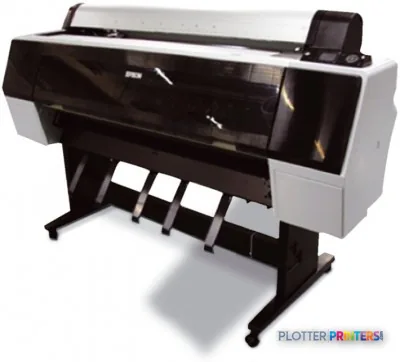

Epson Stylus Pro 9900 large-format printer product image showing front view with paper feed system

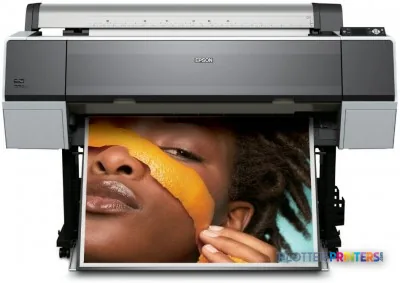

Epson Stylus Pro 9900 large-format printer product image showing front view with color portrait output

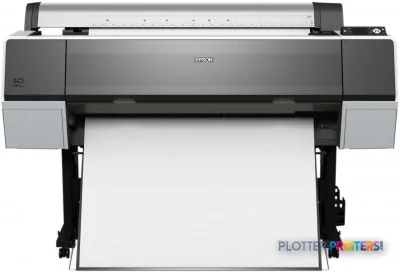

Epson Stylus Pro 9900 large-format printer product image showing front view with white paper loaded

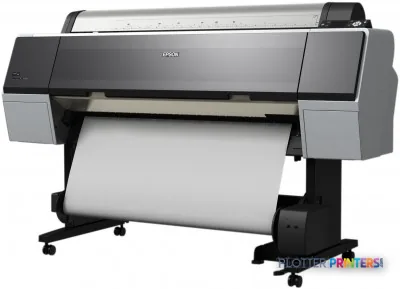

Epson Stylus Pro 9900 large-format printer product image showing front view with white paper roll loaded

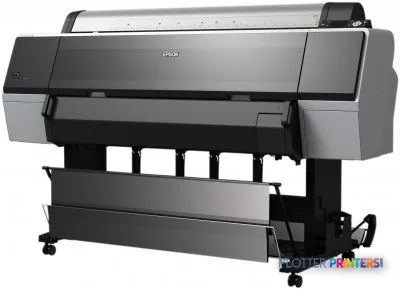

Epson Stylus Pro 9900 large-format printer product image showing front view with paper roll feed system

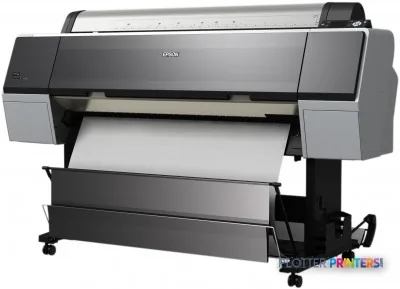

Epson Stylus Pro 9900 large-format printer product image showing front view with paper roll loaded

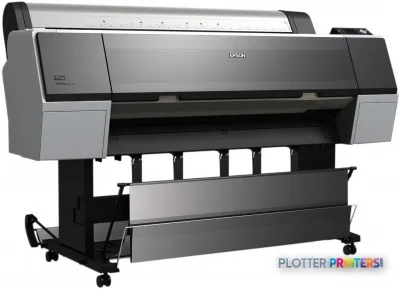

Epson Stylus Pro 9900 large-format printer product image showing front view with paper tray extended

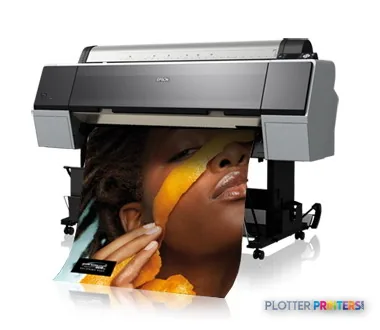

Epson Stylus Pro 9900 large-format printer product image showing the device printing a vibrant portrait photo

Authorized Epson dealerGenuine hardware & ink

1-year warranty includedExtension plans available

Free shippingContinental U.S.

Plotter specialistsAEC experts, not just sellers

Analyst take

A 44-inch, single-roll photo-grade printer built for color accuracy, not high-volume plan-set output.
Epson UltraChrome HDR pigment inks and 2880 x 1440 DPI resolution drive its color-critical strength.
Best suited to renderings, presentation boards, color GIS maps and proofing work.

Not sure if the C11CA11001A0 is right for you?

Compare key specs and an AI analyst read-out against similar models.

Compare printers →

Wide-format reach Prints up to 44" wide on rolls and sheets.
Fine detail 2880 x 1440 DPI maximum resolution for crisp line work.
Connectivity Ethernet for shared team printing.
Analyst score Scores 64/100 in our class-relative rating.

Overview

Built for the work

Epson Stylus Pro 9900, 2880 x 1440 DPI, Epson Micro Piezo, A0 (841 x 1189 mm), 0.08 – 1.50 mm, 44" (111.8 cm), 210 – 1118

9Ink channels
2,880 dpiMax resolution
12 moIncluded warranty

Spec Analysis
overall

Where it performs best

Print Quality 82

Print Cost 75

Media Handling 73

How we grade →

Expert analysis

What you should know

By Priya VenkatesanColor & Imaging Editor

Key takeaways

A 44-inch, single-roll photo-grade printer built for color accuracy, not high-volume plan-set output.
Epson UltraChrome HDR pigment inks and 2880 x 1440 DPI resolution drive its color-critical strength.
Best suited to renderings, presentation boards, color GIS maps and proofing work.
No automatic second-roll switching — someone reloads when paper runs dry mid-job.
Supports the SpectroProofer M1 44" for inline color measurement in proofing workflows.
At 67 inches wide and 198.4 lbs, it needs floor space and a planned print-room location.

It’s 4:45 p.m. The presentation boards for tomorrow’s client pitch aren’t printed yet, and the renderings have to look like the architect intended — not muddy, not shifted green. That’s the job the Epson Stylus Pro 9900 was built for. This is a 44-inch photo-grade machine, not a bid-set cranker.

Understand that going in, and it makes sense. Ask it to churn D-size construction sets all afternoon, and you’ll wonder why you bought a color-critical printer for line-work duty.

44" (111.8 cm)Maximum roll widthsingle roll — no auto-switch second roll

2880 x 1440 DPIMaximum resolutionwhere the presentation quality lives

Epson Micro PiezoPrint headthe fine-detail engine

0.003"–0.059" (0.08 – 1.50 mm)Media thicknesshandles posterboard, not just bond

What it actually is

The 9900 is a wide-format Stylus Pro built around the Epson Micro Piezo head and Epson UltraChrome HDR pigment inks. That ink set is the whole point. It’s aimed at color you can trust — renderings, GIS maps, coordination drawings where the difference between two shades of blue changes what a subcontractor reads.

It tops out at 44-inch rolls and A0 sheet width, with 2880 x 1440 DPI on tap. Fine lines and small callout text hold up. On a color-coded utility plan, that legibility isn’t cosmetic — it’s whether the field crew digs in the right place.

The catch: it’s a single-roll machine. No automatic second-roll switching. When the paper runs out mid-job, someone loads more. Plan around that, or plan to stay late.

Where it earns its keep — and where it doesn't

This machine rewards the shop that cares about color accuracy. It supports Epson’s SpectroProofer M1 44″ for inline color measurement, which matters if you’re proofing or matching across jobs. For a landscape architect, a rendering-heavy design studio, or a survey team producing color GIS deliverables, the UltraChrome HDR output is the reason to look here.

Client presentation boards and photo-grade renderings where color fidelity decides the sale.
Color GIS maps and utility coordination plans that must read correctly in the field.
Fine-art and proofing work on Epson Cold Press and Hot Press media — this printer’s home turf.
Firms that print color-critical A0 output but not high daily volume.

Where it’s the wrong tool: high-throughput monochrome bid sets and permit sets. It’s a single-roll, photo-oriented machine — it won’t collate a fat plan set unattended. If your day is 40-drawing engineering sets on plain bond, a dedicated production plotter earns its money faster. Cross-shop the Canon GP-4600S 44-in or the Canon GP-4000 44-in for that work, and run the side-by-side comparison before you commit.

Living with it day to day

Consumables are straightforward once you know the family: Epson UltraChrome HDR inks feed it, and the Epson Maintenance Tank catches the waste. Media choice is deep — Epson Standard Proofing Paper, Cold Press, Hot Press, gloss photo rolls up to 44 inches. If you shoot for color-critical proofs, the media library is a genuine advantage.

Connectivity is Fast Ethernet plus USB 2.0 — fine for a workgroup, not a fleet-management showpiece. It runs quiet at 50 dB printing and sips 1 W in standby. The failure mode to watch isn’t the head; it’s the roll running dry with nobody watching. Staff for that.

Compare and decide

9900 vs Canon GP-4000 44-inPhoto-grade color vs production line-work throughput.How it ranks in the 44-inch classSee where it sits against same-width rivals.Canon iPF8300 44-inAnother 44-inch color-oriented alternative to weigh.

The read

Buy the 9900 for color you have to trust — renderings, proofs, color GIS, presentation boards at A0. The UltraChrome HDR inks and 2880 x 1440 DPI are the reasons, and the deep Epson media library backs them up. Just don’t ask it to be a bid-set machine. It’s single-roll and photo-focused. If your afternoons are stacks of monochrome D-size sets, look at a production plotter instead. Bottom line: right printer, wrong printer — depends entirely on what’s sitting in the output tray at 4:45.

Spec analysis

How the specs grade

Overall performance

within color graphics & photo printers

60% spec coverage

This printer

How it scores

Media Handling73

Print Quality82

Print Cost75

Color44

SpeedNot enough spec data

ConnectionsNot enough spec data

WorkflowNot enough spec data

Size / FitNot enough spec data

Warranty33

Graded on a curve against the best published spec among the wide-format printers we track — 100 = the catalog’s gold standard for that metric (the finest droplet, the longest warranty, the fastest rated speed actually on the market). Every input is a manufacturer-published spec; rated speeds are shown as listed, not timed throughput. Ticks mark the class best. How we grade →

Verified specifications

The specs that decide it

Maximum resolution	2880 x 1440 DPI
Internal memory	64 MB
Maximum print size	A0 (841 x 1189 mm)
Media thickness	0.08 – 1.50 mm
Ethernet	Yes
Sound level (printing)	50 dB

Specifications

Full technical detail

Max resolution2880 x 1440 DPI

Max print width44"

ConnectivityEthernet (Gigabit LAN), USB

Use casePhoto / Fine Art

Printing

Color	Yes
Print head	Epson Micro Piezo
Maximum resolution	2880 x 1440 DPI

Performance

Display	LCD
Internal memory	64 MB
Built-in display	Yes
Country of origin	China
Drive device, buffer size	256 MB
Sound pressure level (printing)	50 dB

Paper handling

Cut sheets	Yes
Roll paper	Yes
Media thickness	0.08 – 1.50 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll width	44" (111.8 cm)
Maximum media width	210 – 1118

Ports & interfaces

USB port	Yes
Ethernet LAN	Yes
USB connector	USB Type-A
RJ-45 ports quantity	1
USB 2.0 ports quantity	1
Ethernet interface type	Fast Ethernet

Weight & dimensions

Weight	198.4 lbs (90 kg)
Dimensions (WxDxH)	67 x 26.7 x 47.1" (1702 x 678 x 1196 mm)

Power

Power requirements	AC 100-240V 50/60Hz
Power consumption (active)	80 W
Power consumption (standby)	1 W

Operational conditions

Storage temperature (T-T)	-20 – 40 °C
Operating temperature (T-T)	5 – 35 °C
Storage relative humidity (H-H)	5 – 85%
Operating relative humidity (H-H)	20 – 80%

Logistics data

Quantity per pack	1 pc(s)

Packaging data

Package depth	80.3" (2040 mm)
Package width	32.1" (815 mm)
Package height	42.5" (1080 mm)
Package weight	425.7 lbs (193.1 kg)

System requirements

Mac compatibility	Yes
Compatible operating systems	Microsoft Windows 2000, XP, XP 64-bit, Vista, MAC OSX 10.x.x

Everything that fits the Epson Stylus Pro 9900

The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.

65 ink cartridges · 131 paper & media items · 8 accessories

Epson Stylus Pro 9900 ink and paper →

Supplies

Compatible ink, printheads & media

Genuine consumables that fit the Epson Stylus Pro 9900 — only the cartridges, printheads and media compatible with this model.

Questions

Straight answers

Is the Stylus Pro 9900 a good choice for monochrome engineering bid sets?

Not really. It’s a single-roll, photo-oriented machine with no automatic roll switching, so it won’t collate large plain-bond plan sets unattended. For high-volume line work, a dedicated production plotter is the better fit.

What inks does the 9900 use?

It runs on Epson UltraChrome HDR pigment inks, with the Epson Maintenance Tank handling waste ink during maintenance cycles.

What's the maximum media width and print size?

It handles rolls up to 44 inches (111.8 cm) and prints up to A0, 33″ x 47″ (841 x 1189 mm).

Can it handle heavy media like posterboard?

Yes. It accepts media from 0.003″ to 0.059″ (0.08–1.50 mm) thick, which covers everything from bond to semigloss posterboard.

How does it connect to a network?

It has Fast Ethernet (one RJ-45 port) plus a USB 2.0 connection. That’s fine for a workgroup, though it lacks the deeper fleet-management tooling of some production machines.

What are the physical footprint and space requirements?

It measures 67 x 26.7 x 47.1 inches and weighs 198.4 lbs (90 kg), so it’s a floor-standing unit that needs dedicated print-room space — measure before it arrives.
