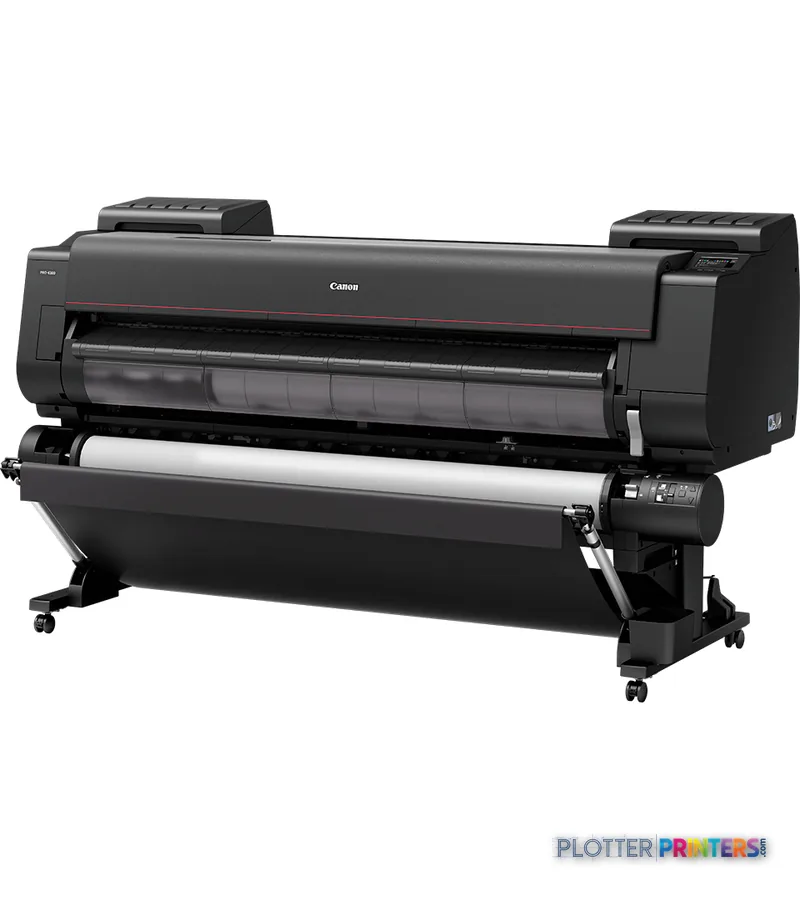

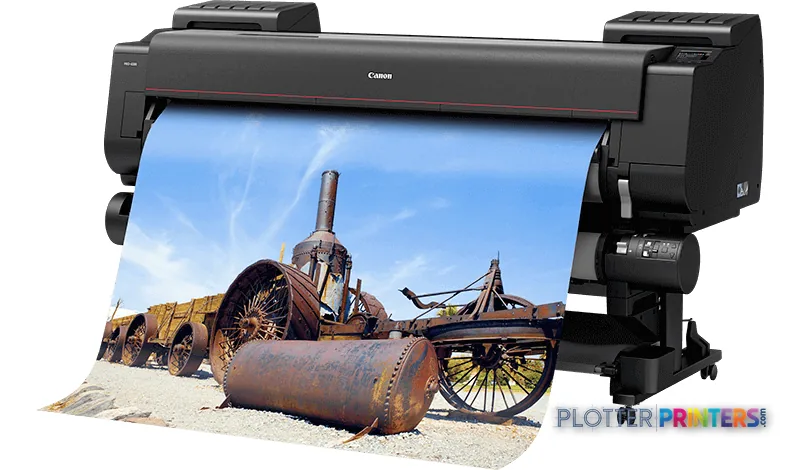

Canon PRO-6100

The 60-inch roll capacity is meaningful for teams that regularly need wide maps, boards, planning exhibits, or full-scale visual output without tiling. Its supported maximum print size is A0, and it accepts A0, A1, A3, A3+, plus selected B-series sizes. PDF, JPEG, and Raster_P are listed page-description languages, while the bundled imagePROGRAF PRO Printer Driver supports submission from established desktop workflows.

The seven-cartridge ink system lists blue, cyan, gray, magenta, matte black, photo black, photo cyan, photo gray, photo magenta, and yellow among its printing colors. That combination makes the machine more naturally aligned with color-sensitive visual work than an office plotter chosen solely for monochrome plan sets. Still, no measured ICC gamut or color-accuracy results are supplied here. A resolution figure tells us the addressability of output; it does not, by itself, tell us how a particular rendering, paper, and PDF workflow will reproduce a difficult red or a muted concrete gray.

With a 500 GB HDD, USB Type-B, Wi-Fi, and Gigabit Ethernet, the PRO-6100 offers several practical connection paths. IT teams should validate driver deployment, authentication expectations, network policy, and PDF handling with their own files before standardizing it across a department.

Media handling is broad enough for ordinary drawing paper as well as thicker presentation substrates within the stated 0.003-inch to 0.031-inch range. Roll length is listed up to 708.7 inches, with a maximum roll diameter of 6.69 inches. Borderless printing is available, but only for A0 and A1 media sizes in the supplied specifications.

This is not a small office peripheral. The machine measures 87.7 inches wide by 36 inches deep by 40.2 inches high and weighs 467.4 pounds. At 48 dB while printing, it may be acceptable near a production area, but a quiet design studio should also note its 35 dB quiet-mode sound-pressure specification. The operating environment is specified at 59°F to 86°F and 10% to 80% relative humidity.

Consumable planning should include the compatible Canon CT-07 maintenance item as well as the specified Canon ink supplies. Ask the supplying dealer how routine maintenance, ink replacement, media changes, and service calls will be handled locally; those details shape uptime more than a brochure feature list.

The PRO-6100 does not scan or copy. That makes it less appropriate for teams whose daily work includes marked-up plan copying, legacy drawing capture, or walk-up scan-to-file workflows. It also has one maximum input tray listed, so buyers with frequent mixed-media jobs should test the amount of operator intervention their queue actually requires.

There is no in-family step-up or step-down model in the supplied catalog set for a direct family comparison. Cross-brand alternatives in the same 60-inch class include the HP DesignJet Z6200 60-in, HP DesignJet Z6610 60-in, HP Z6800 60-in, and HP DesignJet Z6810 60-in. Compare them using the same live PDFs, media, output sizes, service terms, and production patterns rather than relying on nominal resolution alone. The side-by-side comparison tool is a sensible starting point.
