Canon imagePROGRAF TC-21M

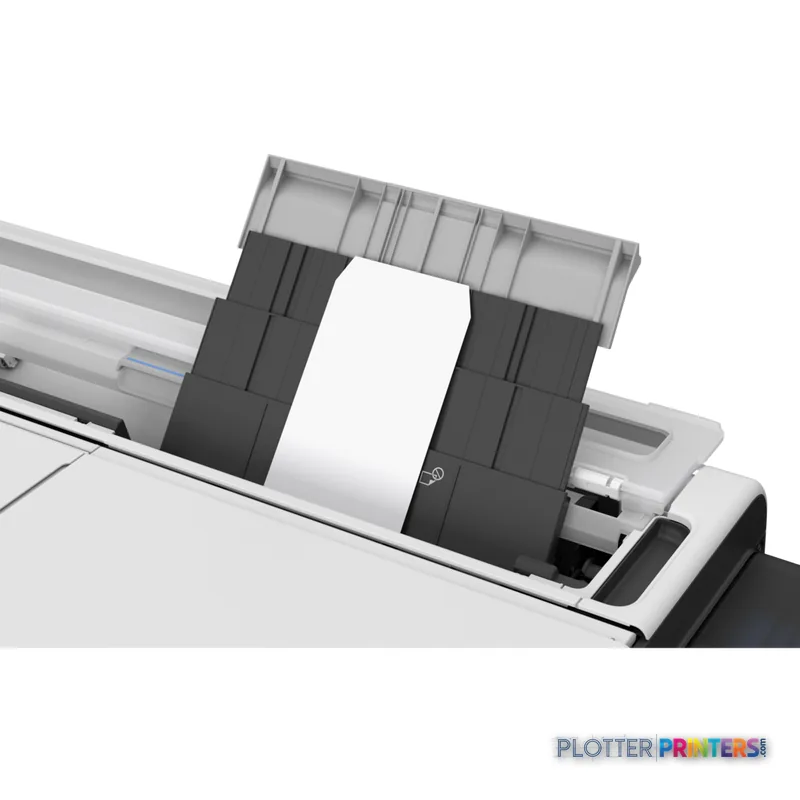

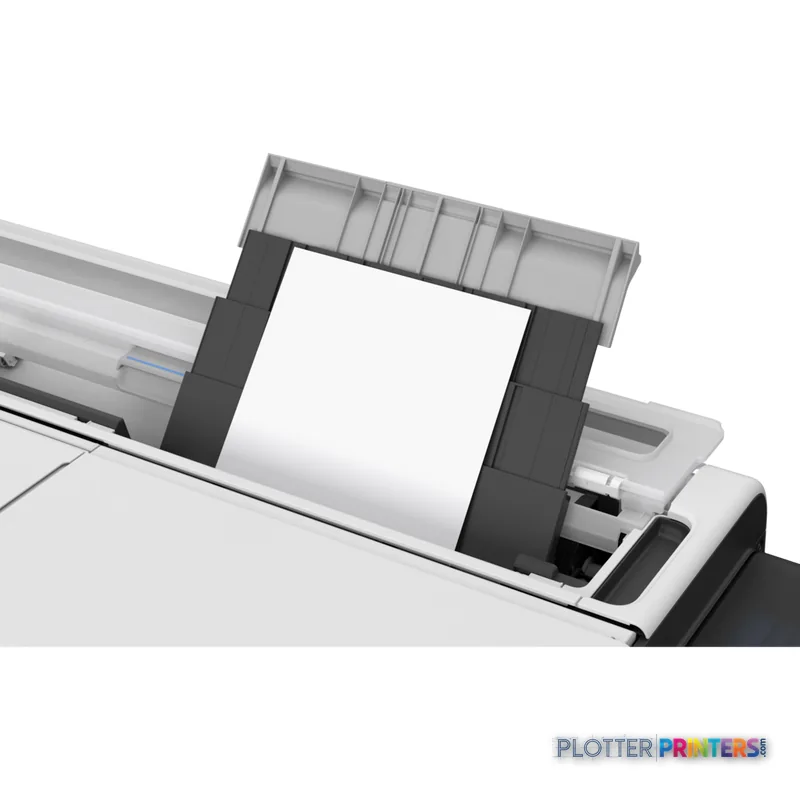

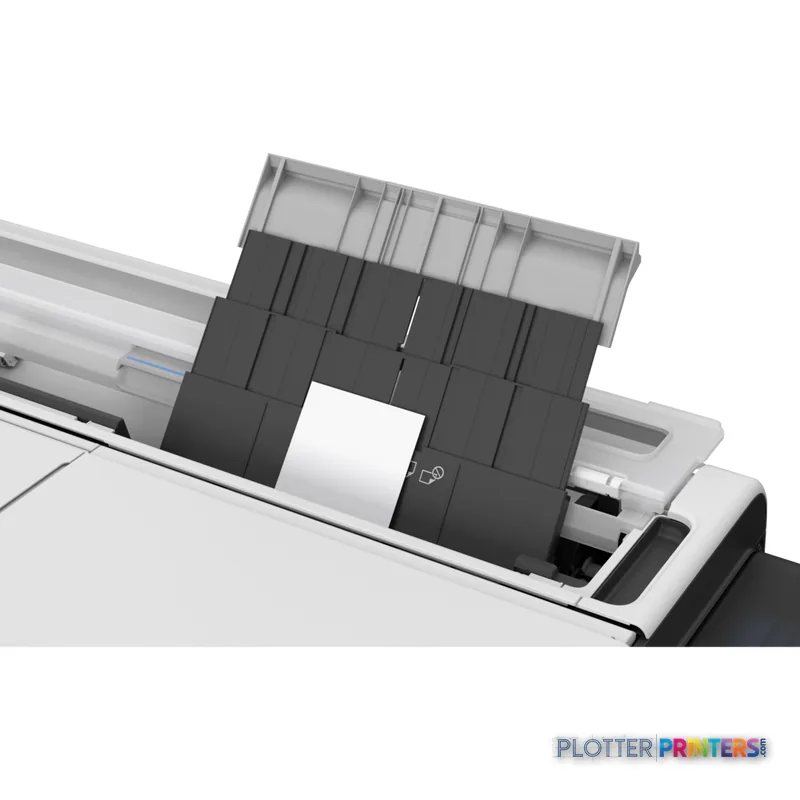

The TC-21M makes sense for a small architecture studio, satellite engineering office, field-office team, or departmental group that needs color plots without a dedicated print-room operator. It supports roll media and cut sheets, including plain paper, photo paper, envelopes, and Executive sheets. Borderless printing is available for A1, A2, A3, A4, B2, and B4 media sizes, useful where presentation sheets or map output need a cleaner edge treatment.

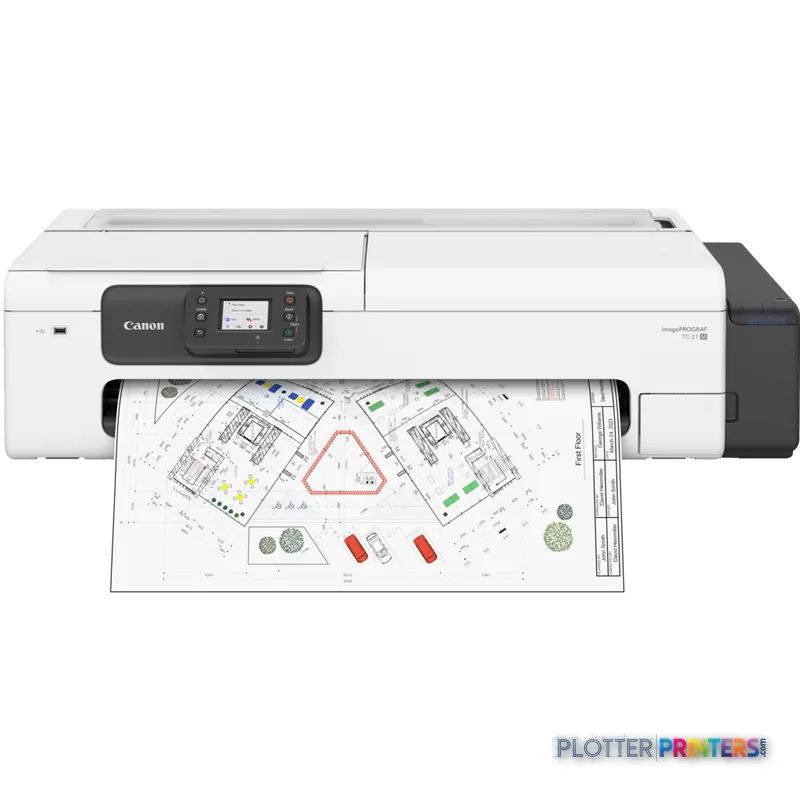

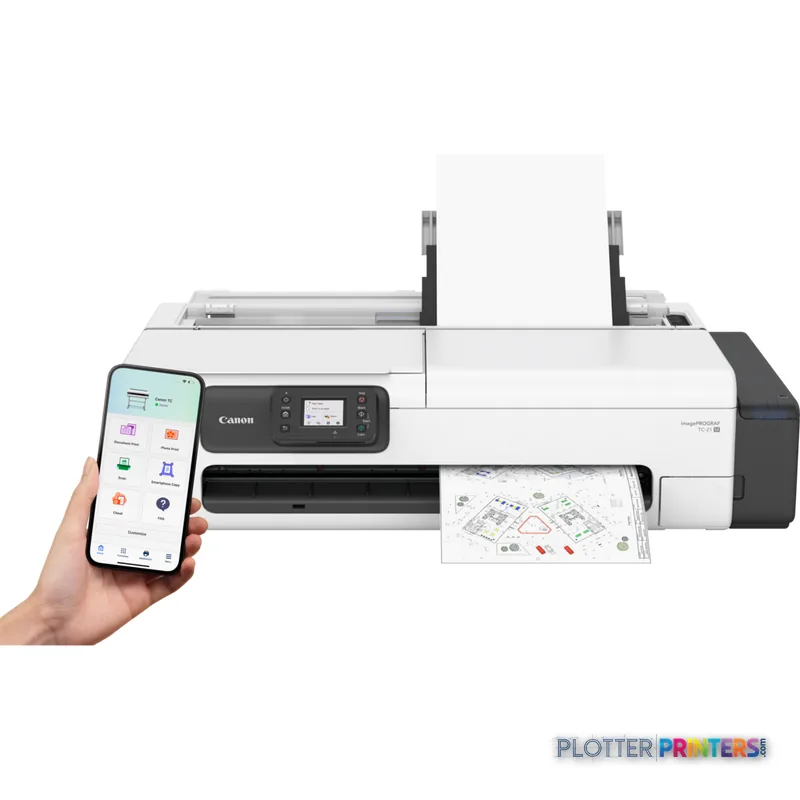

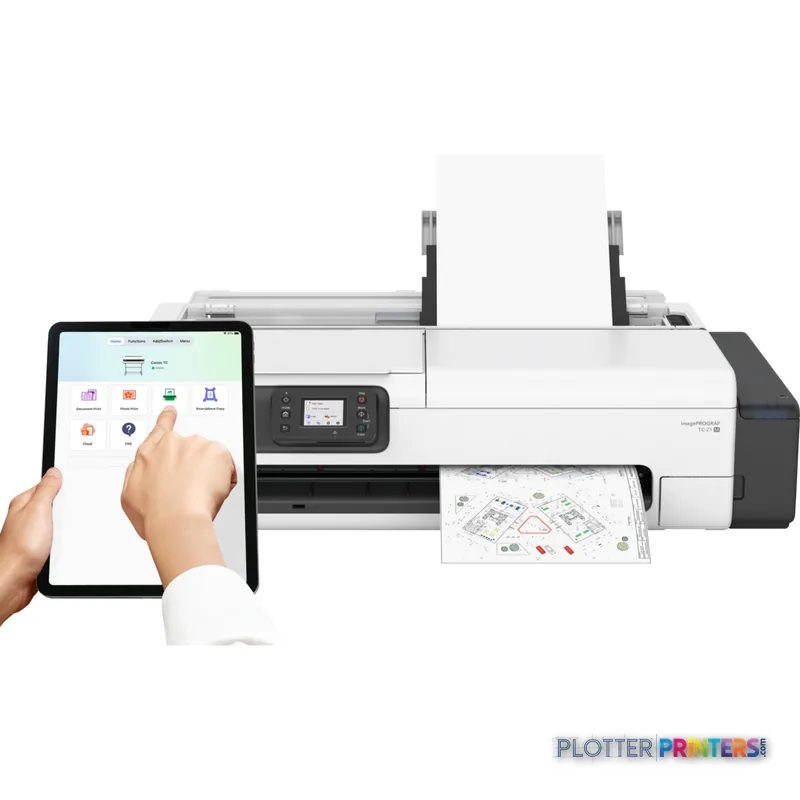

For drawing work, the practical strengths are its four-color inkjet system, 2400 x 1200 DPI maximum resolution, and support for Ethernet LAN, Wi-Fi, USB Type-A, and USB Type-B connections. Apple AirPrint and Mopria Print Service also give mobile users a direct submission route. That can be useful in a job trailer; it still needs a sensible file-naming and PDF-review discipline behind it.

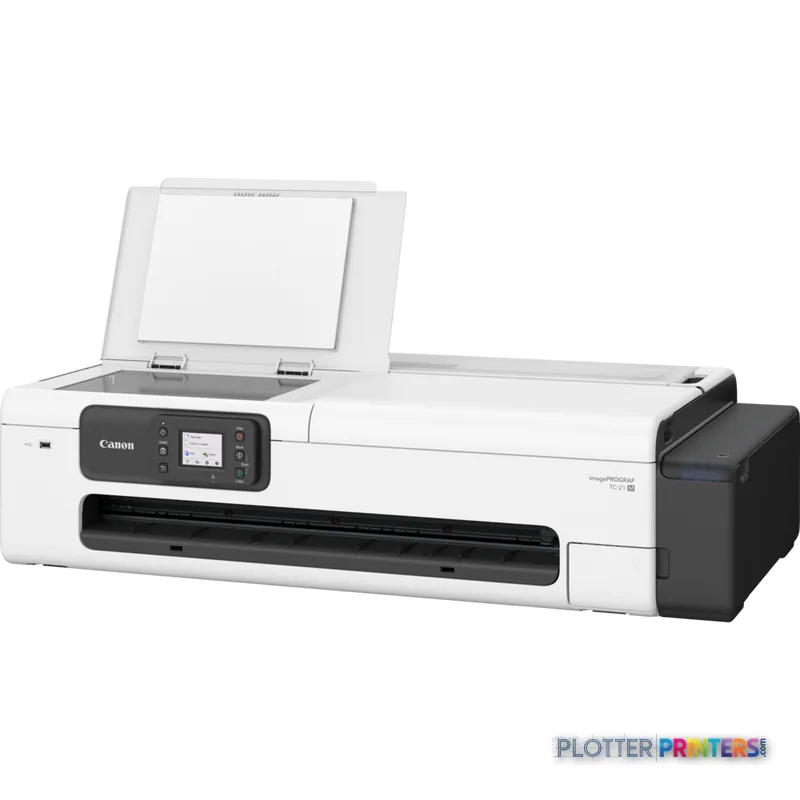

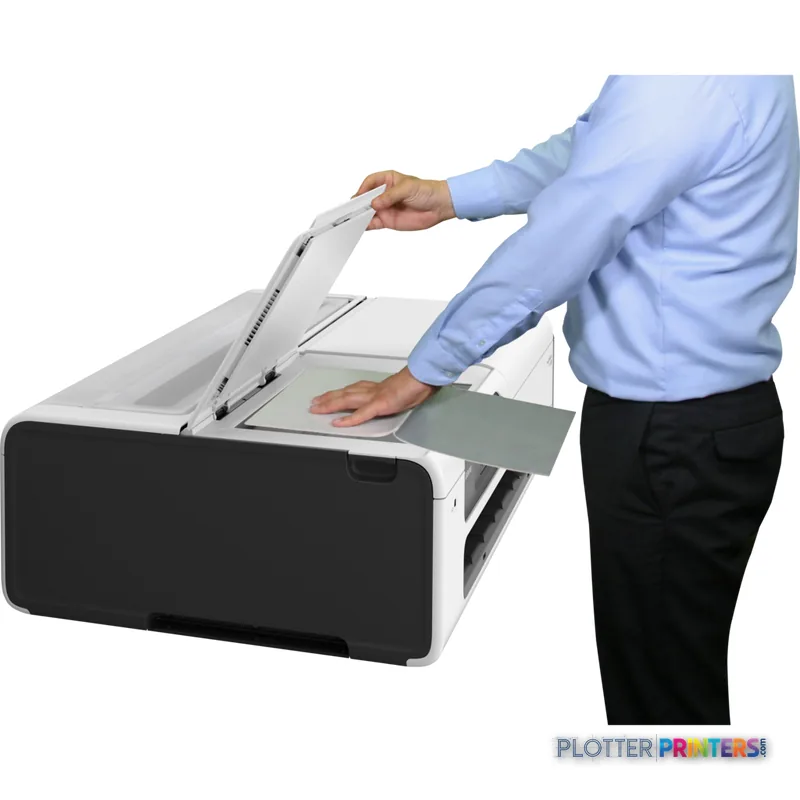

The machine includes color scanning using CIS technology, with 1200 x 2400 DPI optical scanning resolution. That makes it relevant for bringing marked-up drawings, field sketches, and other paper records into a digital review process. The supplied specifications list copying as unsupported, however, so buyers should not treat scanning as proof of a walk-up scan-copy workflow. Confirm the exact scan destination and software process in a dealer demonstration using a real AEC sheet.

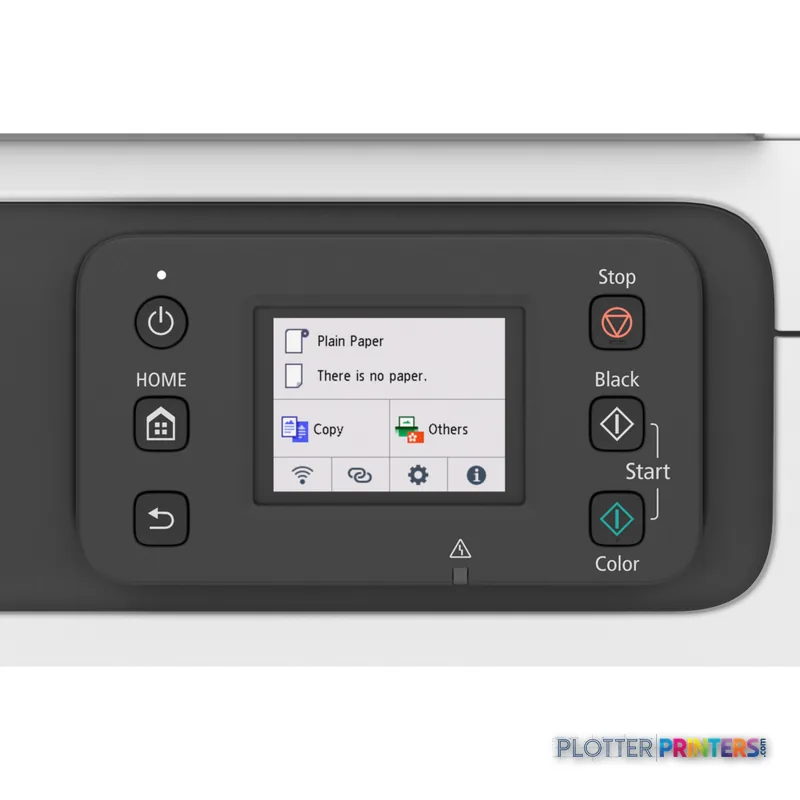

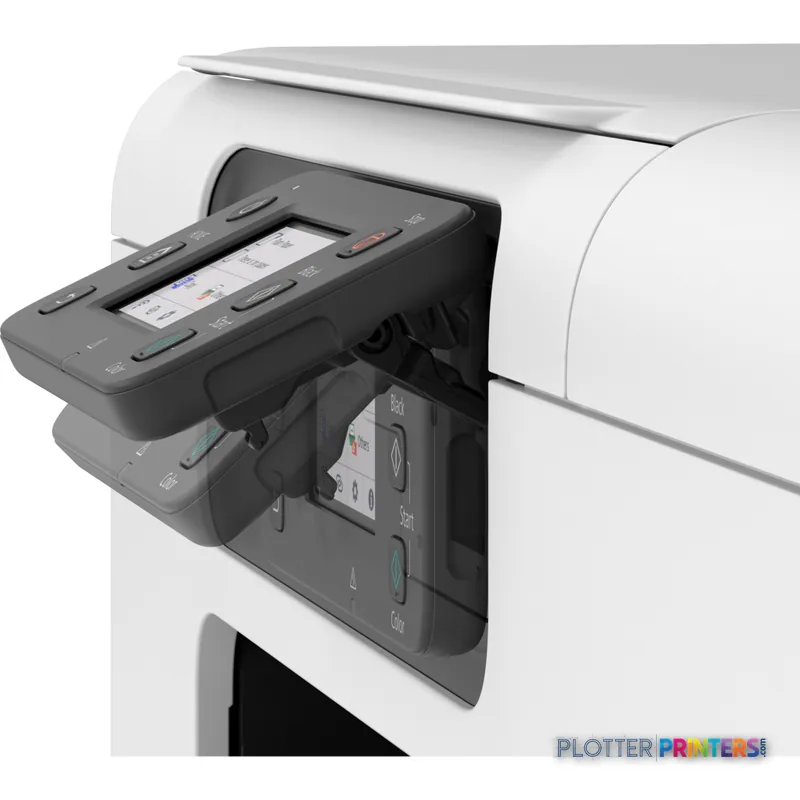

The TC-21M has 1 GB of internal storage and a built-in display. Those are helpful operational features, but they do not replace print-management rules, PDF standards, or user support. IT should validate the supported Windows and Mac environments, network setup, and mobile-print policy before rollout. Security is not a decorative checkbox: an unmanaged Wi-Fi plotter can become the office’s least intentional endpoint.

Its maximum roll length is 157.5" and maximum roll diameter is 4.33". Those constraints are acceptable where output is occasional and nearby staff can reload media, but they become an interruption in a busy bid issue or a sustained construction-document run. The scanner is free. The person standing at it is not.

Firms routinely issuing larger sheets or wanting a wider-format Canon platform should look at the Canon imagePROGRAF 700 36-in, Canon TZ-30000 36-in, or Canon TZ-32000 36-in. The meaningful change is width: these listed alternatives are 36-in devices, while the TC-21M is limited to A1 (23" x 33" (594 x 841 mm)). For a same-width external comparison, use the TC-21M and Epson F501 24-in comparison tool rather than comparing brochure headlines.

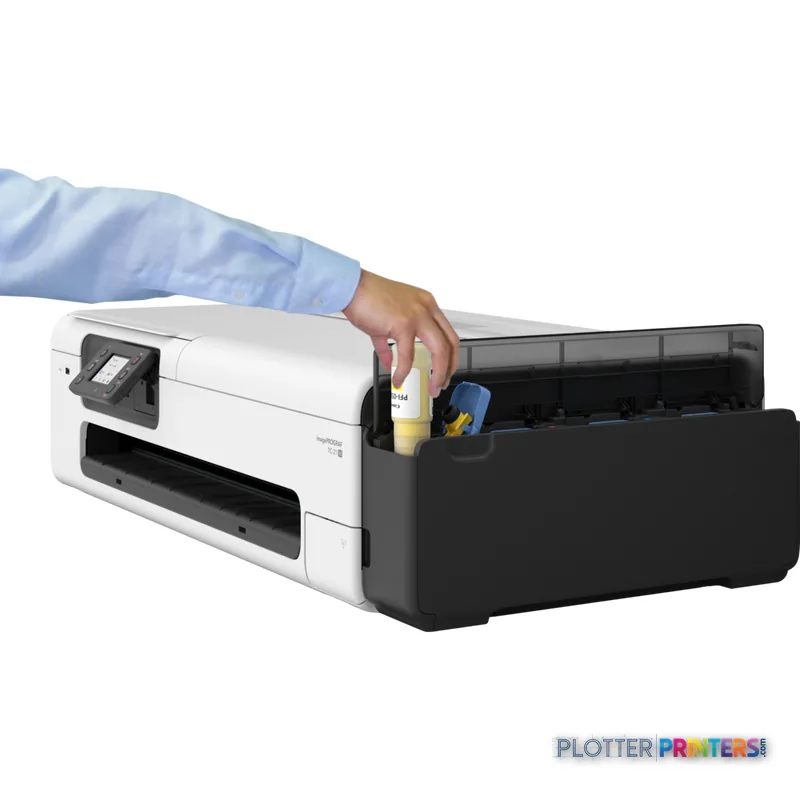

The TC-21M uses four print cartridges—Black, Cyan, Magenta, and Yellow—and the resolved printhead family is Canon PF-08. Cartridges are included. Buyers should ask who changes the printhead, how routine maintenance is handled, and what local support looks like when a deadline lands at 4:45 p.m.; ownership experience often turns on that answer rather than the specification sheet.

Specified operating conditions are 15 – 30 °C and 10 – 80% relative humidity. Typical power consumption is 28 W, falling to 2.3 W in sleep and 0.07 W when off. Those figures suit an office setting, but do not make a temporary field location automatically suitable: dust, temperature swings, network reliability, and paper storage remain workflow variables.
