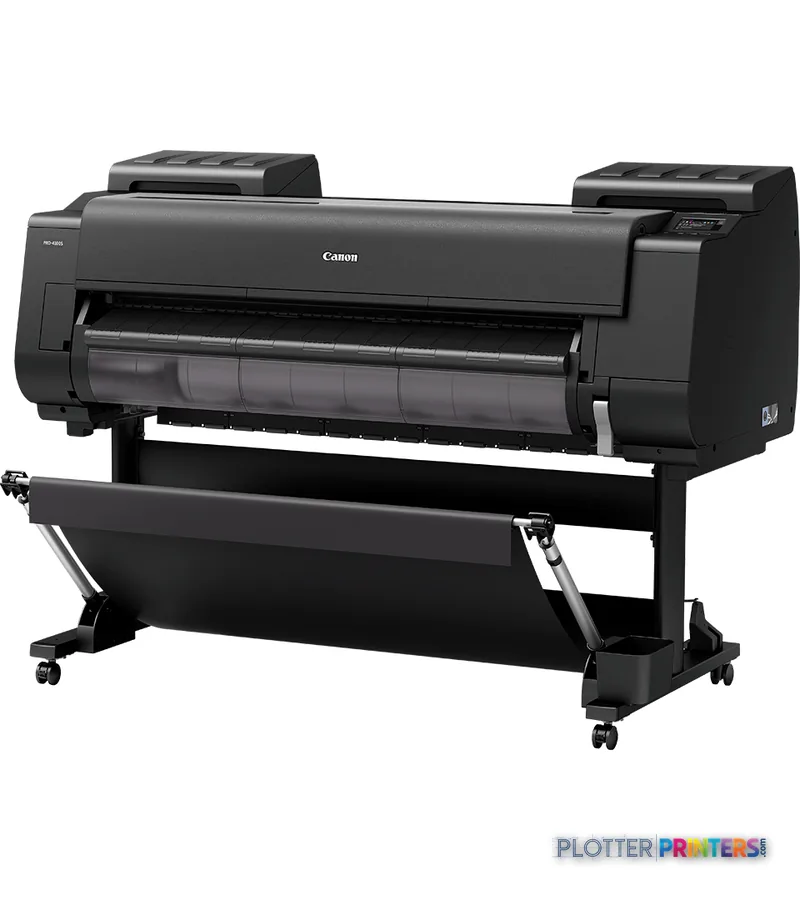

Canon imagePROGRAF PRO-4100S

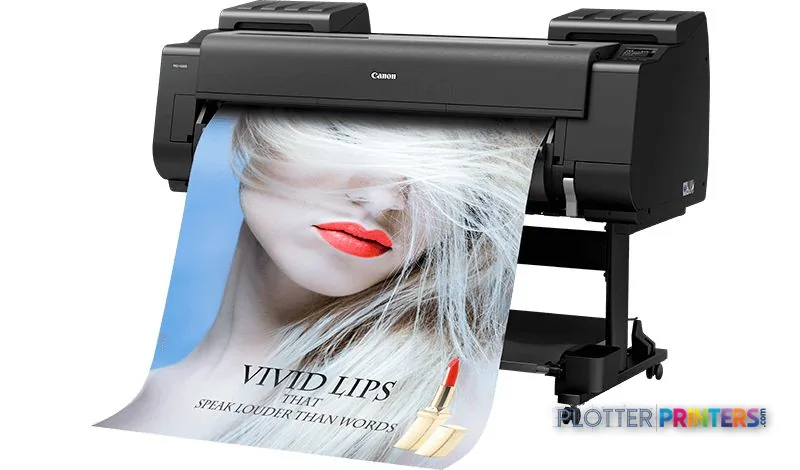

This machine is particularly well suited to architecture, engineering, and construction teams that need up to 44-inch output for plan sets, GIS mapping, color-coded coordination sheets, and client-facing boards. Its eight listed inks—black, matte black, gray, cyan, photo cyan, magenta, photo magenta, and yellow—give it a broader color set than a basic four-color office plotter. That matters most when a PDF combines technical annotations with aerial imagery or renderings; the difference often appears at the cyan edge of a utility overlay, where adjacent information must stay visually separate.

The 2400 x 1200 DPI maximum resolution is a specification, not a promise of every drawing’s result. Fine-line readability also depends on the source PDF, driver settings, media, and whether the application preserves vector data. Test representative CAD exports, Revit sheets, and Bluebeam-marked PDFs before standardizing a workflow. Ethernet LAN, Wi-Fi, USB Type-A and Type-B connections, a 4.3-inch color touch display, and direct printing provide several submission paths; IT should still validate authentication, driver deployment, and project-accounting requirements in its own environment.

The roll-fed design supports a maximum roll width of 44 inches, with a stated maximum roll length of 708.7 inches and maximum roll diameter of 6.69 inches. It also accepts cut sheets. Those limits make it a credible fit for conventional 24-, 30-, 36-, and 42-inch AEC formats within its width envelope, subject to the actual media and application setup. The stated media-thickness range is 0.003 to 0.031 inches, useful context for teams moving between ordinary bond and heavier presentation stock.

Plan the room around a 62.7-inch width, 38.7-inch depth, 46-inch height, and 269-pound weight. Its listed 49 dB sound pressure level while printing suggests an office-adjacent placement may be workable, but a busy print corner still benefits from clear loading and output space. The machine has no scanning or copying capability. That trade-off is decisive for a contractor’s field-office workflow built around redline capture, but less consequential for a design studio already using a separate scanner.

Within the listed family, the Canon PRO-4600 44-in is the more current 44-inch alternative to examine when replacing a PRO-4100S-class device. It retains the same stated maximum resolution and width category in the catalog, but its suitability should be established through a media-and-file test rather than inferred from those two specifications. For work that genuinely requires wider output, the Canon PRO-4100S 60-in moves into a 60-inch class; that advantage matters for oversized presentation graphics, not for a department whose work is overwhelmingly 36- and 42-inch construction sheets.

The Canon PRO-2600 24-in is a narrower in-family option for teams centered on smaller drawings and proofs. Conversely, an Epson P8570DR 44-in is a relevant 44-inch alternative for comparison because the catalog identifies it as dual-roll. Compare the actual media workflow, not just headline resolution: roll switching, operator intervention, output handling, and local service support will determine whether either approach fits a live print room. Use the side-by-side comparison as a starting point, then test the files your staff actually release.
