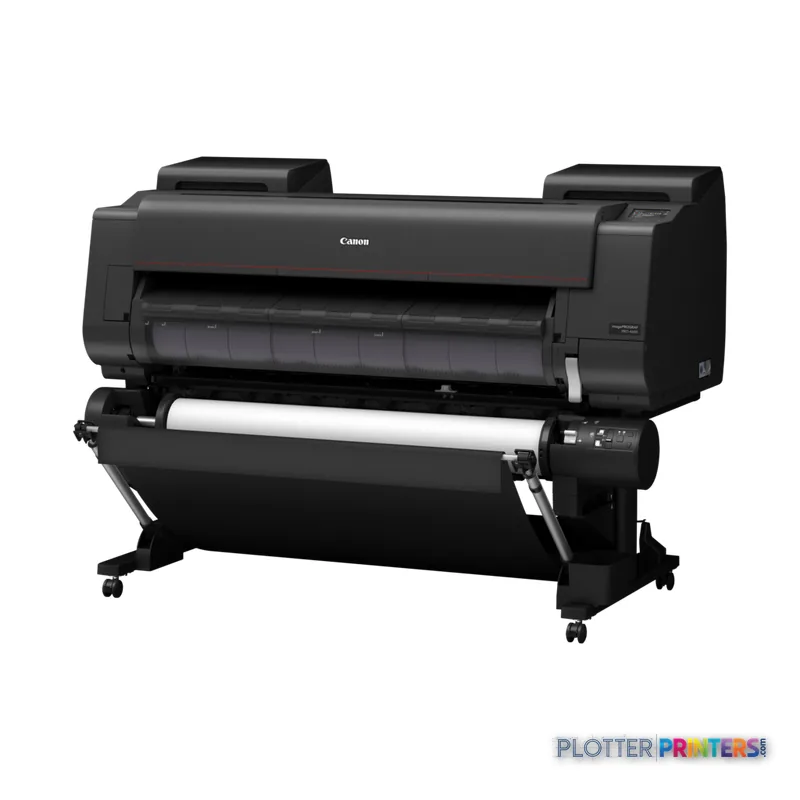

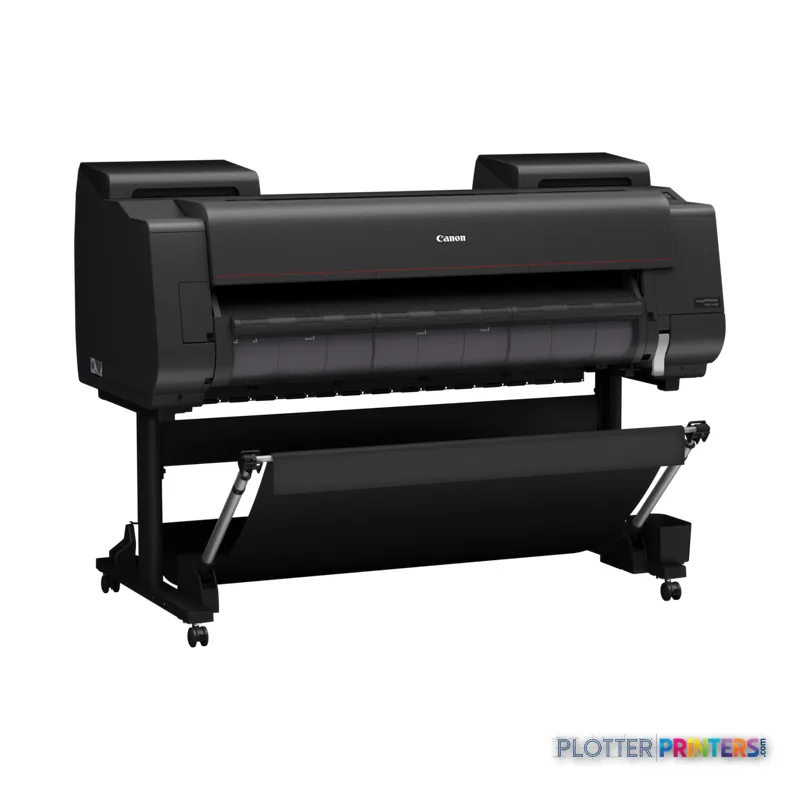

Canon imagePROGRAF PRO-4600

The PRO-4600 accepts cut sheets as well as roll media, supports plain, coated, and glossy paper, and handles media from 0.003″–0.031″ thick. That range suits teams that move between ordinary-bond working documents and more deliberate visual output. Borderless printing is supported on A0 through smaller listed sizes, which is useful for presentation graphics where a white perimeter would be distracting.

For submission, the machine supports direct printing, PDF 1.7 and JPEG page-description languages, Ethernet up to 1000 Mbit/s, USB Type-A and Type-B connections, Wi-Fi, and Apple AirPrint. Its 3,000 MB internal memory and 500 GB HDD are practical resources for a shared device receiving substantial PDF files. IT should still validate its own driver, authentication, queue-management, and project-accounting requirements; those workflow controls are not established by the supplied product data.

Color is where this model’s role becomes clearer. It uses blue, red, cyan, magenta, yellow, gray, matte black, photo black, photo cyan, photo gray, and photo magenta inks. We would treat that extended set as a reason to evaluate proof output on your chosen media, not as a shortcut to assuming accuracy. See the measured ICC-gamut results and how the desk measures color for the distinction between measured volume and a broad claimed percentage.

A maximum roll length of 708.7″ and maximum roll diameter of 6.69″ give the PRO-4600 a defined media envelope. Its maximum print size is A0 (33″ x 47″), so confirm the actual drawing sizes and trim requirements in your standards before treating it as the default output path for every full-size plan set. The machine has one print head and a 12-cartridge configuration; consumable planning should account for the mix of color-heavy boards and monochrome drawing output your team actually sends.

The physical requirement is equally real: the printer measures 62.7″ wide, 30.2″ deep, and 46″ high, and weighs 273.4 lbs. This is office-capable equipment only when its location also permits media loading, output handling, and service access. Typical power consumption is listed as 85 W, with 2.3 W in sleep and 0.1 W off. The stated operating range is 15–30 °C and 10–80% relative humidity.

The Canon PRO-2600 24-in is the sensible direction for teams whose work is predominantly smaller-format presentation output and who do not require the PRO-4600’s A0 maximum size. The trade-off is straightforward: narrower output changes which drawings and boards can remain in-house.

At the other end, the Canon PRO-6600 60-in becomes more relevant when a firm needs a wider-format path. That does not automatically make it the better AEC choice; it depends on whether larger graphics and wider sheets are routine rather than exceptional. Teams considering the two can use the PRO-4600 and PRO-6600 comparison to place the width decision beside their own media and space constraints.

The PRO-4600 may be less appropriate for an operation whose main need is continuous, high-volume, mixed-size plan-set production, intensive scanning and copying, or a fully specified secure release and departmental billing workflow. Those requirements call for a broader evaluation of the surrounding document system, service support, and production process—not just image quality.
