HP · Wide-Format Plotter
HP PageWide XL 8000
PageWide production printer
- Model8000
- Score65/100
Authorized HP dealerGenuine hardware & ink
Manufacturer warrantyExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- HP rates the HP 8000 at 800 pph for A1 output in normal quality.
- The stated maximum print size is A1 (23" x 33" (594 x 841 mm)).
- HP-GL/2 and PCL 3 are the listed page-description languages.
Not sure if the 8000 is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Built for the work
HP PageWide XL 8000, Inkjet, 1200 x 1200 DPI, HP-GL/2, PCL 3, Black, Cyan, Magenta, Yellow, 75 ft/min, 800 pph
- 5,384 ft²/hRated speed
- 8Ink channels
- 1,200 dpiMax resolution
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- HP rates the HP 8000 at 800 pph for A1 output in normal quality.
- The stated maximum print size is A1 (23" x 33" (594 x 841 mm)).
- HP-GL/2 and PCL 3 are the listed page-description languages.
- Compatible folders, stackers, drawers, and scanners can support a more organized output workflow.
- The HP F40 and HP F60 are listed as current in-family alternatives, while the HP F70 is listed as discontinued.
At 4:45 p.m., the print room does not need a lecture on ink technology. It needs permit sheets, coordination drawings, and marked-up plans moving toward the door before the courier leaves. The HP 8000 is a color inkjet production printer for that kind of AEC traffic: steady technical output, ordinary bond and matte media, and a footprint that belongs in a real print room rather than beside somebody’s desk.
HP rates it at 800 A1 prints per hour in normal quality, or 75 ft/min. Those are rated figures, not a promise that every mixed job will behave like a lab test. File processing, roll changes, stacking, and the person who sent a crooked PDF still get a vote. But the rated pace makes this machine relevant when plan sets arrive in batches and waiting on output becomes the bottleneck.
800 pphRated A1 outputNormal quality rating.
75 ft/minRated linear speedNormal quality rating.
A1 (23" x 33" (594 x 841 mm))Maximum print sizeSets the largest stated output format.
16384 MBInternal memoryPaired with internal HDD storage.
Where it earns its floor space
This is a sensible fit for civil, structural, MEP, surveying, and contractor teams producing recurring drawing packages rather than occasional presentation sheets. It prints in black, cyan, magenta, and yellow at up to 1200 x 1200 DPI, with HP-GL/2 and PCL 3 listed as page-description languages. That matters when technical linework and small annotation need a predictable route to the device, not a heroic workaround five minutes before a bid deadline.
The stated media support includes bond, matte, recycled paper, and postcard media. Its maximum roll diameter is 7″. The machine can also be paired with compatible folders, stackers, drawers, and wide-format scanners. Those options matter when output must leave as organized sets rather than become a paper avalanche with a project number scribbled on top.
Bottom line: The HP 8000 fits departments where repeated A1 technical output justifies a dedicated production workflow.
The operational details that decide the day

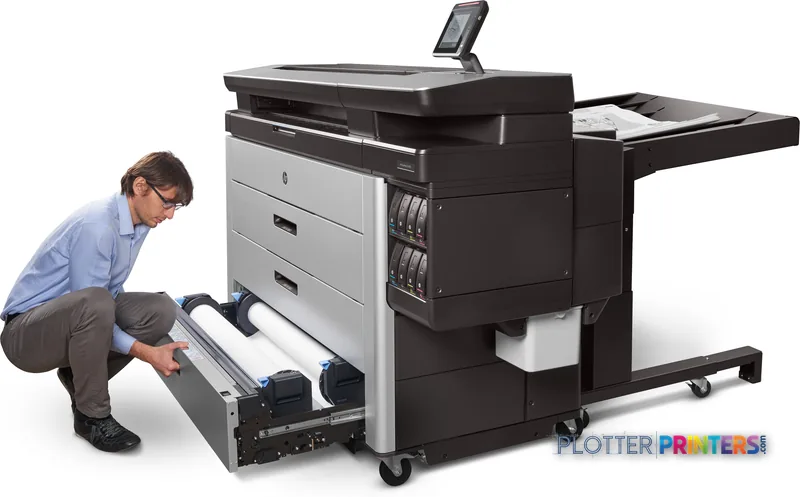

Give it room. The unit measures 77″ wide, 31″ deep, and 60″ high, and weighs 1053.8 lbs. That calls for a planned location, sensible access for loading and service, and a conversation with facilities before delivery day. It has 628 GB of internal storage, one USB 2.0 Type-A port, and typical power consumption of 590 W. Its stated operating range is 5 to 40 °C and 20 to 80% relative humidity.

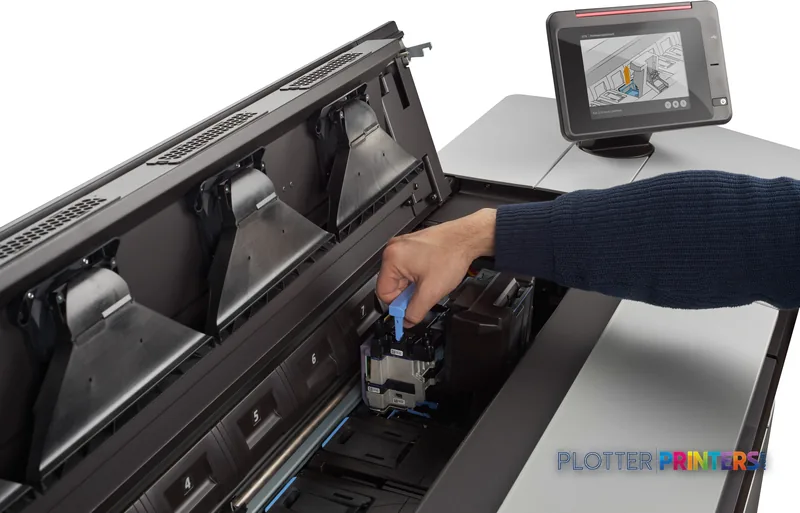

For supplies, the compatible consumables are HP 842C 775-ml Black PageWide XL Ink Cartridge, plus the cyan, magenta, and yellow versions of the same family, and the HP 841 printhead. Confirm the local service plan, response commitments, stock arrangements, and who owns routine operator tasks. A fast printer waiting on a part has exactly one speed: zero.
Bottom line: The hardware rating is only half the purchase; local service and finishing workflow determine the other half.
Use the plot-time estimator as a planning aid for rated normal-quality speed, then allow time for file preparation, roll handling, and output collection.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 5,384 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Family context and the limits of the fit
Within the listed family, the HP F40 and HP F60 are current alternatives worth putting beside this machine in a workflow review. The HP F70 is listed as discontinued, so it belongs in replacement and installed-base conversations rather than a new-equipment shortlist. Use the comparison tool for the HP 8000 and HP F60 to keep the discussion tied to the features your team will actually use.
The HP 8000 is less appropriate where the largest stated A1 format is too restrictive, where the work is mainly occasional plotting, or where the room cannot support a 1,053.8-lb production device. It is also not a substitute for a workflow review: HP-GL/2 and PCL 3 support does not answer every question about file preparation, authentication, accounting, or project-document release.
Bottom line: Buy this class of machine for recurring production pressure, not because one deadline was ugly.
Continue the evaluation
The read
The HP 8000 is for the AEC team that has moved beyond one-off plotting and needs repeatable color technical output at a stated production rate of 800 A1 prints per hour in normal quality. Its strongest case is a staffed or semi-staffed print-room workflow with the space, finishing plan, and service support to match. If your work is lighter, wider than the stated A1 maximum, or mostly irregular, stop and compare the workflow before committing. Bottom line: This is production equipment, and it should be treated like part of the document operation, not office furniture.
Spec analysis
How the specs grade
Overall performance
within PageWide production printers
86% spec coverage
- This printer
Verified specifications
The specs that decide it
| Print technology | Inkjet |
|---|---|
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, PCL 3 |
| Internal memory | 16384 MB |
| Maximum print size | A1 (594 x 841 mm) |
| Maximum roll diameter | 17.7 cm |
| Power consumption | 590 W |
Specifications
Full technical detail
Print technologyInkjet
Max resolution1200 x 1200 DPI
ConnectivityUSB
Use caseGIS / Mapping
Printing
| Colour | Yes |
|---|---|
| Print technology | Inkjet |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, PCL 3 |
| Print speed (normal quality) | 75 ft/min |
| Print speed (normal quality, A1) | 800 pph |
Performance
| Storage media | HDD |
|---|---|
| Product colour | Black, White |
| Internal memory | 16384 MB |
| Internal storage capacity | 628 GB |
Paper handling
| Maximum print size | A1 (594 x 841 mm) |
|---|---|
| Maximum roll diameter | 17.7 cm |
| Paper tray media types | Bond paper, Matte paper, Postcard, Recycled paper |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Weight & dimensions
| Depth | 800 mm |
|---|---|
| Width | 1960 mm |
| Height | 1527 mm |
| Weight | 478 kg |
Power
| Power supply | 1200 W |
|---|---|
| Power consumption (typical) | 590 W |
Operational conditions
| Operating temperature (T-T) | 5 – 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Packaging data
| Package depth | 1068 mm |
|---|---|
| Package width | 2180 mm |
| Package height | 1764 mm |
| Package weight | 585 kg |
Everything that fits the HP PageWide XL 8000
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
8 ink cartridges · 4 printheads · 15 paper & media items · 3 accessories
HP PageWide XL 8000 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP PageWide XL 8000 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 8
HP PageWide XL Folder with Tab Applicator
HP 842C 775-ml Yellow PageWide XL Ink Cartridge
HP 842C 775-ml Magenta PageWide XL Ink Cartridge
HP 842C 775-ml Cyan PageWide XL Ink Cartridge
HP 842C 775-ml Black PageWide XL Ink Cartridge
HP PageWide XL Folder with Scandinavian Tab Applicator
HP 886 3-liter White Latex Ink Cartridge
HP 841/874/876 PageWide XL Maintenance CartridgePrintheads 4
Paper & Media 15
Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)
HP F70 Folder with Tab Applicator paper cutter
HP F60 Folder with Tab Applicator paper cutter
HP F70 Folder paper cutter
Questions
Straight answers
What AEC work is the HP 8000 suited to?
It suits recurring technical-print workflows such as plan sets, coordination drawings, survey output, and construction-document packages that fit within its stated A1 maximum print size. Its rated normal-quality output is 800 pph for A1.
What is the largest sheet size listed for this printer?
The listed maximum print size is A1 (23″ x 33″ (594 x 841 mm)). Confirm actual project sheet requirements before selecting it for a wider-format workflow.
Which print languages are listed?
The listed page-description languages are HP-GL/2 and PCL 3. Buyers should still test representative CAD and PDF jobs in their own submission workflow.
What supplies should the print room plan for?
Compatible ink supplies are the HP 842C 775-ml Black PageWide XL Ink Cartridge and corresponding cyan, magenta, and yellow cartridges. The compatible printhead is the HP 841.
Can the HP 8000 be configured for scanning or folded output?
Compatible accessories include wide-format scanners, folders, a folder upgrade kit for long plots, drawers, and stackers. Verify the exact configuration and installation requirements with the supplier.
How does it relate to the HP F40, HP F60, and HP F70?
The HP F40 and HP F60 are listed as current in-family alternatives. The HP F70 is listed as discontinued, making it relevant when replacing an installed unit rather than evaluating a current model.
