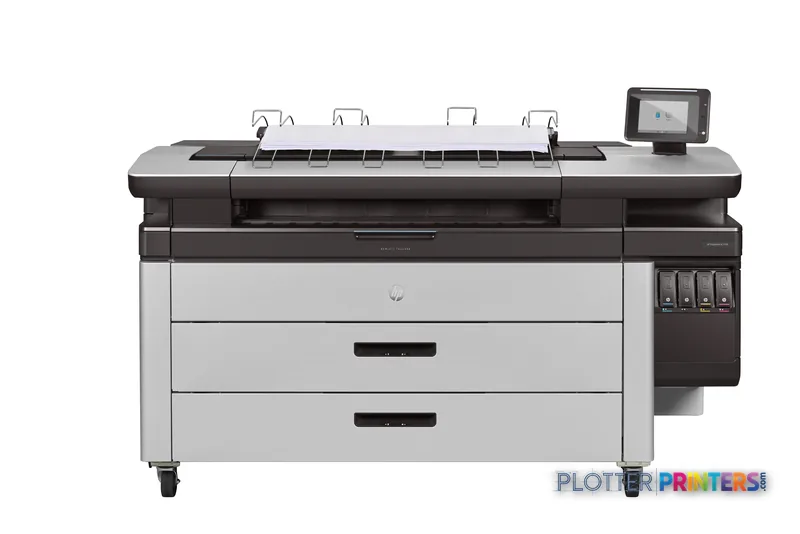

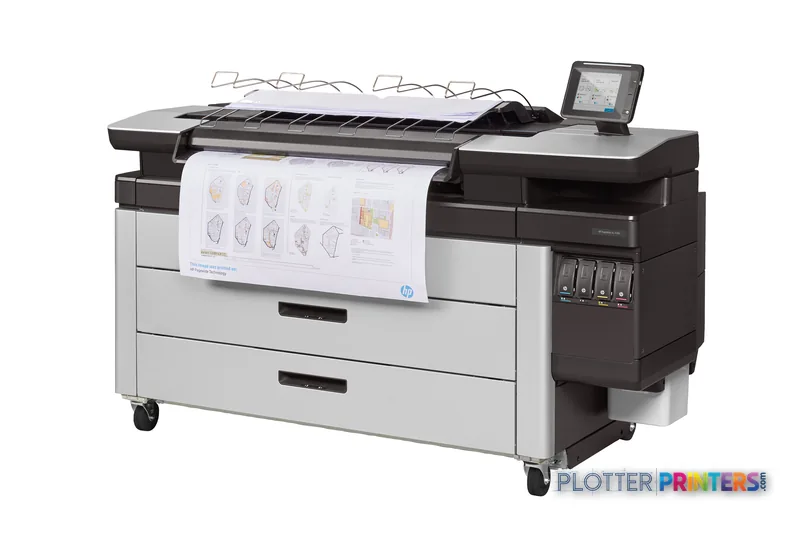

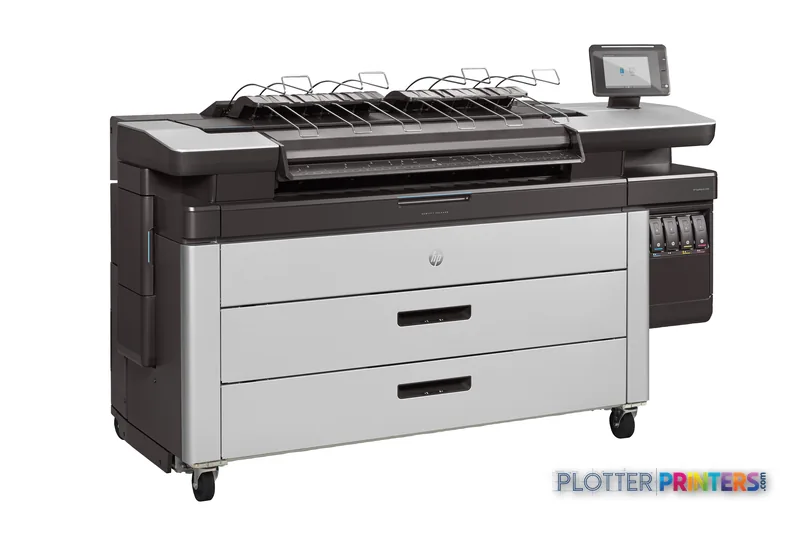

HP PageWide XL 4100
PageWide production printer
- ModelJ2V02E#B19
- Score56/100
Authorized HP dealerGenuine hardware & ink
3-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- Single-pass PageWide XL design keeps mixed-size plan sets moving without a carriage slowing down for width.
- Full multifunction: color scanning and copying on CIS, with scan lengths up to 708.7" (18 m) for long civil profiles.
- Rated 1200 x 1200 DPI and 0.1% line accuracy suit dimensional drawings and small-text legibility.
Not sure if the J2V02E#B19 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Cyan, Magenta, Yellow.
- Scan & copy Integrated scanner for digitizing and sharing sets.
- Analyst score Scores 56/100 in our class-relative rating.
Overview
Built for the work
HP PageWide XL 4100, 1200 x 1200 DPI, HP-GL/2, TIFF, JPEG, Black, Cyan, Magenta, Yellow, 1200 x 1200 DPI, Color copying, Color scanning
- 4Ink channels
- 1,200 dpiMax resolution
- 36 moIncluded warranty
Spec Analysis
overall
overall
Expert analysis
What you should know
Key takeaways
- Single-pass PageWide XL design keeps mixed-size plan sets moving without a carriage slowing down for width.
- Full multifunction: color scanning and copying on CIS, with scan lengths up to 708.7" (18 m) for long civil profiles.
- Rated 1200 x 1200 DPI and 0.1% line accuracy suit dimensional drawings and small-text legibility.
- A 500 GB internal HDD and 7874" (200 m) max roll cut re-rips and reloads during heavy runs.
- Discontinued model — the current in-family choices are the HP F40 and step-up HP F60.
- HP dynamic security is active, so plan on genuine HP 843C ink and the HP 841 printhead.
It’s 4:15 p.m. The permit set is due at five, the courier is idling out front, and someone just dropped a 60-page D-size bid set on the print-room operator with the words “color-coded, collated, don’t jam it.” This is the machine built for exactly that moment. The HP 4100 is a PageWide XL — a single-pass inkjet plotter, meaning the printhead spans the full page width and the paper moves under it instead of a carriage sweeping back and forth.
That architecture is the whole point. No carriage means the sheet doesn’t slow down for width, so a fat mixed-size plan set comes off the top stacker fast and in order. If your day is measured in deadlines rather than single presentation boards, keep reading.
A0 (33" x 47" (841 x 1189 mm))Max print sizefull D/E-size drawings
1200 x 1200 DPIResolutionline and small-text work
0.1%Line accuracydimensional consistency
7874" (200 m)Max roll lengthfewer roll changes per deadline
What it actually is
Four ink cartridges — the HP 843C 400-ml Black, Cyan, Magenta and Yellow PageWide XL cartridges — feed eight fixed printheads across the page. Servicing runs through the HP 841 printhead. Rated resolution is 1200 x 1200 DPI, and HP quotes line accuracy of 0.1%, which matters when a surveyor’s scaled plat has to measure true off the sheet.
It’s a full multifunction unit: color scanning and color copying on CIS technology, up to a 708.7″ (18 m) scan length for long civil profiles. An 8″ touchscreen drives it, there’s a 500 GB internal HDD for reprint queues, and it speaks HP-GL/2, TIFF and JPEG. Note what’s missing: no native PDF listed in the page languages, so PDF-heavy shops will lean on a driver or RIP to feed it.
Where it earns its floor space
This is a shared-department machine. It’s a big unit — 77.2″ wide, 34″ deep, 948 lbs — so it isn’t wedging into a two-person studio corner. Put it where volume justifies it and it pays for itself in operator minutes.
- High-volume engineering departments pushing daily bid and permit sets — the top stacker and single-pass speed keep collated output moving.
- Construction offices and GCs that need one box for plotting, scanning as-builts and color copying redlines.
- Central reprographics rooms where the 200 m roll and 500 GB reprint store cut down on reloads and re-rips.
- Surveyors and civil teams running long profiles up to 18 m on the scanner.
Quiet, too — HP rates it at 7.6 dB while printing — and it idles at 1 W in sleep, ENERGY STAR listed.
Where it's the wrong tool
Two honest caveats. First, this is a discontinued PageWide XL — the current in-family successors are the HP F40 and the step-up HP F60; the earlier HP F70 is also off the current lineup. If you’re buying new, buy from the F-series. The 4100 makes sense as an installed-base or refurbished workhorse where you already know the service story.
Second, note HP dynamic security is active — third-party ink is a gamble, so budget for genuine HP 843C cartridges. And for a small firm plotting a few boards a week, this is far too much machine. A single-roll 36-in unit like the Canon iPF770 fits that bench better. Compare the field before you commit floor space.
Worth a look next
The read
The 4100 was built to swallow deadline-day volume: single-pass speed, a 200 m roll, a top stacker that collates, and full scan-and-copy in one box. As a used or already-installed department machine, it still does that job well. But it’s discontinued and it runs dynamic security, so go in with your ink supply and service coverage sorted. Buying new today? Start with the F40 instead. Bottom line: right machine for a busy print room that already owns one — wrong machine to buy new off the shelf.
Where it sits in the field: see the head-to-head against the HP F40 or the full class leaderboard.
Spec analysis
How the specs grade
Overall performance
within PageWide production printers
78% spec coverage
- This printer
Verified specifications
The specs that decide it
| Maximum resolution | 1200 x 1200 DPI |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG |
| Internal memory | 8192 MB |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll diameter | 6.97" (17.7 cm) |
| Scanning | Color scanning |
| Sound level (printing) | 7.6 dB |
| Power consumption | 400 W |
Specifications
Full technical detail
Max resolution1200 x 1200 DPI
ColorColor
ConnectivityUSB
Use caseGIS / Mapping
Printing
| Color | Yes |
|---|---|
| Print head | 8 |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG |
Performance
| Control type | Touch |
|---|---|
| RAM capacity | 8 GB |
| Certification | Compliant with Class A requirements, including: EU (EMC Directive) |
| Product color | White, Brown |
| Storage media | HDD |
| Internal memory | 8192 MB |
| Built-in display | Yes |
| Display diagonal | 8" |
| Country of origin | China |
| Built-in processor | Yes |
| Internal storage capacity | 500 GB |
| Sound pressure level (printing) | 7.6 dB |
Paper handling
| Stacker | Yes |
|---|---|
| Stacker type | Top Stacker |
| Maximum print size | A0 (841 x 1189 mm) |
| Maximum roll length | 7874" (200 m) |
| Maximum roll diameter | 6.97" (17.7 cm) |
| Paper tray media types | Bond paper, Recycled paper, Matte paper |
Ports & interfaces
| USB port | Yes |
|---|
Weight & dimensions
| Depth | 34" (864 mm) |
|---|---|
| Width | 77.2" (1960 mm) |
| Weight | 948 lbs (430 kg) |
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (sleep) | 1 W |
| Power consumption (standby) | 4.6 W |
| Power consumption (typical) | 400 W |
Operational conditions
| Operating temperature (T-T) | 5 – 40 °C |
|---|---|
| Operating relative humidity (H-H) | 20 – 80% |
Other features
| Touchscreen | Yes |
|---|---|
| UNSPSC-code | 43212104 |
| Electromagnetic compatibility | Compliant with Class A requirements, including: EU (EMC Directive) |
Copying
| Copying | Color copying |
|---|
Scanning
| Accuracy | 0.1% |
|---|---|
| Scanning | Color scanning |
| Scan technology | CIS |
| Maximum scan length | 708.7" (18 m) |
| Optical scanning resolution | 1200 x 1200 DPI |
Packaging data
| Package depth | 42" (1068 mm) |
|---|---|
| Package width | 85.8" (2180 mm) |
| Package height | 69.4" (1764 mm) |
| Package weight | 1203.7 lbs (546 kg) |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR |
Brand-specific features
| HP dynamic security | Yes |
|---|
Everything that fits the HP PageWide XL 4100 MFP
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
4 ink cartridges · 1 printhead · 14 paper & media items · 4 accessories
HP PageWide XL 4100 MFP ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP PageWide XL 4100 — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 4
Printheads 1
Paper & Media 14
Representative imageMagic 98gsm/26# Coated Matte Paper (DMPG98)Representative image28LB Inkjet Coated Matte Paper (748)Representative image46LB Inkjet Coated Matte Paper (747)Representative image6.5mil Matte Coated Paper w/ PSA (746PSA)Representative image24LB Inkjet Coated Matte Paper (745)Representative image20LB High Brite Inkjet Bond Paper (740)Representative image24LB Inkjet Bond Paper (731)Representative image20LB Inkjet Bond Paper (730)Representative image24LB Inkjet Coated Matte Paper Economy (714)Representative image20LB Engineering Vellum (471)Representative imageWSL 28LB Simple Inkjet Coated Matte Paper (C2S) (448)Representative imageWSL 24LB Simple Inkjet Coated Matte Paper (C2S) (446)
HP F40 Folder paper cutter
HP F60 Folder with Tab Applicator paper cutter
Questions
Straight answers
Is the HP 4100 still a current product?
No. It’s a legacy PageWide XL. For a new purchase, the current in-family options are the HP F40 and the step-up HP F60; it remains a sensible choice as an installed or refurbished department unit.
What inks and printheads does it use?
It runs the HP 843C 400-ml PageWide XL cartridges in Black, Cyan, Magenta and Yellow, serviced by the HP 841 printhead. Note that HP dynamic security is enabled, so third-party ink is risky.
Can it handle PDF bid sets directly?
Its listed page description languages are HP-GL/2, TIFF and JPEG — PDF isn’t native, so PDF-heavy workflows will submit through the print driver or a RIP rather than dropping files straight onto the machine.
Does it scan and copy as well as plot?
Yes. It offers color scanning and color copying using CIS technology at up to 1200 x 1200 DPI optical, with a maximum scan length of 708.7″ (18 m) for long profiles and as-builts.
How big is it and will it fit our print room?
It’s 77.2″ wide, 34″ deep and weighs 948 lbs, so it needs a dedicated department footprint — not a studio corner. It runs at a quiet 7.6 dB while printing and draws about 400 W typical, 1 W in sleep.
Is it too much machine for a small studio?
Likely, yes. A firm plotting a handful of boards a week is better served by a single-roll 36-in unit such as the Canon iPF770. The 4100’s value shows up when daily bid, permit and as-built volume justifies its speed and stacker.
