HP Latex 700 W

This is a better fit for project teams producing visual communication alongside technical documents than for a department devoted mainly to everyday plan sets. The listed 1200 x 1200 DPI maximum resolution supports a detailed output conversation, but resolution alone does not settle whether a printer fits your drawings. File processing, media behavior, loading time, take-up, trimming, and operator attention decide the real shift output.

For a general contractor, it can support changing site-signage and coordination needs. For an architecture or engineering group, it makes more sense when presentation graphics, map work, and project communication are regular jobs rather than occasional exceptions. The small-shop angle: do not buy a roll-production workflow if the work is mostly short-run bond plans and the operator is also your BIM manager.

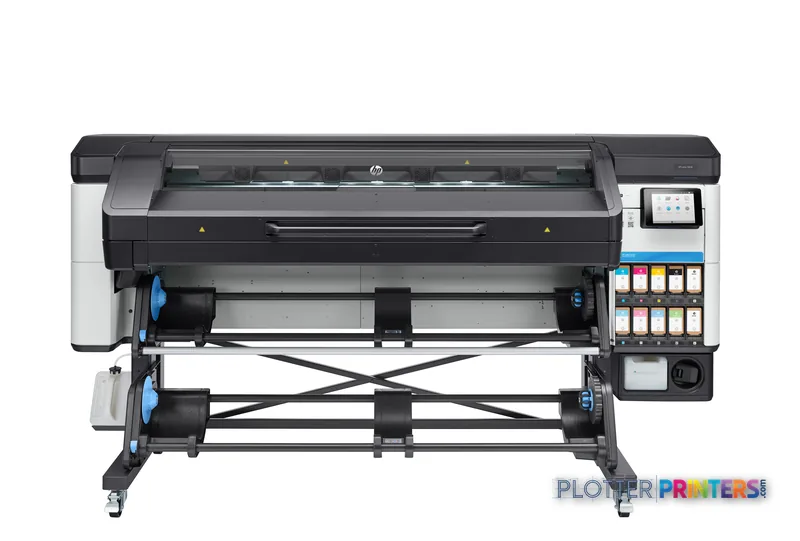

The supplied take-up reel and media-feed accessory matter because they reduce the awkward handling around longer output. Edge holders are also part of the box contents. Those are unglamorous details, but they are the details that keep a roll job moving.

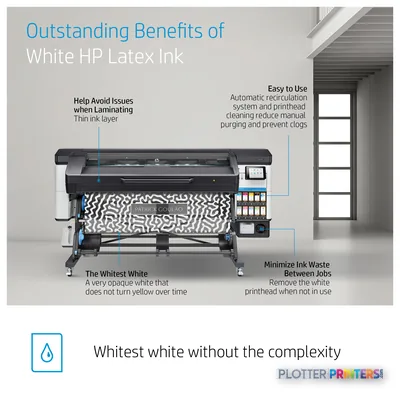

The listed printing colors include Black, Light magenta, Yellow, and White, and the machine uses nine print cartridges. White is relevant when a project graphic needs a more deliberate visual treatment than standard plan output. It does not automatically make every AEC print job better. A permit set, marked-up drawing package, or routine field revision may be faster and simpler on the equipment already assigned to document production.

Consumables should be discussed as an operating system, not as isolated boxes. The compatible list includes HP 832, HP 832M 1-liter Black Latex Ink Cartridge, HP 836, the HP Latex 700/800 Series Ink Collector Foams Kit, and the HP Latex 600/700/800 Series User Maintenance Kit. Ask who will stock them, who performs routine maintenance, and what happens when a job stops in the middle of a deadline.

For comparisons with narrower catalog alternatives, review the Epson SC-T5700D 36-in and Epson SureColor T5270DR 36-in in the context of your actual media and finishing workflow—not just image-resolution figures.

Ask three things: what feeds it, what dries it, who fixes it. First, identify the rolls and banner work that will run often enough to justify a dedicated wide-format production workflow. The listed paper-tray media type is Banner, so confirm every required substrate and application with the supplier before treating it as a universal AEC printer.

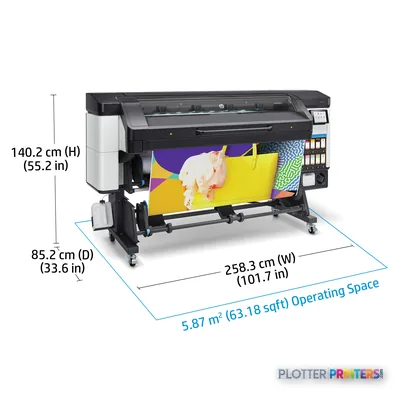

Second, map the physical workflow. At 101.7 inches wide, 33.5 inches deep, 55.2 inches high, and 588.6 pounds, this is not a casual desktop addition. Third, make service concrete: who owns daily checks, where consumables are held, and what your continuity plan is when the machine is unavailable. An hour of downtime is an operator standing still and a truck waiting.

There is no in-family step-up or step-down model in the supplied catalog list. Use the comparison tool with the Epson SC-P8500D 44-in to frame requirements, then check the wide-format class ranking for a broader catalog view.
