HP · Wide-Format Plotter

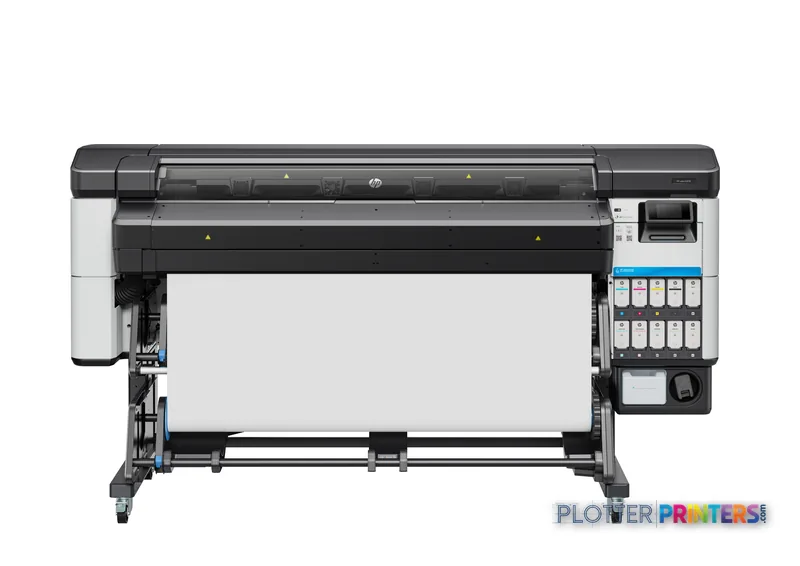

HP Latex 630 W
latex signage printer
- ModelLatex 630 W
- Score62/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- A Latex color graphics printer with a white ink channel — not a monochrome plan plotter.
- No scanning or copying; it does not serve bid-set or as-built line-work workflows.
- HP rates it at 35 m²/h in 2-pass; Latex ink cures dry, so output is ready to laminate or mount immediately.
Not sure if the Latex 630 W is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Ink platform Black, Light magenta, Yellow, White.
- Connectivity Ethernet for shared team printing.
- Verified specs 5 specs checked against the manufacturer datasheet.
- Analyst score Scores 62/100 in our class-relative rating.
Overview
A Latex machine built for color-heavy, durable output — not your bid-set plotter
Let’s be clear about what this is. The HP Latex 630 W is a water-based Latex printer running white plus color inks at 1200 x 1200 DPI. It’s a display-and-signage machine that happens to live near AEC work — think presentation boards, wayfinding, jobsite banners, backlit renderings and durable color graphics that need to survive weather and handling.
The white ink is the tell. If your shop produces window graphics, clear-film overlays or dark-substrate mounts, the white channel earns its keep. HP rates it at 35 m²/h in normal 2-pass mode. Real throughput depends on cure and media handling, not the datasheet number.
- Presentation and marketing boards for client and RFP submissions
- Durable jobsite and event banners on banner media
- Window, backlit and dark-substrate graphics needing white ink
- Reprographics shops adding a color-display service line
Where it’s the wrong tool: everyday monochrome bid sets, permit sets and redlines. It has no scanner, no copier and isn’t built for plain-bond plan production. For high-volume CAD plotting on 47-in rolls, an aqueous engineering plotter like the Epson SureColor T7270DR fits better. Need color renderings but not white ink? The Epson SC-P8500D covers that graphics work without the Latex cure workflow. Small shop? Only buy the white channel if you’ll actually sell it.
- 377 ft²/hRated speed
- 9Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Print technology
- HP Latex (water-based), 9 ink channels including White
- Max resolution
- 1200 x 1200 DPI
- Rated speed
- HP rates 35 m²/h in normal 2-pass mode
- Ink / printhead
- HP 832 and HP 833 inks; HP 836 printheads
- Media handling

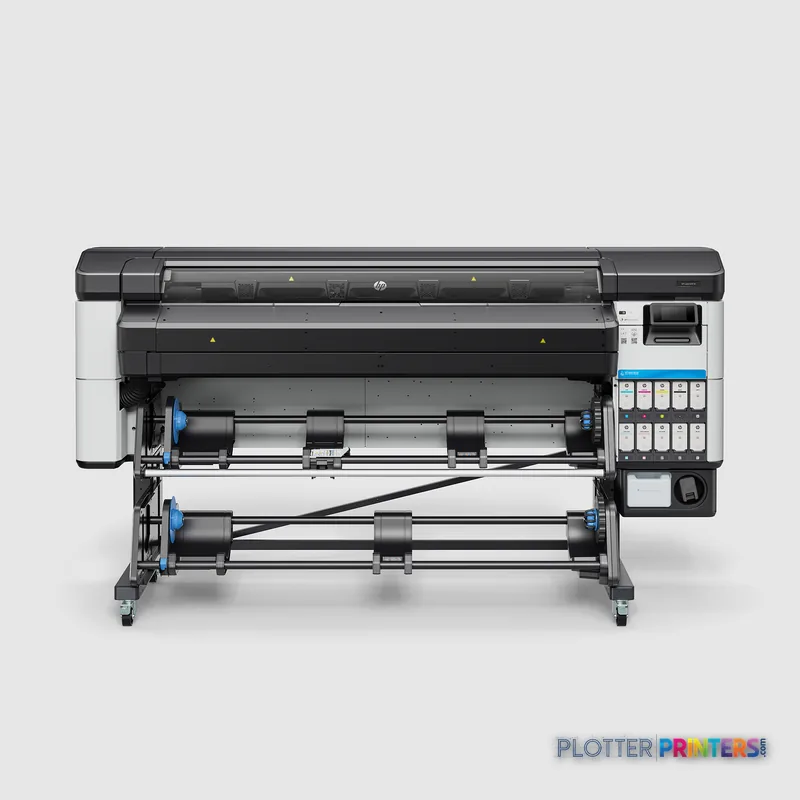

- Roll banner media plus cut sheets; take-up reel and edge holders included
- Connectivity
- Gigabit Ethernet (1000 Mbit/s)
- Software in box
- HP SAi Flexi RIP Basic; HP PrintOS (PrintBeat, Configuration Center, HP Learn)
- Footprint / weight
- 102.5" W x 33.2" D x 55.3" H; 520.3 lbs
Ideal for: color display graphics, banners, window/backlit and dark-substrate work needing white ink. Not the tool for: monochrome bid/permit sets, redlines, scanning/copying, or high-volume plain-bond CAD plotting.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- A Latex color graphics printer with a white ink channel — not a monochrome plan plotter.
- No scanning or copying; it does not serve bid-set or as-built line-work workflows.
- HP rates it at 35 m²/h in 2-pass; Latex ink cures dry, so output is ready to laminate or mount immediately.
- Nine-cartridge ink set using HP 832 and HP 833 inks on HP 836 printheads; take-up reel and RIP ship in the box.
- At 102.5 inches wide and 520 pounds, it needs dedicated floor space, not a corner.
- ENERGY STAR rated, with 2.5 W sleep and 0.25 W off-state draw.
Let’s be honest about what the HP Latex 630 W is and isn’t. This is a wide-format Latex printer built for color-heavy graphics work — banner media, presentation output, the kind of jobs where a white ink channel earns its keep. It is not a plan plotter. It doesn’t scan, it doesn’t copy, and it isn’t going to be your bid-set workhorse.
So why does it show up on an AEC evaluation list? Because plenty of firms run two workflows under one roof: the everyday check plots, and the presentation-grade color — renderings, site graphics, marketing boards, wayfinding for a project handover. The 630 W is aimed squarely at that second bucket.
35 m²/hPrint speed (normal quality)HP rates this at 2-pass
1200 x 1200 DPIMaximum resolution
9Ink cartridgesincluding a white channel
102.5" (2603 mm)Footprint widthclear the wall for it
What actually feeds it, dries it, and cuts it
Latex is the story here. The ink cures with heat as it prints, so output comes off the machine dry and handleable — no off-gassing wait before you laminate or mount. For a shop that turns presentation boards on a deadline, that drying behavior is the throughput win, not the rated speed.
The box ships with a take-up reel, edge holders, a printer stand, and the HP SAi Flexi RIP Basic software. It runs the HP 832 and HP 833 inks across a nine-cartridge set with a white channel, on HP 836 printheads. Media is banner-class and cut sheets. If you’re producing volume, the HP Latex 54 Plus and HP Latex 64 Plus Cutting Solution cutters and the HP Latex Substrate Saver Accessory are where your finishing time gets bought back.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 377 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it fits — and where it doesn't
Convert the rated pace into shop reality: at 35 m²/h in 2-pass, a wall of presentation boards is a comfortable single-shift job, and it comes off dry. The white ink lets you print on clear and colored media — useful for window graphics, backlit site signage, and coordination overlays that need opacity. The 1200 x 1200 DPI resolution is plenty for graphics and legible text on boards.
- Firms that produce their own presentation and marketing graphics — renderings, boards, wayfinding.
- Project handover signage and site graphics where white ink and dry-out-of-machine media matter.
- Small shops that want one color graphics device rather than outsourcing every board.
- ENERGY STAR-conscious offices — it idles at 2.5 W in sleep, 0.25 W off.
Where it’s the wrong tool: if your daily reality is monochrome check sets, permit sets and as-builts on bond, this isn’t it — no scanning, no copying, and it’s built for graphics, not high-volume line work. A dedicated aqueous plotter serves that better. If you need a straight color technical plotter with dual-roll unattended running, look at something like the Epson SureColor T7270DR 44-in instead. And note the 102.5-inch width and 520-pound weight — this needs real floor space and a stand, not a corner.
Compare and cross-shop
The read
The Latex 630 W is a color graphics machine that happens to live in AEC shops doing double duty. If you produce your own presentation boards, site signage and marketing graphics — and you value output that’s dry and mountable straight off the platen — it earns its floor space. If you’re buying a plan plotter, buy a plan plotter. Ask three things before you sign: what media path do you actually run, who cuts and finishes it, and who fixes the machine locally when a printhead goes down.
Where it sits in the field: see the head-to-head against the Canon iPF9000 60-in or the full class leaderboard.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 800 W
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Print technology | Latex printing |
|---|---|
| Printing colors | white |
| Print speed (HP-rated) | 10–11 m²/hmanufacturer-verified |
| Maximum resolution | 1200 x 1200 DPI |
| Printheads | Universal HP 836 Latex Printheadsmanufacturer-verified |
| Ink cartridge capacity | 1Lmanufacturer-verified |
| Internal storage | 10 GBmanufacturer-verified |
| Connectivity | Ethernet LAN, 1000 Mbit/s |
| Dimensions (W × D × H) | 102.5″ × 33.2″ × 55.3″ (2603 × 844 × 1405 mm) |
| Weight | 520.3 lbs (236 kg) |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyLatex printing
Max resolution1200 x 1200 DPI
ColorColor
ConnectivityEthernet (Gigabit LAN)
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Light magenta, Yellow, White |
| Print technology | Latex printing |
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 9 |
Performance
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
|---|---|
| Product color | Black, White |
| Country of origin | Singapore, Malaysia |
Paper handling
| Cut sheets | Yes |
|---|---|
| Paper tray media types | Banner |
Ports & interfaces
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
Technical details
| Box contents | HP Latex 630 W Printer, printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Basic Software, documentation software, power cords, air purgers, 2-in spindle adaptor |
|---|
Weight & dimensions
| Depth | 33.2" (844 mm) |
|---|---|
| Width | 102.5" (2603 mm) |
| Height | 55.3" (1405 mm) |
| Weight | 520.3 lbs (236 kg) |
Power
| AC input frequency | 50/60 Hz |
|---|---|
| Power consumption (off) | 0.25 W |
| Power consumption (sleep) | 2.5 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 44.5" (1130 mm) |
|---|---|
| Package width | 110.2" (2800 mm) |
| Package height | 50" (1271 mm) |
| Package weight | 778.2 lbs (353 kg) |
| Bundled software | HP PrintOS (PrintBeat, Configuration Center, HP Learn). Explore PrintOS premium software solutions within Professional Print Service Plans. |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Carbon footprint
| Total carbon footprint (kg of CO2e) | 3180 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 148 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Carbon emissions, manufacturing (kg of CO2e) | 2394 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 544 |
Brand-specific features
| HP GTIN (EAN/UPC) | 196786790850. 196786790867. 196786790874. 196786790881 |
|---|---|
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABG) 196786790850; (B19) 196786790867; (B1K) 196786790874; (BCD) 196786790881 |
Everything that fits the HP Latex 630 W
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
26 ink cartridges · 12 printheads · 12 paper & media items · 5 accessories · 10 coverage plans
HP Latex 630 W ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 630 W Printer — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 24
HP 831 Latex Maintenance Cartridge
HP 831 775-ml Latex Optimizer Ink Cartridge
HP 881 Latex Cleaning Roll
HP 871 3-liter Latex Optimizer Cartridge
HP 831 775-ml Latex Optimizer Ink Cartridge
HP 881 5-liter Cyan Latex Ink Cartridge
HP 881 5-liter Magenta Latex Ink Cartridge
HP 881 5-liter Latex Optimizer Cartridge
HP 881 5-liter Light Magenta Latex Ink Cartridge
HP 881 5-liter Yellow Latex Ink Cartridge
HP 881 5-liter Black Latex Ink Cartridge
HP 881 5-liter Light Cyan Latex Ink Cartridge
HP 832 1-liter White Latex Ink Cartridge
HP 832 1-liter Magenta Latex Ink Cartridge
HP 832 1-liter Black Latex Ink Cartridge
HP 832 1-liter Cyan Latex Ink Cartridge
HP 832 1-liter Light Cyan Latex Ink Cartridge
HP 832 1-liter Yellow Latex Ink Cartridge
HP 832 1-liter Optimizer Latex Ink Cartridge
HP 832 1-liter Light Magenta Latex Ink Cartridge
HP 832 1-liter Overcoat Latex Ink Cartridge
HP 832 Ink Mix Container
HP 833/838 Latex Ink Collection Unit (2-unit pack)
HP 833 Latex Maintenance CartridgePrintheads 5
Paper & Media 12
Representative image16 mil Water-Resistant Opaque Scrim VinylRepresentative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image180gsm Solvent Satin PE PaperRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image200gsm Special Matte Photo PaperRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil White Opaque BackerAccessories 4
Coverage & Support Plans 5
HP 1 year Post Warranty Plus Service Plan Hardware Support w/DMR for Latex 630 W
HP 832 1-liter Light Cyan Latex Ink Cartridge U67E7E HP 2 year Plus Service Plan Hardware Support w/DMR (U67E7E)HP 2 year Post Warranty Plus Service Plan Hardware Support w/DMR for Latex 630 W
HP 3 year Plus Service Plan Hardware Support w/DMR for Latex 630 W (In Warranty)
HP 832 1-liter Optimizer Latex Ink Cartridge U67F0E HP 5 year Plus Service Plan Hardware Support w/DMR (U67F0E)Questions
Straight answers

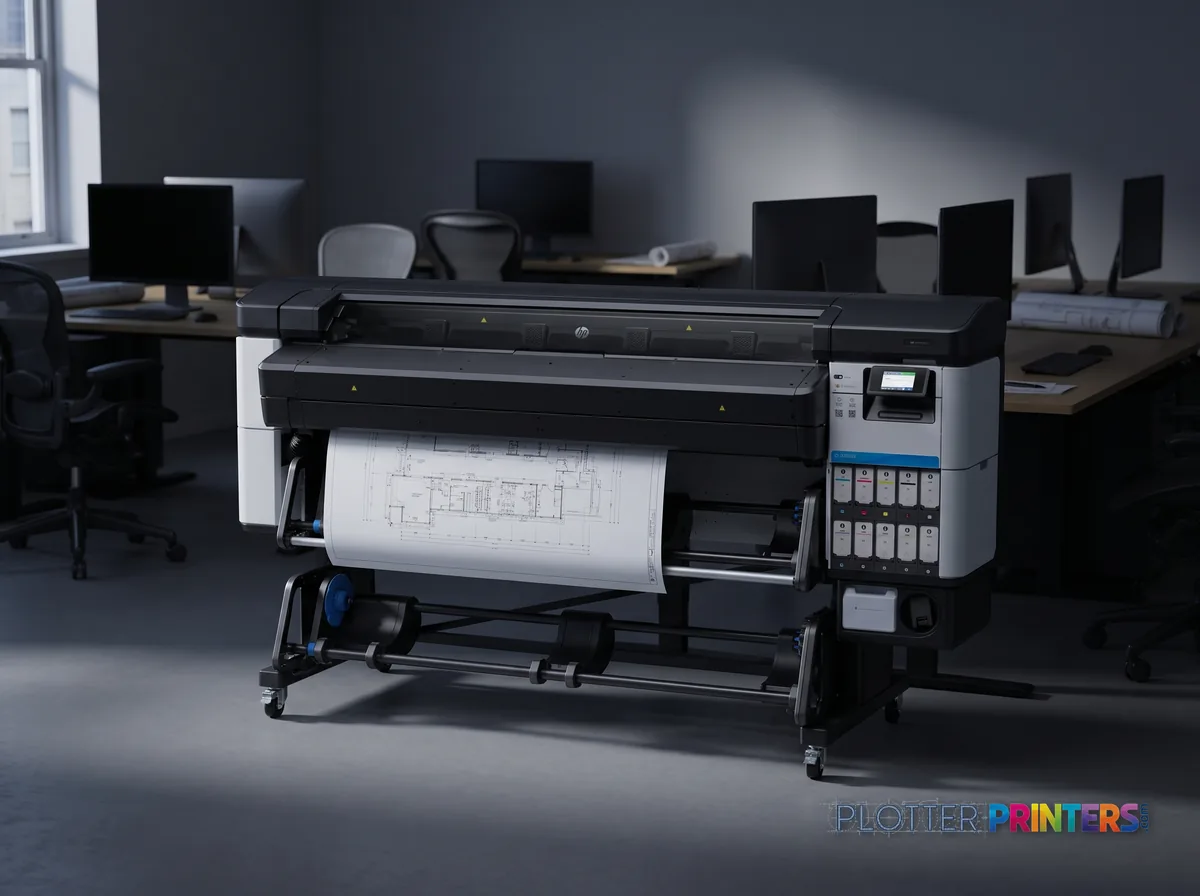

Can the Latex 630 W print my construction drawings and bid sets?
It can print on cut sheets and banner media, but it’s built for color graphics, not high-volume monochrome line work. It has no scanning or copying, so it won’t replace a dedicated plan plotter for permit sets, as-builts or redlines.
What's the white ink for?
The nine-cartridge set includes a white channel, which lets you print opaque graphics on clear and colored media — useful for window graphics, backlit site signage and overlays that need to read on non-white substrates.
How fast is it in real production terms?
HP rates it at 35 m²/h in 2-pass normal quality. Because Latex ink cures with heat, output comes off dry and mountable, so your real gain is skipping the dry-time wait before lamination or takedown — not just the rated pace.
Which inks and printheads does it use?
It runs HP 832 and HP 833 inks across nine cartridges on HP 836 printheads, with the HP Latex 600/700/800 Series User Maintenance Kit for upkeep.
How much space does it need?
It’s 102.5 inches wide, 33.2 inches deep and weighs about 520 pounds on its stand. Plan for a dedicated wall and real floor clearance, plus room to work the take-up reel.
If I mainly need a color technical plotter, what should I look at instead?
A dual-roll aqueous plotter is a better fit for unattended color line work — the Epson SureColor T7270DR 47-in is the kind of machine to cross-shop for that use case.
