HP · Wide-Format Plotter
HP Latex 630
latex signage printer
- ModelLatex 630
- Score61/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take

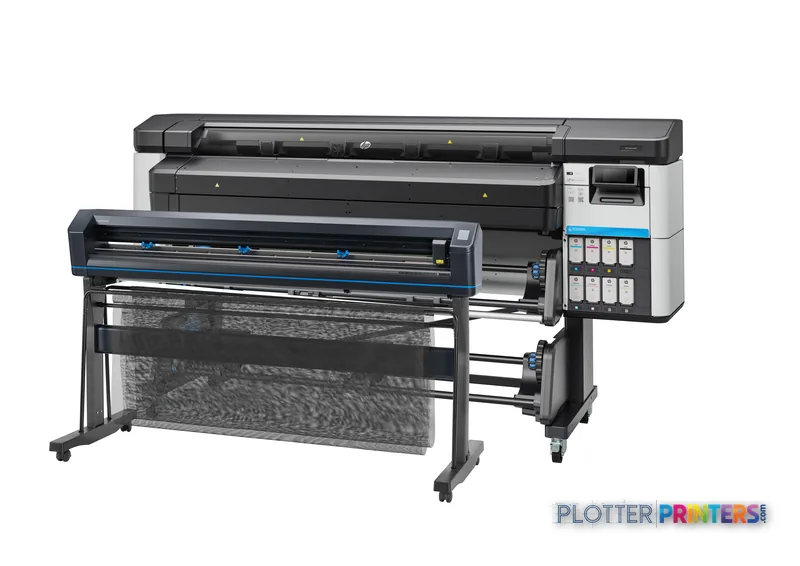

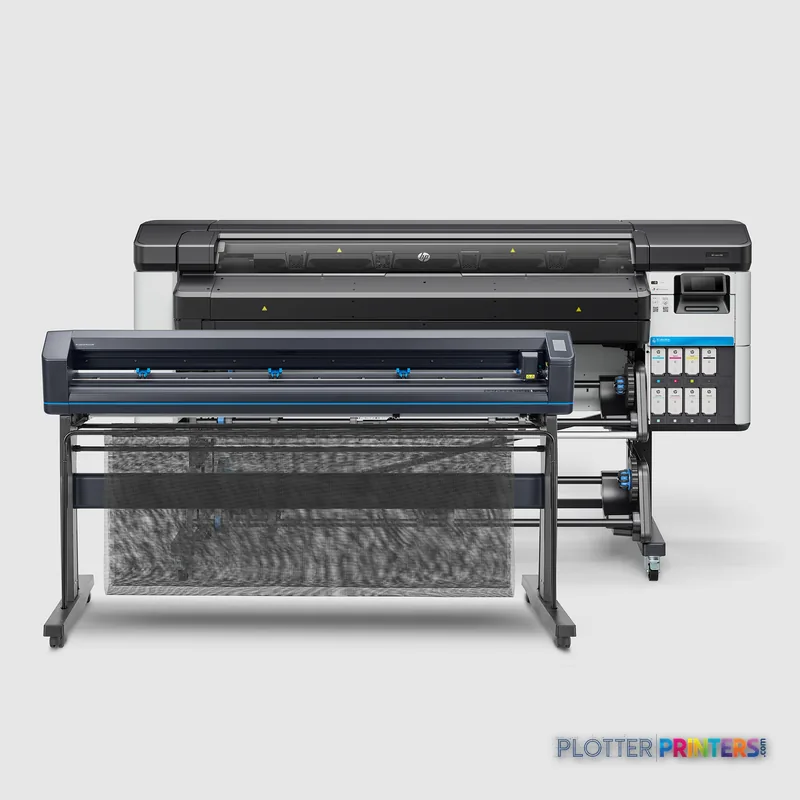

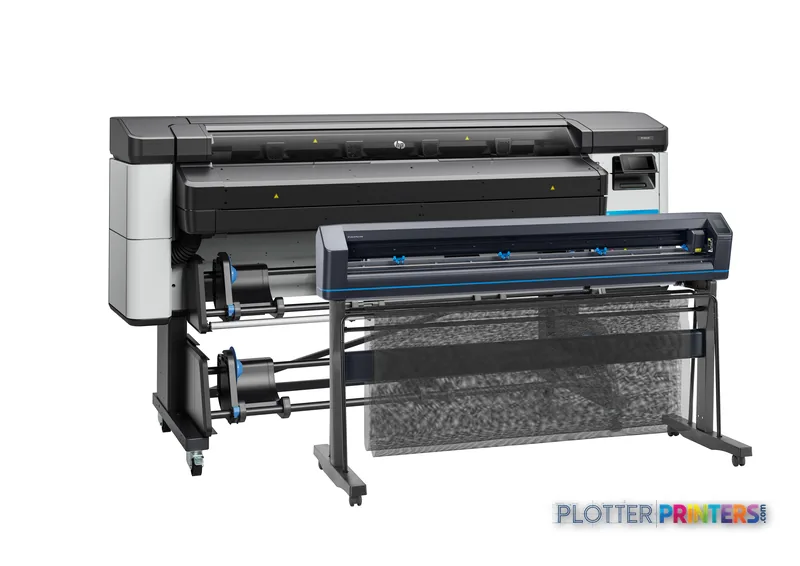

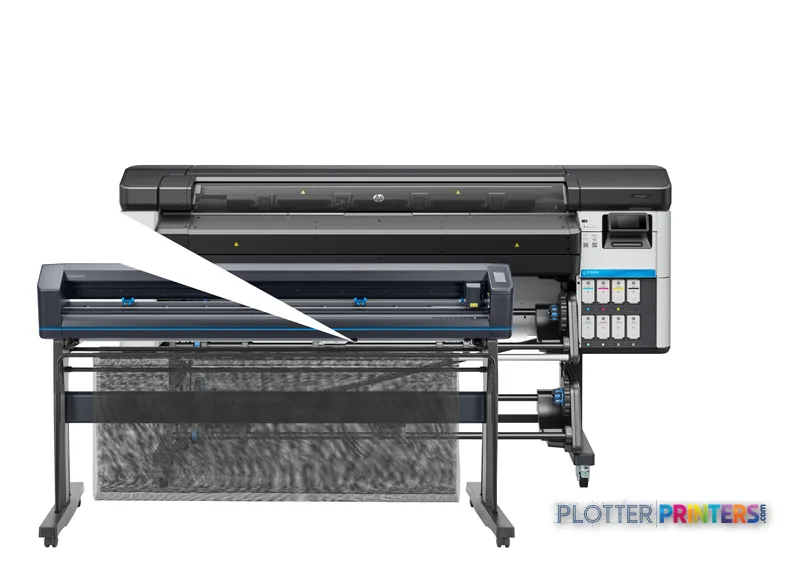

- This is a two-piece print-and-cut signage cell — a Latex 630 printer plus an HP Latex 64 Plus Cutter — not a plan-room plotter.
- Latex ink cures dry on the belt, so cured prints move straight to lamination, mounting or the cutter with no drying rack.
- HP rates the printer at 35 m²/h (377 ft²/h) in 2-pass normal mode, but that figure covers the print pass only.
Not sure if the Latex 630 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Productivity Rated at 10–11 m²/h (HP-rated; additional modes cited).
- Ink platform Black, Light magenta, Yellow.
- Verified specs 7 specs checked against the manufacturer datasheet.
- Analyst score Scores 61/100 in our class-relative rating.
Overview
A print-and-cut Latex rig for AEC shops that need more than plain-paper plots
Most AEC print rooms run plotters for bid sets and permit drawings. This is a different animal. The HP Latex 630 Print and Cut Plus Solution pairs a Latex printer with the HP Latex 64 Plus Cutter, so you print and contour-cut in one workflow. Think jobsite signage, safety graphics, wayfinding, presentation boards and durable banners — output that has to survive weather and handling, not just live in a plan set.
Latex ink cures on the printer and comes off touch-dry, so prints go straight to lamination or the take-up reel without a solvent gassing-off wait. HP rates it at 35 m²/h (377 ft²/h) at normal 2-pass quality; that’s the printer’s pace, not your finished-job pace — add loading, the cut pass and takedown. Resolution is 1200 x 1200 dpi. It runs standard U.S. wall current and carries ENERGY STAR.
- Site signage, hoarding graphics and wayfinding a GC needs on demand
- Presentation boards and rendered exhibits for client meetings
- Durable banners for safety, phasing and project branding
- Small-to-mid shops adding graphics without a second solvent machine
Where it’s not the tool: this is a graphics device, not a document plotter. For high-volume monochrome bid and permit sets on bond, a dedicated wide-format plotter stays cheaper per square foot. Buy this when cut vinyl and durable color are the job — not when you just need drawings.
- 377 ft²/hRated speed
- 8Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
At a glance
- Configuration
- Latex 630 printer + HP Latex 64 Plus Cutter, print-and-cut workflow
- Rated print speed
- HP rates 35 m²/h (377 ft²/h) at normal 2-pass quality
- Resolution
- 1200 x 1200 dpi
- Ink / printhead
- HP 832 and HP 833 inks; HP 836 printheads (8 cartridges)
- Power
- 100–240 V, 50/60 Hz; ENERGY STAR certified
- Standby draw
- 2.5 W sleep, 0.25 W off
- Included finishing
- Take-up reel, edge holders, cutter with media basket, standard blades
- Software
- HP SAi Flexi RIP Print & Cut, HP Cutter Control, HP PrintOS (PrintBeat, Configuration Center, HP Learn)
Ideal for: GCs, architects and mid-sized practices producing durable site signage, banners and presentation graphics with contour cutting in one pass through the shop. Not the tool for: high-volume monochrome bid, permit and as-built sets on bond — a dedicated document plotter costs less per square foot for that work.
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- This is a two-piece print-and-cut signage cell — a Latex 630 printer plus an HP Latex 64 Plus Cutter — not a plan-room plotter.
- Latex ink cures dry on the belt, so cured prints move straight to lamination, mounting or the cutter with no drying rack.
- HP rates the printer at 35 m²/h (377 ft²/h) in 2-pass normal mode, but that figure covers the print pass only.
- It prints at 1200 x 1200 DPI and carries 8 ink cartridge slots.
- It fits jobsite signage, site-fence graphics, adhesive decals and boards — not bond-paper bid or permit sets.
- It runs on standard 100–240 V and carries ENERGY STAR certification, so most shops need no special power drop.
Here’s the thing about the HP Latex 630 Print and Cut Plus Solution: it isn’t a plotter. It’s a two-machine cell — a Latex printer paired with the HP Latex 64 Plus Cutter — aimed at print-and-cut production, not bid-set output. If you walked over expecting a bond-paper plan plotter, keep walking. If you print jobsite signage, wayfinding, site-fence graphics, safety boards and adhesive-vinyl decals, this is a different conversation.
Latex ink cures with heat and comes off the printer dry. That matters on a shop floor: a cured print goes straight to lamination, mounting or the cutter without a drying rack tying up floor space.
35 m²/hRated print speedHP rates this as max 2-pass speed (377 ft²/h)
1200 x 1200 DPIPrint resolution
8Ink cartridgesonboard slots
2.5 WPower (sleep)
What actually feeds it, and what comes off

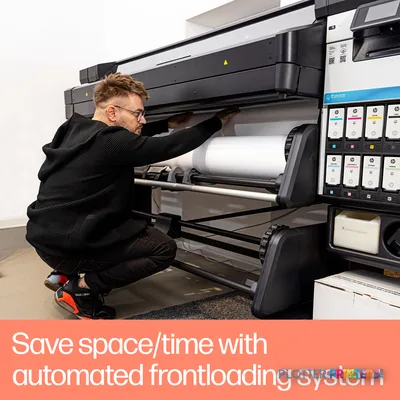

Rated speed gets you one banner. Media handling gets you forty by Friday. The 630 ships with a take-up reel, edge holders and a 2-in spindle adaptor; the Latex 64 Plus Cutter arrives with its own stand, media basket, standard blades and 3-in flanges. HP rates the printer at 35 m²/h in 2-pass normal mode — but that’s the print pass only. Your real throughput is a chain: load roll, print, cure, move to the cutter, register, cut, weed, take down.
The cure step is the quiet win. Because Latex output is dry at the end of the belt, an operator isn’t standing over a drying rack — the print moves. That’s where the jobs-per-shift math beats the rated number for anyone running mixed signage. To size it against the wider signage field, our class ranking page puts the rated pace in context.
Estimate plot times for your own run lengths.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 377 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Where it fits in an AEC shop
This machine earns its footprint in a specific set of jobs, not in the plan room.
- Jobsite and safety signage — printed, cured and cut in one cell without outsourcing.
- Site-fence and hoarding graphics on banner media, the tray media type this printer is built around.
- Adhesive vinyl decals and labels where the cutter’s contour cutting does the finishing.
- Presentation and wayfinding boards that need durable, dry-to-handle output.
Feed it with the HP 832 and HP 833 inks and the HP 836 printheads; keep the HP Latex 600/700/800 Series User Maintenance Kit on the shelf. It carries ENERGY STAR certification and runs on standard 100–240 V — no special power drop for most shops.
Where it is NOT the right tool
Be honest about the gap. If your daily grind is monochrome bid sets, permit sets and as-builts on 20-lb bond, this is the wrong machine — that work belongs on an aqueous or LED plan plotter, and you should read how we rate those classes before you spend. The 630 is a print-and-cut signage cell that happens to live in an AEC world, not a plan-room workhorse. Our catalog doesn’t list an in-family step-up or step-down neighbour for it here, so if you need a wider dual-roll signage platform, treat that as a separate evaluation rather than assuming a bigger sibling exists.
The read
Ask three things before you sign: what feeds it, what dries it, who fixes it. This machine answers the middle question well — Latex cures dry, so nothing waits on a rack. Feeding and cutting are yours to plan around, and the two-piece cell wants real floor space. For an AEC shop that produces its own jobsite signage, decals and boards, the Latex 630 Print and Cut Plus Solution keeps that work in-house and off the outsourcing invoice. For plan-room output, it’s the wrong tool — buy the plotter for that, and let this one do signage. Small-shop angle: it’s one operator’s cell, not a print-room fleet, so size it to a person, not a department.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 800 W
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Print technology | HP Latexmanufacturer-verified |
|---|---|
| Print speed | 10–11 m²/h (HP-rated; additional modes cited)manufacturer-verified |
| Maximum resolution | 1200 x 1200 DPI |
| Ink cartridge capacity | 1 Lmanufacturer-verified |
| Color calibration | HP Embedded Spectrophotometermanufacturer-verified |
| Internal storage | 10 GBmanufacturer-verified |
| Media type | Banner |
| Warranty | 3M MCS Warrantymanufacturer-verified |
| Certification | EPEAT & UL ECOLOGO |
| Power consumption (sleep / off) | 2.5 W / 0.25 W |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Max resolution1200 x 1200 DPI
ColorColor
Use caseGraphics / Production
Printing
| Printing colors | Black, Light magenta, Yellow |
|---|---|
| Resolution color | 1200 x 1200 DPI |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 8 |
Performance
| Certification | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC) |
|---|---|
| Country of origin | China, Malaysia |
Paper handling
| Paper tray media types | Banner |
|---|
Technical details
| Box contents | Printer: HP Latex 630 Printer, printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Print Cut Software, documentation software, power cords, air purgers, 2-in spindle adaptor; Cutter: HP Latex 64 Plus Cutter, cutter stand, media basket, HP Cutter Control software, quick reference guide, setup poster, documentation software, power cords, standard holder (1), standard blades (2), cut-off knife (1), 3-in media flanges (set of 2) |
|---|
Weight & dimensions
| Depth | 33.2" (844 mm) |
|---|
Power
| AC input voltage | 100 – 240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Power consumption (off) | 0.25 W |
| Power consumption (sleep) | 2.5 W |
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|
Other features
| UNSPSC-code | 43212104 |
|---|---|
| Electromagnetic compatibility | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC) |
Packaging data
| Package depth | 44.5" (1130 mm) |
|---|---|
| Bundled software | HP PrintOS (PrintBeat, Configuration Center, HP Learn). Explore PrintOS premium software solutions within Professional Print Service Plans. |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Carbon footprint
| Total carbon footprint (kg of CO2e) | 4990 |
|---|---|
| Carbon emissions, logistics (kg of CO2e) | 148 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Carbon emissions, manufacturing (kg of CO2e) | 2394 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2353 |
Brand-specific features
| HP GTIN (EAN/UPC) | 196786790782. 196786790799. 196786790805. 196786790812 |
|---|---|
| HP dynamic security | Yes |
| HP GTIN (EAN/UPC) with options | (ABG) 196786790782; (B19) 196786790799; (B1K) 196786790805; (BCD) 196786790812 |
Everything that fits the HP Latex 630
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
14 ink cartridges · 7 printheads · 12 paper & media items · 5 accessories · 10 coverage plans
HP Latex 630 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 630 Print and Cut Plus Solution — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 12
HP Latex Standard Blade Kit
HP Latex Specialty Blade Kit
HP 832 1-liter Magenta Latex Ink Cartridge
HP 832 1-liter Black Latex Ink Cartridge
HP 832 1-liter Cyan Latex Ink Cartridge
HP 832 1-liter Light Cyan Latex Ink Cartridge
HP 832 1-liter Yellow Latex Ink Cartridge
HP 832 1-liter Optimizer Latex Ink Cartridge
HP 832 1-liter Light Magenta Latex Ink Cartridge
HP 832 1-liter Overcoat Latex Ink Cartridge
HP 833/838 Latex Ink Collection Unit (2-unit pack)
HP 833 Latex Maintenance CartridgePrintheads 6
HP 836 Optimizer Latex Printhead print head Thermal inkjet
HP 836 Overcoat Latex Printhead print head Thermal inkjet
HP 836 Magenta/Yellow Latex Printhead print head Thermal inkjet
HP 836 Black/Cyan Latex Printhead print head Thermal inkjet
HP 836 Light Cyan/Light Magenta Latex Printhead print head Thermal inkjet
HP 836 Universal Latex Printhead print head Thermal inkjetPaper & Media 12
Representative image16 mil Water-Resistant Opaque Scrim VinylRepresentative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image180gsm Solvent Satin PE PaperRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image200gsm Special Matte Photo PaperRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil White Opaque BackerAccessories 5
Coverage & Support Plans 5
HP 832 1-liter Optimizer Latex Ink Cartridge U67FMPE HP 1 year Post Warranty Plus Service Plan Hardware Support w/DMR (U67FMPE)
HP 832 1-liter Overcoat Latex Ink Cartridge U67FNPE HP 2 year Post Warranty Plus Service Plan Hardware Support w/DMR (U67FNPE)HP 2 year Plus Service Plan Hardware Support w/DMR for Latex 630 Print Cut (In Warranty)
HP 832 1-liter Light Cyan Latex Ink Cartridge U67FJE HP 3 year Plus Service Plan Hardware Support w/DMR (U67FJE)
HP 832 1-liter Light Magenta Latex Ink Cartridge U67FLE HP 5 year Plus Service Plan Hardware Support w/DMR (U67FLE)Questions
Straight answers
Can I print permit sets and as-builts on this?
It’s not built for that. The 630 is a print-and-cut signage cell aimed at banner and vinyl media; monochrome bond-paper plan work belongs on a dedicated plotter.
Is the ink dry when it comes off the printer?
Yes. Latex ink cures with heat, so output leaves the machine dry and ready for lamination, mounting or cutting without a drying rack.
What inks and printheads does it use?
It runs on HP 832 and HP 833 inks with HP 836 printheads. Keep the HP Latex 600/700/800 Series User Maintenance Kit on hand for scheduled upkeep.
Does the cutter come with the printer?
Yes. The Plus Solution bundles the HP Latex 64 Plus Cutter with its own stand, media basket, standard blades, cut-off knife and 3-in media flanges, plus HP Cutter Control software.
What power does it need?
It accepts standard 100–240 V at 50/60 Hz, so most shops won’t need a special electrical drop. It draws about 2.5 W in sleep and is ENERGY STAR certified.
How much floor space should I plan for?
Plan for two stations, not one — the printer and the separate cutter each have their own stand. The printer body is 33.2 in (844 mm) deep; budget bench and takedown room around both.
