Epson · Wide-Format Plotter

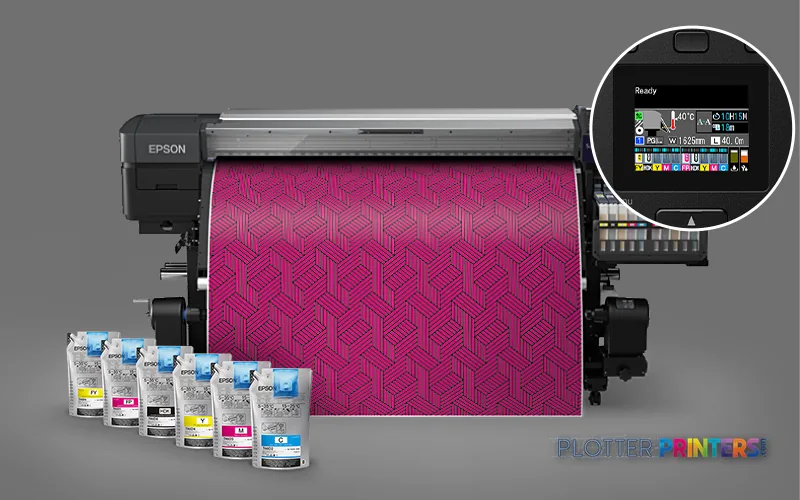

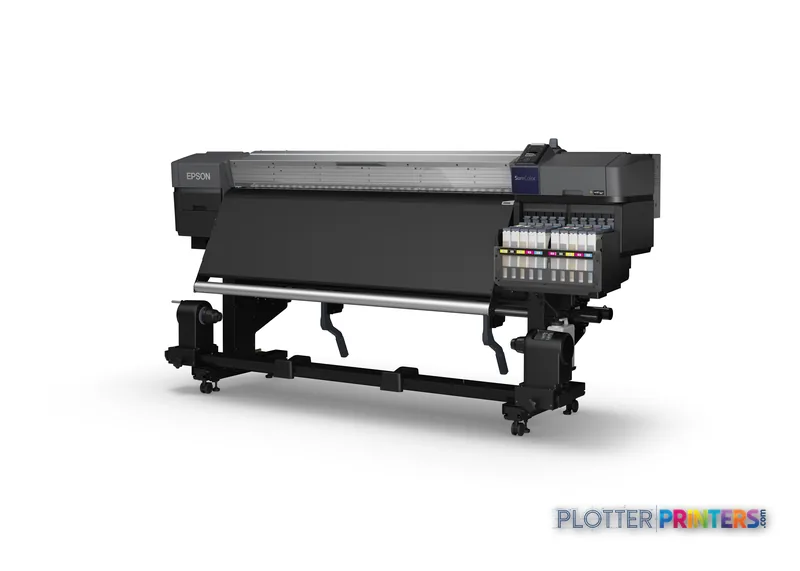

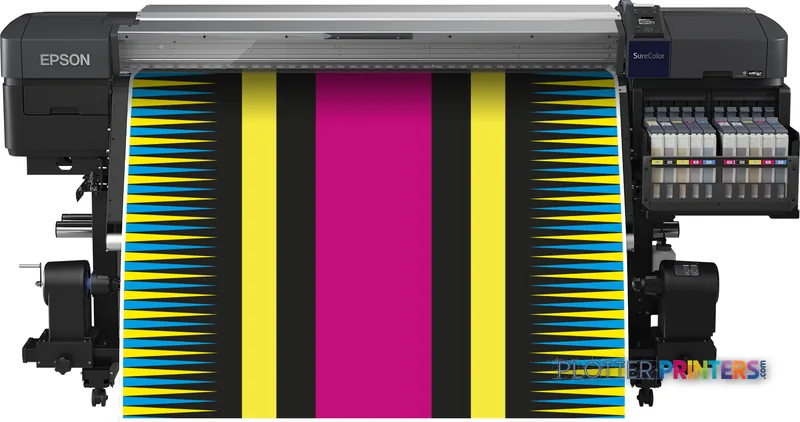

Epson SureColor SC-F9400H
technical / CAD plotter
- ModelSC-F9400H
Authorized Epson dealerGenuine hardware & ink
Manufacturer warrantyExtendable to 5 years
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The SC-F9400H is a color inkjet device with roll-paper support and a maximum A0 print size.
- Its listed CMYK ink configuration and Epson transfer-media supplies point to specialty graphic-output workflows rather than routine bond-paper plan production.
- It has no scanning, copying, Wi-Fi, or USB port, so it cannot replace a multifunction plan-room device.
Not sure if the SC-F9400H is right for you?
Compare key specs and an AI analyst read-out against similar models.
Overview
Built for the work
Epson SureColor SC-F9400H, Inkjet, 720 x 1440 DPI, Black, Cyan, Magenta, Yellow, A0 (841 x 1189 mm), A0, A1, A2, 0.4 – 1 mm
Expert analysis
What you should know
Key takeaways
- The SC-F9400H is a color inkjet device with roll-paper support and a maximum A0 print size.
- Its listed CMYK ink configuration and Epson transfer-media supplies point to specialty graphic-output workflows rather than routine bond-paper plan production.
- It has no scanning, copying, Wi-Fi, or USB port, so it cannot replace a multifunction plan-room device.
- The 103.1-inch width and 639.3-pound weight require a deliberate delivery, placement, and service-clearance plan.
- The Epson SC-F9400 64-in is the first in-family comparison to make when reviewing a similar-format alternative.
At 4:45 p.m., this is not the machine for a last-minute permit set. It is a wide-format color inkjet built around transfer-media work, where an AEC team needs graphic output for branded site materials, event displays, wayfinding concepts, or coordination visuals that go beyond ordinary bond-paper drawings. The Epson SC-F9400H prints in black, cyan, magenta, and yellow, with roll-media support and a maximum A0 print size.
That distinction matters. A plotter can be judged by how it handles a mixed plan set. This machine should be judged by whether its transfer-media workflow belongs in your in-house production chain. It has no scanning, copying, Wi-Fi, or USB port, so it is not a substitute for a networked multifunction plan-room device.
A0 (33" x 47" (841 x 1189 mm))Maximum print size
720 x 1440 DPIMaximum resolution
0.016"–0.039" (0.4 – 1 mm)Media thickness
639.3 lbs (290 kg)Installed weight
Where it fits in an AEC operation
The SC-F9400H makes sense when the print room supports the visual side of construction and design work as well as documents: project branding, site-team graphics, trade-show material, color-coded displays, and presentation output routed through a transfer process. Roll-paper support helps when work comes in longer runs rather than as a handful of sheets.
Its 720 x 1440 DPI maximum resolution gives the operator a defined ceiling for detailed color artwork. But resolution is not a promise of fine CAD-line performance on plain bond. The supplied facts do not establish ordinary-bond plan quality, productive drawing speed, roll switching, stacking, or finishing behavior. Those are the questions to test before somebody promises it can carry Friday’s issue set. That is how innocent equipment purchases become office folklore.
For supplies, the relevant ecosystem includes Epson UltraChrome DS inks, an Epson Waste ink bottle, and Epson transfer media. Confirm that the intended transfer media, finishing process, and output application are all part of the same workflow before placing the machine in the print room.
Bottom line: This is a specialty color-output device for AEC visual applications, not a general-purpose CAD plotter.
Network, space, and operating reality
This is a substantial installation: 103.1 inches wide, 36.8 inches deep, 52.4 inches high, and 639.3 pounds. That affects delivery routes, floor loading, service clearance, and where the operator can load media without blocking the room. The LCD display provides local status access, while the listed Windows support covers Windows 10 and Windows 7.
IT should not assume walk-up connectivity. Wi-Fi and USB are both listed as absent. Confirm the required network connection method, driver workflow, authentication requirements, and job-accounting path with the supplier. Also ask who owns routine consumable handling and waste-bottle replacement. A print room runs well when those answers exist before the first deadline, not after it.
Bottom line: The footprint and connectivity model make this a planned production-room installation, not a casual office add-on.
How it sits within the family
The closest catalog comparison is the Epson SC-F9400 64-in. It is the sensible first comparison when format and workflow requirements are similar. The Epson SC-F6400H 44-in is the smaller-format in-family alternative to review when available floor space and media width point away from a larger platform.
Do not choose solely from the suffix on the front panel. Compare the actual media workflow, required output size, connectivity, supply availability, and who will operate the device. For a side-by-side starting point, use the SC-F9400H and SC-F9400 comparison. If your real need is construction drawings on bond, move the conversation back to dedicated technical-document equipment rather than forcing a transfer-media printer into that role.
Bottom line: Compare within the family first, but let the application decide—not the model number.
Related equipment and evaluation tools
The read
The Epson SC-F9400H belongs in an AEC environment only when specialty color graphics and a transfer-media workflow are genuine in-house needs. It can support the presentation and project-identity side of the business. It is not equipped to scan, copy, or replace the everyday plan printer. Buy it for the work it is built around, and the 5 p.m. conversation gets much shorter.
Spec analysis
How the specs grade
Overall performance
—Not enough data for an overall score
Individual dimensions are shown where the specs support them.
- This printer
- Epson SureColor T5270DR
Category leaders best technical / CAD plotters, by dimension
Verified specifications
The specs that decide it
| Print technology | Inkjet |
|---|---|
| Maximum resolution | 720 x 1440 DPI |
| Printing colors | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | 0.4 – 1 mm |
| Scanning | No |
| Wi-Fi | No |
| Power consumption | 570 W |
Specifications
Full technical detail
Print technologyInkjet
Max resolution720 x 1440 DPI
ColorColor
Use caseGraphics / Production
Printing
| Color | Yes |
|---|---|
| Printing colors | Black, Cyan, Magenta, Yellow |
| Print technology | Inkjet |
| Maximum resolution | 720 x 1440 DPI |
| Number of print cartridges | 4 |
Performance
| Display | LCD |
|---|---|
| Product color | Black |
| Built-in display | Yes |
| Country of origin | China |
Paper handling
| Roll paper | Yes |
|---|---|
| Media thickness | 0.4 – 1 mm |
| Maximum print size | A0 (841 x 1189 mm) |
| ISO A-series sizes (A0…A9) | A0, A1, A2 |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | No |
Weight & dimensions
| Depth | 36.8" (934 mm) |
|---|---|
| Width | 103.1" (2620 mm) |
| Height | 52.4" (1332 mm) |
| Weight | 639.3 lbs (290 kg) |
Power
| Power consumption (off) | 1 W |
|---|---|
| Power consumption (typical) | 570 W |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Logistics data
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Manual | Yes |
|---|---|
| Package depth | 113" (2870 mm) |
| Package width | 43.3" (1100 mm) |
| Package height | 67.7" (1720 mm) |
| Package weight | 1067 lbs (484 kg) |
System requirements
| Windows operating systems supported | Windows 10, Windows 7 |
|---|
Everything that fits the Epson SureColor SC-F9400H
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
9 ink cartridges · 2 coverage plans
Epson SureColor SC-F9400H ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the Epson SureColor SC-F9400H 64-in — only the cartridges, printheads and media compatible with this model.

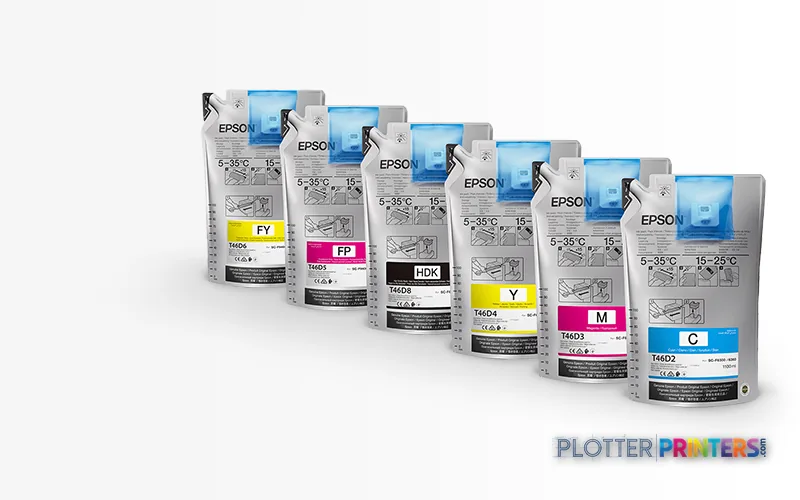

Ink Cartridges 9
Epson DS Transfer Multi-Purpose 111.8cm x 91.4m
Epson UltraChrome DS Cyan T46D240 (1.1Lx6)
Epson UltraChrome DS Magenta T46D340 (1.1Lx6)
Epson UltraChrome DS Yellow T46D440 (1.1Lx6)
Epson UltraChrome DS High Density Black T46D840 (1.1Lx6)
Epson DS Transfer Multi-Purpose II, 111.8cm x 91.4m
Epson DS Transfer Multi-Purpose II, 61cm x 91.4m
Epson DS Transfer Production II, 111.8cm x 152m
Epson DS Transfer Production II, 162cm x 175m
Questions
Straight answers
Can the Epson SC-F9400H replace our CAD plotter?
Not on the supplied evidence. It has no scanning or copying, and the available product data does not establish plain-bond CAD productivity, plan-set collation, or technical-document workflow features.
What AEC work is it most suited to?
It is most credible for specialty color graphics used around projects: presentation material, project branding, displays, and visual communication routed through a transfer-media process.
What media can it handle?
It supports roll paper and lists a media-thickness range of 0.016 to 0.039 inches. The compatible supply list includes Epson transfer media in several widths and lengths.
What should IT verify before installation?
Verify the network connection method, driver process, authentication needs, and accounting workflow. Wi-Fi and USB are listed as absent, while Windows 10 and Windows 7 are listed as supported.
How much room does the machine need?
The printer is 103.1 inches wide, 36.8 inches deep, and 52.4 inches high, with a listed weight of 639.3 pounds. Plan the delivery path, operating space, and service access accordingly.
