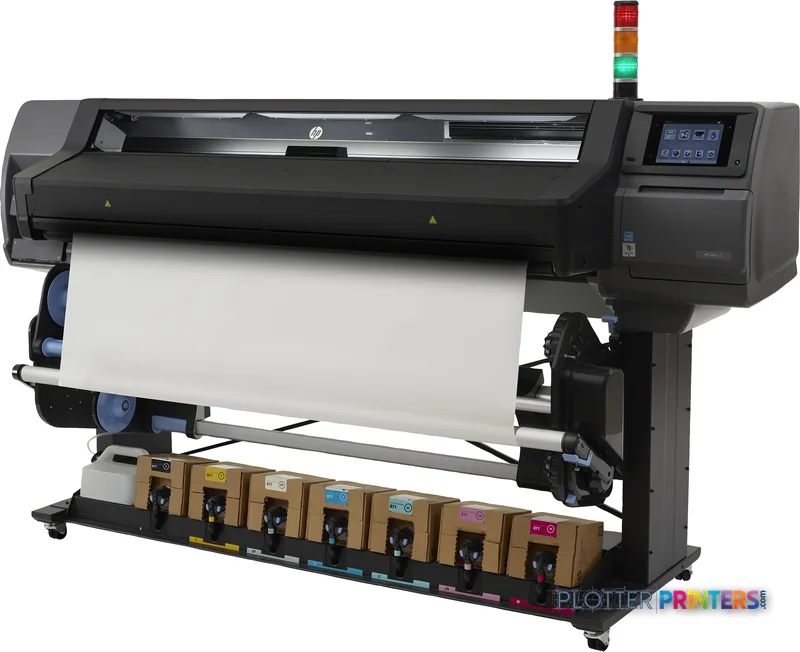

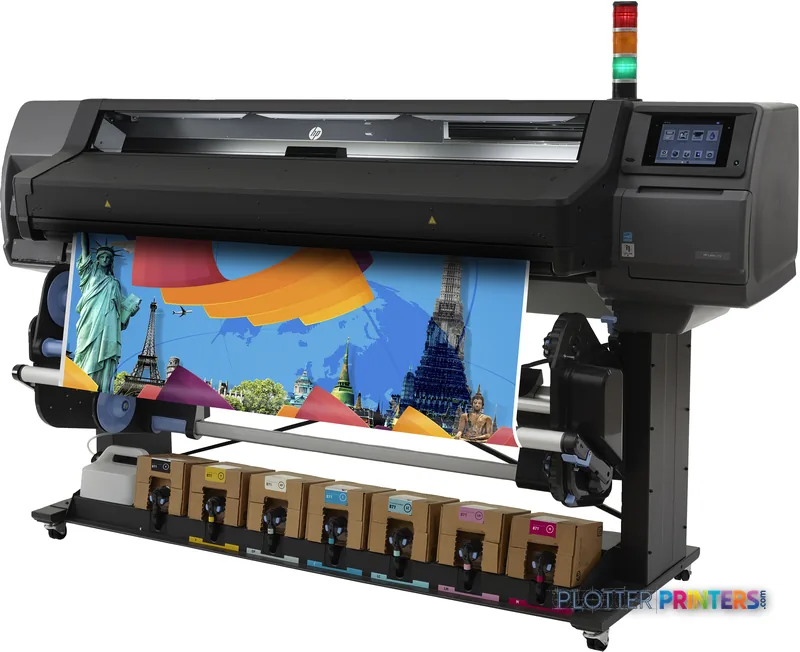

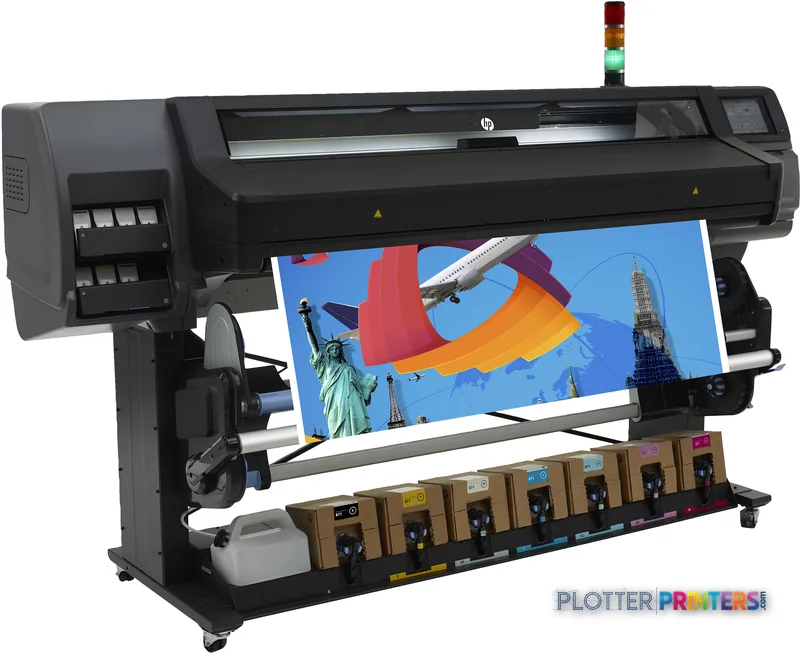

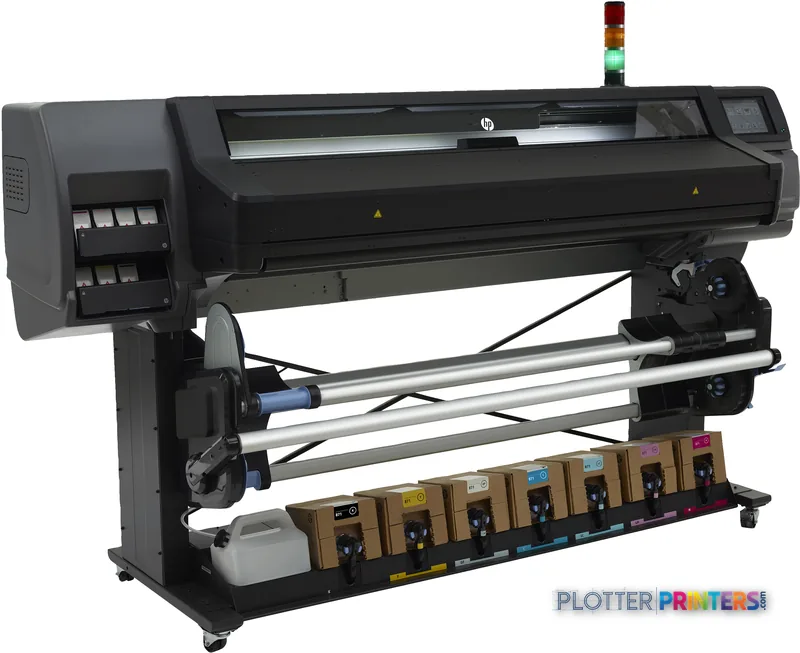

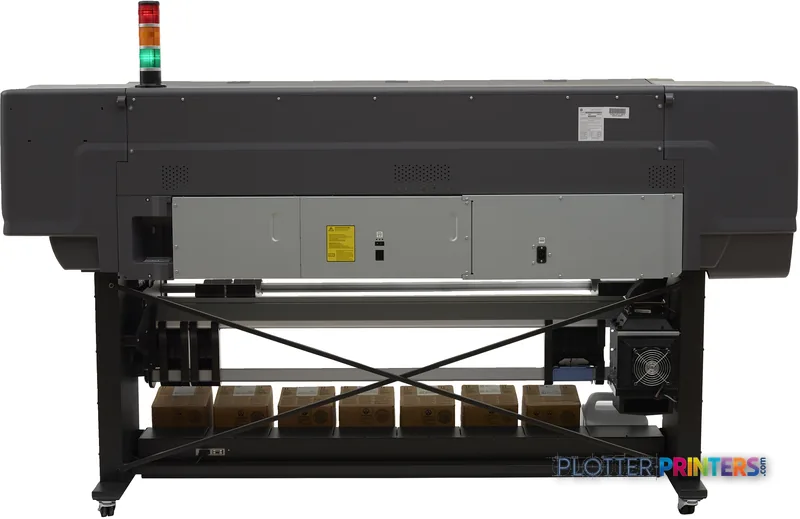

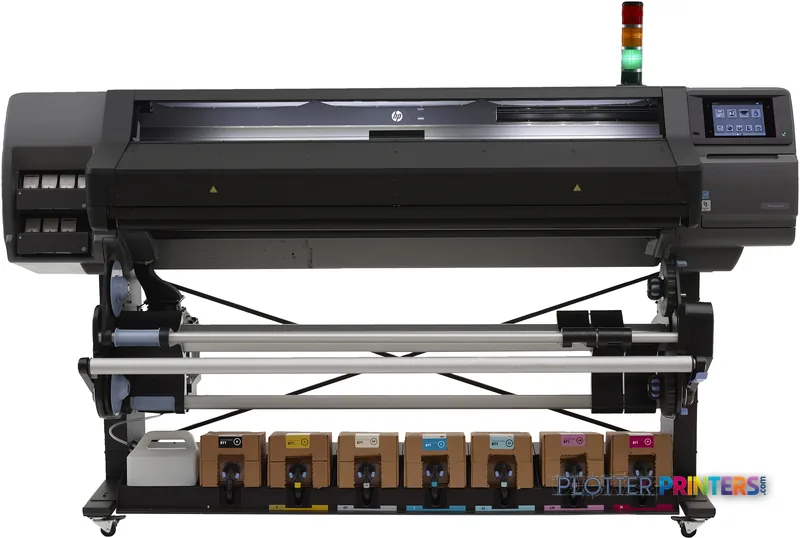

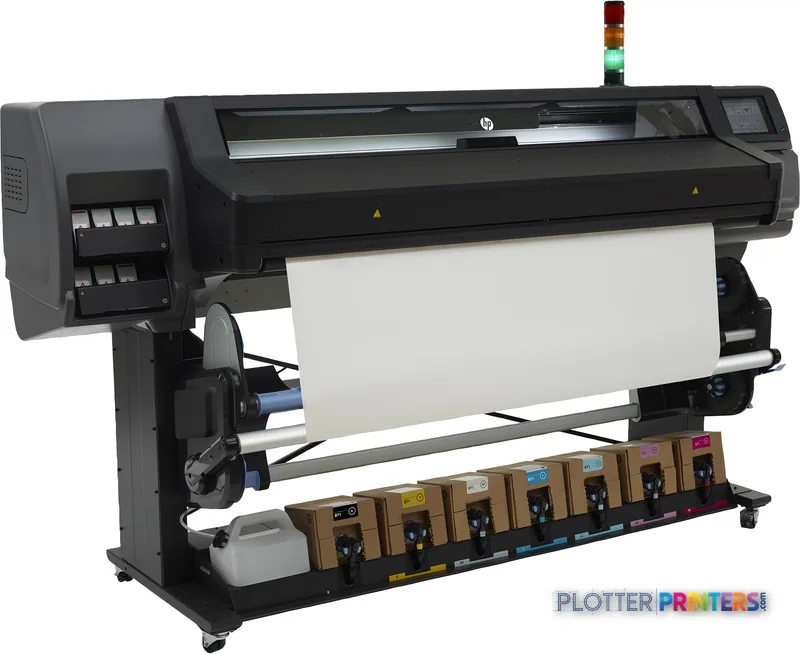

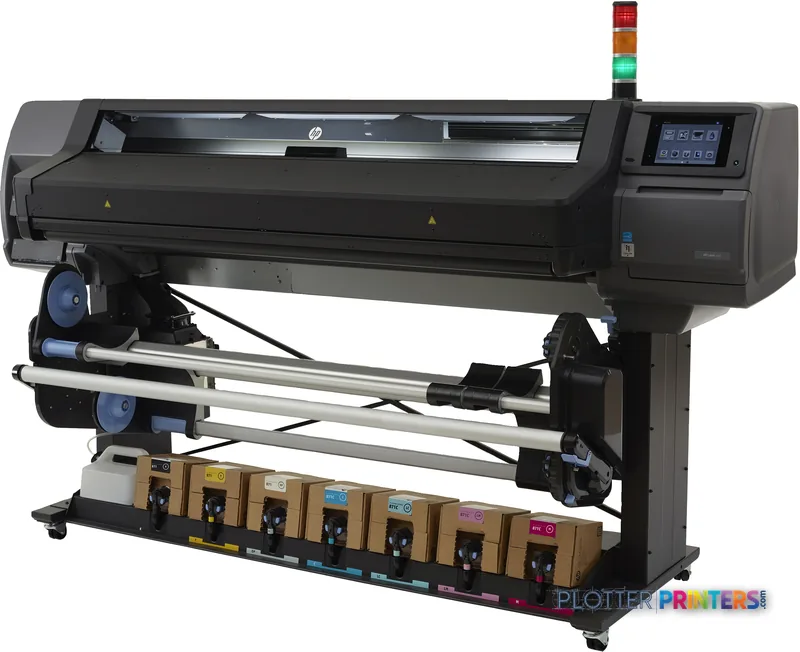

HP Latex 570
64" latex signage printer
- ModelLatex 570
- Prints64" wide
- Score55/100
Authorized HP dealerGenuine hardware & ink
1-year warranty includedExtension plans available
Free shippingContinental U.S.
Plotter specialistsAEC experts, not just sellers
Analyst take
- The HP Latex 570 Printer is a 64-inch, roll-fed color printer with Ethernet LAN and no Wi-Fi, USB, scanning, or copying.
- HP rates normal-quality output at 91 m²/hr, but loading, trimming, and output handling determine finished work per shift.
- Its 10-to-64-inch supported roll width range suits varied banner and wide-graphic sizes within one print-room workflow.
Not sure if the Latex 570 is right for you?
Compare key specs and an AI analyst read-out against similar models.
- Wide-format reach Prints up to 64" wide on rolls and sheets.
- Fine detail 1200 x 1200 DPI maximum resolution for crisp line work.
- Connectivity Ethernet for shared team printing.
- Verified specs 10 specs checked against the manufacturer datasheet.
- Analyst score Scores 55/100 in our class-relative rating.
Overview
Built for the work
HP Latex 570 Printer, Latex printing, 1200 x 1200 DPI, Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow, 91 m²/hr, Banner, 0.5 mm
- 64″Max print width
- 980 ft²/hRated speed
- 7Ink channels
- 1,200 dpiMax resolution
- 12 moIncluded warranty
Spec Analysis
overall
overall
Features
What sets it apart
Swipe to explore →
Expert analysis
What you should know
Key takeaways
- The HP Latex 570 Printer is a 64-inch, roll-fed color printer with Ethernet LAN and no Wi-Fi, USB, scanning, or copying.
- HP rates normal-quality output at 91 m²/hr, but loading, trimming, and output handling determine finished work per shift.
- Its 10-to-64-inch supported roll width range suits varied banner and wide-graphic sizes within one print-room workflow.
- The listed 9.8-inch maximum roll diameter and 0.02-inch maximum media thickness should be checked against the stock your team actually uses.
- There is no listed same-family step-up or step-down in this catalog set, so cross-brand comparisons need hands-on media and file testing.
The HP Latex 570 Printer is a 64-inch color wide-format machine for teams producing banners and graphics that sit alongside construction-document work. Its 10-to-64-inch roll range gives an AEC print room room to move from a narrow site-notice run to wide coordination graphics without changing platforms. The practical constraint is that this is a print-only device: scanning and copying are not built in.
HP rates normal-quality output at 91 m²/hr. That figure helps size a production window, but it is not a finished-job promise. Loading a roll, checking edge tracking, allowing for handling, and trimming output still determine whether a deadline gets met. Rated speed gets you a banner. Media handling gets you forty banners by Friday.
64" (162.5 cm)Maximum roll width
91 m²/hrHP-rated normal-quality print speedManufacturer-rated specification.
1200 x 1200 DPIMaximum resolution
0.02" (0.5 mm)Media thickness
Where it fits in an AEC operation
This printer makes the most sense where color output is part of project communication: presentation graphics, wayfinding banners, site messaging, color-coded planning material, and visual boards produced from PDF, CAD, BIM, or GIS exports. Its seven-color configuration includes black, cyan, light cyan, light magenta, magenta, and yellow, supporting color work rather than treating it as an occasional afterthought.
The machine has Ethernet LAN, including Gigabit Ethernet, but no Wi-Fi or USB port. That favors a managed print-room setup in which jobs arrive through the network and IT controls access through the wired environment. The built-in display supports local operator interaction, but the specification does not make this a walk-up scan/copy station.
For a small architecture studio, that can be a sensible division of labor: use the device for wide color output and keep document scanning elsewhere. For a busy contractor or central print room, ask whether the team needs an operator present for media changes and output handling during rush periods.
The shop-floor details to check first
The footprint matters. The printer is 101 inches wide, 31 inches deep, and 56 inches high, with a listed weight of 551.2 lbs. Plan the delivery route, service clearance, and a stable production area before committing floor space. It operates at 15–30 °C and 20–80% relative humidity; those are facility requirements, not minor footnotes for a print room near an exterior loading area.
Roll handling deserves the same attention as print resolution. Supported roll widths run from 10 to 64 inches, and maximum roll diameter is 9.8 inches. Check your actual banner stock, core practices, and how often operators will switch widths. The optional HP Latex 500 Media Lifter and HP Series 300/500 Edge Holder Kit are relevant conversations where loading ergonomics or edge control affect daily output.
Ask three things: what feeds it, what dries and handles it after printing, and who fixes it when a deadline is live. An hour of downtime is an operator standing still and a site package waiting.
Estimate print time from the verified rated speed, then leave time for roll loading, output handling, trimming, and any downstream finishing.
One set: – · Weekly plotting time: –
Computed from the manufacturer's rated 980 ft²/h. Real-world mixed sets run slower — treat this as a best case for comparing machines, not a promise.
Position in the comparison set
There is no listed in-family step-up or step-down model in this catalog comparison set, so a direct same-family ladder cannot be stated here. If the decision is between 64-inch platforms, review the Epson F9470 64-in, Epson SC-F9400 64-in, Epson SC-R5000 64-in, and Epson SC-R5000L 64-in against the media, network, service, and finishing realities of your shop.
The Epson SC-R5000 64-in and Epson SC-R5000L 64-in are listed with 1200 x 2400 DPI maximum resolution, while the HP Latex 570 Printer is listed at 1200 x 1200 DPI. Resolution alone does not settle AEC suitability. Run representative linework, small annotations, color fills, and the actual banner media you expect to buy. Use the side-by-side comparison to keep the specification review disciplined.
Compare before you configure
The read
The HP Latex 570 Printer is a practical fit for an AEC team that needs networked, 64-inch color banner and graphic output and has a separate scanning/copying workflow. It is less appropriate when wide-format scanning, copying, Wi-Fi submission, or unattended finishing is central to the job. Validate output on your real files and media, confirm local service coverage, and specify the appropriate HP 831 or HP 871 consumables and the HP Latex User Maintenance Kit with the service plan. The small-shop angle is simple: buy it for the work you actually produce every week, not for a peak-day specification.
Spec analysis
How the specs grade
Overall performance
- This printer
- HP Latex 830
Category leaders best latex signage printers, by dimension
Verified specifications
The specs that decide it
| Print technology | HP Latex (water-based inks) |
|---|---|
| Maximum media width | 64 in (1,625 mm) |
| Maximum resolution | Up to 1200 x 1200 dpi |
| Ink cartridges / printheads | 7 cartridges / 7 printheadsmanufacturer-verified |
| Ink cartridge capacity | 3 liter and 775 mlmanufacturer-verified |
| Maximum roll length | 328.1 ft (100 m)manufacturer-verified |
| Roll weight capacity | 121.3 lb (55 kg)manufacturer-verified |
| Connectivity | Gigabit Ethernet (1000Base-T); no USB, no Wi-Fi |
| Power consumption (typical) | 4 kW |
| Weight | 551.2 lb (250 kg) |
manufacturer-verified = checked against the manufacturer’s official datasheet, not aggregator data. Everything else is standards-body / catalog data we consider reliable.
Specifications
Full technical detail
Print technologyLatex printing
Max resolution1200 x 1200 DPI
Max print width64"
ConnectivityEthernet (Gigabit LAN)
Use caseGraphics / Production
Printing
| Colour | Yes |
|---|---|
| Print head | 7 |
| Print technology | Latex printing |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Maximum resolution | 1200 x 1200 DPI |
| Number of print cartridges | 7 |
| Print speed (normal quality) | 91 m²/hr |
Performance
| HP segment | Business |
|---|---|
| Certification | WEEE, RoHS, REACH, EPEAT Bronze, OSHA, CE |
| Product colour | Black, Grey |
| Built-in display | Yes |
| Sound power level (standby) | 39 dB |
| Sound pressure level (printing) | 59 dB |
Paper handling
| Media thickness | 0.5 mm |
|---|---|
| Maximum roll width | 162.5 cm |
| Maximum roll diameter | 25 cm |
| Roll widths supported | 254 – 1625 mm |
| Paper tray media types | Banner |
Ports & interfaces
| Wi-Fi | No |
|---|---|
| USB port | No |
| Ethernet LAN | Yes |
| RJ-45 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Weight & dimensions
| Depth | 792 mm |
|---|---|
| Width | 2560 mm |
| Height | 1420 mm |
| Weight | 250 kg |
Power
| Power consumption (typical) | 4000 W |
|---|
Operational conditions
| Operating temperature (T-T) | 15 – 30 °C |
|---|---|
| Storage relative humidity (H-H) | 20 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
Copying
| Copying | No |
|---|
Scanning
| Scanning | No |
|---|
Packaging data
| Package depth | 1037 mm |
|---|---|
| Package width | 2750 mm |
| Package height | 1689 mm |
| Package weight | 360 kg |
| Quick start guide | Yes |
| Cartridge(s) included | Yes |
Sustainability
| Sustainability certificates | ENERGY STAR |
|---|
Everything that fits the HP Latex 570
The full supplies hub lists every cartridge, printhead, roll and accessory verified against the manufacturer's own documentation for this machine.
22 ink cartridges · 4 printheads · 12 paper & media items · 6 accessories · 2 coverage plans
HP Latex 570 ink and paper →Supplies
Compatible ink, printheads & media
Genuine consumables that fit the HP Latex 570 64-in — only the cartridges, printheads and media compatible with this model.
Ink Cartridges 22
HP 831 Latex Maintenance Cartridge
HP 831C 775-ml Black Latex Ink Cartridge
HP 831C 775-ml Cyan Latex Ink Cartridge
HP 831C 775-ml Magenta Latex Ink Cartridge
HP 831C 775-ml Yellow Latex Ink Cartridge
HP 831C 775-ml Light Magenta Latex Ink Cartridge
HP 831 775-ml Latex Optimizer Ink Cartridge
HP 831B 775-ml Light Cyan Latex Ink Cartridge
HP 831A 775-ml Light Cyan Latex Ink Cartridge
HP 831A 775-ml Cyan Latex Ink Cartridge
HP 831A 775-ml Light Magenta Latex Ink Cartridge
HP 831A 775-ml Magenta Latex Ink Cartridge
HP 831A 775-ml Black Latex Ink Cartridge
HP 831A 775-ml Yellow Latex Ink Cartridge
HP 831A 775-ml Cyan Latex Ink Cartridge
HP 831A 775-ml Black Latex Ink Cartridge
HP 831A 775-ml Light Cyan Latex Ink Cartridge
HP 831A 775-ml Yellow Latex Ink Cartridge
HP 831A 775-ml Magenta Latex Ink Cartridge
HP 831 775-ml Latex Optimizer Ink Cartridge
HP 831A 775-ml Light Magenta Latex Ink Cartridge
HP 831C 775-ml Light Cyan Latex Ink CartridgePrintheads 4
Paper & Media 12
Representative image16 mil Water-Resistant Opaque Scrim VinylRepresentative image16 Mil WR Opaque Scrim Vinyl (3″ AC)Representative image15 Mil Water-Resistant Econo Scrim VinylRepresentative image11 Mil Water-Resistant Synthetic BannerRepresentative image10 Mil Solvent Printable PolycarbonateRepresentative image180gsm Solvent Satin PE PaperRepresentative image15 Mil Polycarbonate LaminateRepresentative image15 Mil Textured Co-polymer LaminateRepresentative image200gsm Special Matte Photo PaperRepresentative image10 Mil Water-resistant Blockout Display FilmRepresentative image10 Mil Solvent Blockout Display FilmRepresentative image10 Mil White Opaque BackerAccessories 6
Coverage & Support Plans 2
Questions
Straight answers
Can the HP Latex 570 Printer scan or copy marked-up plan sets?
No. The supplied product data lists both scanning and copying as unavailable, so a separate wide-format scanner or multifunction workflow is required.
What is the widest roll the printer accepts?
The maximum roll width is 64 inches, with supported roll widths from 10 to 64 inches. Maximum roll diameter is listed as 9.8 inches.
Is it suitable for a managed AEC network?
It has one RJ-45 Ethernet LAN port and supports 10, 100, and 1000 Mbit/s Ethernet. It does not have Wi-Fi or a USB port.
What output speed should a print room plan around?
HP lists normal-quality print speed at 91 m²/hr. Treat that as a printer specification; real production time also includes roll loading, job preparation, output handling, and trimming.
Which consumables should buyers confirm with their supplier?
Compatible families listed for this printer include HP 831 inks, HP 871 inks, and the HP Latex User Maintenance Kit. Confirm the correct family and service arrangement for the installed configuration.
