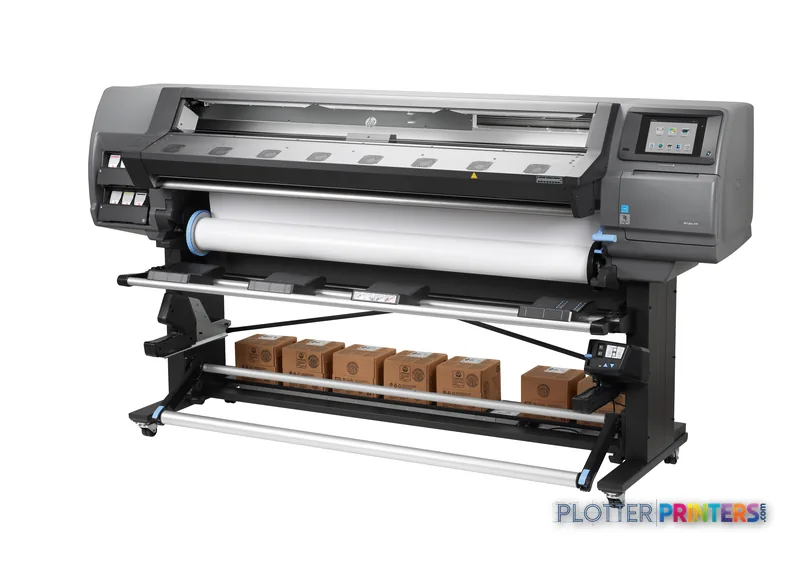

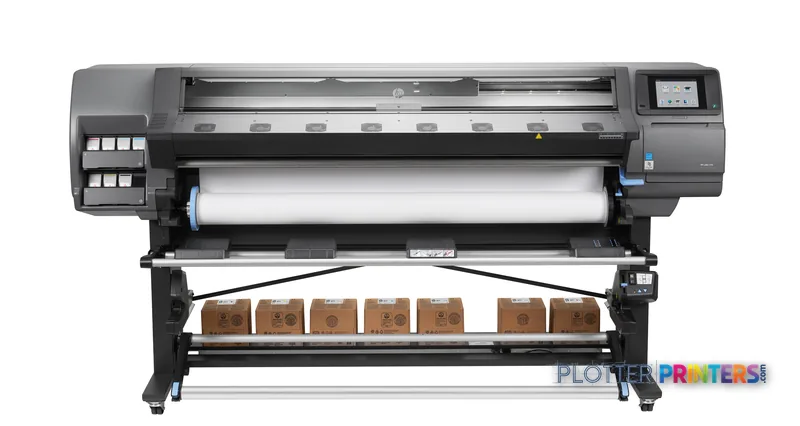

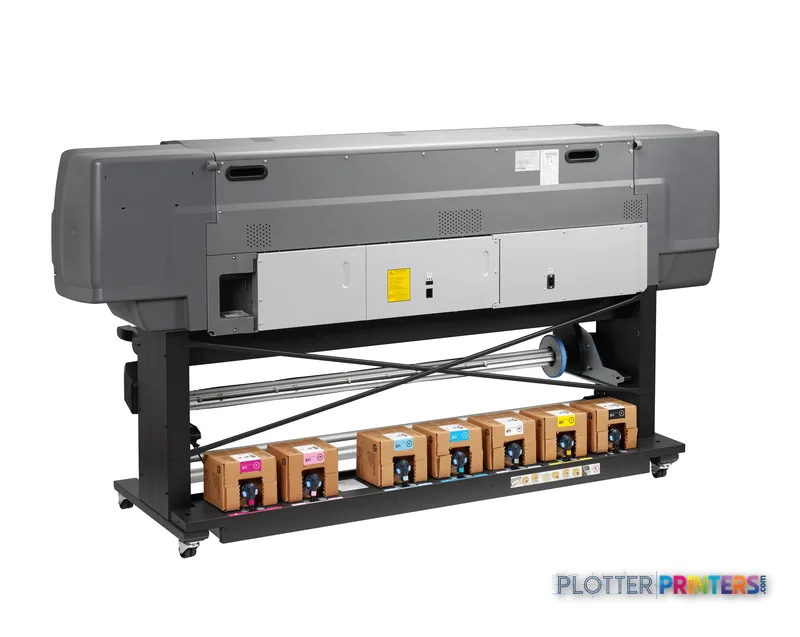

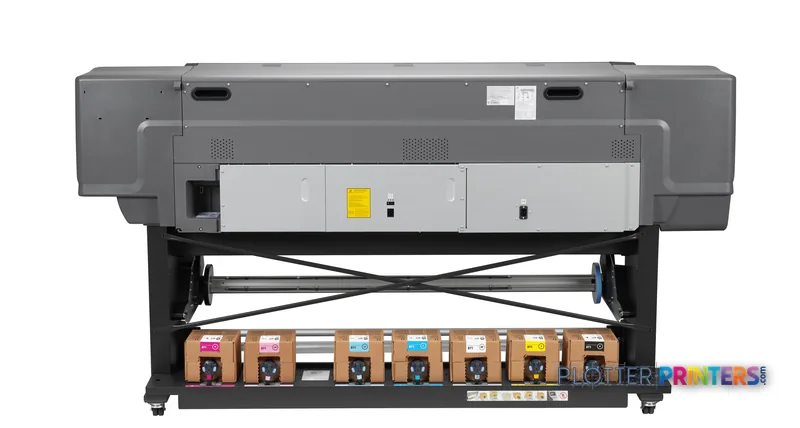

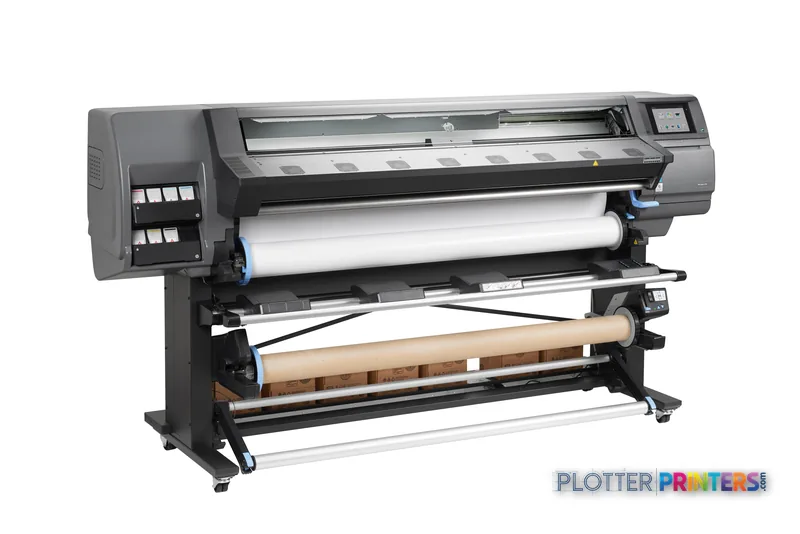

HP Latex 370

The HP 370 makes the most sense where an architecture, engineering or construction team produces finished visual output rather than only technical drawing sets. Think site-identification banners, safety and directional graphics, project boards, color-coded phasing exhibits, map displays and large presentation panels. Its 64-inch width gives a shop room to impose wide graphics without working around a narrower device.

The machine has Ethernet LAN, including 10, 100 and 1000 Mbit/s connectivity, plus a built-in display. There is no Wi-Fi or USB port, so plan for network-based submission rather than casual local printing. That can suit an IT-managed print room, provided the team confirms driver, queue and access-control requirements during evaluation.

For media work, ask three things: what feeds it, what finishes it, who fixes it. The HP Series 300 Media Loading Accessory, HP Series 300/500 Edge Holder Kit and compatible 2-inch or 3-inch spindles address the practical loading side. They do not replace a workflow for trimming, mounting or cutting after print.

Six printheads and seven print cartridges support Black, Cyan, Light Cyan, Light Magenta, Magenta and Yellow printing colors. Compatible supply families listed for this machine include HP 831 and HP 871 Latex inks, HP 831 printheads, and the HP Latex User Maintenance Kit. Confirm the exact supported cartridge configuration with the supplying partner before standardizing stock; a stalled print room often starts with the wrong supply on the shelf.

At 55 dB sound pressure while printing and typical power consumption of 4600 W, this is not an invisible desktop peripheral. Put it where its operating noise, heat and roll handling fit the room. The specified operating range is 15–30 °C and 20–80% relative humidity. It carries ENERGY STAR certification.

For a small studio, that means being honest about frequency of use and floor space. A machine that is productive for a shared graphics room can be oversized if the team only occasionally needs a site banner or presentation panel.

There is no in-family step-up or step-down model in the supplied catalog set, so the sensible comparison is workflow-based rather than a forced family ladder. The Epson F9470 64-in, Epson SC-F9400 64-in, Epson SC-R5000 64-in and Epson SC-R5000L 64-in are the named same-width alternatives available for review here.

Do not select among them on resolution figures alone. Bring a real AEC file set: a small-text legend, a color-coded utility map, a dense PDF exhibit and the actual banner material. Check line readability, color intent, edge behavior, operator steps and the time from loaded roll to finished piece. Use the side-by-side comparison to keep the discussion tied to listed specifications.

The HP 370 is less appropriate when the core requirement is scanning marked-up plans, copying legacy drawings, printing ordinary plan sets, or running mixed-size technical documents from a multifunction system. Those are different workflows and deserve a different class of device.
